System Diagram [10/2018 - 08/2021]

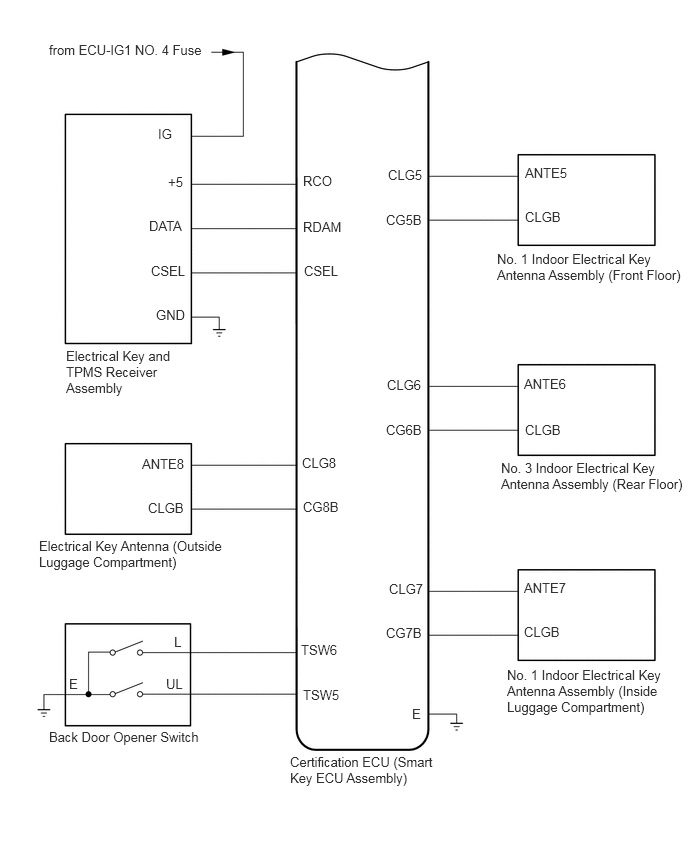

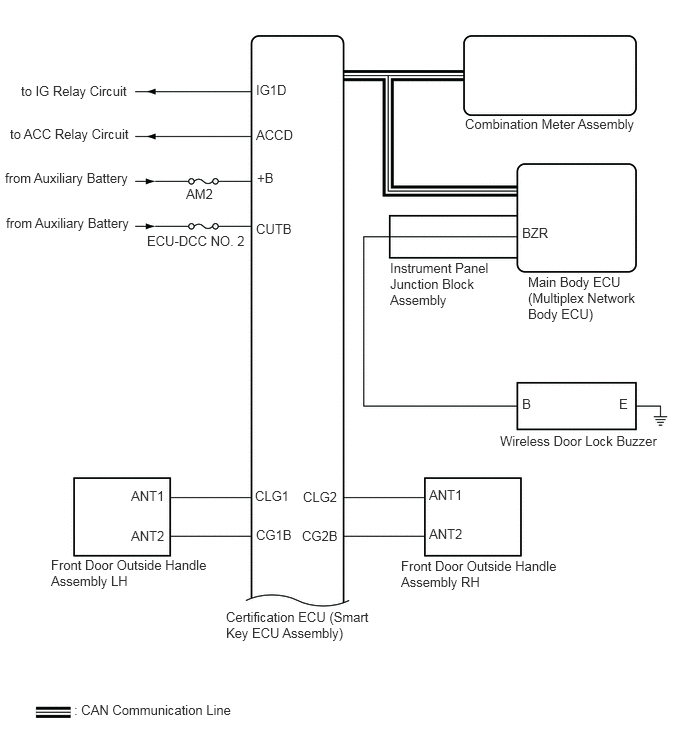

- SMART ACCESS SYSTEM WITH PUSH-BUTTON START (for Entry Function)
- SMART ACCESS SYSTEM WITH PUSH-BUTTON START (for Start Function)
Refer to SYSTEM DIAGRAM [10/2018 - 08/2021]
- POWER DOOR LOCK CONTROL SYSTEM
Refer to SYSTEM DIAGRAM [10/2018 - 07/2022]
- WIRELESS DOOR LOCK CONTROL SYSTEM
Refer to SYSTEM DIAGRAM [10/2018 - 07/2022]
- POWER BACK DOOR SYSTEM (w/ Power Back Door System)
Refer to SYSTEM DIAGRAM [10/2018 - ]
