DTC P0705-13: Transmission Range Sensor "A" Circuit Open; DTC P070562: Transmission Range Sensor "A" Signal Compare Failure [10/2018 - 07/2022]
>>
Wiring Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

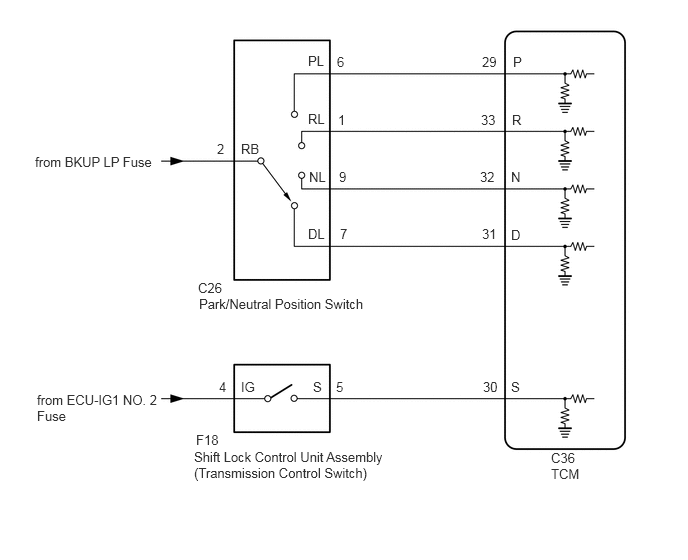

DTC P0705-13: Transmission Range Sensor "A" Circuit Open; DTC P070562: Transmission Range Sensor "A" Signal Compare Failure [10/2018 - 07/2022]: Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
