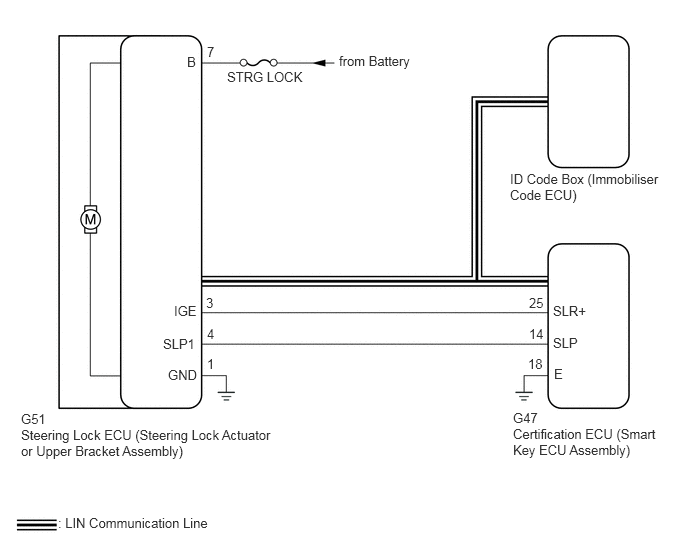

Unable to Unlock Steering Wheel (Engine cannot Start) [06/2018 - 09/2022]: Wiring Diagram

GTY807967Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
