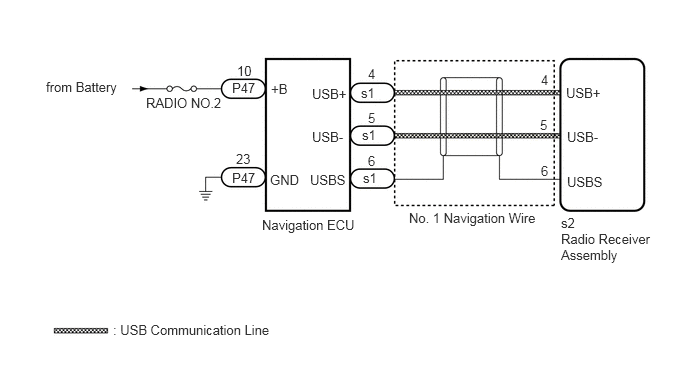

DTC B1543: Extension Module Disconnected 2 [07/2020 - 05/2023]: Wiring Diagram

GTY817250

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
