System Diagram [03/2023 - ]

  1. SMART ACCESS SYSTEM WITH PUSH-BUTTON START (for Start Function)

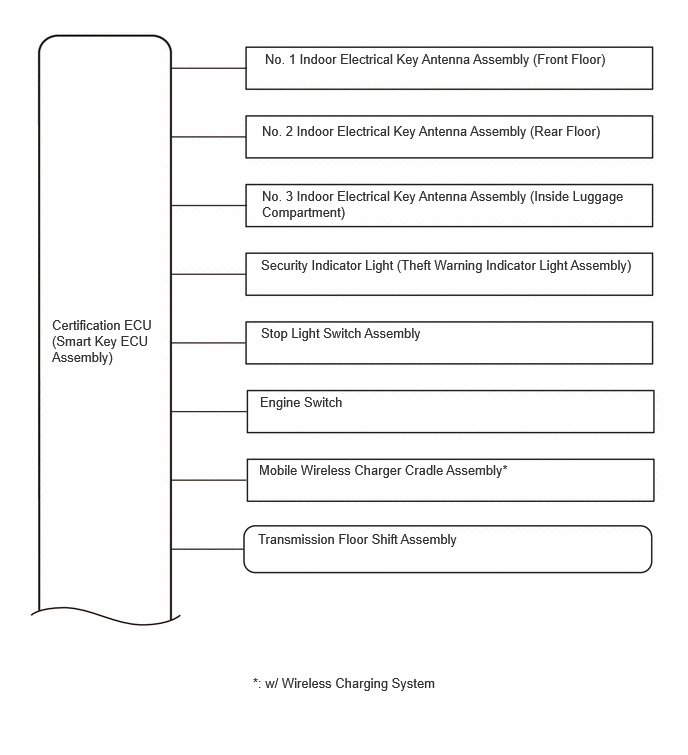

    GTY1204492Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

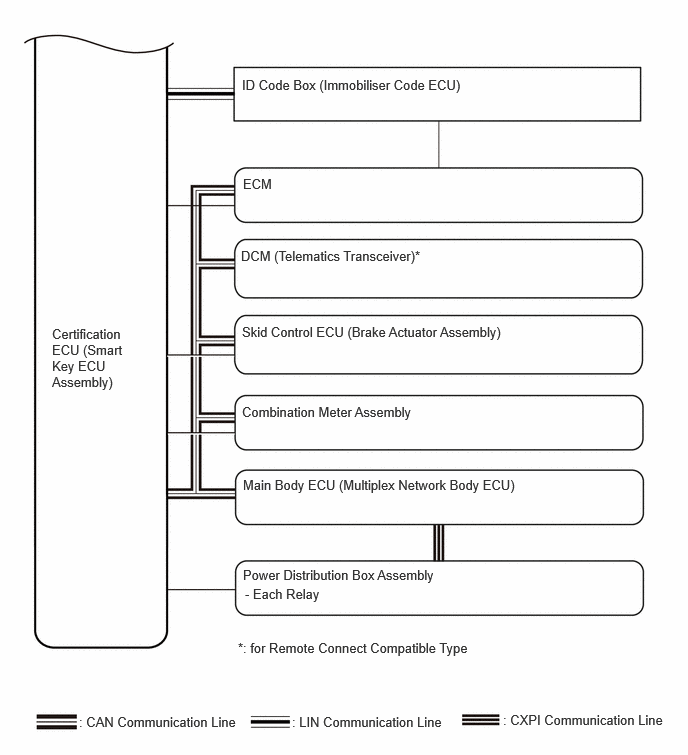

    GTY1203589Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. SMART ACCESS SYSTEM WITH PUSH-BUTTON START (for Entry Function)

    Refer to SYSTEM DIAGRAM [11/2021 - ]
