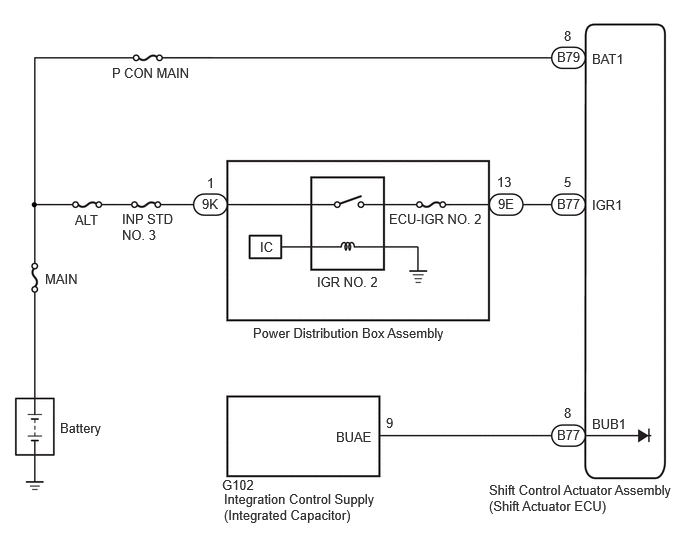

DTC P18A6-00: Gear Shift Control Module "A"/"B" (Sub CPU) Ignition Switch On/Start Position Signal Compare Failure; DTC P18A6-62: Gear Shift Control Module "A"/"B" Ignition Switch On/Start Position Signal Compare Failure [11/2021 - ]: Wiring Diagram

GTY1064954Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
