System Diagram [08/2019 - 07/2020]

Fig 1: Lighting System (W/O Automatic Headlight Beam Level Control System) Wiring Diagram (1 Of 12) [08/2019 - 07/2020]
GTY962527Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Lighting System (W/O Automatic Headlight Beam Level Control System) Wiring Diagram (2 Of 12) [08/2019 - 07/2020]
GTY960599Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

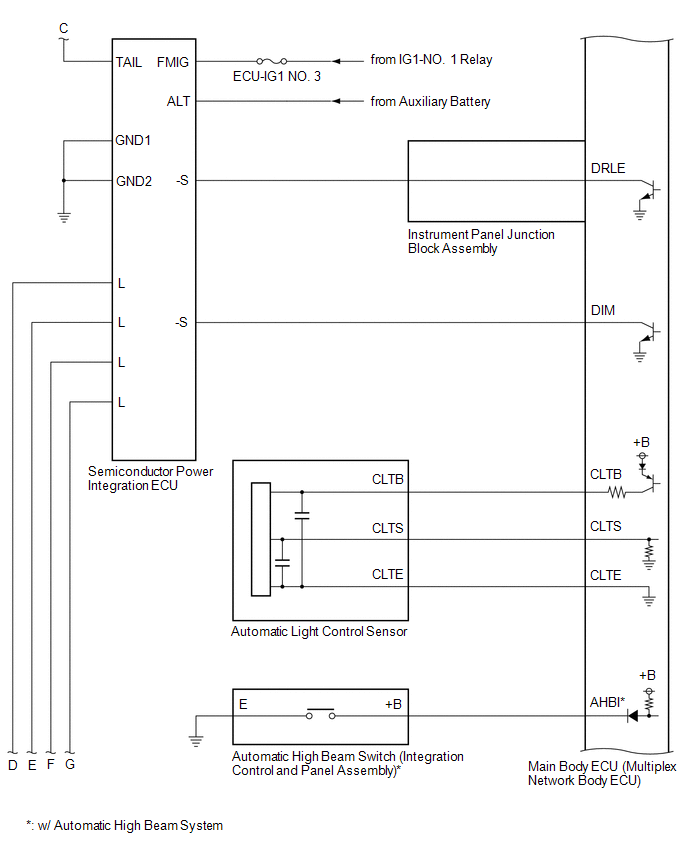

Fig 3: Lighting System (W/O Automatic Headlight Beam Level Control System) Wiring Diagram (3 Of 12) [08/2019 - 07/2020]
GTY961247Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

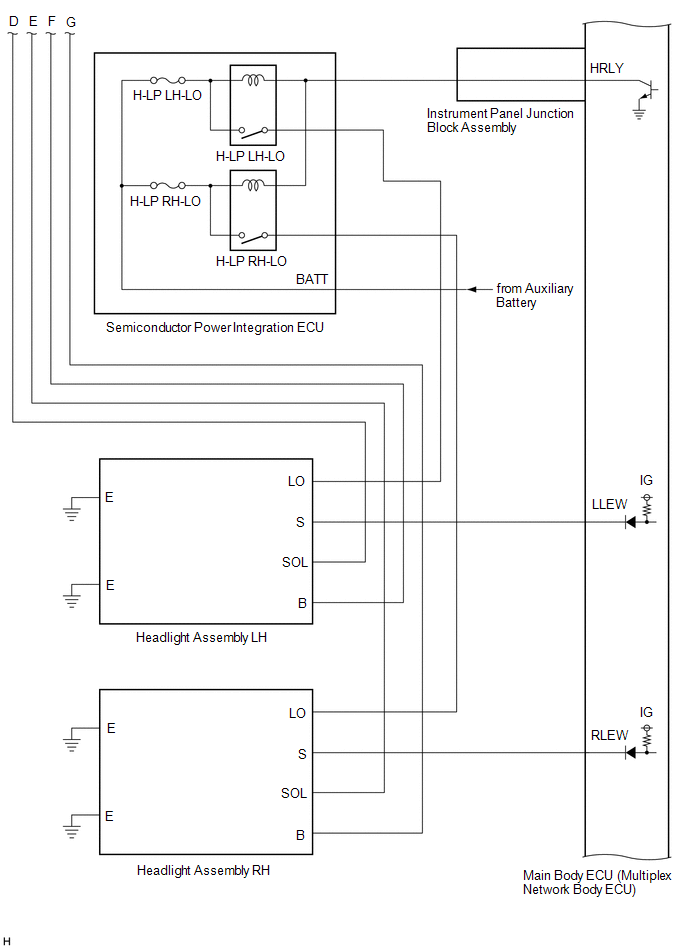

Fig 4: Lighting System (W/O Automatic Headlight Beam Level Control System) Wiring Diagram (4 Of 12) [08/2019 - 07/2020]
GTY961696Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 5: Lighting System (W/O Automatic Headlight Beam Level Control System) Wiring Diagram (5 Of 12) [08/2019 - 07/2020]
GTY961179Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

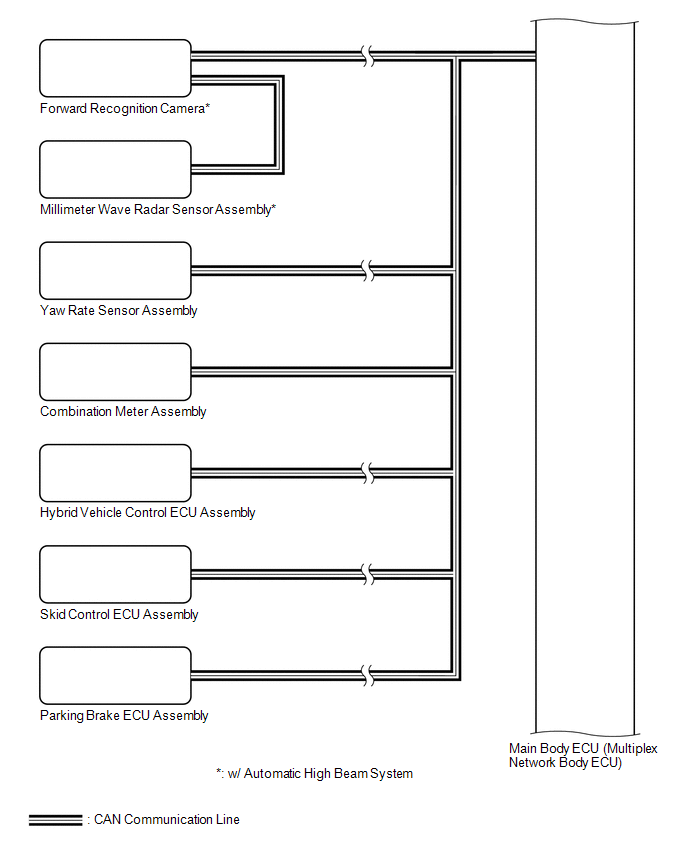

Fig 6: Lighting System (W/O Automatic Headlight Beam Level Control System) Wiring Diagram (6 Of 12) [08/2019 - 07/2020]
GTY963086Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

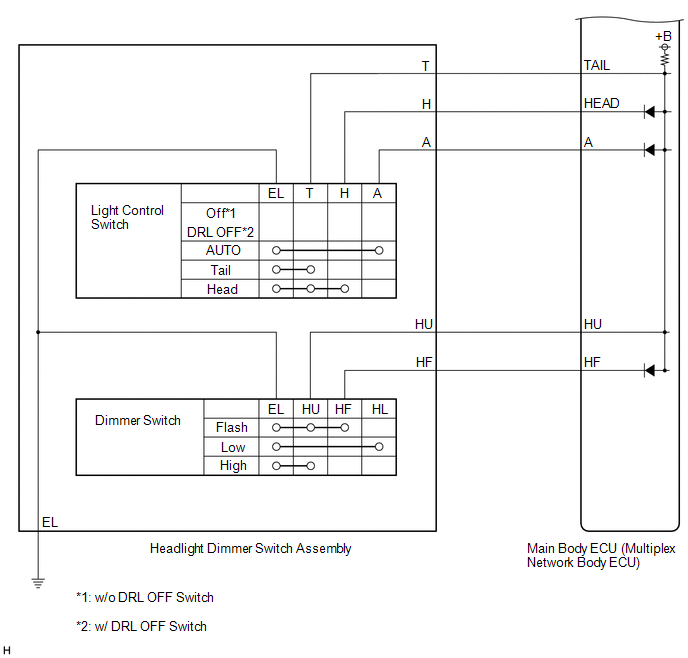

Fig 7: Lighting System (W/O Automatic Headlight Beam Level Control System) Wiring Diagram (7 Of 12) [08/2019 - 07/2020]
GTY960537Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 8: Lighting System (W/O Automatic Headlight Beam Level Control System) Wiring Diagram (8 Of 12) [08/2019 - 07/2020]
GTY961020Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

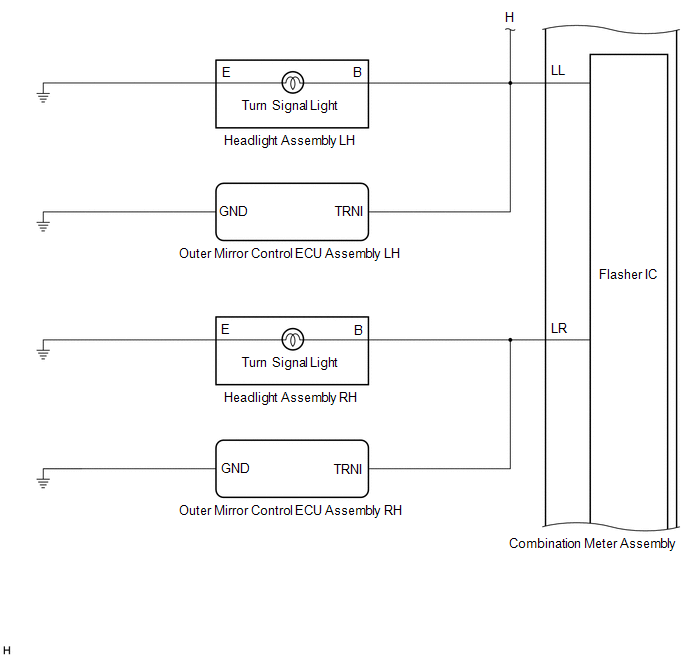

Fig 9: Lighting System (W/O Automatic Headlight Beam Level Control System) Wiring Diagram (9 Of 12) [08/2019 - 07/2020]
GTY961096Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 10: Lighting System (W/O Automatic Headlight Beam Level Control System) Wiring Diagram (10 Of 12) [08/2019 - 07/2020]
GTY962036Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 11: Lighting System (W/O Automatic Headlight Beam Level Control System) Wiring Diagram (11 Of 12) [08/2019 - 07/2020]
GTY961190Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

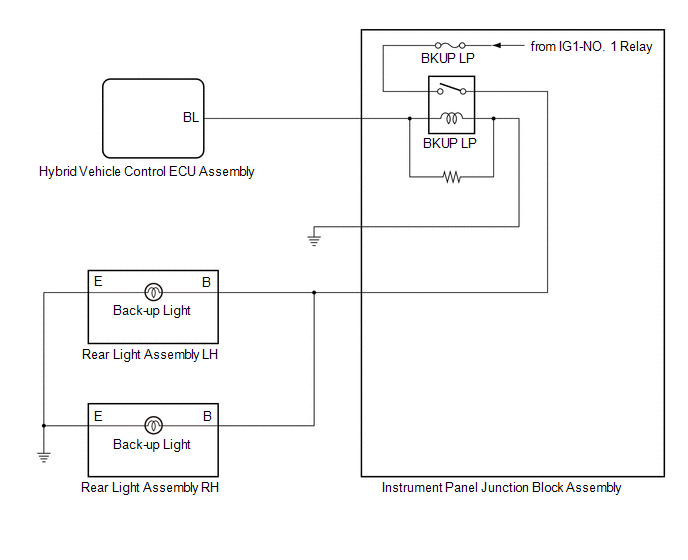

Fig 12: Lighting System (W/O Automatic Headlight Beam Level Control System) Wiring Diagram (12 Of 12) [08/2019 - 07/2020]
GTY962659Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

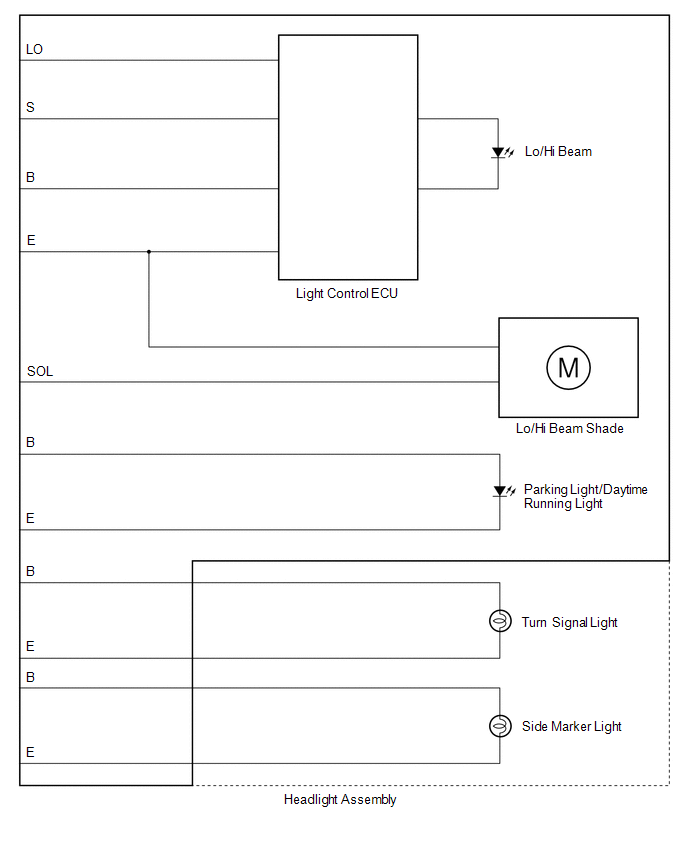

  1. HEADLIGHT ASSEMBLY CIRCUIT
    Fig 13: Lighting System (W/O Automatic Headlight Beam Level Control System) Headlight Assembly Circuit [08/2019 - 07/2020]
    GTY961887Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
