System Diagram [10/2015 - ]

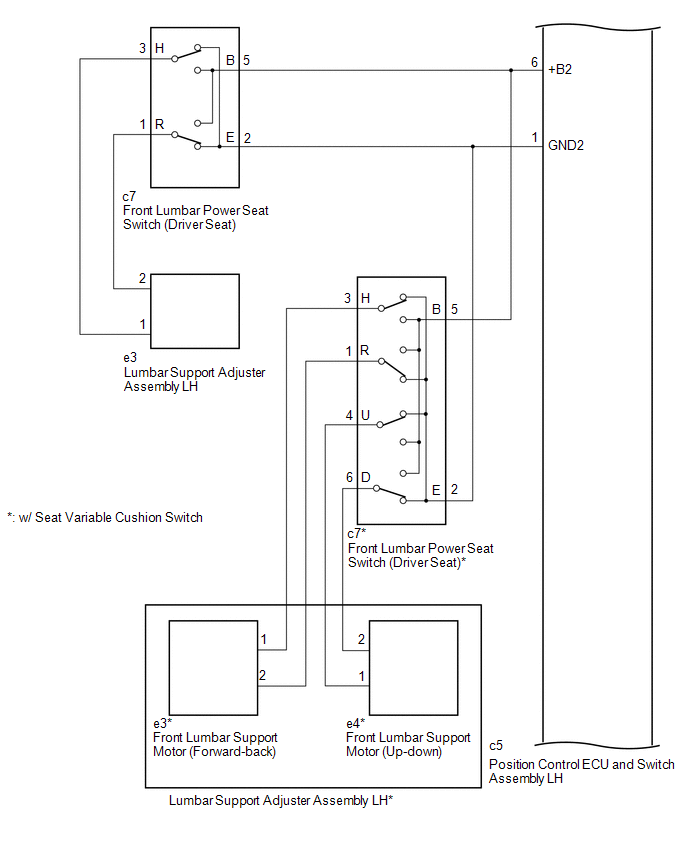

Fig 1: Front Power Seat Control System Diagram (W/ Memory) (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

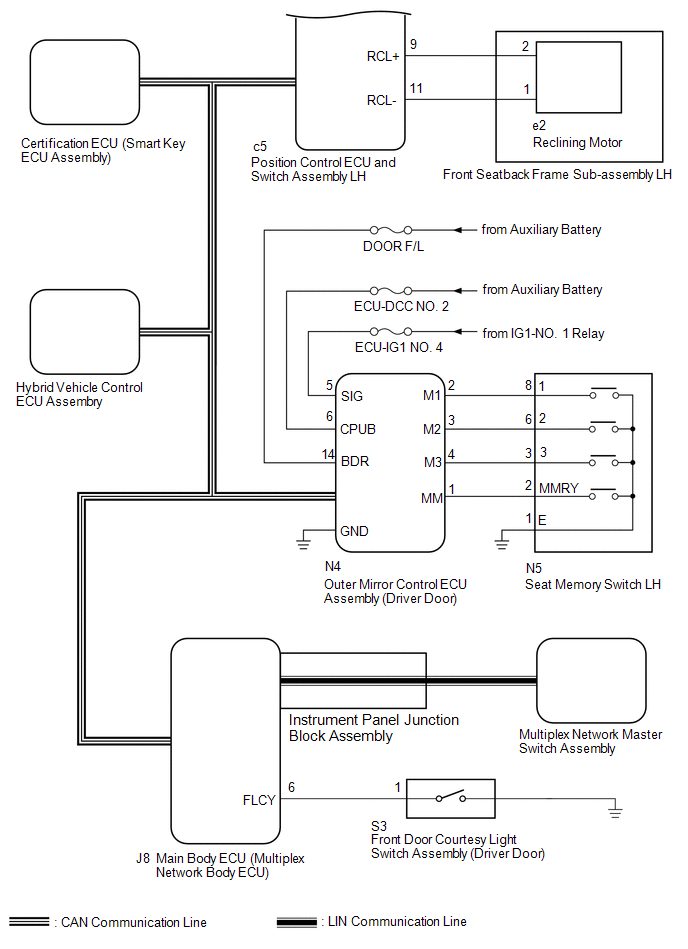

Fig 2: Front Power Seat Control System Diagram (W/ Memory) (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

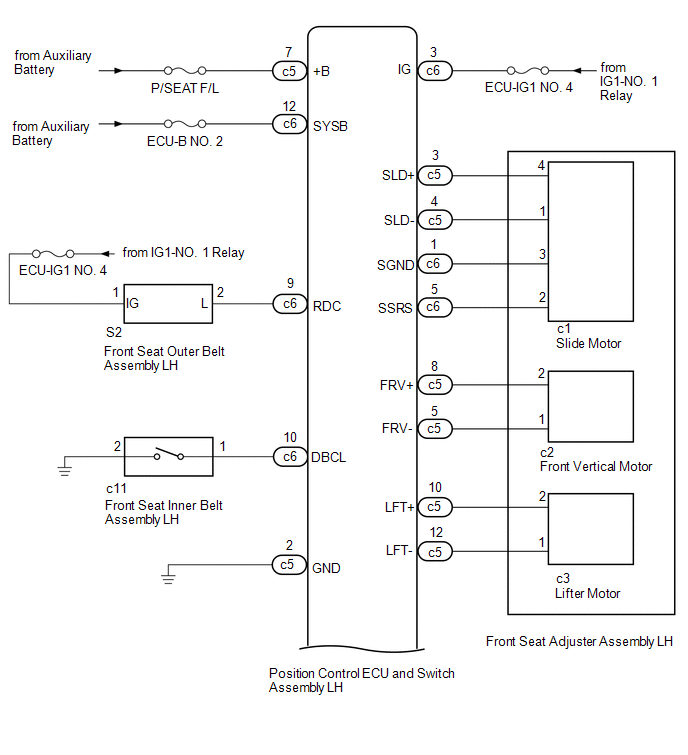

Fig 3: Front Power Seat Control System Diagram (W/ Memory) (3 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

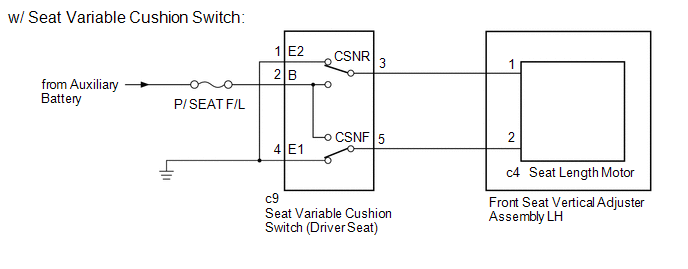

Fig 4: Front Power Seat Control System Diagram (W/ Memory) (4 Of 4)

COMMUNICATION TABLE

Sender	Receiver	Signal	Line
Hybrid Vehicle Control ECU Assembly	Main Body ECU (Multiplex Network Body ECU)	Transmission information Shift position P signal	CAN
Outer Mirror Control ECU Assembly (Driver Door)	Main Body ECU (Multiplex Network Body ECU)	M1 switch signal M2 switch signal M3 switch signal SET switch signal	CAN
Main Body ECU (Multiplex Network Body ECU)	Position Control ECU and Switch Assembly LH	Shift position P signal Vehicle speed signal Transmission information Driving position buzzer request Driver seat position request Driver seat position data	CAN
Certification ECU (Smart Key ECU Assembly)	Main Body ECU (Multiplex Network Body ECU)	Power switch signal Memory call replay request Key identification No. 1 to No. 7 acquisition condition	CAN
Position Control ECU and Switch Assembly LH	Main Body ECU (Multiplex Network Body ECU)	State signal of driver seat State signal of driving position buzzer	CAN
Multiplex Network Master Switch Assembly	Main Body ECU (Multiplex Network Body ECU)	Door control switch signal	LIN
