System Diagram [10/2019 - 08/2021]

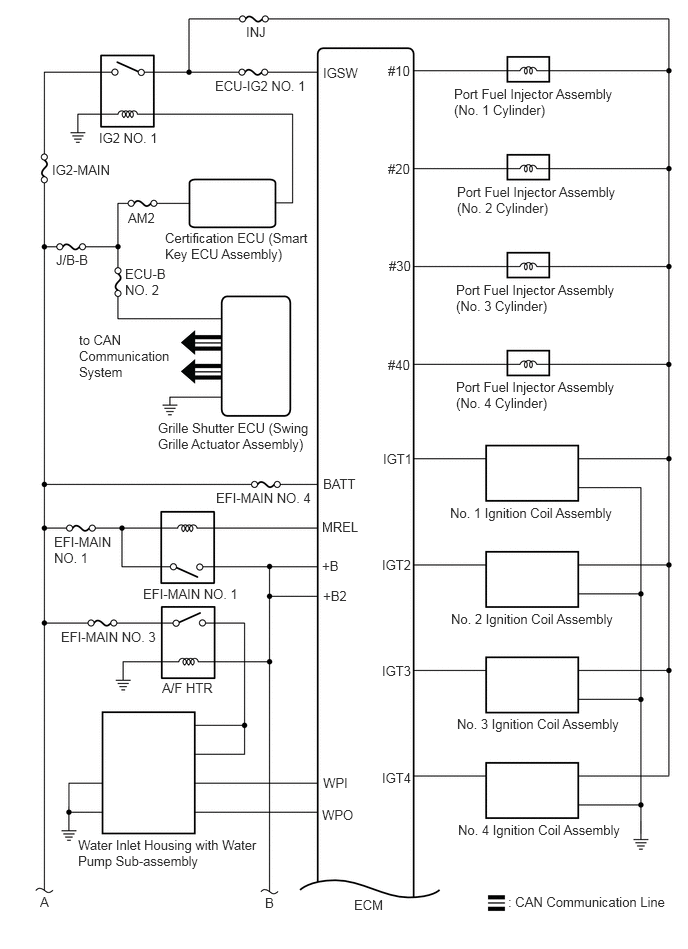

GTY801364Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

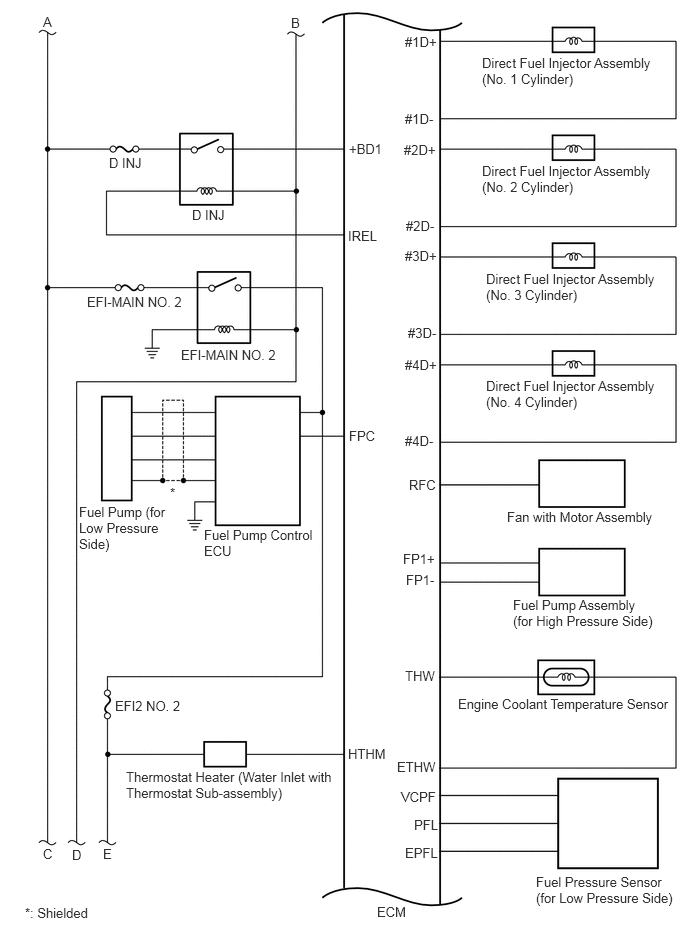

GTY947867Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

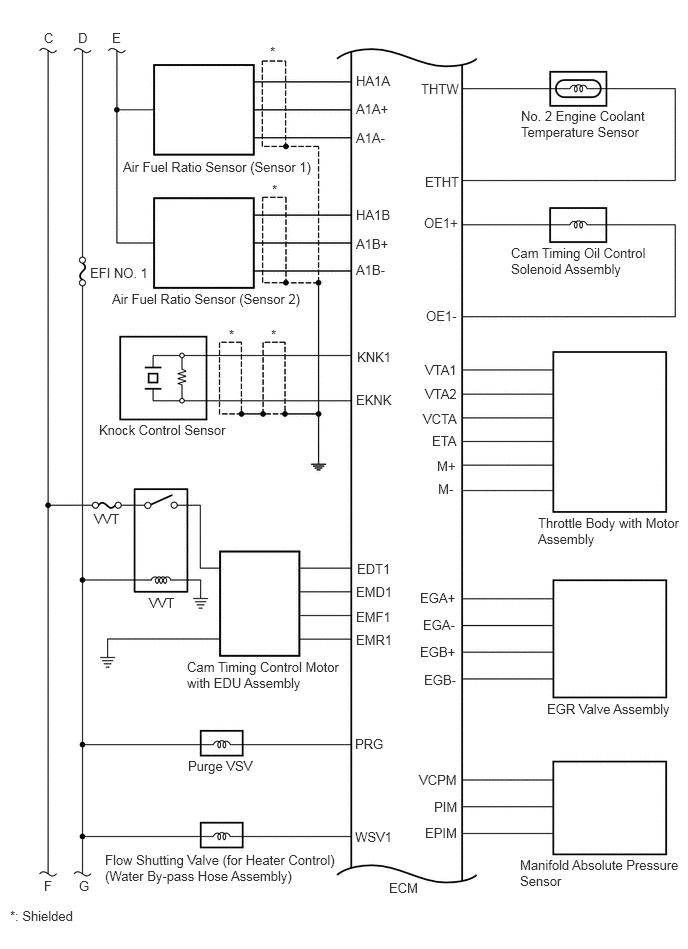

GTY836737Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

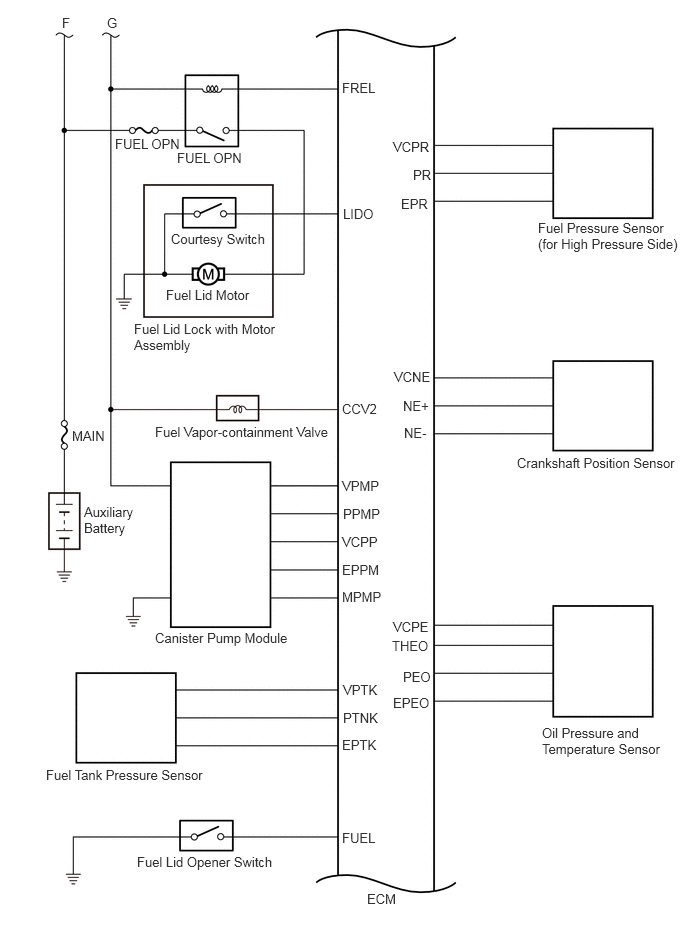

GTY947545Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

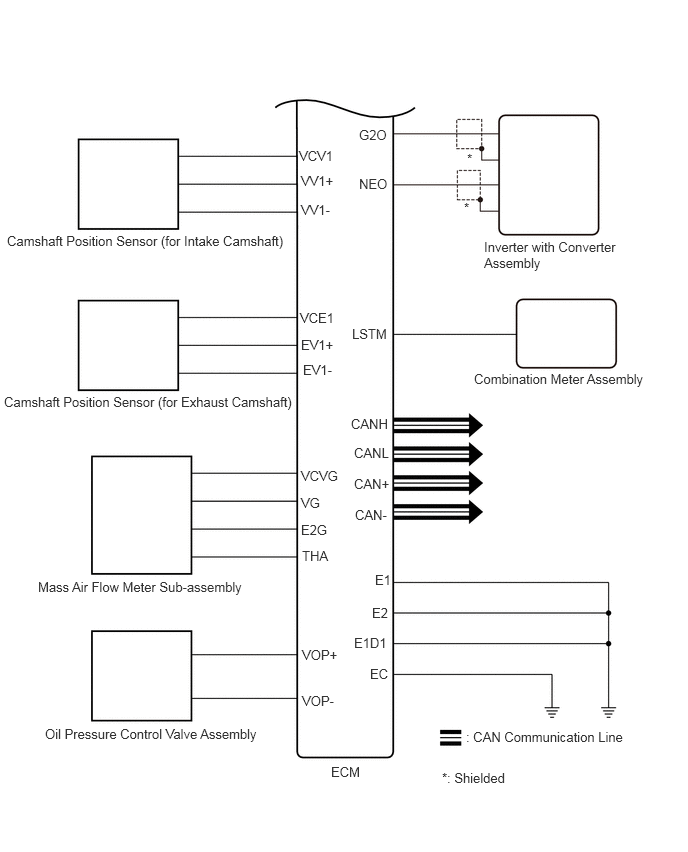

GTY948130Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
