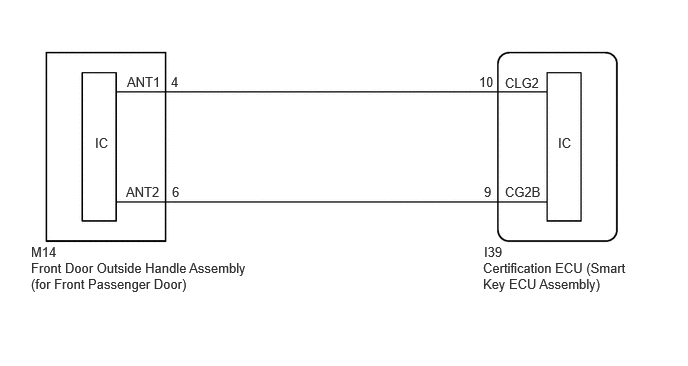

Front Passenger Side Door Entry Lock Function does not Operate [12/2021 - ]: Wiring Diagram

GTY1081835Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
