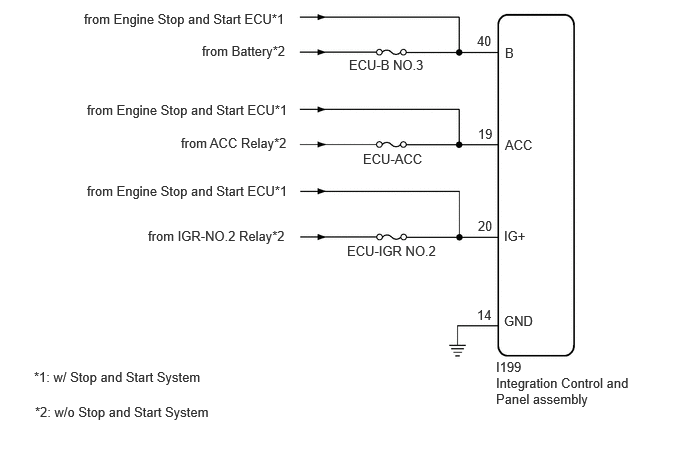

Power Source Circuit [12/2021 - ]: Wiring Diagram

GTY1082194Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
