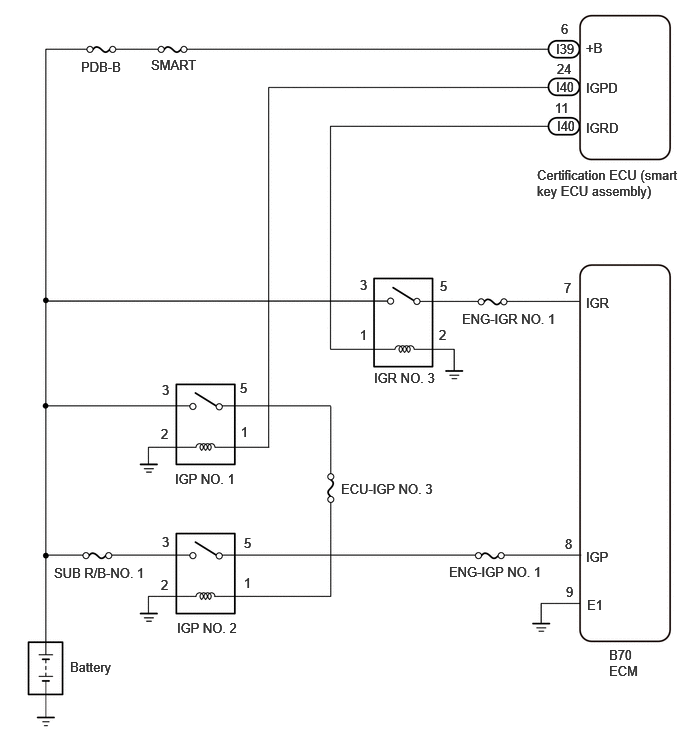

DTC P2533-14: Ignition Switch On/Start Position Circuit Low Circuit Short to Ground or Open [12/2021 - ]: Wiring Diagram

GTY1078726Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
