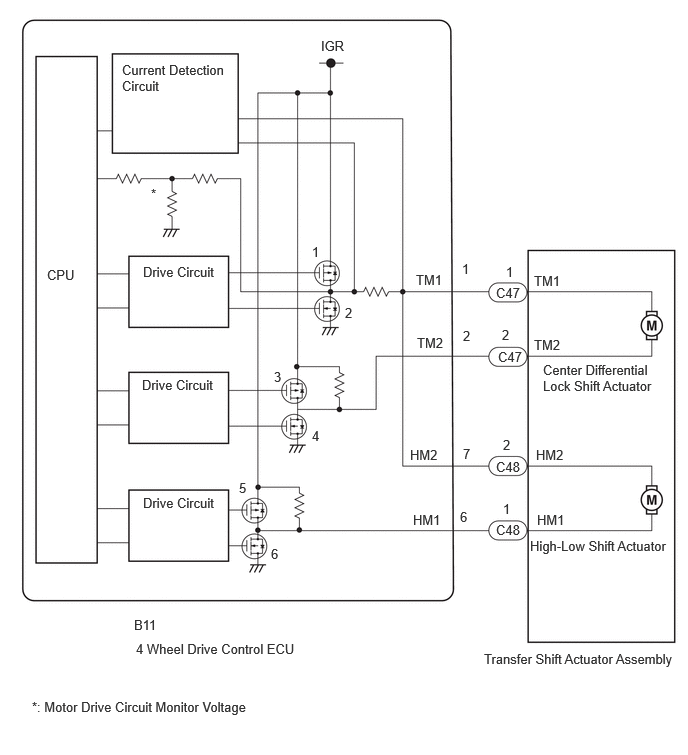

DTC P17A8-11: 4WD/AWD Transfer Case Shift Motor Control Circuit Short to Ground; DTC P17A8-12: 4WD/AWD Transfer Case Shift Motor Control Circuit Short to Battery [12/2021 - ]: Wiring Diagram

GTY1061425Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
