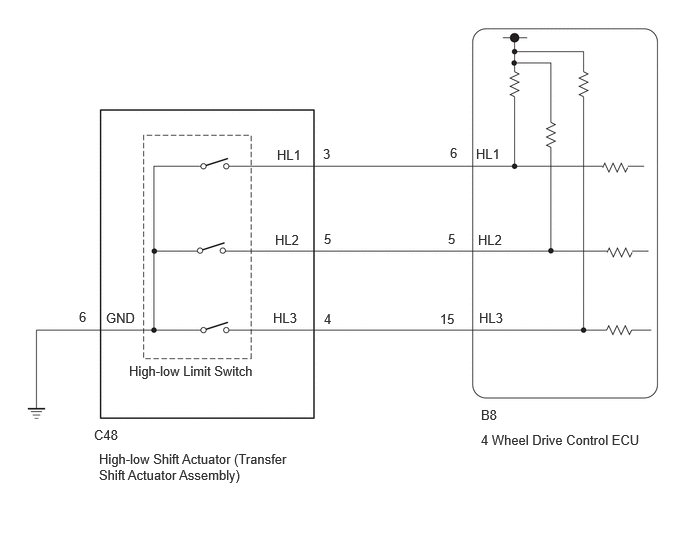

DTC P17FB-62: 4WD/AWD Transfer Case H-L Motor Limit Switch Signal Compare Failure [12/2021 - ]: Wiring Diagram

GTY1061405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
