Reassembly [12/2021 - ]: Procedure

  1. INSTALL MULTIPLEX TILT AND TELESCOPIC ECU
  2. INSTALL STEERING LOCK ACTUATOR WITH ECU ASSEMBLY
    NOTE:

    If the steering lock actuator with ECU assembly is replaced, refer to Registration.

    Refer to REGISTRATION [12/2021 - ]

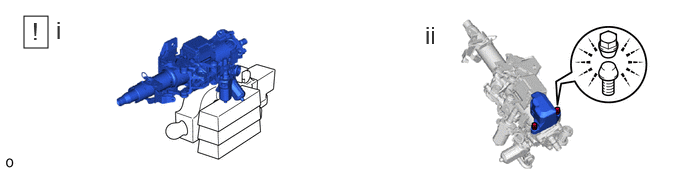

    1. GTY1064582Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Secure the steering column assembly in a vise between aluminum plates.
        NOTE:
        • Do not overtighten the vise.
        • Do not clamp the steering lock actuator with ECU assembly in the vise.
      2. Install the steering lock actuator with ECU assembly with 2 new steering lock set bolts, and tighten the bolts until they break off.
