Power Source Mode does not Change to ON (IG and ACC) [11/2021 - ]: Procedure

1. Get into the vehicle while carrying the electrical key transmitter sub-assembly that has already been registered.
2. Move the shift position to P.
3. Press the engine switch with the brake pedal released and check that the power source mode changes.

   Refer to OPERATION CHECK [11/2021 - 03/2023] , or refer to OPERATION CHECK [03/2023 - ]

   Result

   Result	Proceed to
   Power source mode cannot be changed when electrical key transmitter sub-assembly is in push button start function operation range for front side	A
   Power source mode cannot be changed when electrical key transmitter sub-assembly is in push button start function operation range for rear side	B
   Power source mode cannot be changed when electrical key transmitter sub-assembly is in push button start function operation range for inside luggage compartment	C
   Power source mode cannot be changed	D

Result:

B

See step  6

Result:

C

See step  10

Result:

D

See step  14

Result:

A

See step  2

1. Install the transmitter battery to the electrical key transmitter sub-assembly.

   Refer to INSTALLATION [11/2021 - ]

2. Bring the electrical key transmitter sub-assembly near the No. 1 indoor electrical key antenna assembly (front floor) and perform a smart access system with push-button start check.

   Refer to OPERATION CHECK [11/2021 - 03/2023] , or refer to OPERATION CHECK [03/2023 - ]

   NOTE:

   Communication may not be possible if the electrical key transmitter sub-assembly is within 0.2 m (0.656 ft.) of the No. 1 indoor electrical key antenna assembly (front floor).

   HINT:

   • As the effect of wave interference decreases by moving the electrical key transmitter sub-assembly close to each indoor electrical key antenna assembly, it may be possible to check whether wave interference is the cause of the problem.
   • If the inspection result is that the problem only occurs in certain locations or at certain times of day, the possibility of wave interference is high. Also, added vehicle components may cause wave interference. If installed, remove them and perform the operation check.
   • There may be wave interference if the vehicle is near broadcasting antennas, large video displays, wireless garage door opener systems, wireless security cameras, home security systems, etc. In this case, move the vehicle to a different location and check if there is any improvement.
   • If a tool for checking radio waves, such as a signal strength meter, is available, move around the area while observing both the LF band (used by the vehicle antenna to form the detection area) and RF band (used by the electrical key transmitter sub-assembly for transmission) to check for locations where there is wave interference.

   OK

   The engine starts when the electrical key transmitter sub-assembly is held near each indoor electrical key antenna assembly and the engine switch is pressed with the brake pedal depressed.

   Result

   Proceed to
   OK
   NG

Result:

OK

AFFECTED BY WAVE INTERFERENCE

Result:

NG

See step  3

1. Check the following antennas in key diagnostic mode.
2. Check the No. 1 indoor electrical key antenna assembly (front floor).

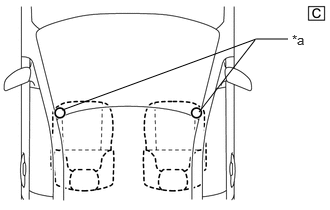

   When the electrical key transmitter sub-assembly is at either inspection point, check that the wireless buzzer sounds.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Electrical Key Transmitter Sub-assembly Inspection Point

   The illustrations shown are examples only.

   HINT:

   • Select either channel 1 or channel 2 and perform the key diagnostic mode inspection for each channel.
   • If the buzzer sounds with [CH1] displayed but not with [CH2], the electrical key transmitter sub-assembly cannot be detected by channel 2 due to a malfunction, such as wave interference.
   • It is possible to check which indoor electrical key antenna assembly (front floor) is operating by the sounding of the buzzer.
   • When the wireless buzzer sounds for all indoor electrical key antenna assemblies, they can be judged as operating properly and a malfunction in the certification ECU (smart key ECU assembly), which performs verification, is suspected.
   • When the wireless buzzer does not sound for all indoor electrical key antenna assemblies, it can be judged that the certification ECU (smart key ECU assembly), which controls the indoor electrical key antenna assemblies, is malfunctioning.

   Body Electrical > Smart Access > Utility

   Tester Display
   Communication Check (Key Diag Mode)

   Result

   Result	Proceed to
   The wireless buzzer does not sound	A
   The wireless buzzer sounds	B

Result:

B

AFFECTED BY WAVE INTERFERENCE

Result:

A

See step  4

1. Disconnect the D58 certification ECU (smart key ECU assembly) connector.
2. Disconnect the D64 No. 1 indoor electrical key antenna assembly (front floor) connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   D58-4 (CLG5) - D64-1 (ANTE5)	Always	Below 1 Ω
   D58-5 (CG5B) - D64-2 (CLGB)	Always	Below 1 Ω
   D58-4 (CLG5) or D64-1 (ANTE5) - Other terminals and body ground	Always	10 kΩ or higher
   D58-5 (CG5B) or D64-2 (CLGB) - Other terminals and body ground	Always	10 kΩ or higher

   Result

   Proceed to
   OK
   NG

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

Result:

OK

See step  5

1. Connect the D58 certification ECU (smart key ECU assembly) connector.
2. Using an oscilloscope, check the waveform.

   OK

   Tester Connection	Condition	Tool Setting	Specified Condition
   D64-1 (ANTE5) - D64-2 (CLGB)	Procedure: Ignition switch off Electrical key transmitter sub-assembly not inside vehicle Within 30 seconds of closing any door	5 V/DIV., 500 ms./DIV.	Pulse generation (See waveform)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Waveform
   *b	For 30 seconds after closing any door
   *c	After 30 seconds or more have elapsed since any door closed

   Result

   Proceed to
   OK
   NG

Result:

OK

REPLACE NO. 1 INDOOR ELECTRICAL KEY ANTENNA ASSEMBLY (FRONT FLOOR). Refer to  REMOVAL [11/2021 - ]

Result:

NG

REPLACE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY). Refer to  REMOVAL [11/2021 - ]

1. Install the transmitter battery to the electrical key transmitter sub-assembly.

   Refer to INSTALLATION [11/2021 - ]

2. Bring the electrical key transmitter sub-assembly near the No. 2 indoor electrical key antenna assembly (rear floor) and perform a smart access system with push-button start check.

   Refer to OPERATION CHECK [11/2021 - 03/2023] , or refer to OPERATION CHECK [03/2023 - ]

   NOTE:

   Communication may not be possible if the electrical key transmitter sub-assembly is within 0.2 m (0.656 ft.) of the center of the No. 2 indoor electrical key antenna assembly (rear floor).

   HINT:

   • Check that the customize setting "Ignition Available Area" is set to "All".
   • As the effect of wave interference decreases by moving the electrical key transmitter sub-assembly close to each indoor electrical key antenna assembly, it may be possible to check whether wave interference is the cause of the problem.
   • If the inspection result is that the problem only occurs in certain locations or at certain times of day, the possibility of wave interference is high. Also, added vehicle components may cause wave interference. If installed, remove them and perform the operation check.
   • There may be wave interference if the vehicle is near broadcasting antennas, large video displays, wireless garage door opener systems, wireless security cameras, home security systems, etc. In this case, move the vehicle to a different location and check if there is any improvement.
   • If a tool for checking radio waves, such as a signal strength meter, is available, move around the area while observing both the LF band (used by the vehicle antenna to form the detection area) and RF band (used by the electrical key transmitter sub-assembly for transmission) to check for locations where there is wave interference.

   OK

   The engine starts when the electrical key transmitter sub-assembly is held near each indoor electrical key antenna assembly and the engine switch is pressed with the brake pedal depressed.

   Result

   Proceed to
   OK
   NG

Result:

OK

AFFECTED BY WAVE INTERFERENCE

Result:

NG

See step  7

1. Check the following antennas in key diagnostic mode.
2. Check the No. 2 indoor electrical key antenna assembly (rear floor).

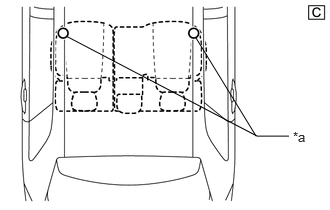

   When the electrical key transmitter sub-assembly is at either inspection point, check that the wireless buzzer sounds.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Electrical Key Transmitter Sub-assembly Inspection Point

   The illustrations shown are examples only.

   HINT:

   • Select either channel 1 or channel 2 and perform the key diagnostic mode inspection for each channel.
   • If the buzzer sounds with [CH1] displayed but not with [CH2], the electrical key transmitter sub-assembly cannot be detected by channel 2 due to a malfunction, such as wave interference.
   • It is possible to check which indoor electrical key antenna assembly (rear floor) is operating by the sounding of the buzzer.
   • When the wireless buzzer sounds for all indoor electrical key antenna assemblies, they can be judged as operating properly and a malfunction in the certification ECU (smart key ECU assembly), which performs verification, is suspected.
   • When the wireless buzzer does not sound for all indoor electrical key antenna assemblies, it can be judged that the certification ECU (smart key ECU assembly), which controls the indoor electrical key antenna assemblies, is malfunctioning.

   Body Electrical > Smart Access > Utility

   Tester Display
   Communication Check (Key Diag Mode)

   Result

   Result	Proceed to
   The wireless buzzer does not sound	A
   The wireless buzzer sounds	B

Result:

B

AFFECTED BY WAVE INTERFERENCE

Result:

A

See step  8

1. Disconnect the G12 certification ECU (smart key ECU assembly) connector.
2. Disconnect the G13 No. 2 indoor electrical key antenna assembly (rear floor) connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   G12-1 (CLG6) - G13-1 (ANTE6)	Always	Below 1 Ω
   G12-2 (CG6B) - G13-2 (CLGB)	Always	Below 1 Ω
   G12-1 (CLG6) or G13-1 (ANTE6) - Other terminals and body ground	Always	10 kΩ or higher
   G12-2 (CG6B) or G13-2 (CLGB) - Other terminals and body ground	Always	10 kΩ or higher

   Result

   Proceed to
   OK
   NG

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

Result:

OK

See step  9

1. Connect the G12 certification ECU (smart key ECU assembly) connector.
2. Using an oscilloscope, check the waveform.

   OK

   Tester Connection	Condition	Tool Setting	Specified Condition
   G13-1 (ANTE6) - G13-2 (CLGB)	Procedure: Ignition switch off Electrical key transmitter sub-assembly not inside vehicle Within 30 seconds of closing any door	5 V/DIV., 500 ms./DIV.	Pulse generation (See waveform)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Waveform
   *b	For 30 seconds after closing any door
   *c	After 30 seconds or more have elapsed since any door closed

   Result

   Proceed to
   OK
   NG

Result:

OK

REPLACE NO. 2 INDOOR ELECTRICAL KEY ANTENNA ASSEMBLY (REAR FLOOR). Refer to  REMOVAL [11/2021 - ]

Result:

NG

REPLACE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY). Refer to  REMOVAL [11/2021 - ]

1. Install the transmitter battery to the electrical key transmitter sub-assembly.

   Refer to INSTALLATION [11/2021 - ]

2. Bring the electrical key transmitter sub-assembly near the No. 3 indoor electrical key antenna assembly (inside luggage compartment) and perform a smart access system with push-button start check.

   Refer to OPERATION CHECK [11/2021 - 03/2023] , or refer to OPERATION CHECK [03/2023 - ]

   NOTE:

   Communication may not be possible if the electrical key transmitter sub-assembly is within 0.2 m (0.656 ft.) of the center of the No. 3 indoor electrical key antenna assembly (inside luggage compartment).

   HINT:

   Check that the customize setting "Ignition Available Area" is set to "All".

   HINT:

   • As the effect of wave interference decreases by moving the electrical key transmitter sub-assembly close to each indoor electrical key antenna assembly, it may be possible to check whether wave interference is the cause of the problem.
   • If the inspection result is that the problem only occurs in certain locations or at certain times of day, the possibility of wave interference is high. Also, added vehicle components may cause wave interference. If installed, remove them and perform the operation check.
   • There may be wave interference if the vehicle is near broadcasting antennas, large video displays, wireless garage door opener systems, wireless security cameras, home security systems, etc. In this case, move the vehicle to a different location and check if there is any improvement.
   • If a tool for checking radio waves, such as a signal strength meter, is available, move around the area while observing both the LF band (used by the vehicle antenna to form the detection area) and RF band (used by the electrical key transmitter sub-assembly for transmission) to check for locations where there is wave interference.

   OK

   The engine starts when the electrical key transmitter sub-assembly is held near each indoor electrical key antenna assembly and the engine switch is pressed with the brake pedal depressed.

   Result

   Proceed to
   OK
   NG

Result:

OK

AFFECTED BY WAVE INTERFERENCE

Result:

NG

See step  11

1. Check the following antennas in key diagnostic mode.
2. Check the No. 3 indoor electrical key antenna assembly (inside luggage compartment).

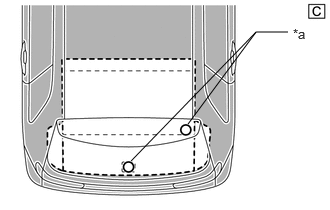

   When the electrical key transmitter sub-assembly is at either inspection point, check that the wireless buzzer sounds.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Electrical Key Transmitter Sub-assembly Inspection Point

   The illustrations shown are examples only.

   HINT:

   • Select either channel 1 or channel 2 and perform the key diagnostic mode inspection for each channel.
   • If the buzzer sounds with [CH1] displayed but not with [CH2], the electrical key transmitter sub-assembly cannot be detected by channel 2 due to a malfunction, such as wave interference.
   • It is possible to check which indoor electrical key antenna assembly (inside luggage compartment) is operating by the sounding of the buzzer.
   • When the wireless buzzer sounds for all indoor electrical key antenna assemblies, they can be judged as operating properly and a malfunction in the certification ECU (smart key ECU assembly), which performs verification, is suspected.
   • When the wireless buzzer does not sound for all indoor electrical key antenna assemblies, it can be judged that the certification ECU (smart key ECU assembly), which controls the indoor electrical key antenna assemblies, is malfunctioning.

   Body Electrical > Smart Access > Utility

   Tester Display
   Communication Check (Key Diag Mode)

   Result

   Result	Proceed to
   The wireless buzzer does not sound	A
   The wireless buzzer sounds	B

Result:

B

AFFECTED BY WAVE INTERFERENCE

Result:

A

See step  12

1. Disconnect the G12 certification ECU (smart key ECU assembly) connector.
2. Disconnect the G14 No. 3 indoor electrical key antenna assembly (inside luggage compartment) connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   G12-10 (CLG7) - G14-1 (ANTE7)	Always	Below 1 Ω
   G12-9 (CG7B) - G14-2 (CLGB)	Always	Below 1 Ω
   G12-10 (CLG7) or G14-1 (ANTE7) - Other terminals and body ground	Always	10 kΩ or higher
   G12-9 (CG7B) or G14-2 (CLGB) - Other terminals and body ground	Always	10 kΩ or higher

   Result

   Proceed to
   OK
   NG

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

Result:

OK

See step  13

1. Connect the G12 certification ECU (smart key ECU assembly) connector.
2. Using an oscilloscope, check the waveform.

   OK

   Tester Connection	Condition	Tool Setting	Specified Condition
   G14-1 (ANTE7) - G14-2 (CLGB)	Procedure: Ignition switch off Electrical key transmitter sub-assembly not inside vehicle Within 30 seconds of closing any door	5 V/DIV., 500 ms/DIV.	Pulse generation (See waveform)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Waveform
   *b	For 30 seconds after closing any door
   *c	After 30 seconds or more have elapsed since any door closed

   Result

   Proceed to
   OK
   NG

Result:

OK

REPLACE NO. 3 INDOOR ELECTRICAL KEY ANTENNA ASSEMBLY (INSIDE LUGGAGE COMPARTMENT). Refer to  REMOVAL [11/2021 - ]

Result:

NG

REPLACE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY). Refer to  REMOVAL [11/2021 - ]

1. Check the transmitter battery level of the electrical key transmitter sub-assembly that was checked first.
   1. Press and hold the lock switch of the electrical key transmitter sub-assembly for 5 seconds and check the number of times that the LED illuminates.

      HINT:

      • The electrical key transmitter sub-assembly sends voltage information to the certification ECU (smart key ECU assembly) when it is being used. "Yes" is displayed for the Data List item Key Low Battery when this voltage information indicates 2.2 V or less.

        Refer to DATA LIST / ACTIVE TEST [11/2021 - 03/2023] , or refer to DATA LIST / ACTIVE TEST [03/2023 - ]

      • Even if the transmitter battery is depleted, it is still possible to start the engine by holding the electrical key transmitter sub-assembly near the engine switch, depressing the brake pedal and pressing the engine switch.

   Result

   Result	Proceed to
   LED illuminates 3 times or more when switch is pressed and held	A
   LED does not illuminate when switch is pressed and held	B
   LED illuminates once or twice but not a third time	C

Result:

B

See step  20

Result:

C

REPLACE TRANSMITTER BATTERY

for Standard: Refer to REPLACEMENT [11/2021 - ]

for Card Type: Refer to REPLACEMENT [11/2021 - ]

Result:

A

See step  15

1. Check that the entry lock and unlock functions operate on each door.

   Refer to OPERATION CHECK [11/2021 - 03/2023] , or refer to OPERATION CHECK [03/2023 - ]

   HINT:

   If the electrical key and tire pressure monitoring system receiver assembly is defective, code verification does not begin in the cabin and the entry lock and unlock functions do not operate.

   Result

   Result	Proceed to
   Entry functions operate normally for all doors (w/ Wireless Charging System)	A
   Entry functions operate normally for all doors (w/o Wireless Charging System)	B
   An entry function does not operate normally for a door	C

Result:

B

See step  17

Result:

C

GO TO SMART ACCESS SYSTEM WITH PUSH-BUTTON START (for Entry Function) (All Door Entry Lock/Unlock Functions and Wireless Functions do not Operate). Refer to  All Door Entry Lock/Unlock Functions and Wireless Functions do not Operate [11/2021 - ]

Result:

A

See step  16

1. Wireless charging system off.

   Refer to OPERATION CHECK [11/2021 - 03/2024] , or refer to OPERATION CHECK [03/2024 - ]

2. Check that interior verification is performed.

   Refer to OPERATION CHECK [11/2021 - 03/2023] , or refer to OPERATION CHECK [03/2023 - ]

   Result

   Result	Proceed to
   Interior verification is not performed normally	A
   Interior verification is performed normally	B

Result:

B

GO TO WIRELESS CHARGING SYSTEM. Refer to  HOW TO PROCEED WITH TROUBLESHOOTING [11/2021 - 03/2024]  , or refer to  HOW TO PROCEED WITH TROUBLESHOOTING [03/2024 - ]

Result:

A

See step  17

1. Read the Data List according to the display on the GTS.

   Body Electrical > Power Source Control > Data List

   Tester Display	Measurement Item	Range	Normal Condition	Diagnostic Note
   Push Start Switch 1	Engine switch 1 status	OFF or ON	OFF: Engine switch not pressed ON: Engine switch pressed	If the engine switch is pressed for a short time, the display may not change. Use this item to determine if the engine switch input signal is malfunctioning.
   Push Start Switch 2	Engine switch 2 status	OFF or ON	OFF: Engine switch not pressed ON: Engine switch pressed	If the engine switch is pressed for a short time, the display may not change. Use this item to determine if the engine switch input signal is malfunctioning.
   Push Start Switch 3	Engine switch 3 status	OFF or ON	OFF: Engine switch not pressed ON: Engine switch pressed	If the engine switch is pressed for a short time, the display may not change. Use this item to determine if the engine switch input signal is malfunctioning.

   Body Electrical > Power Source Control > Data List

   Tester Display
   Push Start Switch 1
   Push Start Switch 2
   Push Start Switch 3

   OK

   The value of "Start Switch1", "Start Switch2" and "Start Switch3" change correctly in response to the engine switch operation.

   Result

   Proceed to
   OK
   NG

Result:

NG

See step  21

Result:

OK

See step  18

1. Measure the voltage while checking the Data List on the GTS.
   1. Read the Data List according to the display on the GTS.

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      *a

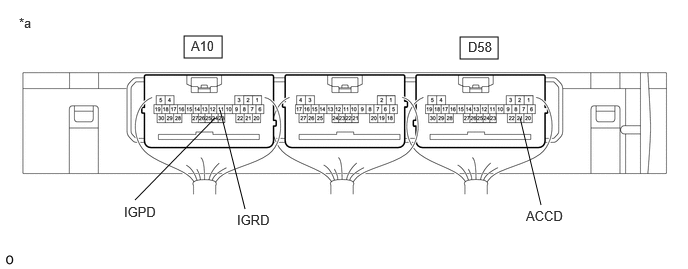

      Component with harness connected (Certification ECU (Smart Key ECU Assembly))

      -

      -

      Body Electrical > Power Source Control > Data List

      Tester Display	Measurement Item	Range	Normal Condition	Diagnostic Note
      Power Supply Condition	Power supply state	OFF, ACC ON, IGR ON, IGP ON or Starter ON	OFF: Ignition switch off ACC ON: Ignition switch ACC IGR ON: Ignition switch ON IGP ON: Ignition switch ON Starter ON: Sending engine start request signal	-

      Body Electrical > Power Source Control > Data List

      Tester Display
      Power Supply Condition

   2. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      Tester Connection	Condition	Specified Condition
      A10-11 (IGRD) - Body ground	Ignition switch off	Below 1 V
      	Ignition switch ACC	Below 1 V
      	Ignition switch ON	9 V or higher
      A10-24 (IGPD) - Body ground	Ignition switch off	Below 1 V
      	Ignition switch ACC	Below 1 V
      	Ignition switch ON	9 V or higher
      D58-21 (ACCD) - Body ground	Ignition switch off	Below 1 V
      	Ignition switch ACC	8.5 V or higher
      	Ignition switch ON	8.5 V or higher

   Result

   Proceed to
   OK
   NG

Result:

NG

REPLACE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY). Refer to  REMOVAL [11/2021 - ]

Result:

OK

See step  19

1. Disconnect the 9B power distribution box assembly connector.
2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   9B-36 - Body ground	Always	Below 1 Ω

   Result

   Proceed to
   OK
   NG

Result:

OK

REPLACE POWER DISTRIBUTION BOX ASSEMBLY. Refer to  REMOVAL [11/2021 - ]

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

1. Inspect the transmitter battery.

   for Standard: Refer to INSPECTION [11/2021 - ]

   for Card Type: Refer to INSPECTION [11/2021 - ]

   NOTE:

   Do not wrap the lead wire ground a terminal, wedge it between terminals, or solder it. The terminal may be deformed or damaged, and the transmitter battery will not be able to be installed correctly.

   Result

   Proceed to
   OK
   NG

Result:

OK

REPLACE ELECTRICAL KEY TRANSMITTER SUB-ASSEMBLY

Result:

NG

REPLACE TRANSMITTER BATTERY

for Standard: Refer to REPLACEMENT [11/2021 - ]

for Card Type: Refer to REPLACEMENT [11/2021 - ]

for A25A-FKS: Refer to INSPECTION [11/2021 - ]

for T24A-FTS: Refer to INSPECTION [11/2021 - ]

Result

Result:

NG

REPLACE ENGINE SWITCH

for A25A-FKS: Refer to REMOVAL [11/2021 - ]

for T24A-FTS: Refer to REMOVAL [11/2021 - ]

Result:

OK

See step  22

1. Disconnect the D58 certification ECU (smart key ECU assembly) connector.
2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   D58-19 (SSW1) - D59-12 (SS1)	Always	Below 1 Ω
   D58-27 (SSW2) - D59-6 (SS2)	Always	Below 1 Ω
   D58-23 (SSW3) - D59-11 (SS3)	Always	Below 1 Ω
   D58-30 (AGND) - D59-3 (AGND)	Always	Below 1 Ω
   D58-19 (SSW1) or D59-12 (SS1) - Other terminals and body ground	Always	10 kΩ or higher
   D58-27 (SSW2) or D59-6 (SS2) - Other terminals and body ground	Always	10 kΩ or higher
   D58-23 (SSW3) or D59-11 (SS3) - Other terminals and body ground	Always	10 kΩ or higher
   D58-30 (AGND) or D59-3 (AGND) - Other terminals and body ground	Always	10 kΩ or higher

   Result

   Proceed to
   OK
   NG

Result:

OK

REPLACE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY). Refer to  REMOVAL [11/2021 - ]

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR
