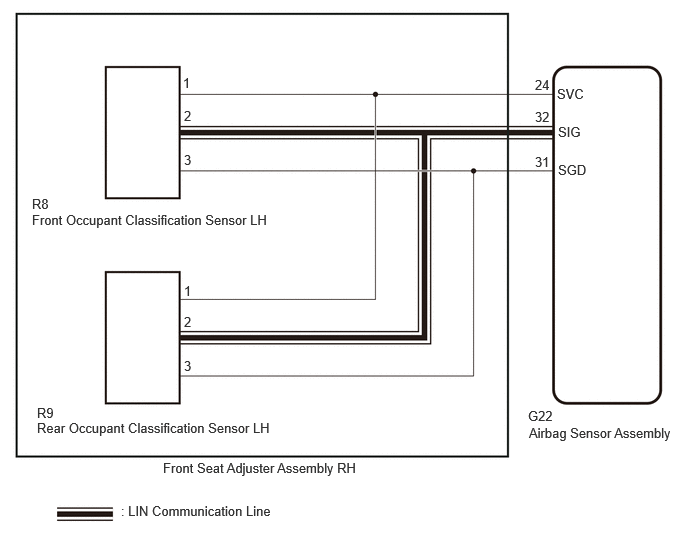

DTC B1793-12: Load Sensor for Occupant Detection System Circuit Short to Battery [11/2021 - ]: Wiring Diagram

GTY1067864Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
