ECU Power Source Circuit [11/2021 - ]: Procedure

  1. CHECK HARNESS AND CONNECTOR (BATT TERMINAL VOLTAGE)
    1. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      Tester Connection Condition Specified Condition
      D39-2 (BATT) - Body ground Ignition switch off 11 to 14 V

      Result

      Proceed to
      OK
      NG

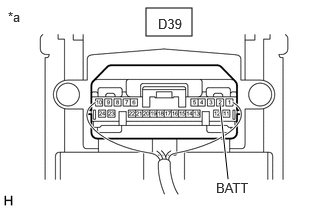

      GTY1065789Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Component with harness connected
      (Transmission Floor Shift Assembly (Shift Control ECU))

    Result:

    NG

    See step  8

    Result:

    OK

    See step  2

  2. CHECK HARNESS AND CONNECTOR (IGR TERMINAL VOLTAGE)
    1. Turn the ignition switch to ON.
    2. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      Tester Connection Condition Specified Condition
      D39-3 (IGR) - Body ground Ignition switch ON 11 to 14 V

      Result

      Proceed to
      OK
      NG

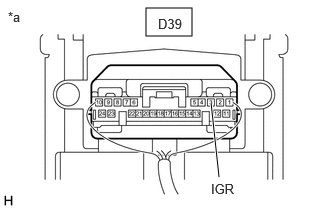

      GTY1064894Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Component with harness connected
      (Transmission Floor Shift Assembly (Shift Control ECU))
    3. Turn the ignition switch off.

    Result:

    NG

    See step  9

    Result:

    OK

    See step  3

  3. CHECK HARNESS AND CONNECTOR (IGP TERMINAL VOLTAGE)
    1. Turn the ignition switch to ON.
    2. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      Tester Connection Condition Specified Condition
      D39-1 (IGP) - Body ground Ignition switch ON 11 to 14 V

      Result

      Proceed to
      OK
      NG
      GTY1064900Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Component with harness connected
      (Transmission Floor Shift Assembly (Shift Control ECU))
    3. Turn the ignition switch off.

    Result:

    NG

    See step  10

    Result:

    OK

    See step  4

  4. CHECK HARNESS AND CONNECTOR (SHIFT CONTROL ECU - BODY GROUND)
    1. Disconnect the D39 transmission floor shift assembly (shift control ECU) connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      D39-9 (E1) - Body ground Always Below 1 Ω
      D39-23 (E12) - Body ground Always Below 1 Ω

      Result

      Proceed to
      OK
      NG
    3. Connect the transmission floor shift assembly (shift control ECU) connector.

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR (SHIFT CONTROL ECU - BODY GROUND)

    Result:

    OK

    See step  5

  5. CHECK HARNESS AND CONNECTOR (MA1, BAT1 TERMINAL VOLTAGE)
    1. Disconnect the B79 shift control actuator assembly (shift actuator ECU) connector.
    2. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      Tester Connection Condition Specified Condition
      B79-6 (MA1) - Body ground Ignition switch off 11 to 14 V
      B79-8 (BAT1) - Body ground Ignition switch off 11 to 14 V

      Result

      Proceed to
      OK
      NG
    3. Connect the shift control actuator assembly (shift actuator ECU) connector.

    Result:

    NG

    See step  11

    Result:

    OK

    See step  6

  6. CHECK HARNESS AND CONNECTOR (IGR1 TERMINAL VOLTAGE)
    1. Disconnect the B77 shift control actuator assembly (shift actuator ECU) connector.
    2. Turn the ignition switch to ON.
      NOTE:

      Turning the ignition switch to ON with the connector disconnected causes other DTCs to be stored. Clear the DTCs after performing this inspection.

    3. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      Tester Connection Condition Specified Condition
      B77-5 (IGR1) - Body ground Ignition switch ON 11 to 14 V

      Result

      Proceed to
      OK
      NG
    4. Turn the ignition switch off.
    5. Connect the shift control actuator assembly (shift actuator ECU) connector.

    Result:

    NG

    See step  12

    Result:

    OK

    See step  7

  7. CHECK HARNESS AND CONNECTOR (SHIFT ACTUATOR ECU - BODY GROUND)
    1. Disconnect the B77 and B79 shift control actuator assembly (shift actuator ECU) connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      B79-7 (E01) - Body ground Always Below 1 Ω
      B77-7 (E02) - Body ground Always Below 1 Ω

      Result

      Proceed to
      OK
      NG
    3. Connect the shift control actuator assembly (shift actuator ECU) connector.

    Result:

    OK

    PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE. Refer to  PROBLEM SYMPTOMS TABLE [11/2021 - ]

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

  8. CHECK HARNESS AND CONNECTOR (SHIFT CONTROL ECU - NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY)
    1. Remove the P CON MAIN fuse from the No. 1 engine room relay block and No. 1 junction block assembly.
    2. Disconnect the D39 transmission floor shift assembly (shift control ECU) connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      D39-2 (BATT) - 2 (P CON MAIN fuse holder) Always Below 1 Ω
      D39-2 (BATT) or 2 (P CON MAIN fuse holder) - Body ground and other terminals Always 10 kΩ or higher

      Result

      Proceed to
      OK
      NG
    4. Connect the shift control actuator assembly (shift actuator ECU) connector.
    5. Install the P CON MAIN fuse.

    Result:

    OK

    REPAIR OR REPLACE HARNESS OR CONNECTOR (BATTERY - NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY)

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR (SHIFT CONTROL ECU - NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY)

  9. CHECK HARNESS AND CONNECTOR (SHIFT CONTROL ECU - POWER DISTRIBUTION BOX ASSEMBLY)
    1. Disconnect the D39 transmission floor shift assembly (shift control ECU) connector.
    2. Disconnect the 9C power distribution box assembly connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      9C-36 - D39-3 (IGR) Always Below 1 Ω
      9C-36 or D39-3 (IGR) - Body ground and other terminals Always 10 kΩ or higher

      Result

      Proceed to
      OK
      NG
    4. Connect the power distribution box assembly connector.
    5. Connect the transmission floor shift assembly (shift control ECU) connector.

    Result:

    OK

    REPAIR OR REPLACE HARNESS OR CONNECTOR (BATTERY - POWER DISTRIBUTION BOX ASSEMBLY)

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR (SHIFT CONTROL ECU - POWER DISTRIBUTION BOX ASSEMBLY)

  10. CHECK HARNESS AND CONNECTOR (SHIFT CONTROL ECU - NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY)
    1. Remove the ECU-IGP NO. 3 fuse from the No. 1 engine room relay block and No. 1 junction block assembly.
    2. Disconnect the D39 transmission floor shift assembly (shift control ECU) connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      D39-1 (IGP) - 2 (ECU-IGP NO. 3 fuse holder) Always Below 1 Ω
      D39-1 (IGP) or 2 (ECU-IGP NO. 3 fuse holder) - Body ground and other terminals Always 10 kΩ or higher

      Result

      Proceed to
      OK
      NG
    4. Connect the transmission floor shift assembly (shift control ECU) connector.
    5. Install the ECU-IGP NO. 3 fuse.

    Result:

    OK

    REPAIR OR REPLACE HARNESS OR CONNECTOR (BATTERY - NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY)

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR (SHIFT CONTROL ECU - NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY)

  11. CHECK HARNESS AND CONNECTOR (SHIFT ACTUATOR ECU - NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY)
    1. Remove the P CON MTR fuse and P CON MAIN fuse from the No. 1 engine room relay block and No. 1 junction block assembly.
    2. Disconnect the B79 shift control actuator assembly (shift actuator ECU) connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      B79-6 (MA1) - 2 (P CON MTR fuse holder) Always Below 1 Ω
      B79-8 (BAT1) - 2 (P CON MAIN fuse holder) Always Below 1 Ω
      B79-6 (MA1) or 2 (P CON MTR fuse holder) - Body ground and other terminals Always 10 kΩ or higher
      B79-8 (BAT1) or 2 (P CON MAIN fuse holder) - Body ground and other terminals Always 10 kΩ or higher

      Result

      Proceed to
      OK
      NG
    4. Connect the shift control actuator assembly (shift actuator ECU) connector.
    5. Install the P CON MTR fuse and P CON MAIN fuse.

    Result:

    OK

    REPAIR OR REPLACE HARNESS OR CONNECTOR (BATTERY - NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY)

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR (SHIFT ACTUATOR ECU - NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY)

  12. CHECK HARNESS AND CONNECTOR (SHIFT ACTUATOR ECU - POWER DISTRIBUTION BOX ASSEMBLY)
    1. Disconnect the B77 shift control actuator assembly (shift actuator ECU) connector.
    2. Disconnect the 9E power distribution box assembly connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      9E-13 - B77-5 (IGR1) Always Below 1 Ω
      9E-13 or B77-5 (IGR1) - Body ground and other terminals Always 10 kΩ or higher

      Result

      Proceed to
      OK
      NG
    4. Connect the power distribution box assembly connector.
    5. Connect the shift control actuator assembly (shift actuator ECU) connector.

    Result:

    OK

    REPAIR OR REPLACE HARNESS OR CONNECTOR (BATTERY - POWER DISTRIBUTION BOX ASSEMBLY)

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR (SHIFT ACTUATOR ECU - POWER DISTRIBUTION BOX ASSEMBLY)
