System Diagram [09/2022 - ]

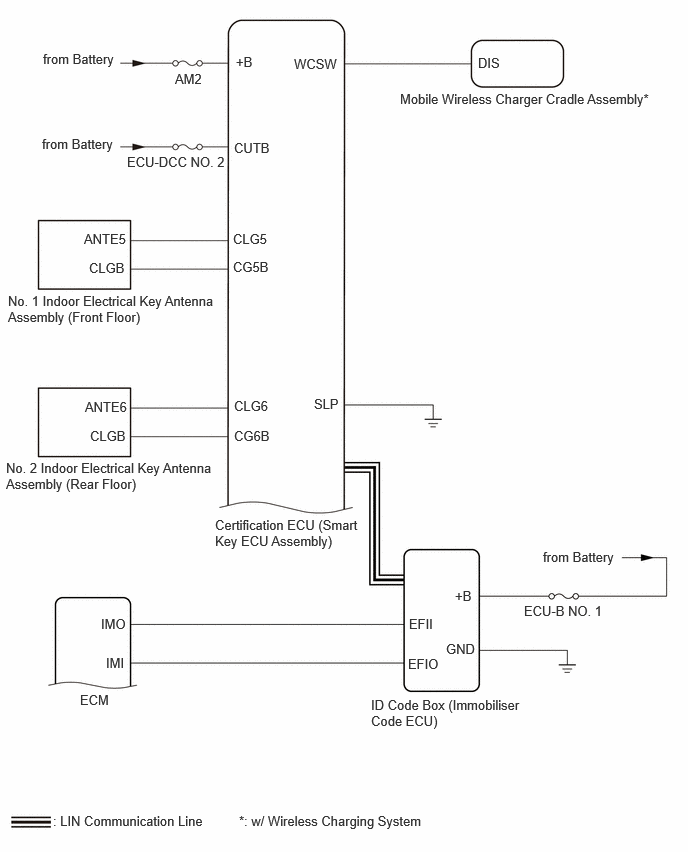

Fig 1: Smart Access System (For Start Function) Wiring Diagram (1 Of 3)
GTY1123426Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Smart Access System (For Start Function) Wiring Diagram (2 Of 3)
GTY777155Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

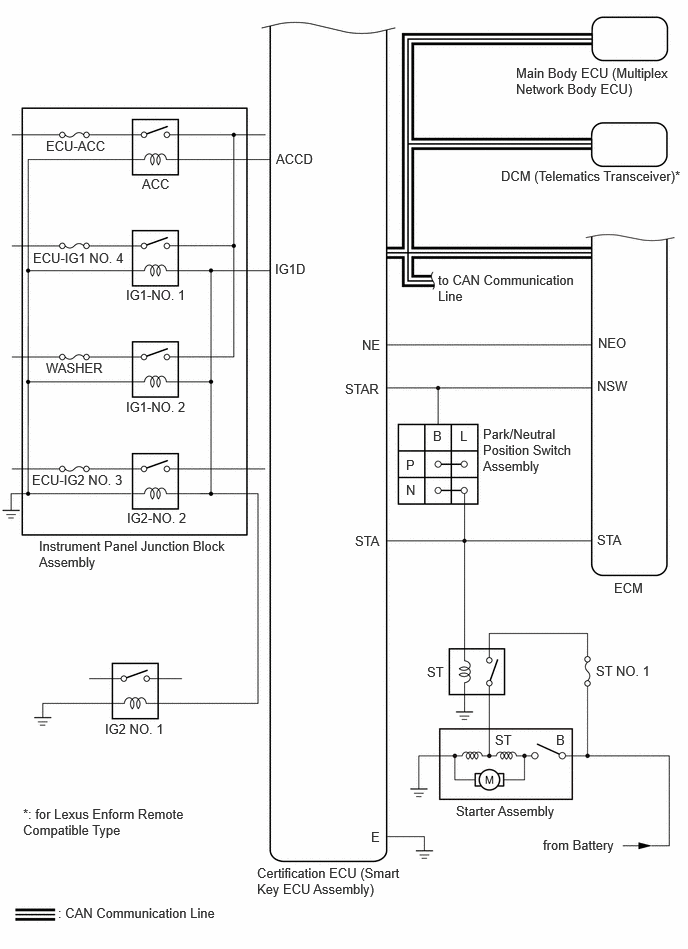

Fig 3: Smart Access System (For Start Function) Wiring Diagram (3 Of 3)
GTY1123423Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  1. SMART ACCESS SYSTEM WITH PUSH-BUTTON START (for Entry Function, Gasoline Model)

    Refer to SYSTEM DIAGRAM [06/2018 - ]
