System Diagram [06/2018 - ]

  1. SMART ACCESS SYSTEM WITH PUSH-BUTTON START (for Entry Function)

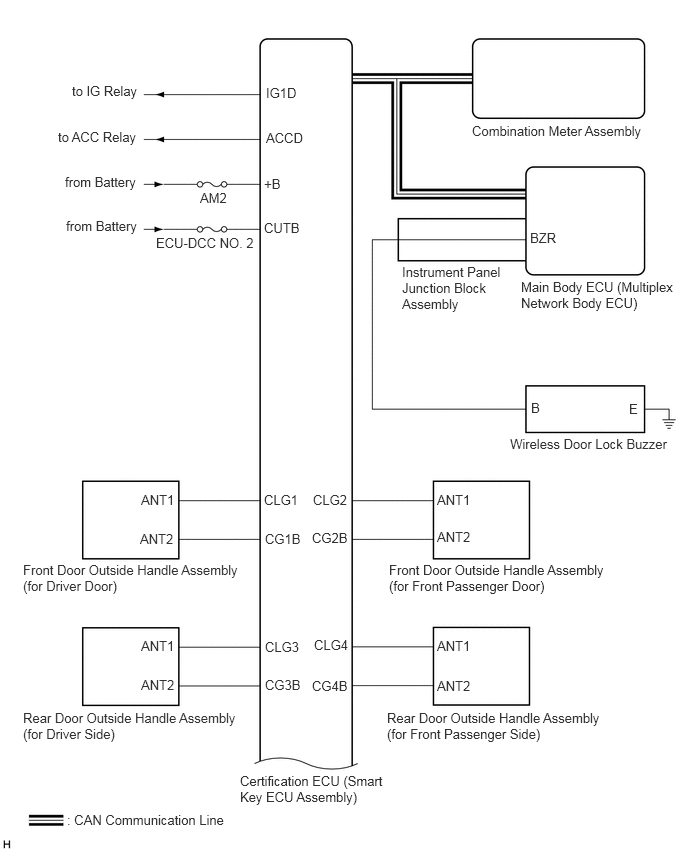

    Fig 1: Smart Access System (For Entry Function) Wiring Diagram (1 Of 2)
    GTY812677Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

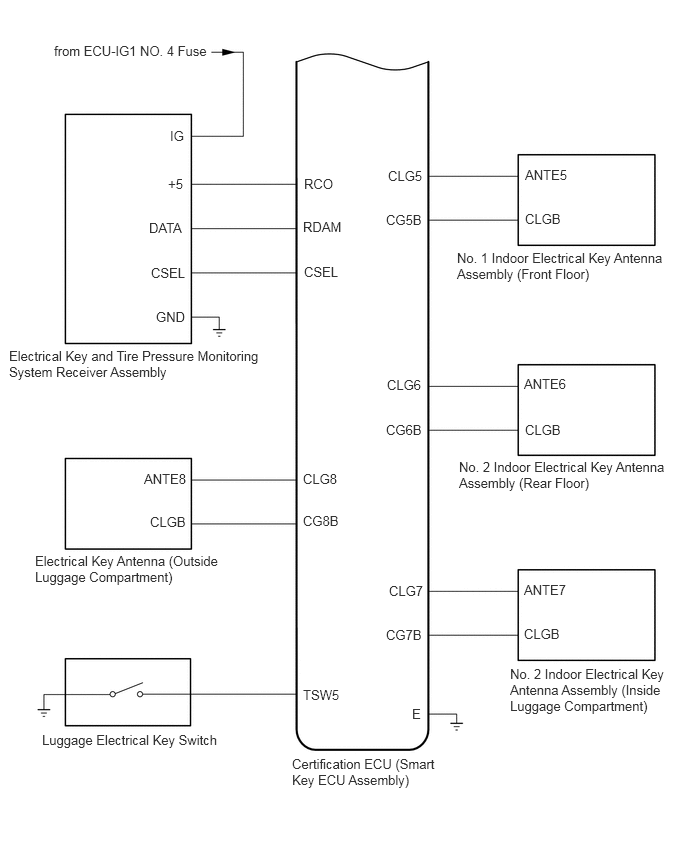

    Fig 2: Smart Access System (For Entry Function) Wiring Diagram (2 Of 2)
    GTY783296Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. SMART ACCESS SYSTEM WITH PUSH-BUTTON START (for Start Function)

    Refer to SYSTEM DIAGRAM [06/2018 - 09/2022] , or refer to SYSTEM DIAGRAM [09/2022 - ]

  3. POWER DOOR LOCK CONTROL SYSTEM

    Refer to SYSTEM DIAGRAM [06/2018 - ]

  4. WIRELESS DOOR LOCK CONTROL SYSTEM

    Refer to SYSTEM DIAGRAM [06/2018 - ]

  5. LUGGAGE COMPARTMENT DOOR OPENER SYSTEM (w/o Power Trunk Lid System)

    Refer to SYSTEM DIAGRAM [06/2018 - ]

  6. POWER TRUNK LID SYSTEM (w/ Power Trunk Lid System)

    Refer to SYSTEM DIAGRAM [06/2018 - 08/2021] , or refer to SYSTEM DIAGRAM [08/2021 - ]
