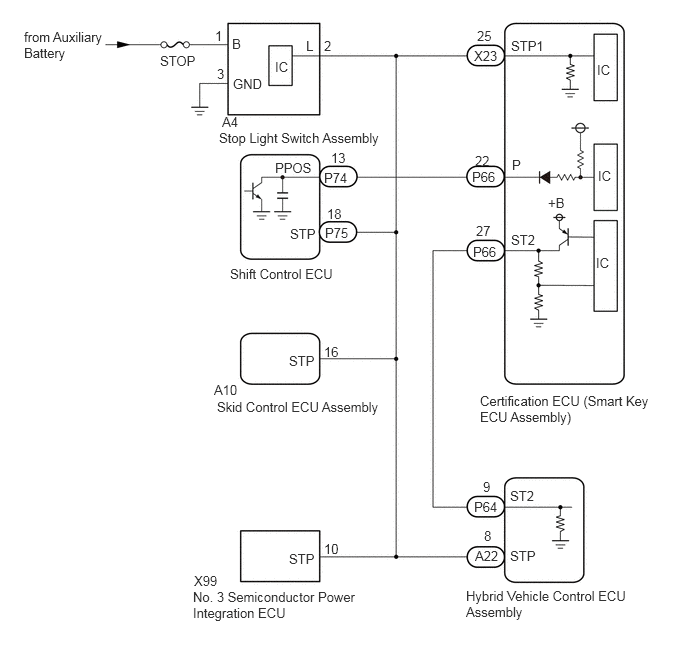

Power Source Mode does not Change to ON (READY) [01/2017 - 05/2023]: Wiring Diagram

GTY818952Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
