System Diagram [12/2017 - 10/2022]

  1. SMART ACCESS SYSTEM WITH PUSH-BUTTON START (for Start Function)

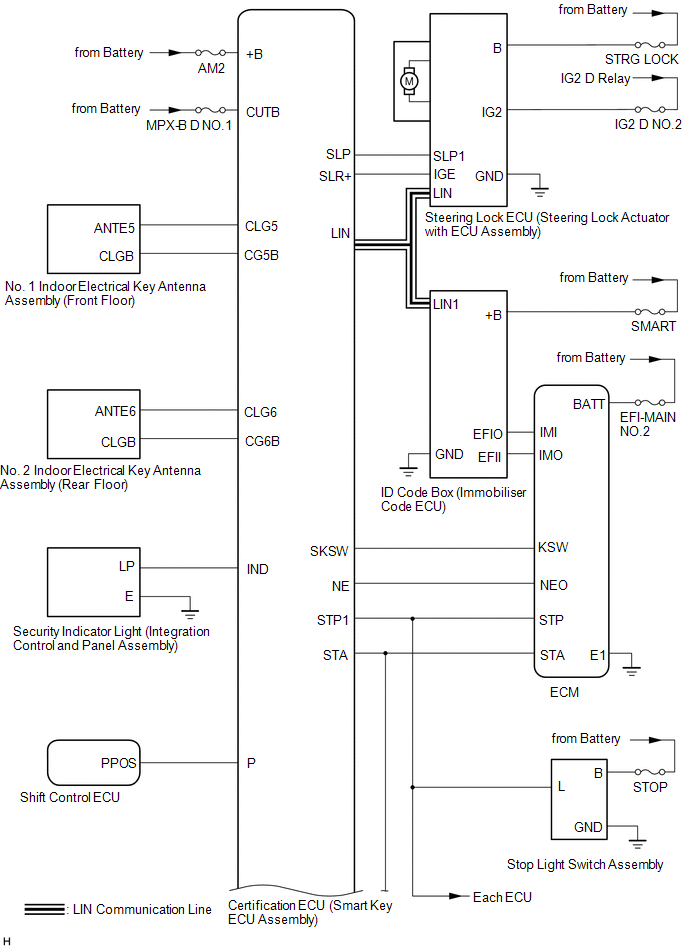

    Fig 1: Smart Access System With Push-Button Start (For Start Function) Diagram (1 Of 4)
    GTY1129427Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

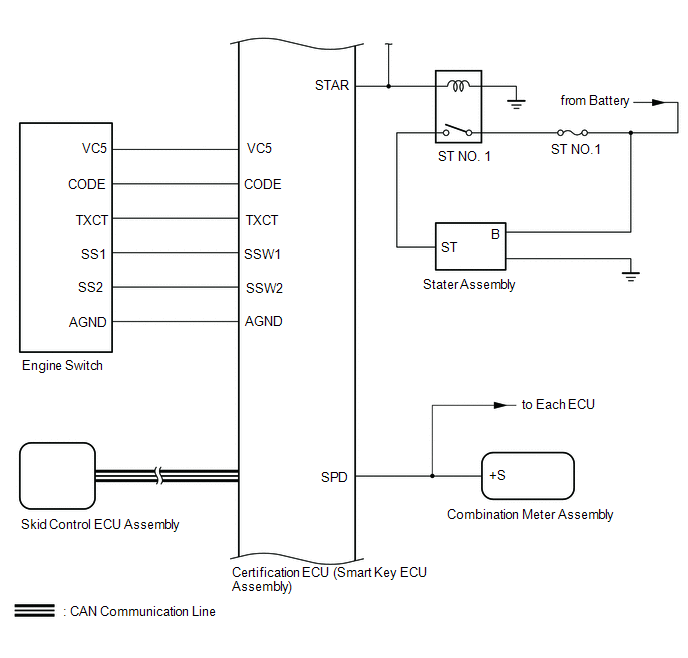

    Fig 2: Smart Access System With Push-Button Start (For Start Function) Diagram (2 Of 4)
    GTY800908Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

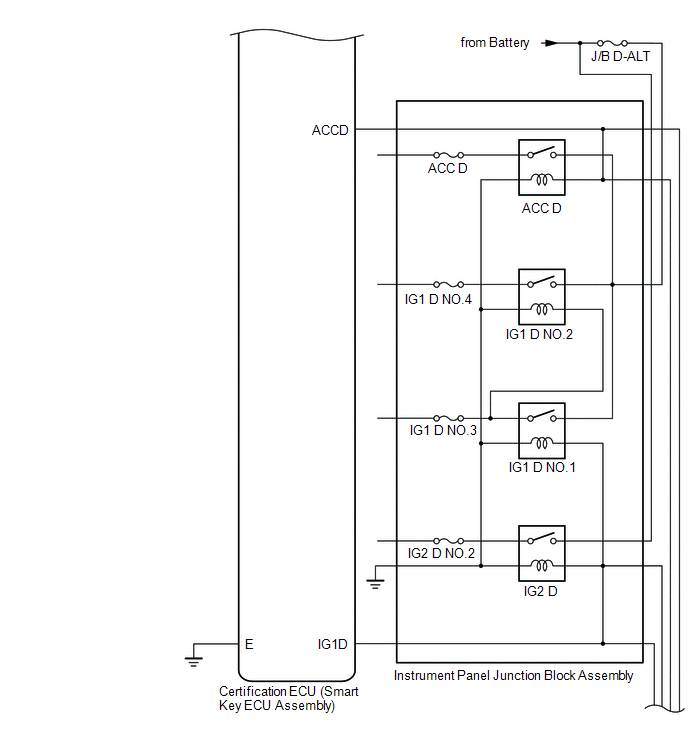

    Fig 3: Smart Access System With Push-Button Start (For Start Function) Diagram (3 Of 4)
    GTY800870Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

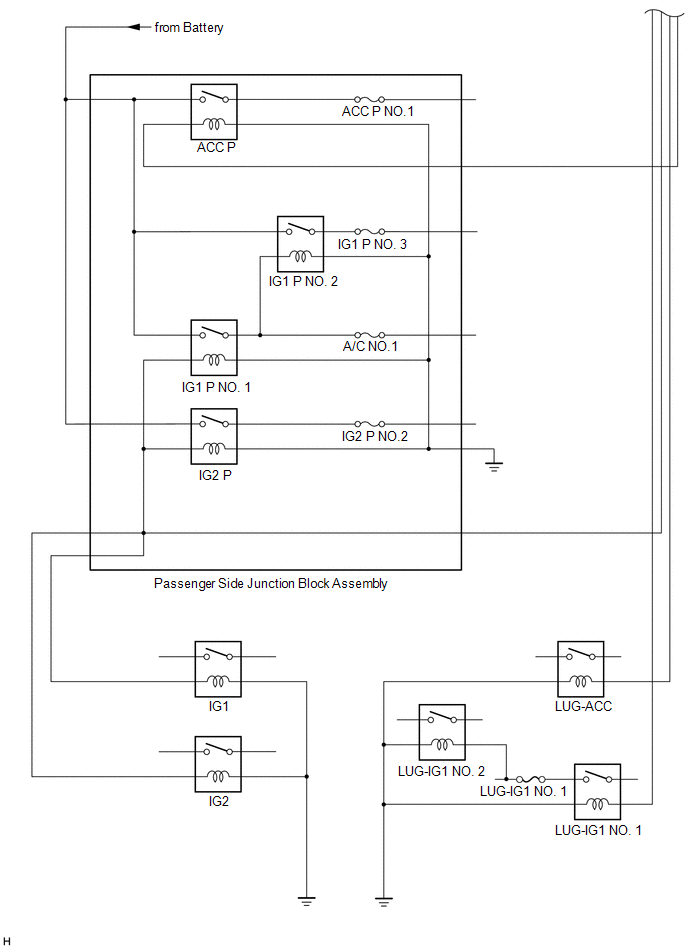

    Fig 4: Smart Access System With Push-Button Start (For Start Function) Diagram (4 Of 4)
    GTY837543Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. SMART ACCESS SYSTEM WITH PUSH-BUTTON START (for Entry Function)

    Refer to SYSTEM DIAGRAM [12/2017 - 10/2023]
