Terminals Of Ecu [10/2017 - 10/2023]
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 Lexus LS 500h, 2022 Lexus LS 500h, 2021 Lexus LS 500h, 2020 Lexus LS 500h, and 2019 Lexus LS 500h. However, it is still accessible from the selected car via links, so may be relevant.

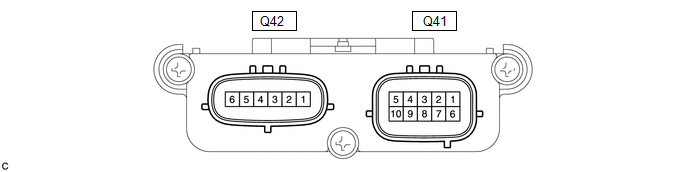

- OCCUPANT DETECTION ECU
Terminal No. (Symbol) Wiring Color Terminal Description Condition Specified Condition Q42-1 (SVC1) - Q42-5 (SGD1) R - B Front occupant classification sensor LH power supply Power switch on (IG) 11 to 14 V Q42-2 (SVC3) - Q42-6 (SGD3) L - GR Rear occupant classification sensor LH power supply Power switch on (IG) 11 to 14 V Q42-3 (SIG1) - Q42-5 (SGD1) Y - B Front occupant classification sensor LH signal Power switch on (IG) Pulse generation Q42-4 (SIG3) - Q42-6 (SGD3) LG - GR Rear occupant classification sensor LH signal Power switch on (IG) Pulse generation Q42-5 (SGD1) - Q41-10 (GND) B - W-B Front occupant classification sensor LH ground Always Below 1 V Q42-6 (SGD3) - Q41-10 (GND) GR - W-B Rear occupant classification sensor LH ground Always Below 1 V Q41-4 (CANL) - Q41-10 (GND) P - W-B CAN communication line Power switch on (IG) Pulse generation Q41-5 (CANH) - Q41-10 (GND) V - W-B CAN communication line Power switch on (IG) Pulse generation Q41-6 (IG) - Q41-10 (GND) G - W-B Power source Power switch on (IG) 11 to 14 V Q41-7 (BSW) - Q41-9 (BGND) L - BR Front passenger side buckle switch signal Always Pulse generation Q41-9 (BGND) - Q41-10 (GND) BR - W-B Front passenger side buckle switch ground Always Below 1 V Q41-10 (GND) - Body ground W-B - Body ground Ground Always Below 1 V
