System Diagram [12/2021 - ]

  1. w/o Door Closer System:

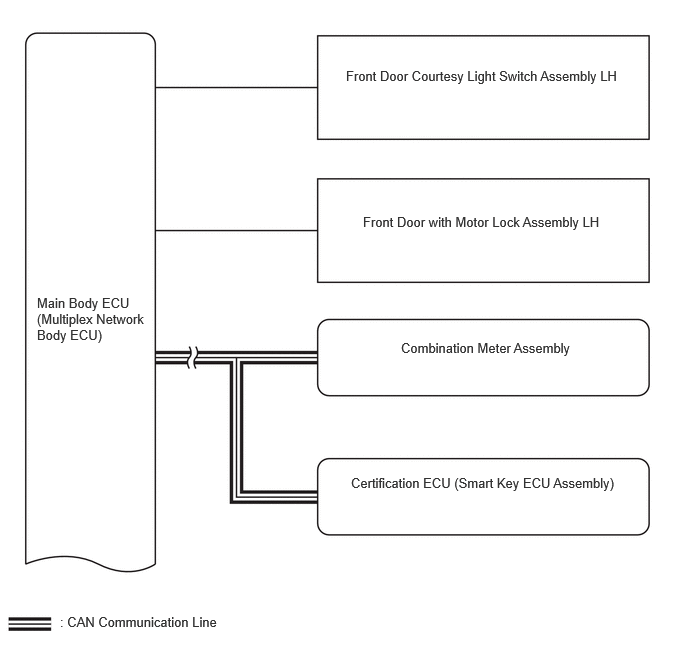

    GTY1059207Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

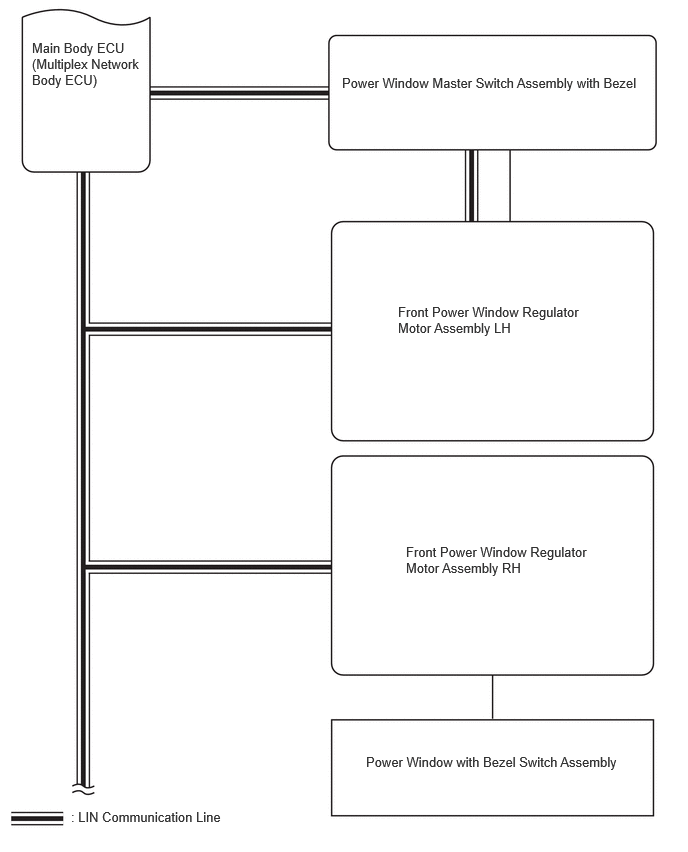

    GTY1058800Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    GTY1059131Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. w/ Door Closer System:
    GTY1059207Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

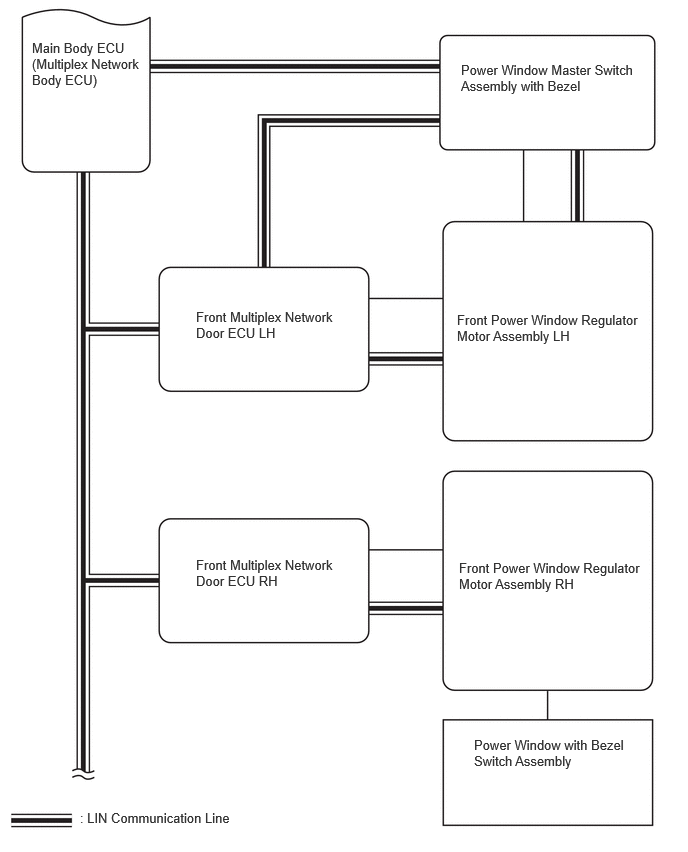

    GTY1058702Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

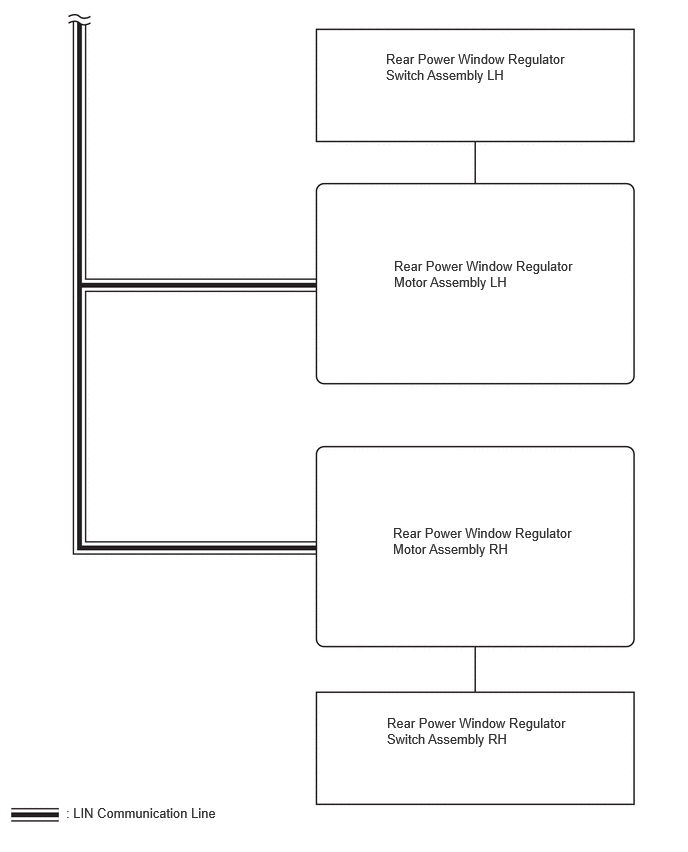

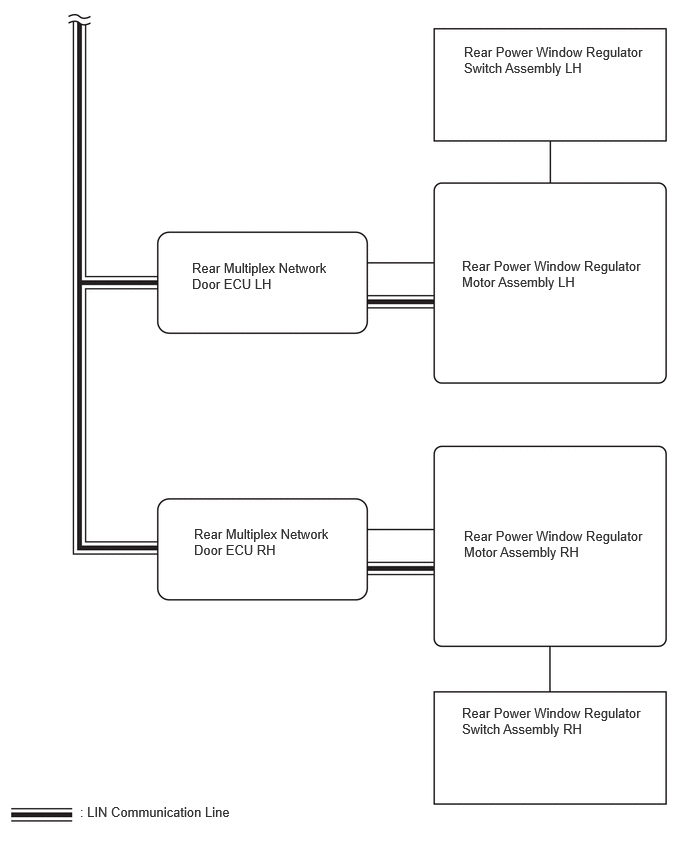

    GTY1058624Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
