DTC P04F0-9C: Evaporative Emission System High Load Purge Line "A" Performance Low/Insufficient Flow [12/2021 - ]: Procedure

  1. CHECK ANY OTHER DTCS OUTPUT (IN ADDITION TO DTC P04F0-9C)
    1. Read the DTCs.

      Powertrain > Engine > Trouble Codes

      Result

      Result Proceed to
      P04F0-9C and other DTCs are output A
      P04F0-9C and P0441-9C are output B
      P04F0-9C is output C

      HINT:

      If any DTCs other than P04F0-9C are output, troubleshoot those DTCs first.

    Result:

    GO TO DTC CHART. Refer to  DIAGNOSTIC TROUBLE CODE CHART [12/2021 - 10/2023]  , or Refer to  DIAGNOSTIC TROUBLE CODE CHART [10/2023 - ]

    Result:

    GO TO DTC P0441-9C. Refer to  DTC P0441-9C: Evaporative Emission System Incorrect Purge Flow Low/Insufficient Flow [12/2021 - ]

    Result:

    See step  2

  2. CHECK HIGH LOAD PURGE LINE (NO. 2 COMPRESSOR INLET ELBOW - PURGE VSV, PURGE PRESSURE SENSOR, NO. 2 COMPRESSOR OUTLET ELBOW)

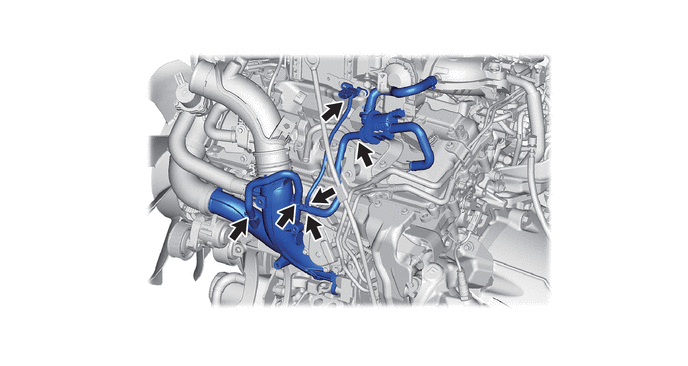

    GTY1042269Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Check the high load purge line connections.

      OK

      High load purge line is connected correctly.

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    SECURELY RECONNECTION HIGH LOAD PURGE LINE

    Result:

    OK

    See step  3

  3. CHECK HIGH LOAD PURGE LINE (PURGE VSV - NO. 2 COMPRESSOR INLET ELBOW)

    Pre-procedure1

    • Disconnect the vacuum hose from the purge VSV.

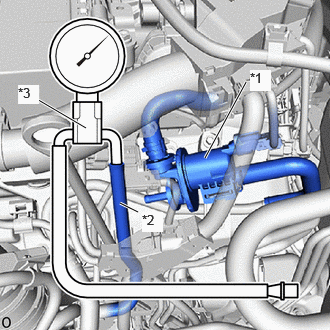

      GTY1041752Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Purge VSV
      *2 High load purge line
      (to No. 2 compressor inlet elbow)
      *3 Vacuum gauge
    • Connect the vacuum gauge to the purge line (to No. 2 compressor inlet elbow)
    • Start the engine.
    • Perform the "Control the Wastegate Valve Duty Ratio Bank2".

      Powertrain > Engine > Active Test

      Active Test Display
      Control the Wastegate Valve Duty Ratio Bank2
      Data List Display
      Wastegate Valve Control Duty Ratio Bank2
    • Operate the Active Test at 30%.
    • Check the suction while racing the engine at 3000 rpm.

      OK

      Suction applied.

      Result

      Proceed to
      OK
      NG

    Post-procedure1

    • None

    Result:

    NG

    See step  10

    Result:

    OK

    See step  4

  4. INSPECT PURGE VSV

    Refer to INSPECTION [12/2021 - ]

    Result

    Proceed to
    OK
    NG

    Result:

    NG

    REPLACE PURGE VSV. Refer to  REMOVAL [12/2021 - ]

    Result:

    OK

    See step  5

  5. CHECK HIGH LOAD PURGE LINE (PURGE PRESSURE SENSOR - NO. 2 COMPRESSOR INLET ELBOW)
    1. Check the purge pressure sensor hose.

      OK

      Purge pressure sensor hose is not clogged and damaged.

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    CLEAN OR REPLACE PURGE PRESSURE SENSOR HOSE

    Result:

    OK

    See step  6

  6. CHECK HARNESS AND CONNECTOR (PURGE PRESSURE SENSOR - ECM)

    Pre-procedure1

    • Disconnect the purge pressure sensor connector.
    • Disconnect the ECM connector.
    • Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      C185-3 (VC) - C38-36 (VCPH) Always Below 1 Ω
      C185-2 (PPG) - C38-34 (PHPG) Always Below 1 Ω
      C185-1 (GND) - C38-35 (EPHP) Always Below 1 Ω
      C185-3 (VC) or C38-36 (VCPH) - Body ground and other terminals Always 10 kΩ or higher
      C185-2 (PPG) or C38-34 (PHPG) - Body ground and other terminals Always 10 kΩ or higher
      C185-1 (GND) or C38-35 (EPHP) - Body ground and other terminals Always 10 kΩ or higher

      Result

      Proceed to
      OK
      NG

    Post-procedure1

    • None

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:

    OK

    See step  7

  7. REPLACE PURGE PRESSURE SENSOR (NO. 1 TURBO PRESSURE SENSOR)

    HINT:

    Refer to REMOVAL [12/2021 - ]

    Result

    Proceed to
    NEXT

    Result:

    NEXT

    See step  8

  8. CLEAR DTC

    Pre-procedure1

    • None
    • Clear the DTCs.

      Powertrain > Engine > Clear DTCs

      Result

      Proceed to
      NEXT

    Post-procedure1

    • Turn the ignition switch off and wait for at least 30 seconds.

    Result:

    NEXT

    See step  9

  9. CHECK WHETHER DTC OUTPUT RECURS (DTC P04F0-9C)

    Pre-procedure1

    • Drive the vehicle in accordance with the driving pattern described in Confirmation Driving Pattern.
    • Read the DTCs.

      Powertrain > Engine > Trouble Codes

      Result

      Result Proceed to
      DTCs are not output A
      P04F0-9C is output B

    Post-procedure1

    • None

    Result:

    END

    Result:

    REPLACE ECM. Refer to  REMOVAL [12/2021 - ]

  10. CHECK HIGH LOAD PURGE LINE (PURGE VSV - NO. 2 COMPRESSOR INLET ELBOW)
    1. Check the high load purge line.

      OK

      High load purge line is not clogged and damaged.

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    CLEAN OR REPLACE HIGH LOAD PURGE LINE

    Result:

    OK

    See step  11

  11. INSPECT NO. 2 COMPRESSOR INLET ELBOW (EJECTOR)

    Refer to ON-VEHICLE INSPECTION [12/2021 - ]

    Result

    Proceed to
    OK
    NG

    Result:

    NG

    CLEAN OR REPLACE NO. 2 COMPRESSOR INLET ELBOW

    Result:

    OK

    See step  12

  12. CHECK EJECTOR DRIVE LINE (NO. 2 COMPRESSOR INLET ELBOW - NO. 2 COMPRESSOR OUTLET ELBOW)
    1. Check the ejector drive line.

      OK

      Ejector drive line is not clogged and damaged.

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    CLEAN OR REPLACE EJECTOR DRIVE LINE

    Result:

    OK

    See step  13

  13. INSPECT NO. 2 COMPRESSOR OUTLET ELBOW (EJECTOR DRIVE PORT)
    1. Inspect the No. 2 compressor outlet elbow.

      OK

      Ejector drive port of the No. 2 compressor outlet elbow is not clogged and damaged.

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    See step  5

    Result:

    NG

    CLEAN OR REPLACE NO. 2 COMPRESSOR OUTLET ELBOW
