Components [09/2014 - 11/2017]

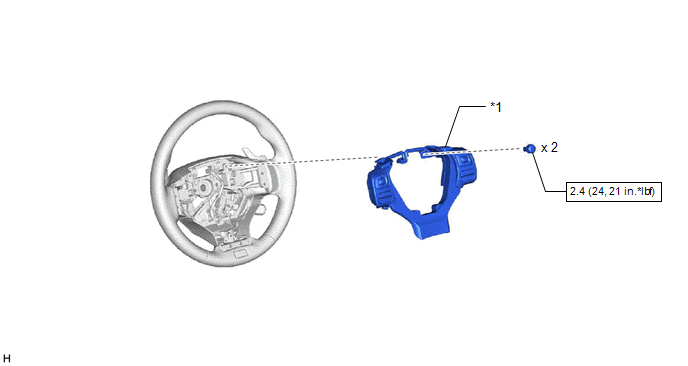

Fig 1: Steering Pad Switch Replacement Components With Torque Specifications [09/2014 - 11/2017]
GTY520463Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 STEERING PAD SWITCH ASSEMBLY - -
N.m (kgf/cm, ft.lbf): Specified torque - -
