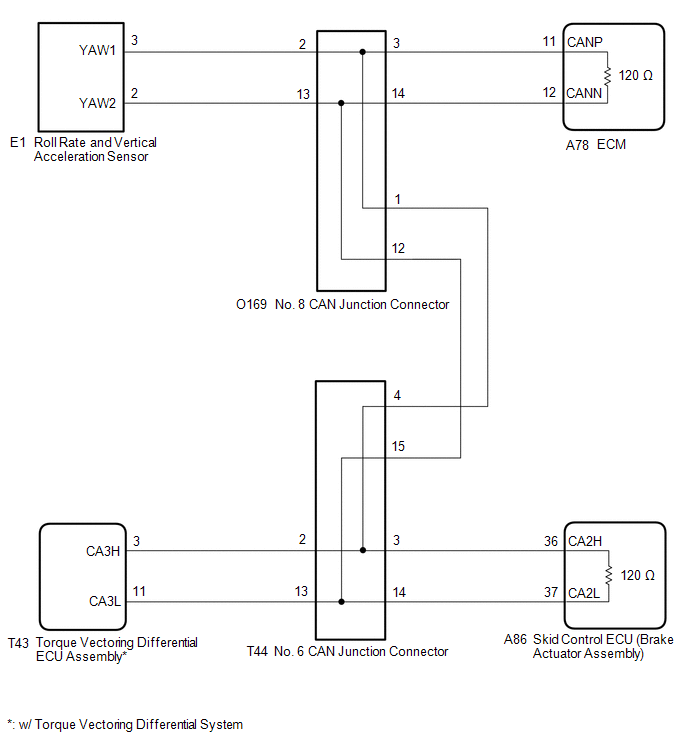

DTC U110F: Lost Communication With Roll Rate Sensor/Vertical Acceleration Sensor Module; DTC U1172: Lost Communication with Vehicle Dynamics Control Module (ch2) [11/2017 - 03/2019]: Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
