The Operation Range of the Power Source Switching Function has Decreased [11/2021 - ]: Procedure

1. Hold the digital key above the center console near the vehicle interior BLE digital key receiver and operate the power switch*1 or engine switch*2.
   NOTE:

   • Make sure there is no electronic device that outputs high-voltage or noise inside or around the vehicle.
   • Make sure that the digital key is not covered by or touching a metal object.
   1. *1: for HEV Model
   2. *2: for Gasoline Model
2. While moving the digital device closer to and farther away from the center console while repeatedly changing the power source mode, check the operating range.

   OK

   The range at which the power source mode can be changed is the same as the default.

   Result

   Proceed to
   OK
   NG

Result:

NG

See step  3

Result:

OK

See step  2

1. Perform cause analysis in the following tables.

   Body Electrical > Smart Access > Utility

   Tester Display
   Vehicle Control History (RoB)

   Main Category	Sub Category	Memorized Conditions	Suspected Cause
   Digital Key (Inactive)	Operating Power Switch/ Digital Key Boundary Area	Digital key verification performed outside operating range	Digital key could not be detected within operating range Perform function inspection: Refer to OPERATION CHECK [11/2021 - ]
   	Operating Power Switch/ Digital Key No Motion	Verification was performed even though no digital key movement was detected	The vibration sensor of the digital key may be disabled or malfunctioning Perform troubleshooting for the digital key
   	Operating Power Switch/ Digital Key Response NG	Digital key verification has failed	A normal signal cannot be received from the digital key due to noise, etc. Refer to Precautions for Inspection or Registration and perform an inspection to check if the radio wave environment is the cause of problem: Refer to PRECAUTION [11/2021 - ]
   	Operating Power Switch/ Digital Key Invalid key	Verification was performed when the digital key was invalid	Digital key locked as it was detected that it was left inside the vehicle Check the message display of the digital key
   	Operating Power Switch/ Digital Key Out of Area	Digital key verification performed outside operating range	Due to some influence, digital key could not be detected Perform function inspection: Refer to OPERATION CHECK [11/2021 - ]
   	Operating Power Switch/ Digital Key Error	BLE digital key receiver communication malfunction occurred	Communication with the BLE digital key receiver was not possible Check for DTCs: Refer to DIAGNOSTIC TROUBLE CODE CHART [11/2021 - ] Perform function inspection: Refer to OPERATION CHECK [11/2021 - ]

2. Take appropriate action in accordance with the result of the cause analysis.

   Result

   Proceed to
   NEXT

Result:

NEXT

END

1. Check the BLE indoor digital key receiver assembly in key diagnostic mode.
   1. Using the GTS, select Body Electrical / Smart Access / Utility / Communication Check (Digital Key Diag Mode) / Digital key engine/power start area

      Body Electrical > Smart Access > Utility

      Tester Display
      Communication Check (Digital Key Diag Mode)

   2. While holding the digital key in the in-vehicle operating range, check that the wireless door lock buzzer sounds
      NOTE:

      • Make sure there is no electronic device that outputs high-voltage or noise inside or around the vehicle.
      • Make sure that the digital key is not covered by or touching a metal object.
   3. While moving the digital device closer to and farther away from the center console, check the wireless door lock buzzer sound range.

   Result

   Result	Proceed to
   The wireless door lock buzzer sounds when in an operating range smaller than the default of the power source mode changing function	A
   Wireless door lock buzzer does not sound	B

Result:

B

GO TO OTHER PROBLEM

Refer to PROBLEM SYMPTOMS TABLE [11/2021 - ]

Result:

A

See step  4

1. Check if there is digital key available that is already registered to the vehicle.

   Result

   Result	Proceed to
   Another registered digital key is not available	A
   Another registered digital key is available	B

Result:

B

See step  7

Result:

A

See step  5

1. Check if another vehicle equipped with digital key system is available

   Result

   Result	Proceed to
   Vehicle equipped with digital key system not available	A
   Vehicle equipped with digital key system available	B

Result:

B

See step  9

Result:

A

See step  6

1. Register a digital key (share key).

   HINT:

   Refer to the digital key application.

   Result

   Proceed to
   NEXT

Result:

NEXT

See step  7

1. Hold a registered digital key above the center console near the vehicle interior BLE digital key receiver and operate the power switch*1 or engine switch*2.
   NOTE:

   • Make sure there is no electronic device that outputs high-voltage or noise inside or around the vehicle.
   • Make sure that the digital key is not covered by or touching a metal object.
   1. *1: for HEV Model
   2. *2: for Gasoline Model
2. While moving the digital device closer to and farther away from the center console while repeatedly changing the power source mode, check the operating range.

   OK

   The range at which the power source mode can be changed is the same as the default.

   Result

   Proceed to
   OK
   NG

Result:

OK

END (PERFORM TROUBLESHOOTING ON ORIGINAL DIGITAL KEY)

Result:

NG

See step  8

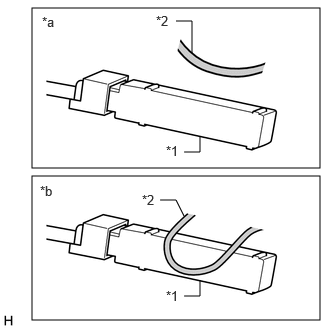

1. Check that the wire harness is not contacting or hanging near the BLE indoor digital key receiver assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	BLE Indoor Digital Key Receiver Assembly
   *2	Wire Harness (to Combination Switch Assembly)
   *a	Normal
   *b	Abnormal

   The illustrations shown are examples only.

   Refer to REMOVAL [11/2021 - ]

   NOTE:

   If the wire harness is contacting or hanging near the BLE indoor digital key receiver assembly, the vehicle interior digital key detection range will change.

2. Install BLE indoor digital key receiver assembly properly.

   Refer to REMOVAL [11/2021 - ]

   Result

   Result	Proceed to
   OK	A
   NG (Wire harness is contacting or hanging)	B
   NG (Not installed correctly)	C

Result:

A

REPLACE BLE INDOOR DIGITAL KEY RECEIVER ASSEMBLY

Refer to REMOVAL [11/2021 - ]

Result:

B

END (ADJUST WIRE HARNESS POSITION)

Result:

C

END (INSTALL THE BLE INDOOR DIGITAL KEY RECEIVER ASSEMBLY TO THE STANDARD LOCATION)

1. Register a digital key (share key) that did not operate correctly within the default operating range to another vehicle equipped with a digital key system.

   HINT:

   Refer to the digital key application.

   Result

   Proceed to
   NEXT

Result:

NEXT

See step  10

1. Hold a registered digital key above the center console near the vehicle interior BLE digital key receiver and operate the power switch*1 or engine switch*2.
   NOTE:

   • Make sure there is no electronic device that outputs high-voltage or noise inside or around the vehicle.
   • Make sure that the digital key is not covered by or touching a metal object.
   1. *1: for HEV Model
   2. *2: for Gasoline Model
2. While moving the digital device closer to and farther away from the center console while repeatedly changing the power source mode, check the operating range.

   OK

   The range at which the power source mode can be changed is the same as the default.

   Result

   Proceed to
   OK
   NG

Result:

OK

See step  8

Result:

NG

END (PERFORM TROUBLESHOOTING ON ORIGINAL DIGITAL KEY)
