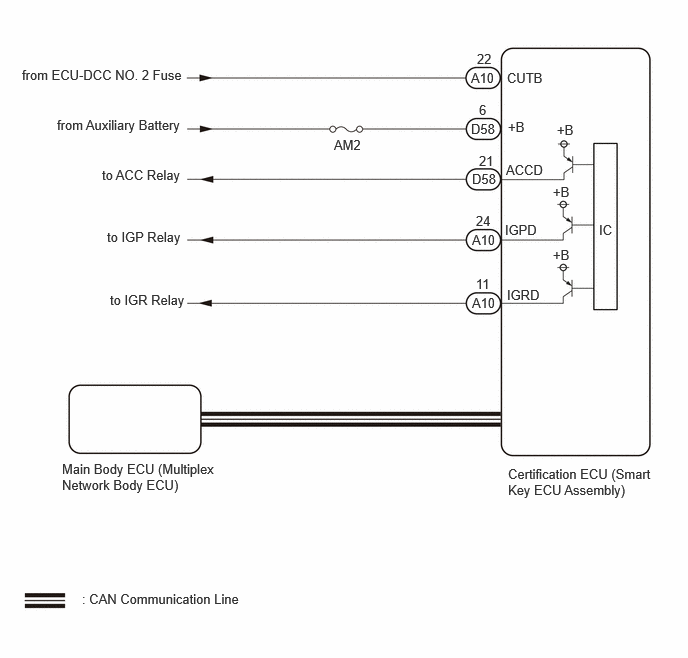

Entry Lock/Unlock Functions and Wireless Functions do not Operate After New/Additional Key ID Registration [11/2021 - ]: Wiring Diagram

GTY1254890Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
