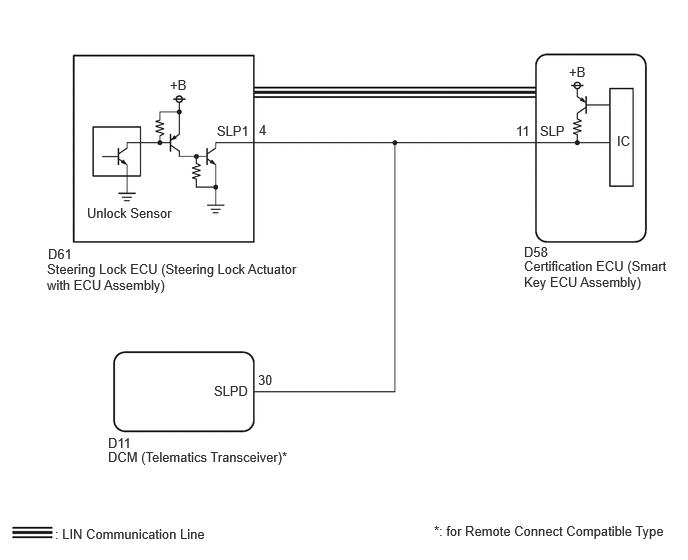

DTC B2285-62: Steering Lock Position Signal Compare Failure [11/2021 - 03/2023]: Wiring Diagram

GTY1082660Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
