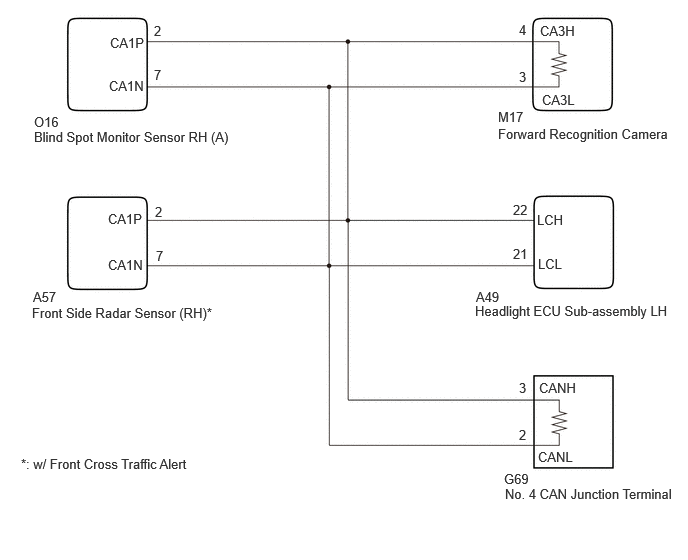

DTC U023A-87: Lost Communication with Image Processing Module "A" [11/2021 - 03/2022]: Wiring Diagram

GTY1054554Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
