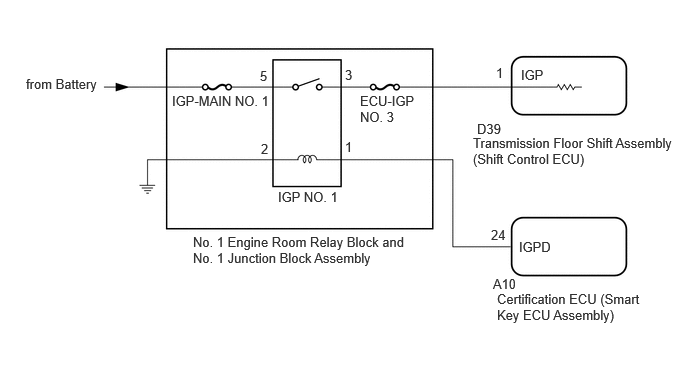

DTC P176D-12: IG2 Signal (Gear Shift Control Module "A") Circuit Short to Battery [11/2021 - ]: Wiring Diagram

GTY1065831Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
