Control Module

  1. Disconnect battery ground cable. Open luggage compartment deck lid. Remove 2 screws on each side of defroster nozzle opening. Remove 6 screws from underside of instrument panel pad brow. Remove one screw from each end of pad.

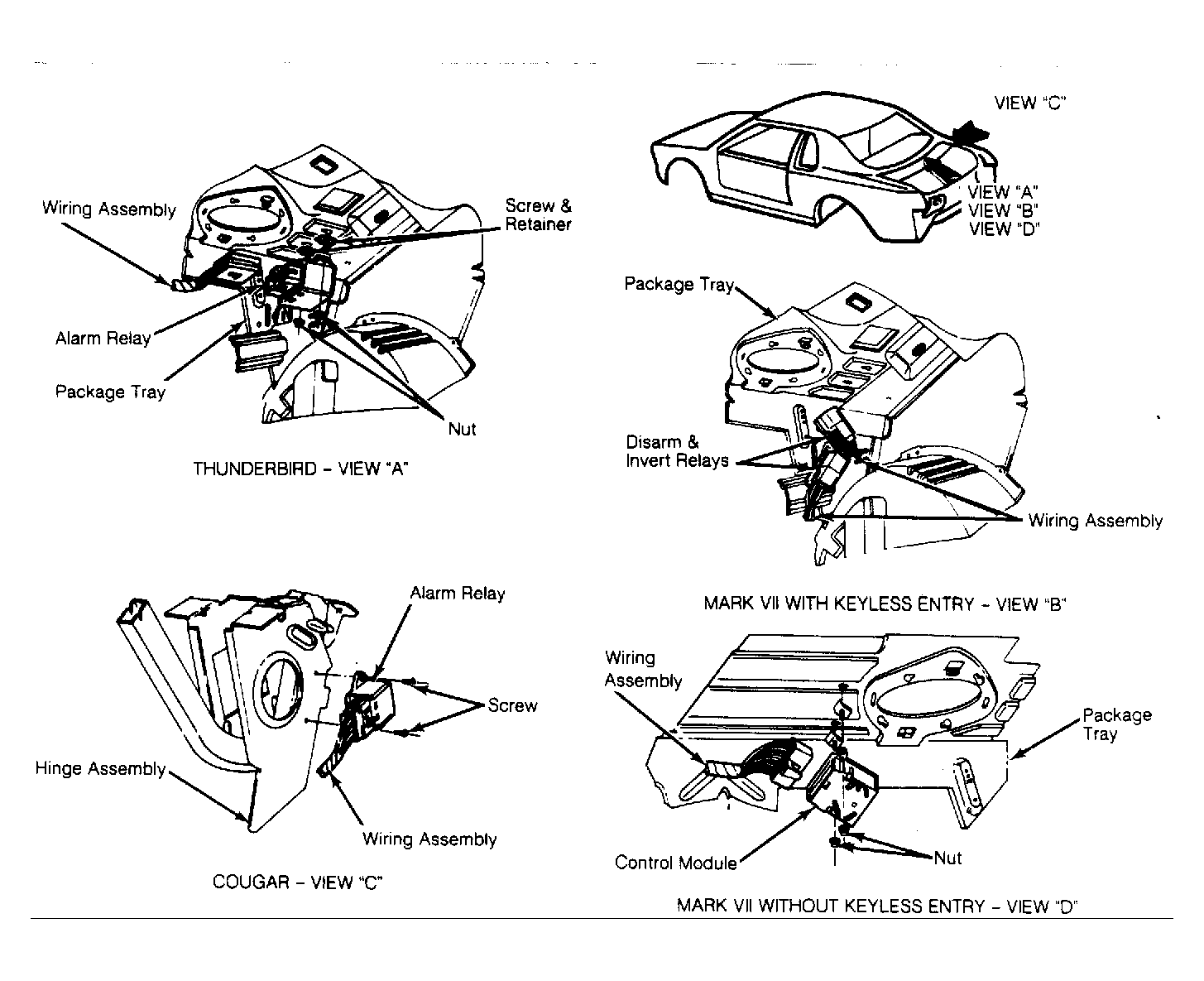

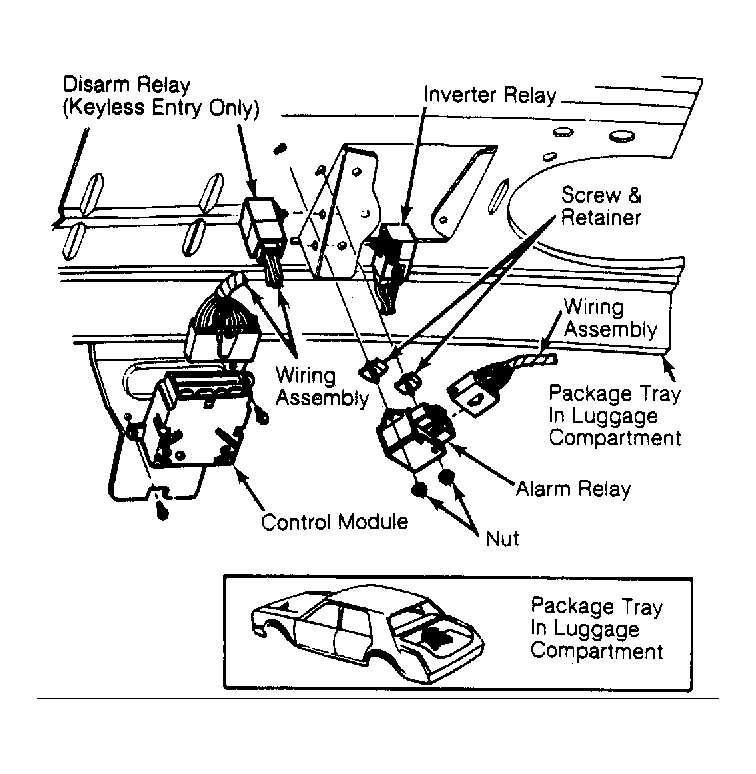

  2. Disconnect electrical connector from control module. Remove 2 screws attaching control module and remove module. To install, reverse removal procedure and test system for proper operation. See Figure and Figure .
