Seats - Power: Testing: Notes

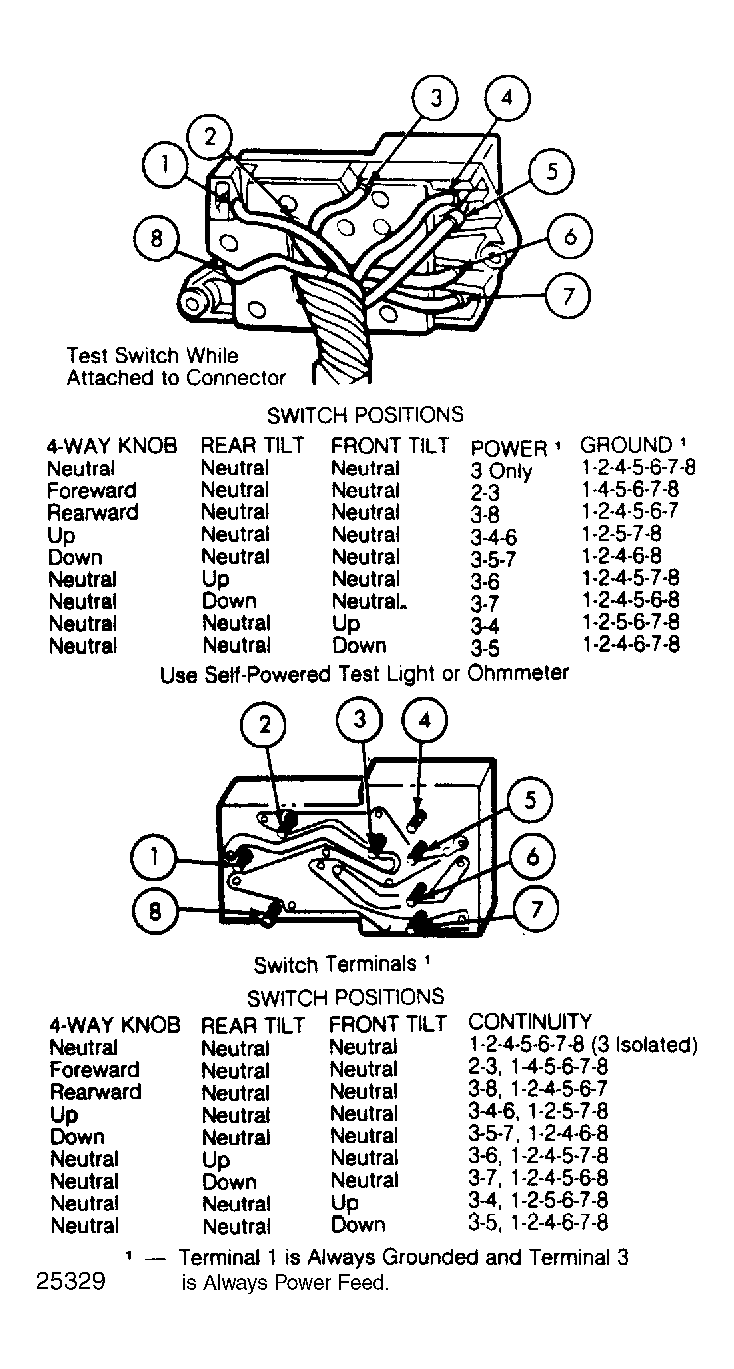

Fig 1: Terminal Identification & Switch Test for Arm Rest Mounted Switches Courtesy Ford Motor Co.
G25329

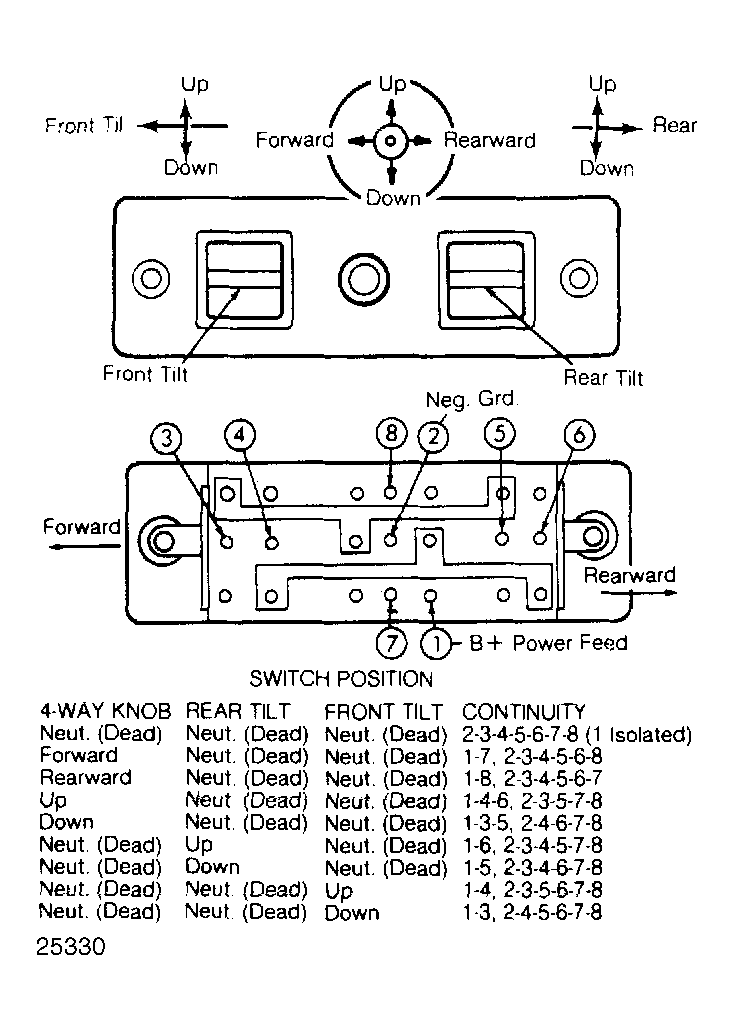

Fig 2: Terminal Identification & Switch Test for Seat Mounted Switch Courtesy Ford Motor Co.
G25330
Fig 3: Seat Regulator Control Processor Assembly Connector Courtesy Ford Motor Co.
G8115

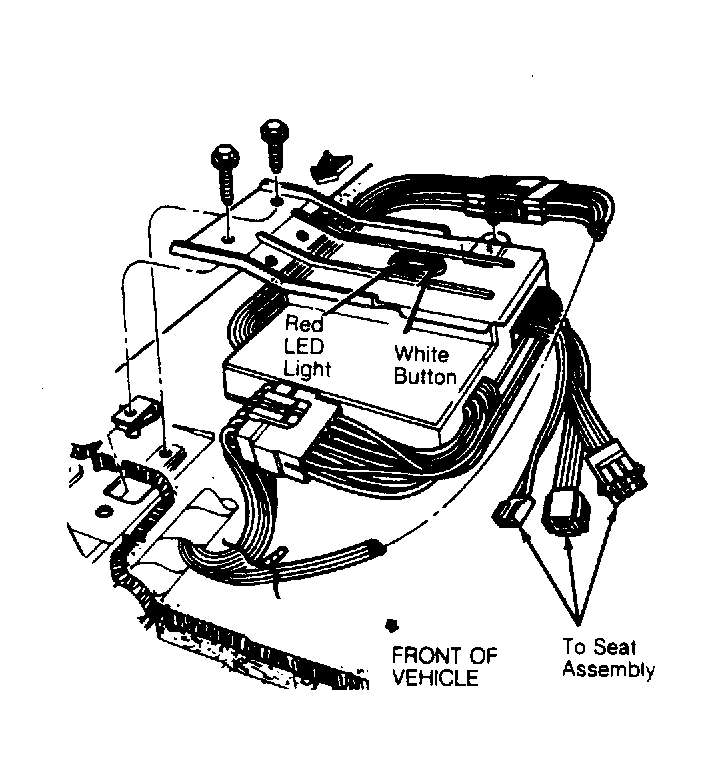

Fig 4: Seat Regulator Control Processor Assembly Courtesy Ford Motor Co.
G8116
