Power Windows: Adjustments: Stabilizer

The stabilizer at the rear of the door is used to support the glass at the belt. With glass in the full-up position, the stabilizer is set firmly against the glass and tightened. See Fig 1 .

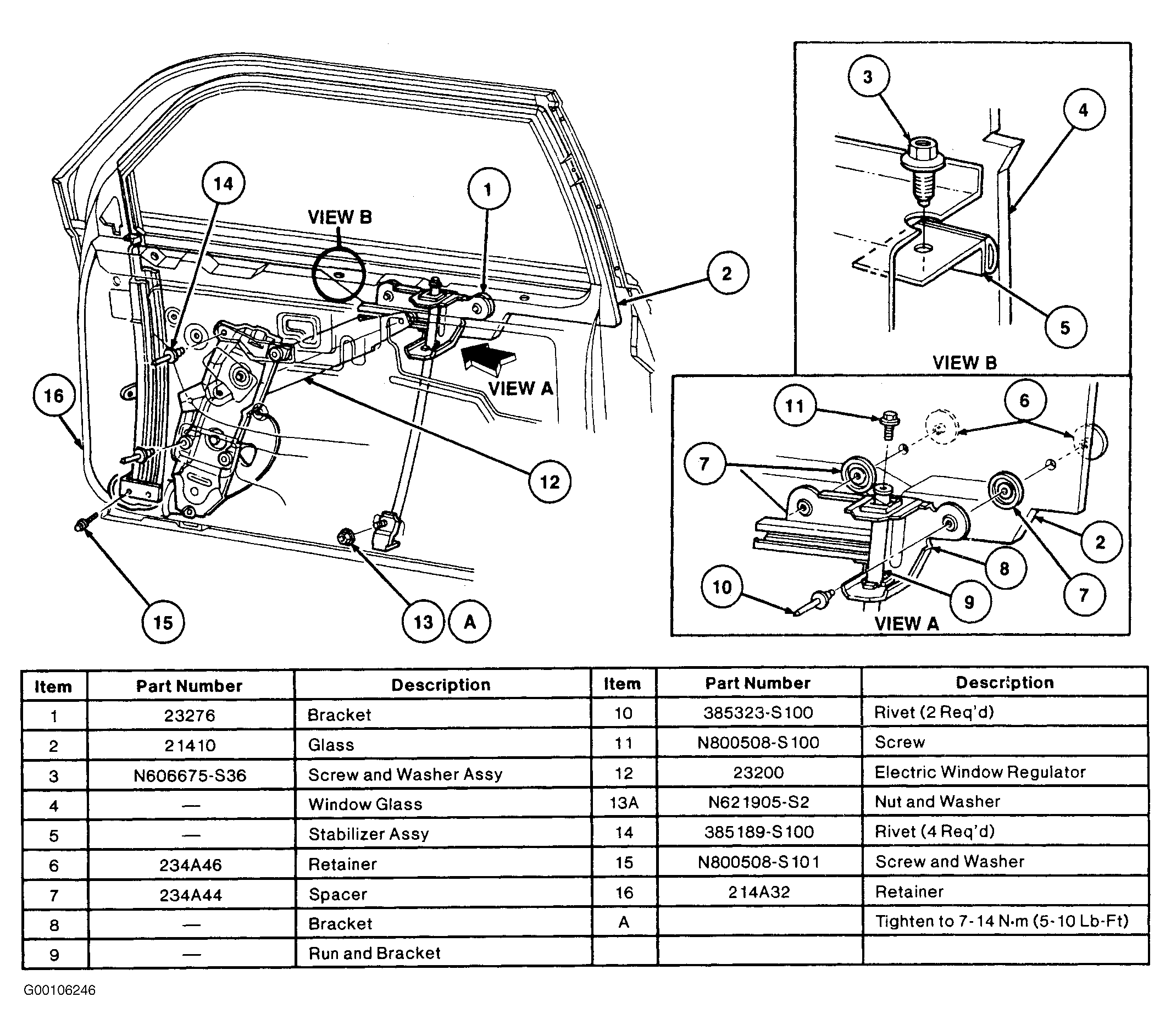

Fig 1: Adjusting Door Glass Stabilizer
G00106246Courtesy of FORD MOTOR CO.
