EVO Control Module: Removal

Turn the ignition switch to the OFF or LOCK position.
Turn the air suspension switch (located in luggage compartment) OFF. See Fig 1 .
Remove the glove compartment.
Disconnect the wire harness from the EVO control module. See Fig 2 .
Remove the module-to-cowl retaining bolt, and remove the module. See Fig 3 .

Fig 1: Locating Air Suspension Switch

Courtesy of FORD MOTOR CO.

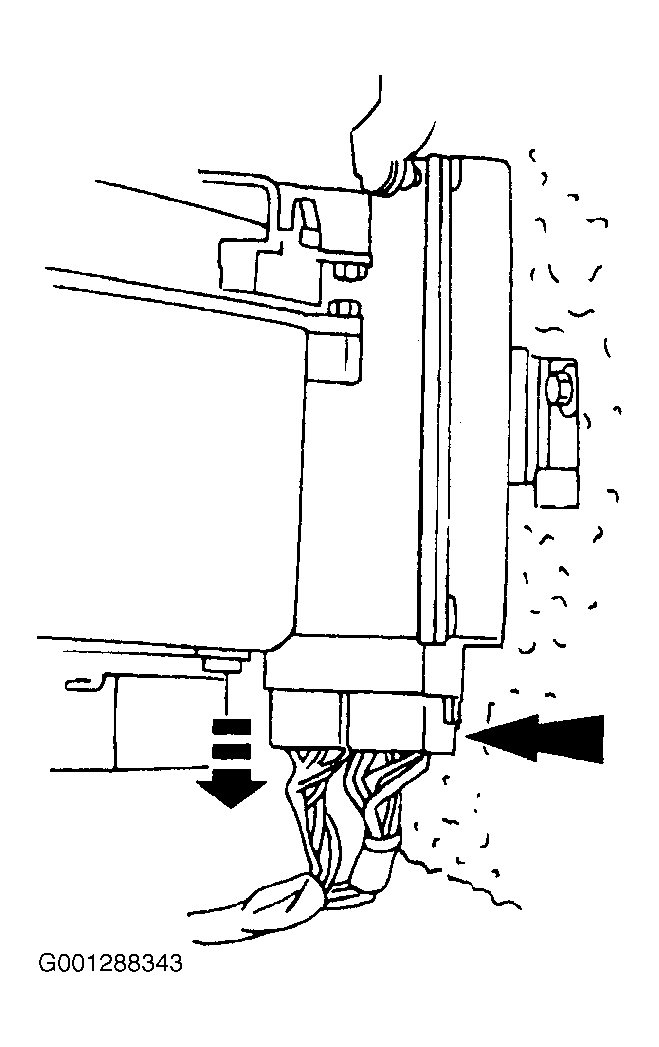

Fig 2: Identifying EVO Control Module Wire Harness

Courtesy of FORD MOTOR CO.

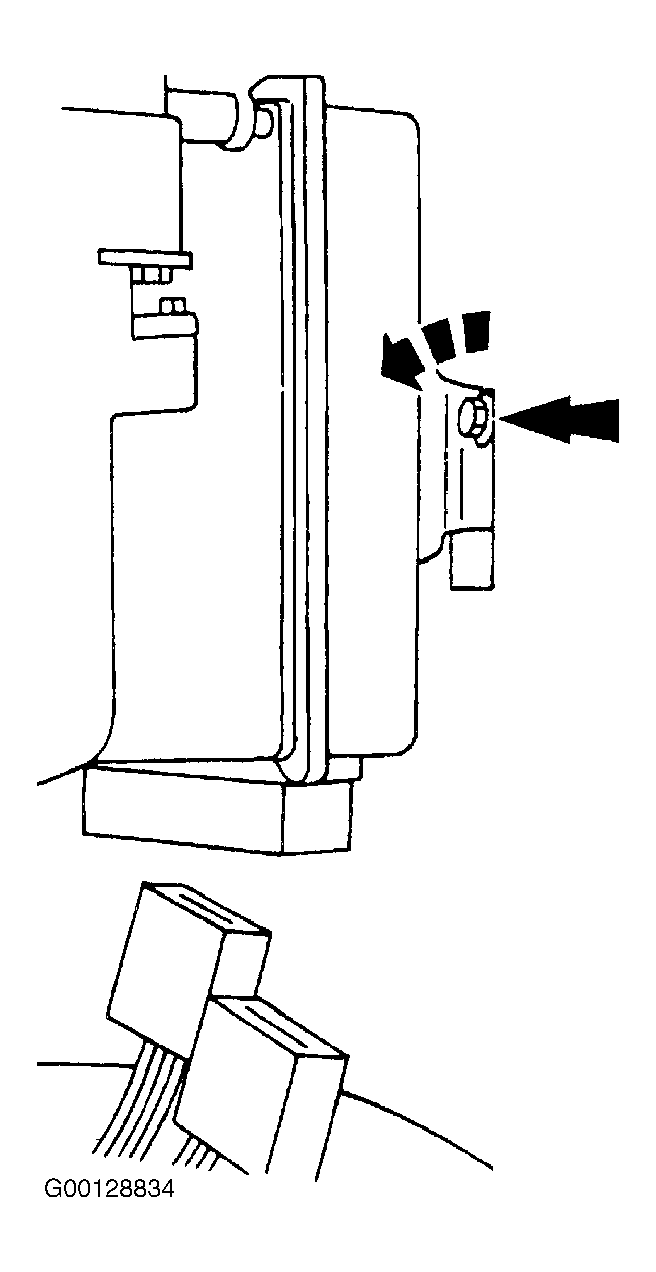

Fig 3: Identifying Control Module-to-Cowl Retaining Bolt

Courtesy of FORD MOTOR CO.
