Pinpoint Test B: The Front Electronic Module (FEM) Does Not Respond To The Diagnostic Tool

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Electronic modules are sensitive to static electrical charges. If exposed to these charges, damage may result.

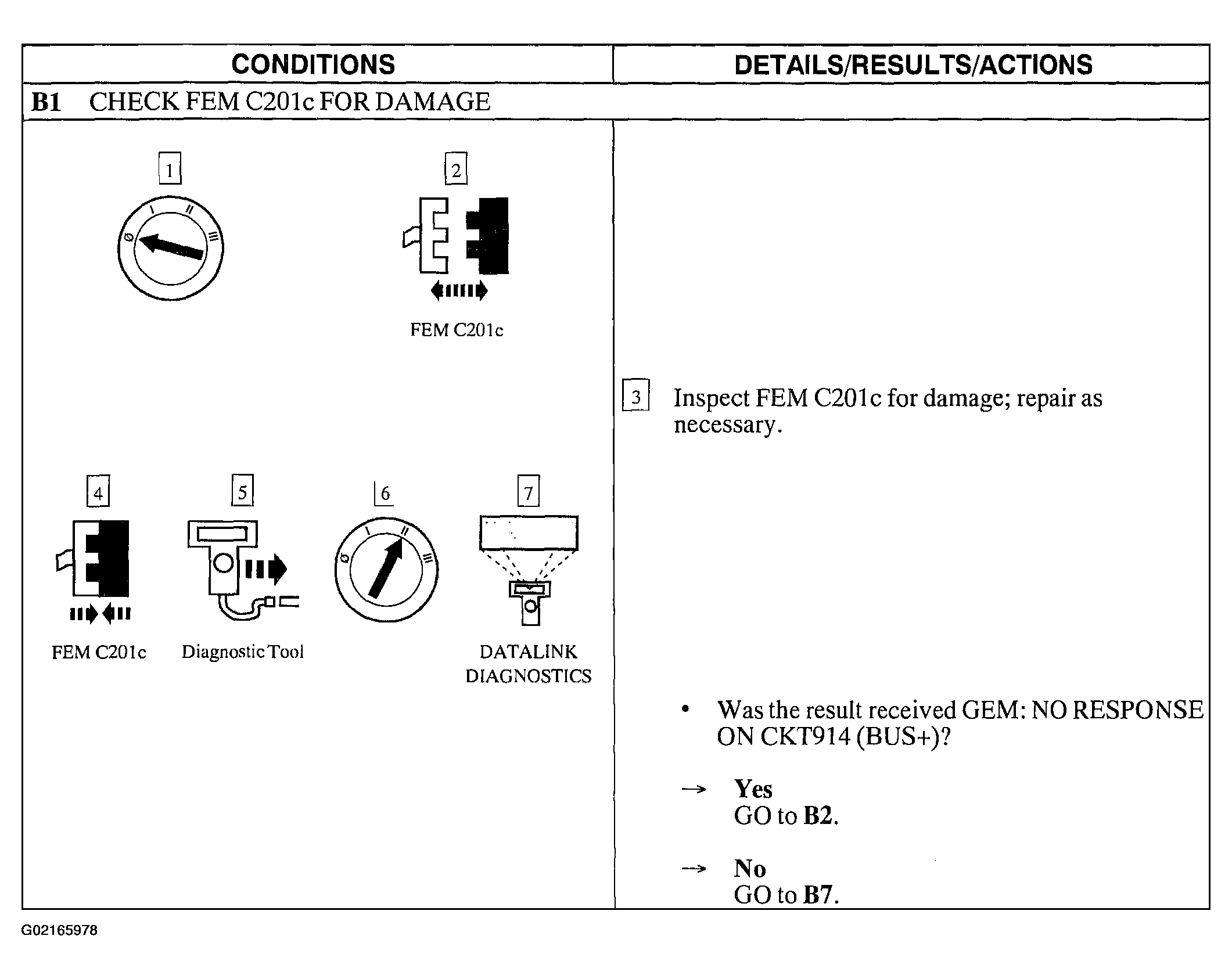

Fig 1: Pinpoint Test B: The Front Electronic Module (FEM) Does Not Respond To The Diagnostic Tool (Step B1)

Courtesy of FORD MOTOR CO.

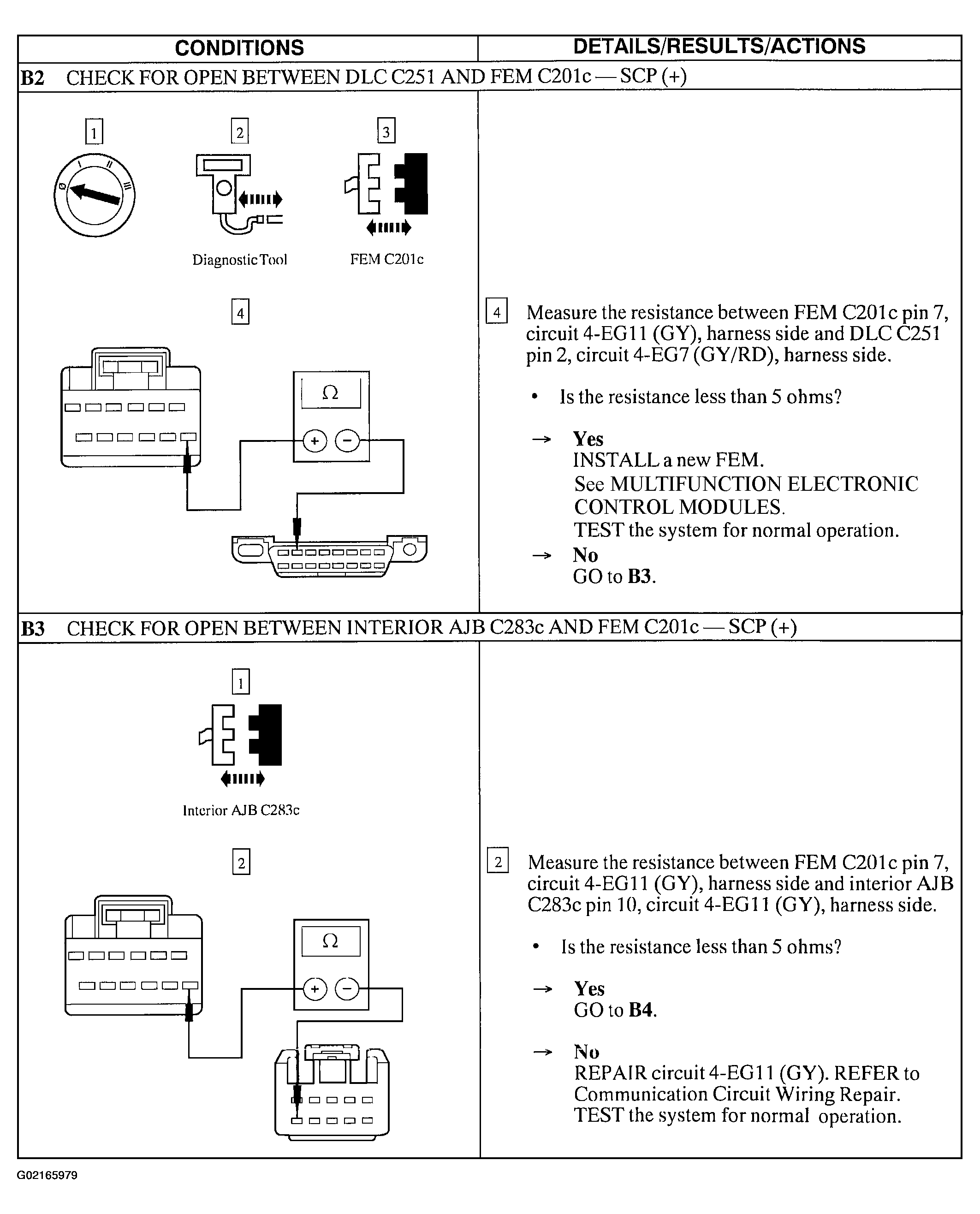

Fig 2: Pinpoint Test B: The Front Electronic Module (FEM) Does Not Respond To The Diagnostic Tool (Steps B2 & B3)

Courtesy of FORD MOTOR CO.

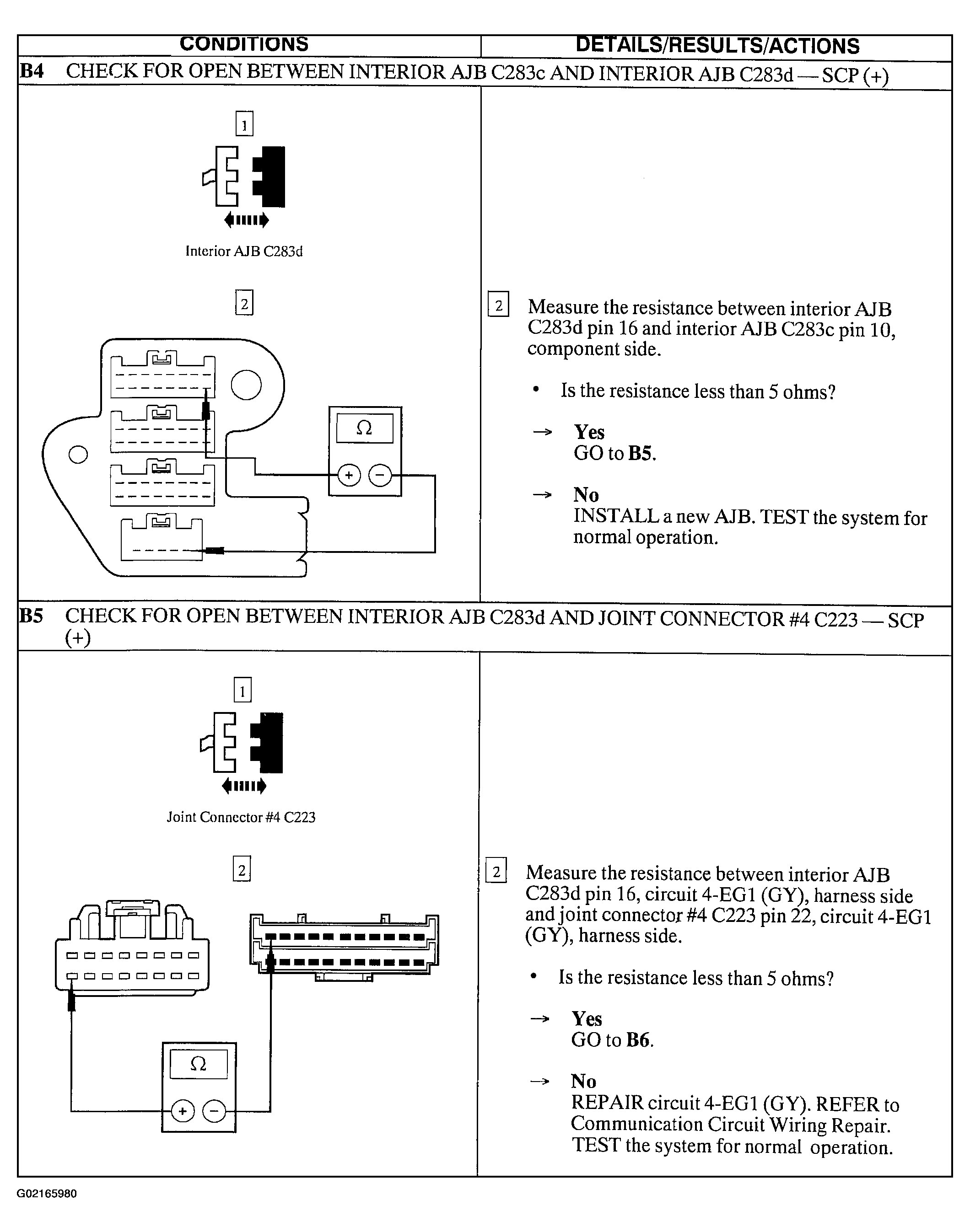

Fig 3: Pinpoint Test B: The Front Electronic Module (FEM) Does Not Respond To The Diagnostic Tool (Steps B4 & B5)

Courtesy of FORD MOTOR CO.

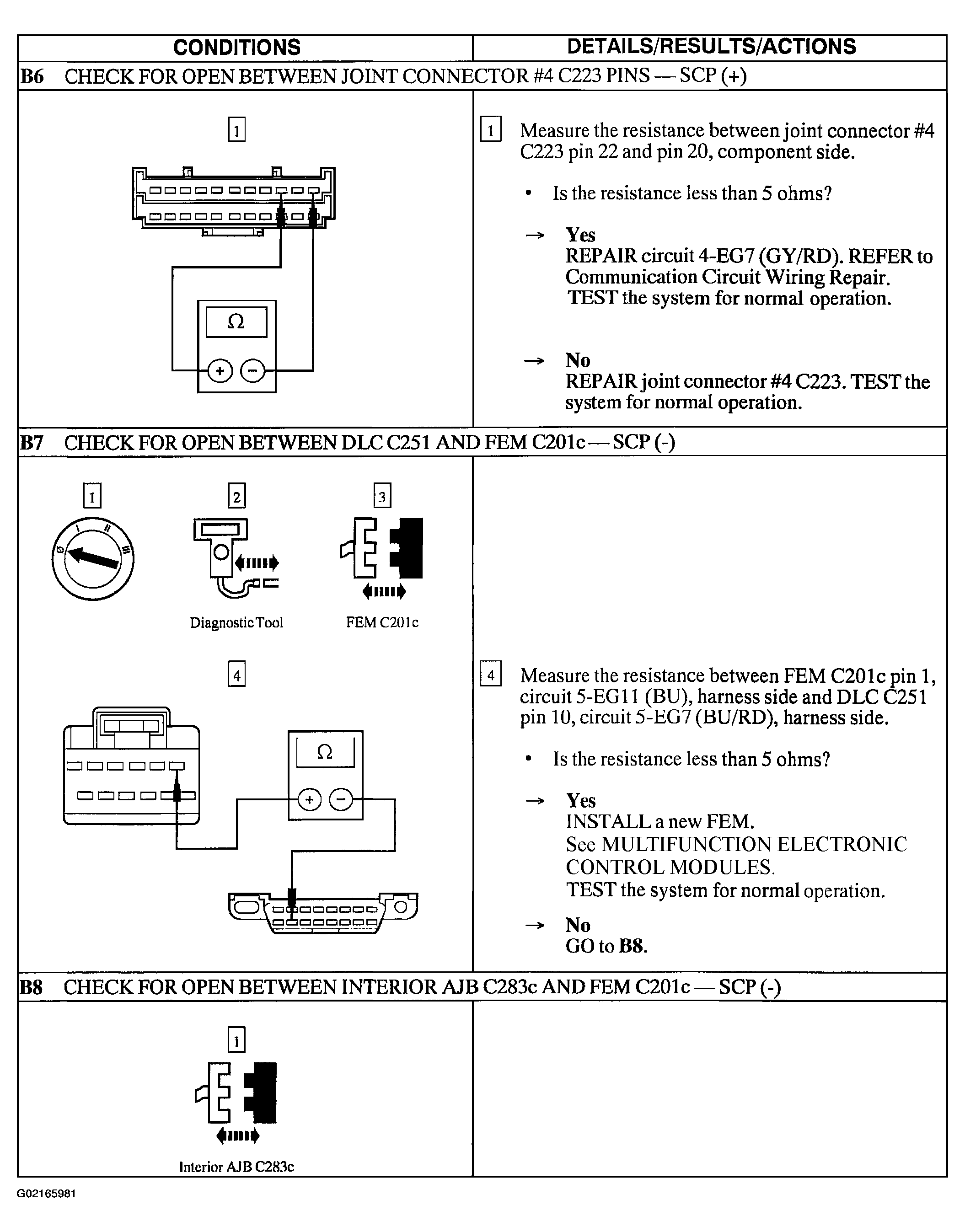

Fig 4: Pinpoint Test B: The Front Electronic Module (FEM) Does Not Respond To The Diagnostic Tool (Steps B6 To B8)

Courtesy of FORD MOTOR CO.

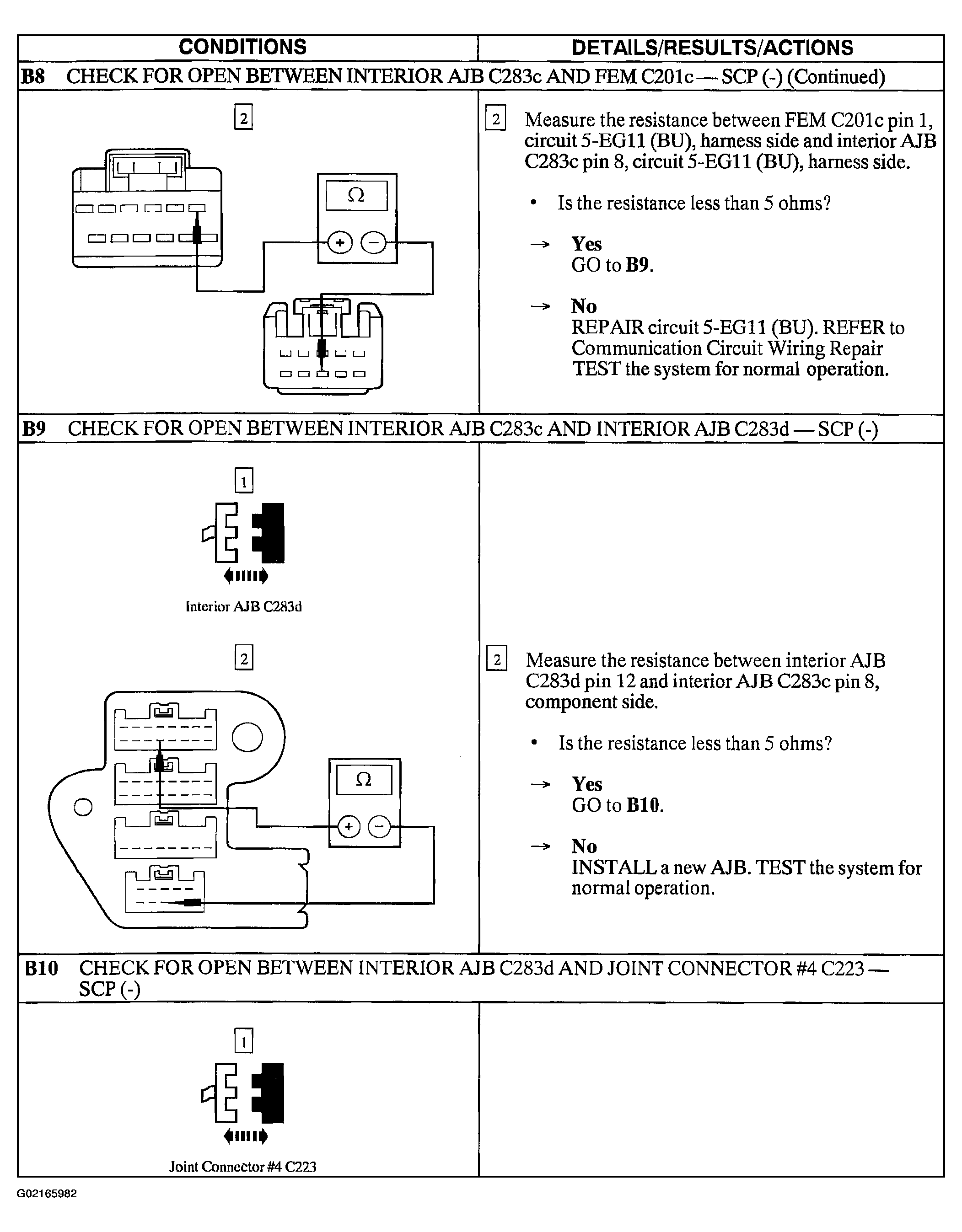

Fig 5: Pinpoint Test B: The Front Electronic Module (FEM) Does Not Respond To The Diagnostic Tool (Steps B8 Cont. To B10

Courtesy of FORD MOTOR CO.

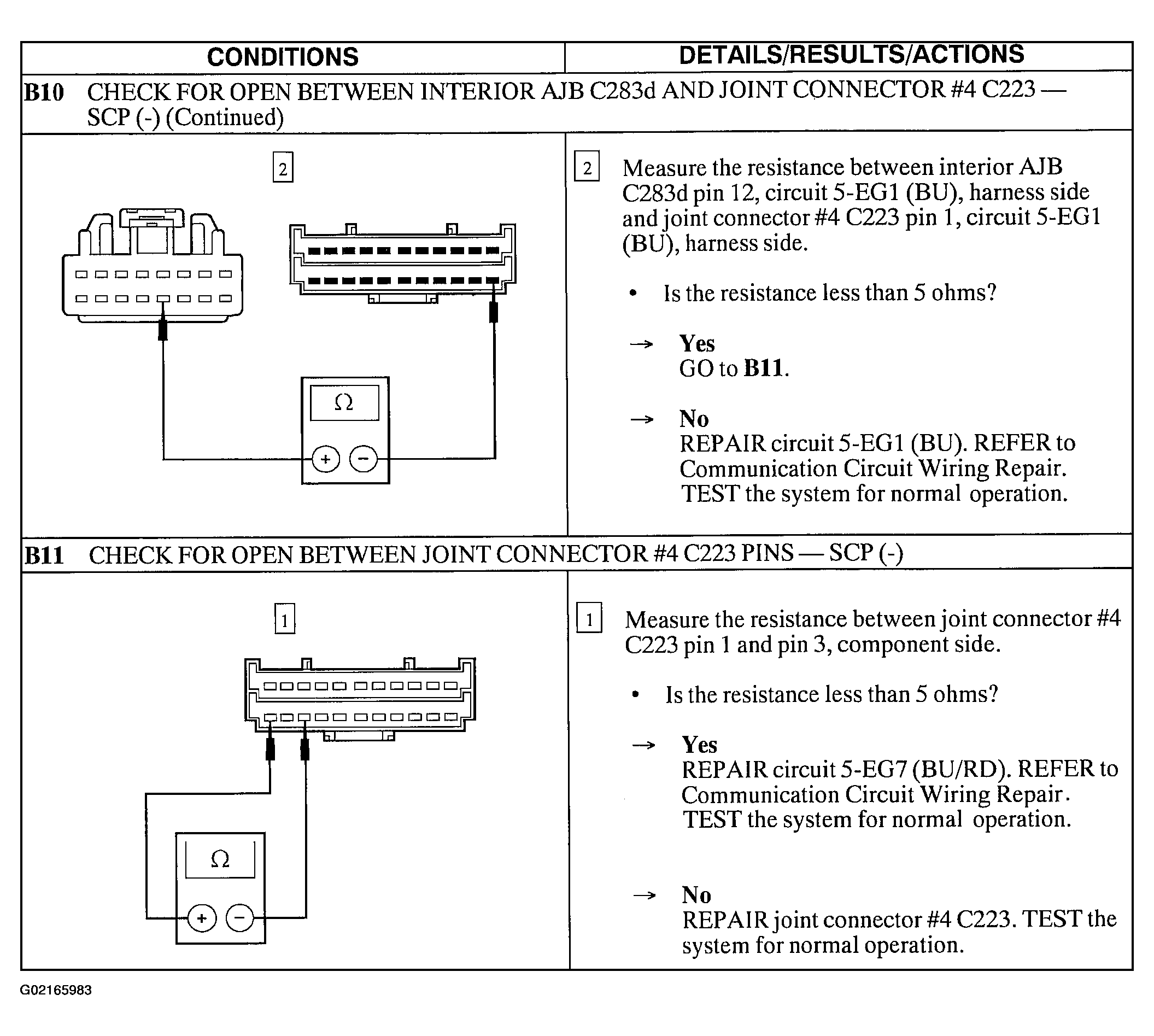

Fig 6: Pinpoint Test B: The Front Electronic Module (FEM) Does Not Respond To The Diagnostic Tool (Steps B10 Cont. & B11)

Courtesy of FORD MOTOR CO.
