Pinpoint Test I: The Remote Emergency Satellite Cellular Unit (RESCU) Module Does Not Respond To The Diagnostic Tool

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Electronic modules are sensitive to static electrical charges. If exposed to these charges, damage may result.

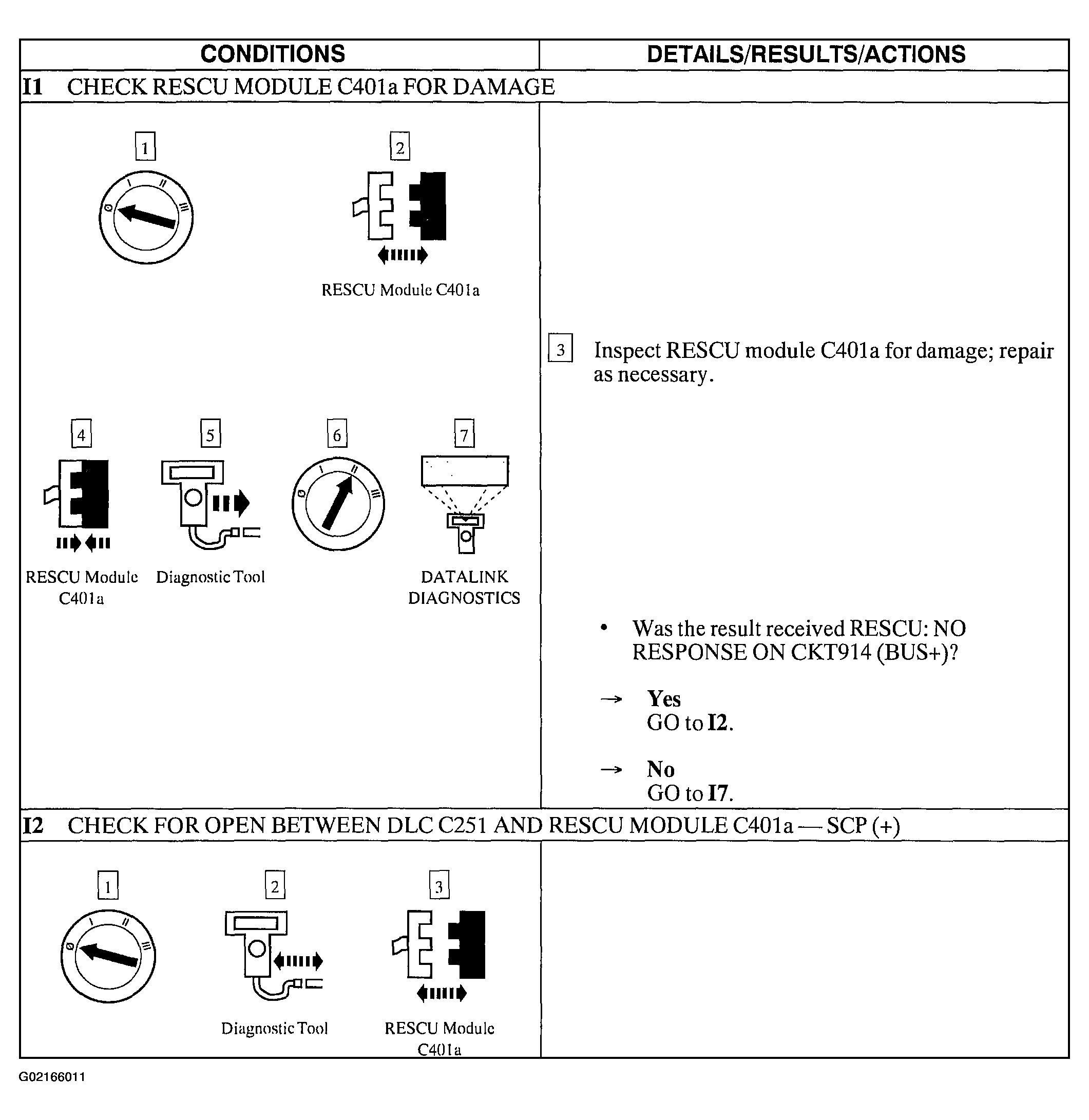

Fig 1: Pinpoint Test I: The Remote Emergency Satellite Cellular Unit (RESCU) Module Does Not Respond To The Diagnostic Tool (Steps I1 & I2)
G02166011Courtesy of FORD MOTOR CO.

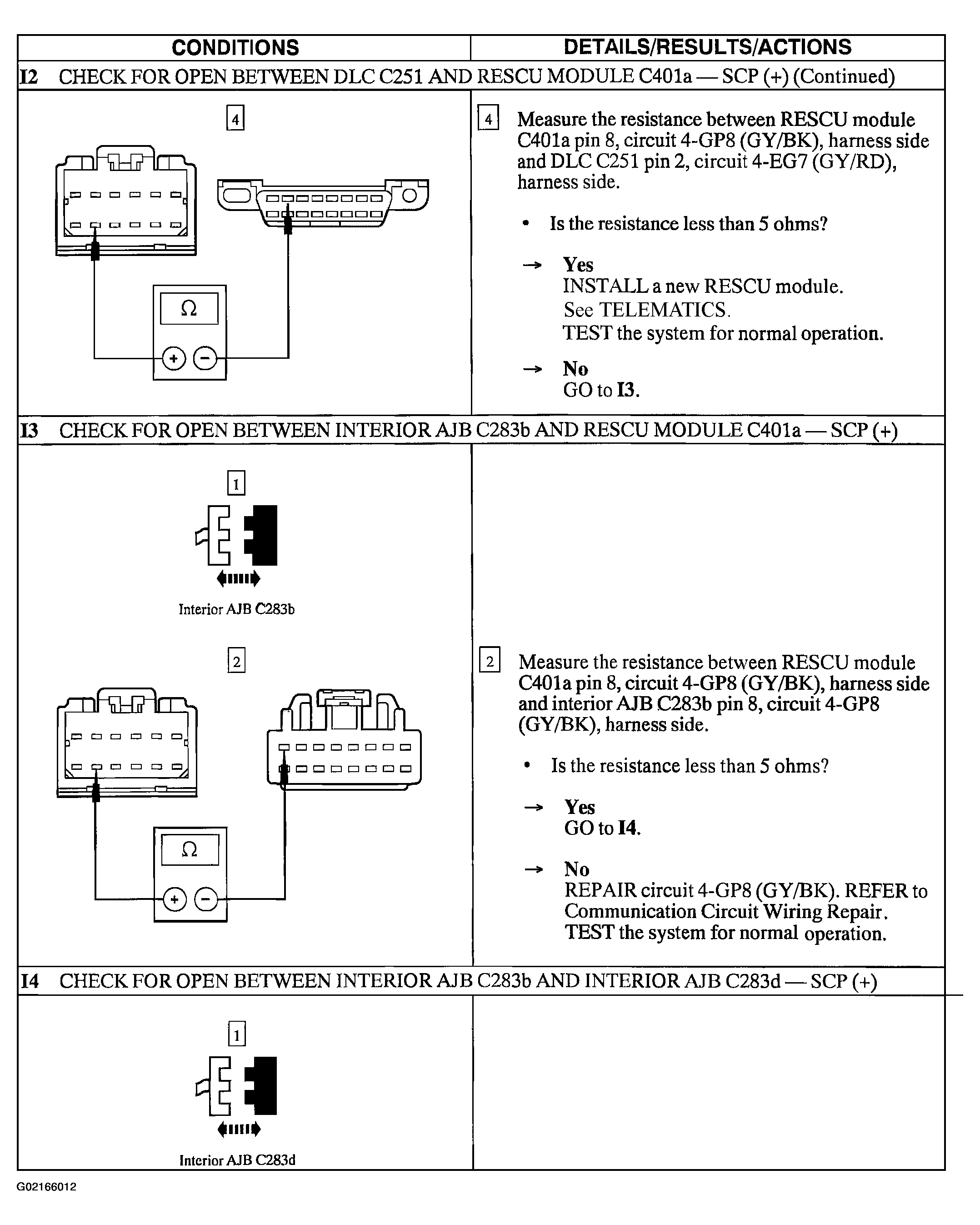

Fig 2: Pinpoint Test I: The Remote Emergency Satellite Cellular Unit (RESCU) Module Does Not Respond To The Diagnostic Tool (Steps I2 Cont.To I4)
G02166012Courtesy of FORD MOTOR CO.

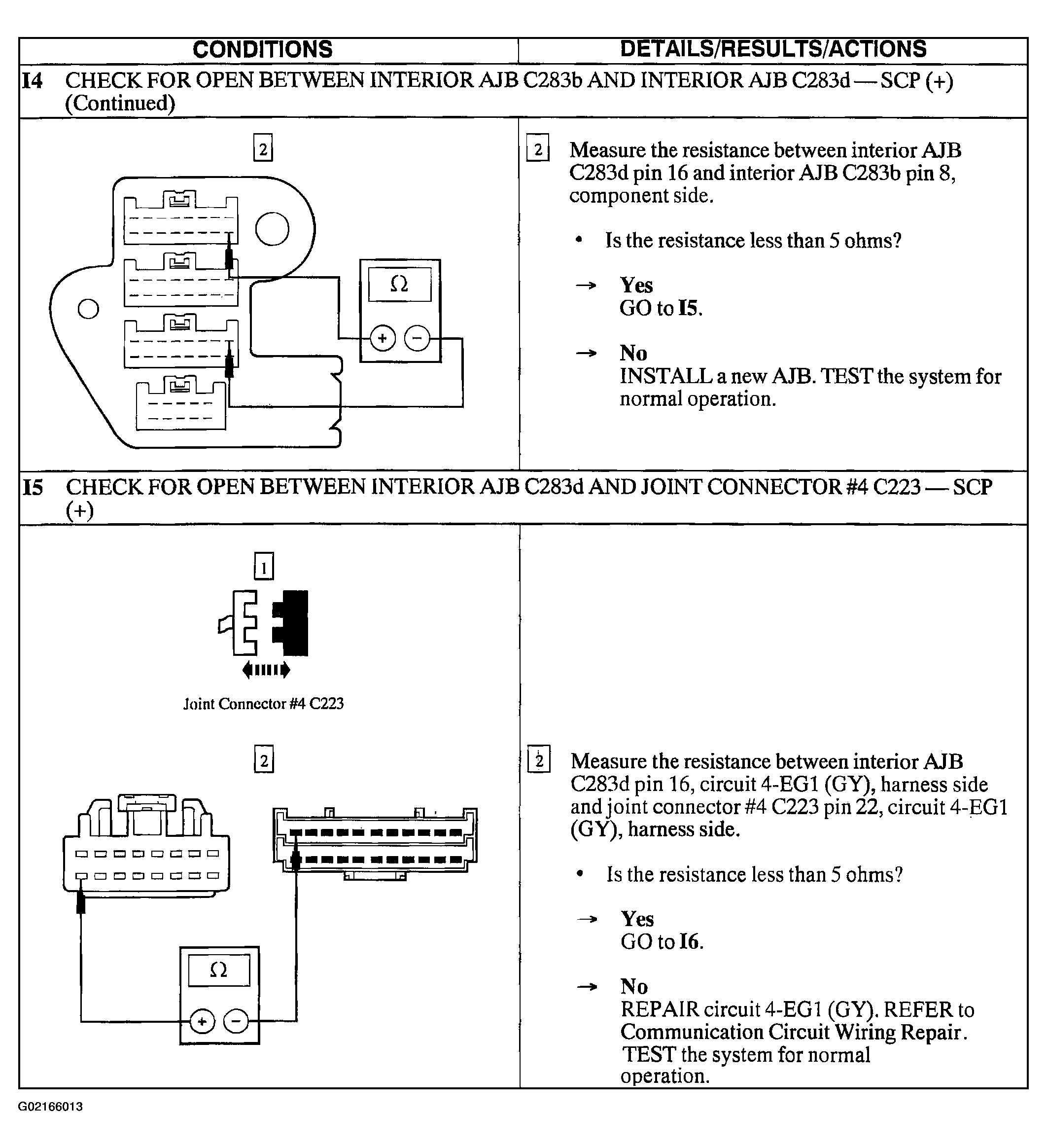

Fig 3: Pinpoint Test I: The Remote Emergency Satellite Cellular Unit (RESCU) Module Does Not Respond To The Diagnostic Tool (Steps I4 Cont. & I5)
G02166013Courtesy of FORD MOTOR CO.

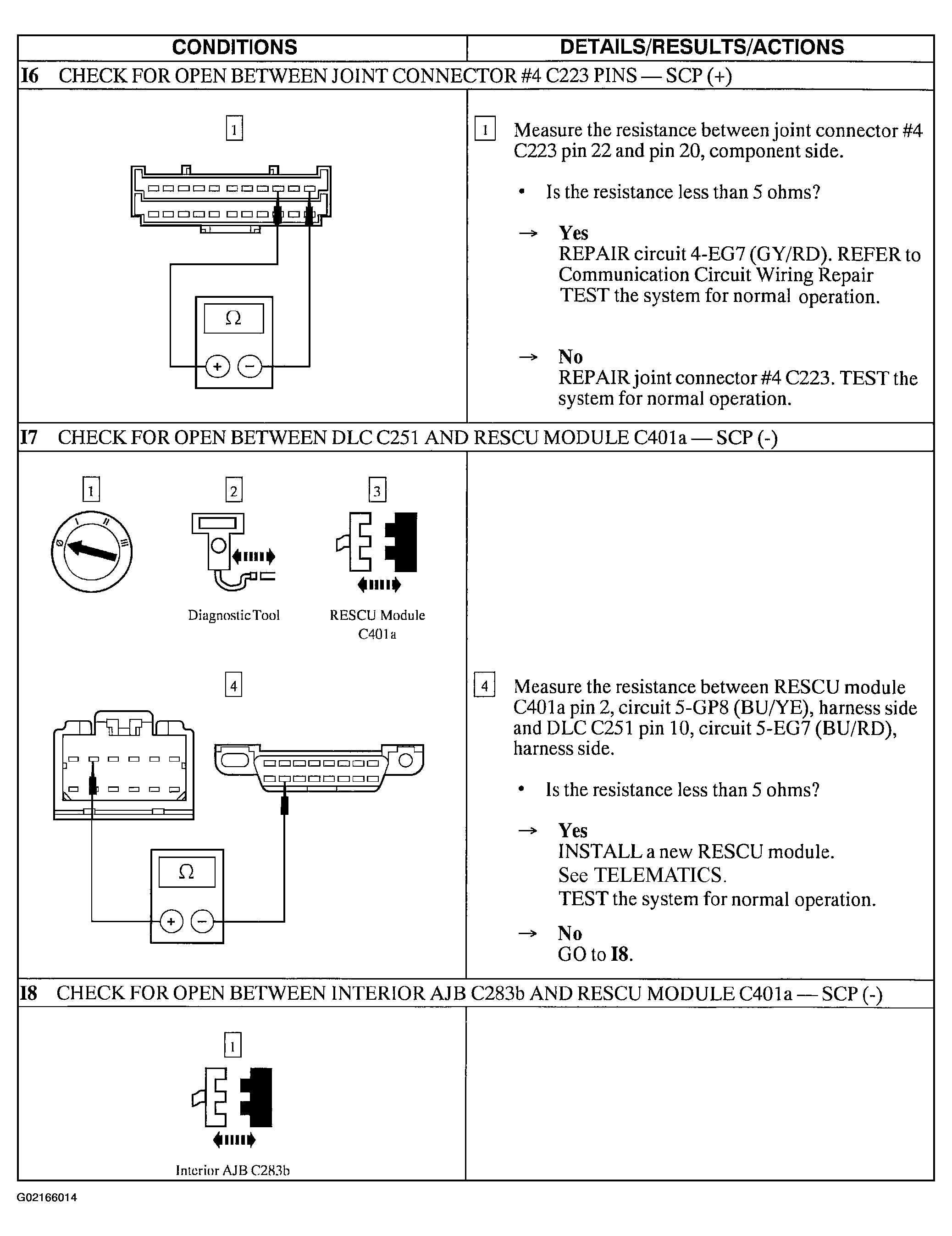

Fig 4: Pinpoint Test I: The Remote Emergency Satellite Cellular Unit (RESCU) Module Does Not Respond To The Diagnostic Tool (Steps I6 To I8)
G02166014Courtesy of FORD MOTOR CO.

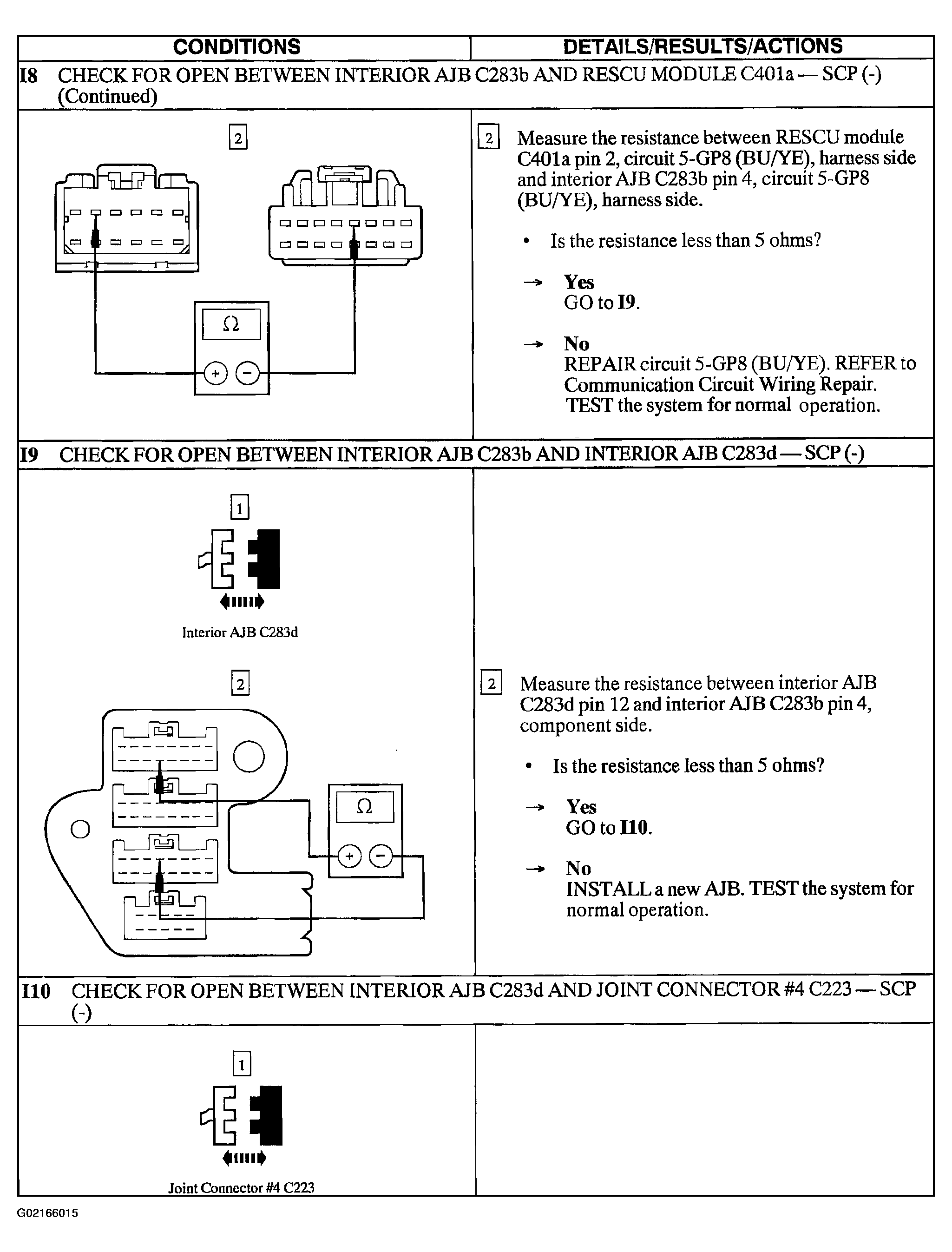

Fig 5: Pinpoint Test I: The Remote Emergency Satellite Cellular Unit (RESCU) Module Does Not Respond To The Diagnostic Tool (Steps I8 Cont. To I10)
G02166015Courtesy of FORD MOTOR CO.

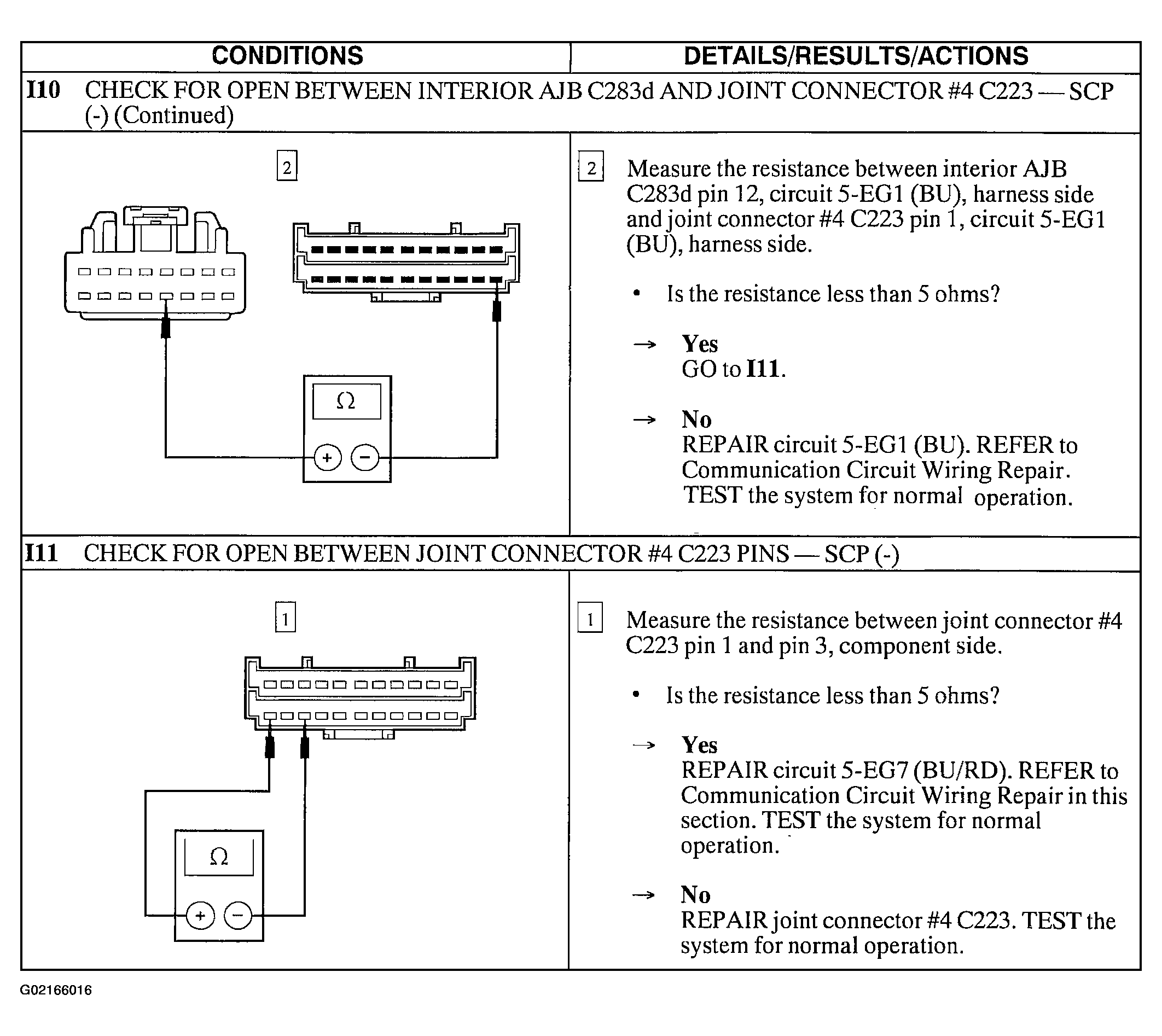

Fig 6: Pinpoint Test I: The Remote Emergency Satellite Cellular Unit (RESCU) Module Does Not Respond To The Diagnostic Tool (Steps I10 Cont. & I11)
G02166016Courtesy of FORD MOTOR CO.
