Disassembly And Assembly Of Subassemblies: Piston: Disassembly

WARNING: This page is about a different car, the 2002 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Connecting rods and rod caps are a matched set and cannot be interchanged.

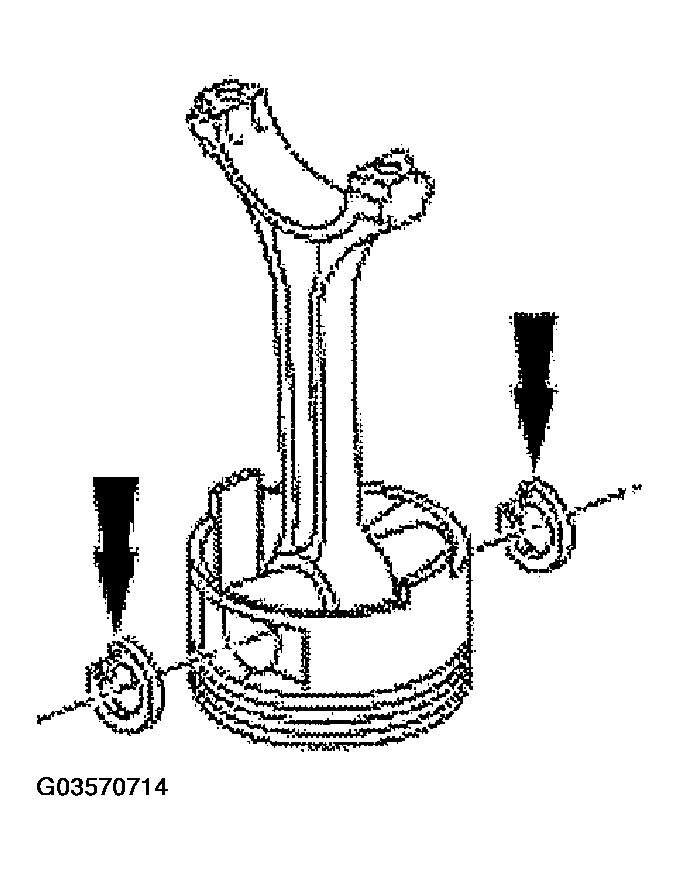

Fig 1: Removing Clips

Courtesy of FORD MOTOR CO.

Remove the clips.
Remove the piston pin (6135) from the piston (6108) and connecting rod assembly.

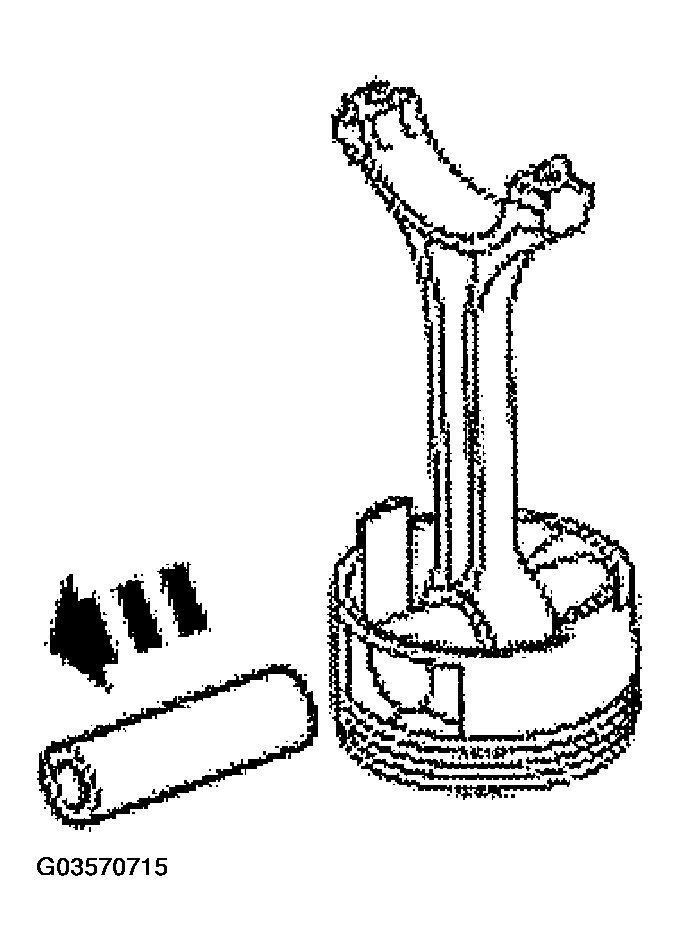

Fig 2: Removing Piston Pin From Piston
Courtesy of FORD MOTOR CO.
Remove the connecting rod (6200) from the piston.

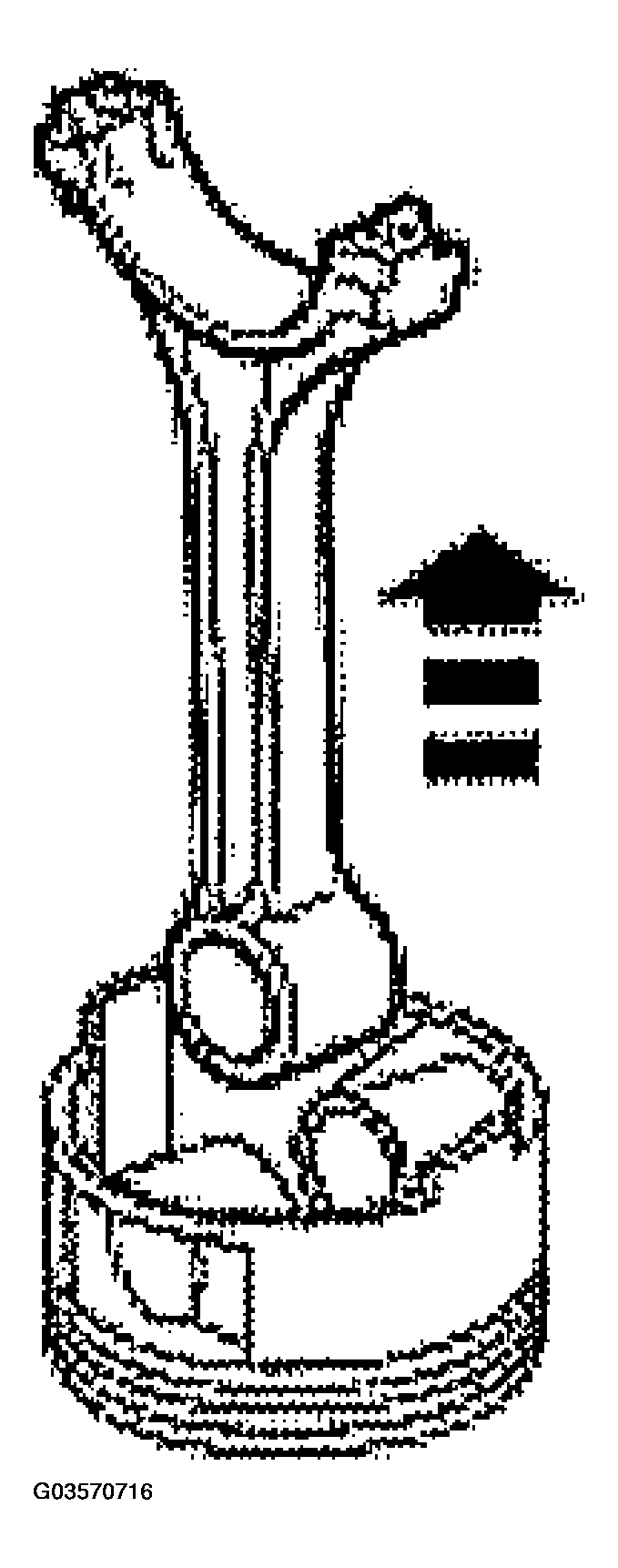

Fig 3: Removing Connecting Rod From Piston
Courtesy of FORD MOTOR CO.
Clean and inspect the piston and connecting rod. For additional information, refer to ENGINE SYSTEM-GENERAL INFORMATION .
