In-Vehicle Repair: FLEXPLATE: Installation

WARNING: This page is about a different car, the 2002 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the flexplate and install the bolts in the sequence shown.

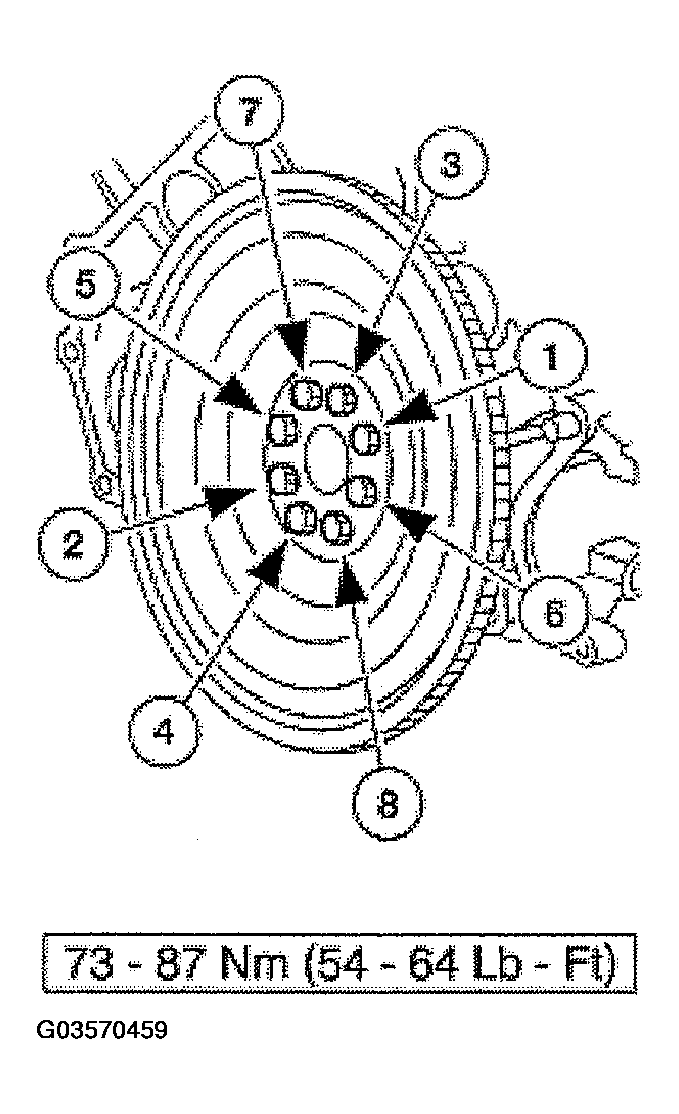

    Fig 1: Installing Flexplate Bolts In Sequence
    G03570459Courtesy of FORD MOTOR CO.
  2. Install the transmission. For additional information, refer to AUTOMATIC TRANSMISSION - 4R100 .
