Fluid Pump: Disassembly

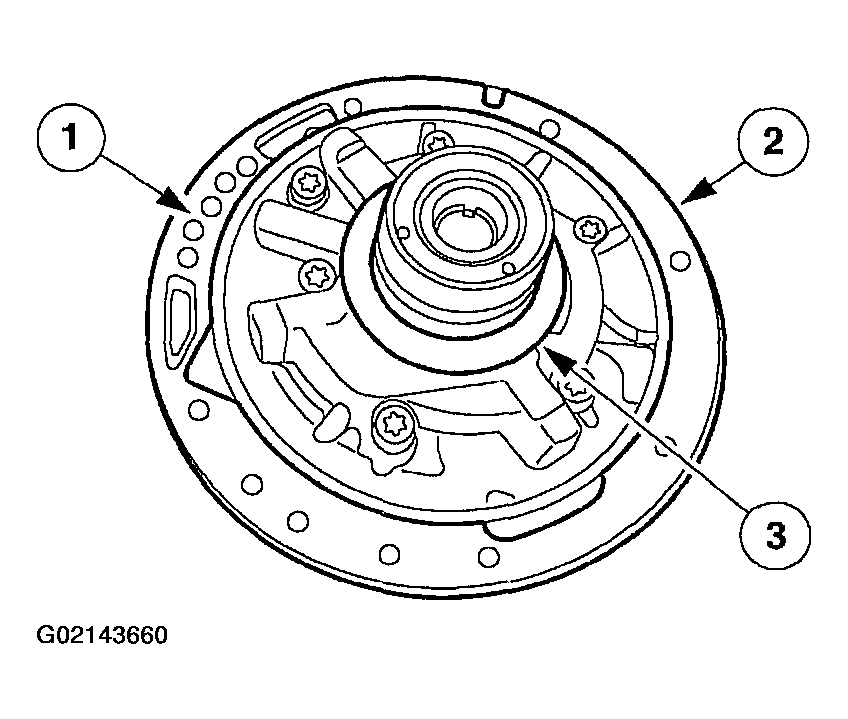

Remove the fluid pump gasket, fluid pump seal ring, and the No. 1 thrust washer.
1. Remove and discard the fluid pump gasket.
2. Remove and discard the fluid pump seal ring (square cut).
3. Remove and tag the No. 1 thrust washer.
Fig 1: Identifying Fluid Pump Gasket, Fluid Pump Seal Ring (Square Cut) & No. 1 Thrust Washer

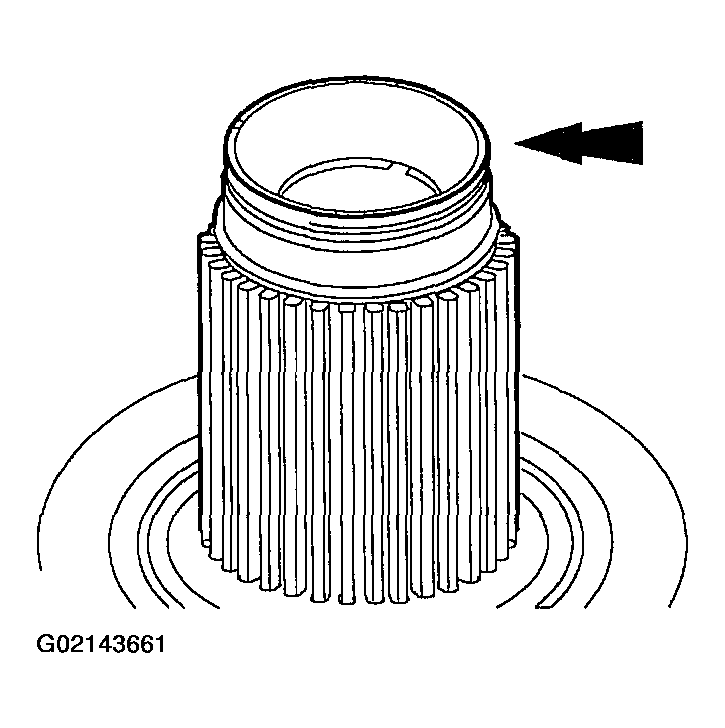

Remove the fluid pump support seal ring.

Fig 2: Identifying Fluid Pump Support Seal Ring
Remove the seal rings.

Fig 3: Identifying Seal Rings

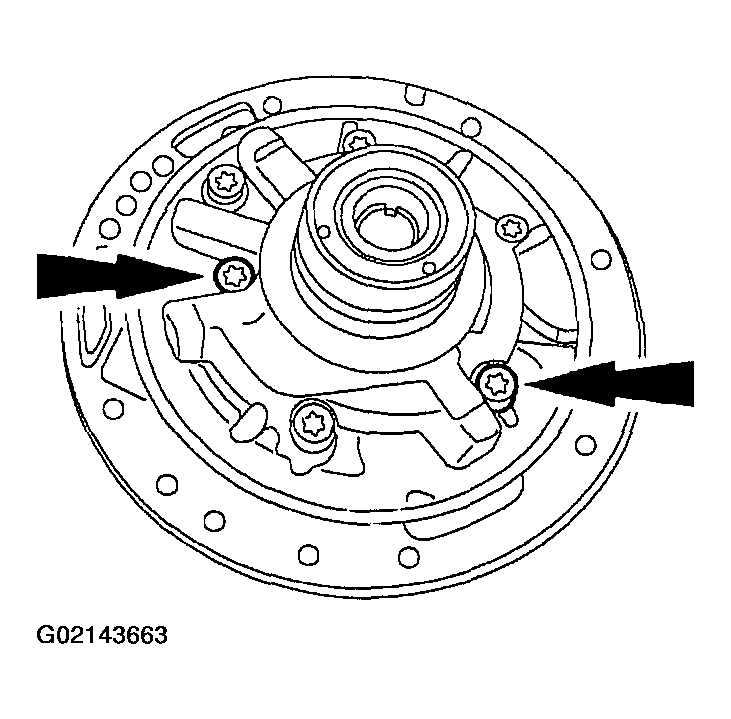

Remove the fluid pump housing.

Fig 4: Identifying Fluid Pump Housing Bolts

NOTE: A rough casting on the pump surface crescent is not a flaw.

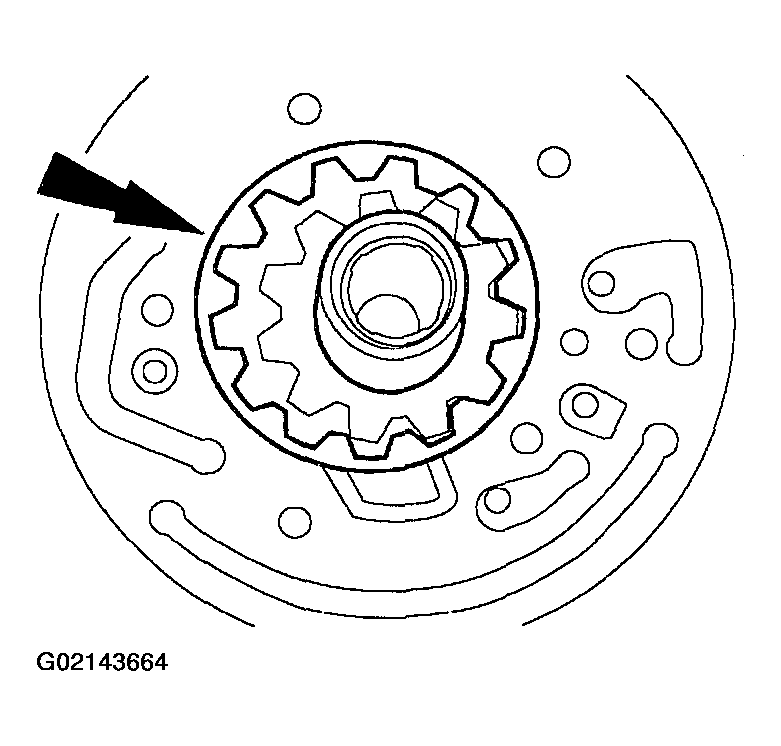

NOTE: The fluid pump gears are part of the pump assembly and are not repaired separately.

Fig 5: Identifying Fluid Pump Gears

Remove the fluid pump gears.
Remove the drive gear O-ring seal and discard. Inspect the fluid pump gears for cracks and scoring.

Fig 6: Identifying Drive Gear O-Ring Seal
Inspect the overdrive pump.
- Inspect the overdrive pump support gear pockets for scoring and wear.
- Clean and inspect the overdrive and rear input shaft bushings.
Fig 7: Identifying Overdrive Pump

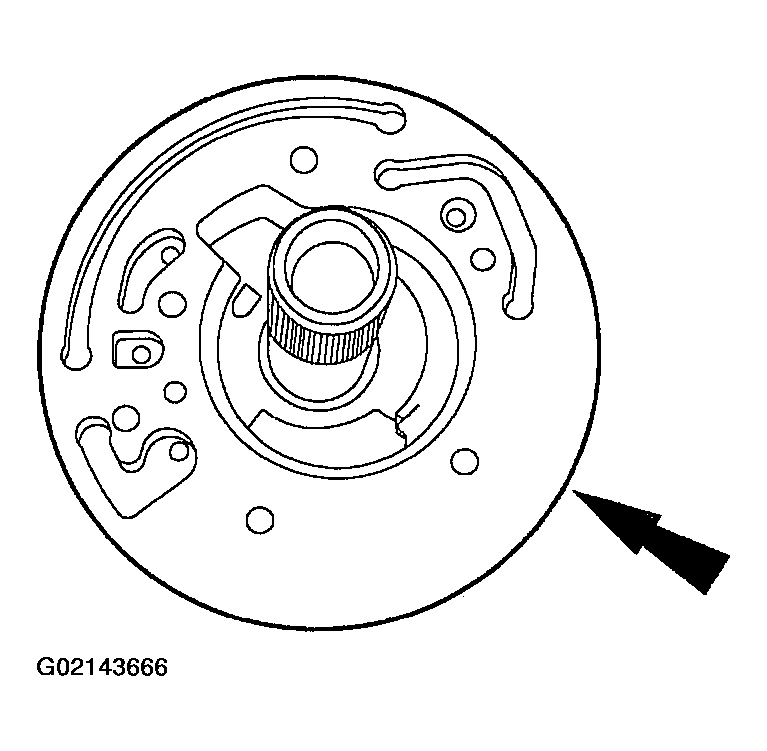

Inspect the fluid pump adapter plate for scoring and wear.

Fig 8: Identifying Fluid Pump Adapter Plate

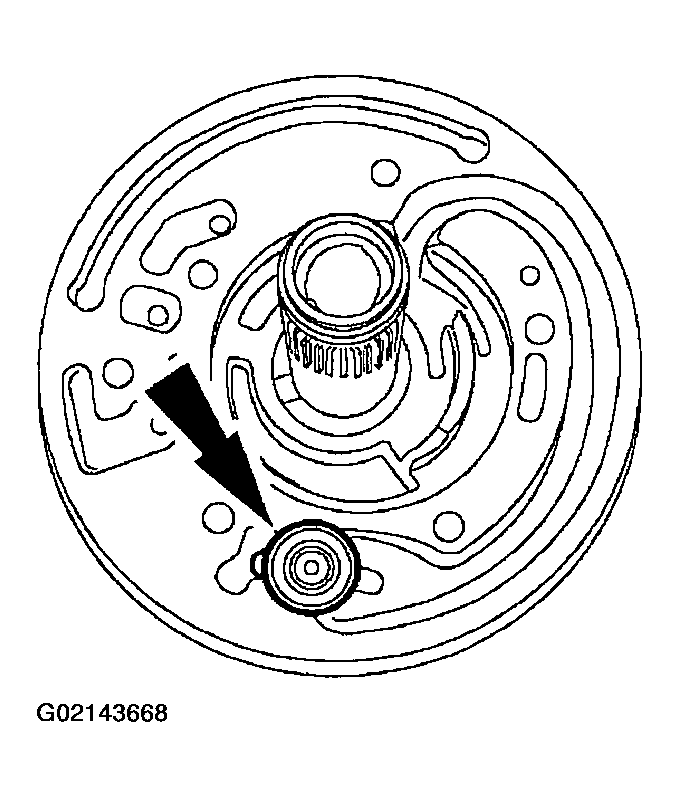

Remove the valve.

Fig 9: Identifying Valve

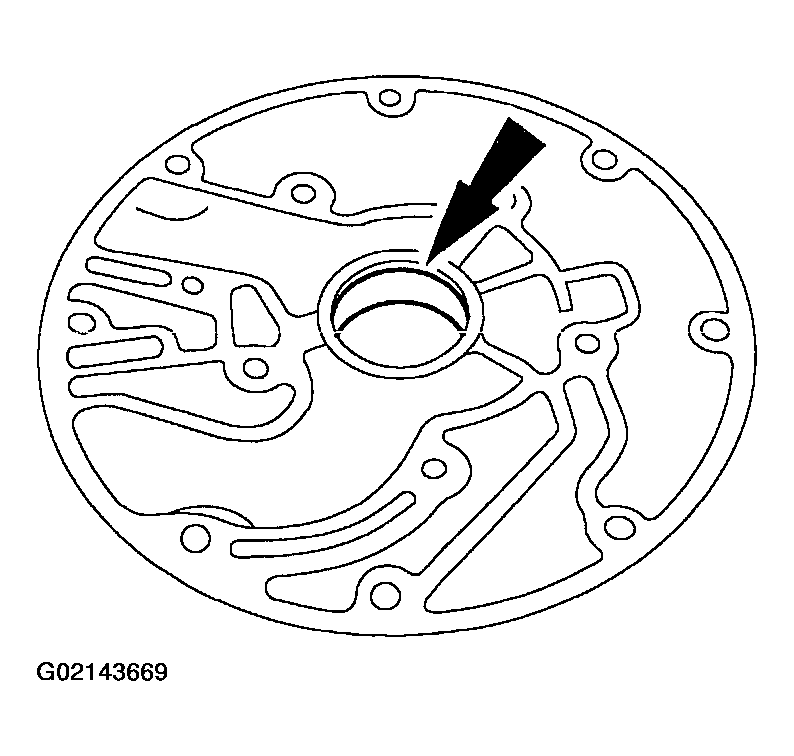

Inspect the fluid pump to converter housing bushing.

Fig 10: Identifying Fluid Pump To Converter Housing Bushing
