Main Control - Valve Body: Installation

    CAUTION: The intermediate clutch fluid inlet tube seal and spring must be correctly seated in the case. Failure to correctly seat the inlet tube seal and spring will cause an internal fluid leak and transmission damage.

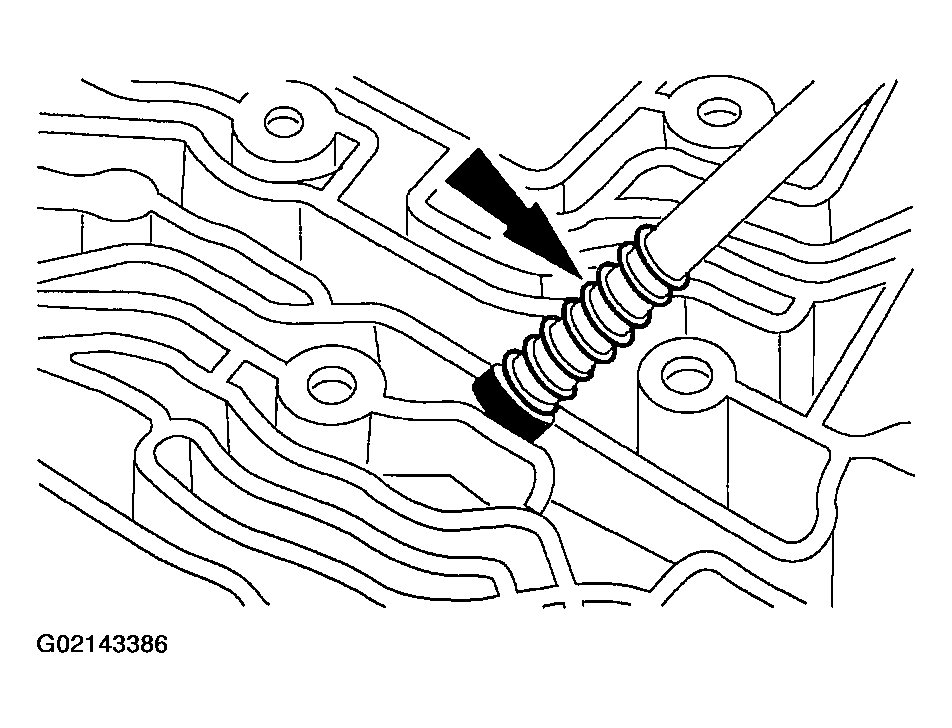

    Fig 1: Installing Intermediate Clutch Fluid Inlet Tube Seal & Spring
    G02143386
  1. Using a drift punch, correctly install and seat the intermediate clutch fluid inlet tube seal and spring into the case.
  2. Install the special tools into the transmission case.

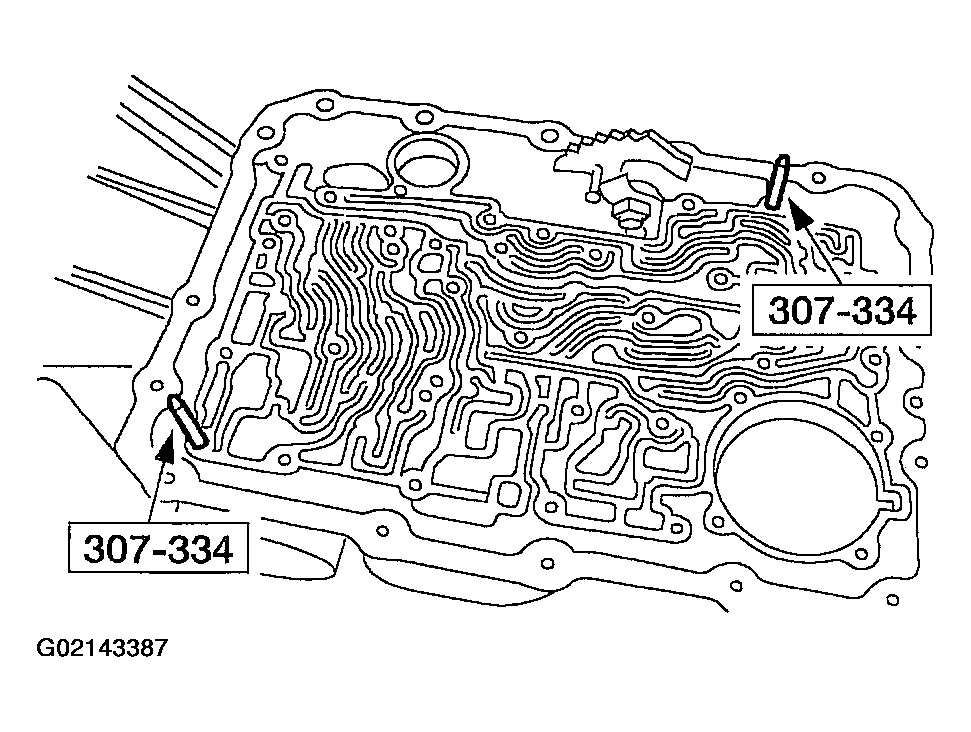

    Fig 2: Installing Valve Body Aligners
    G02143387

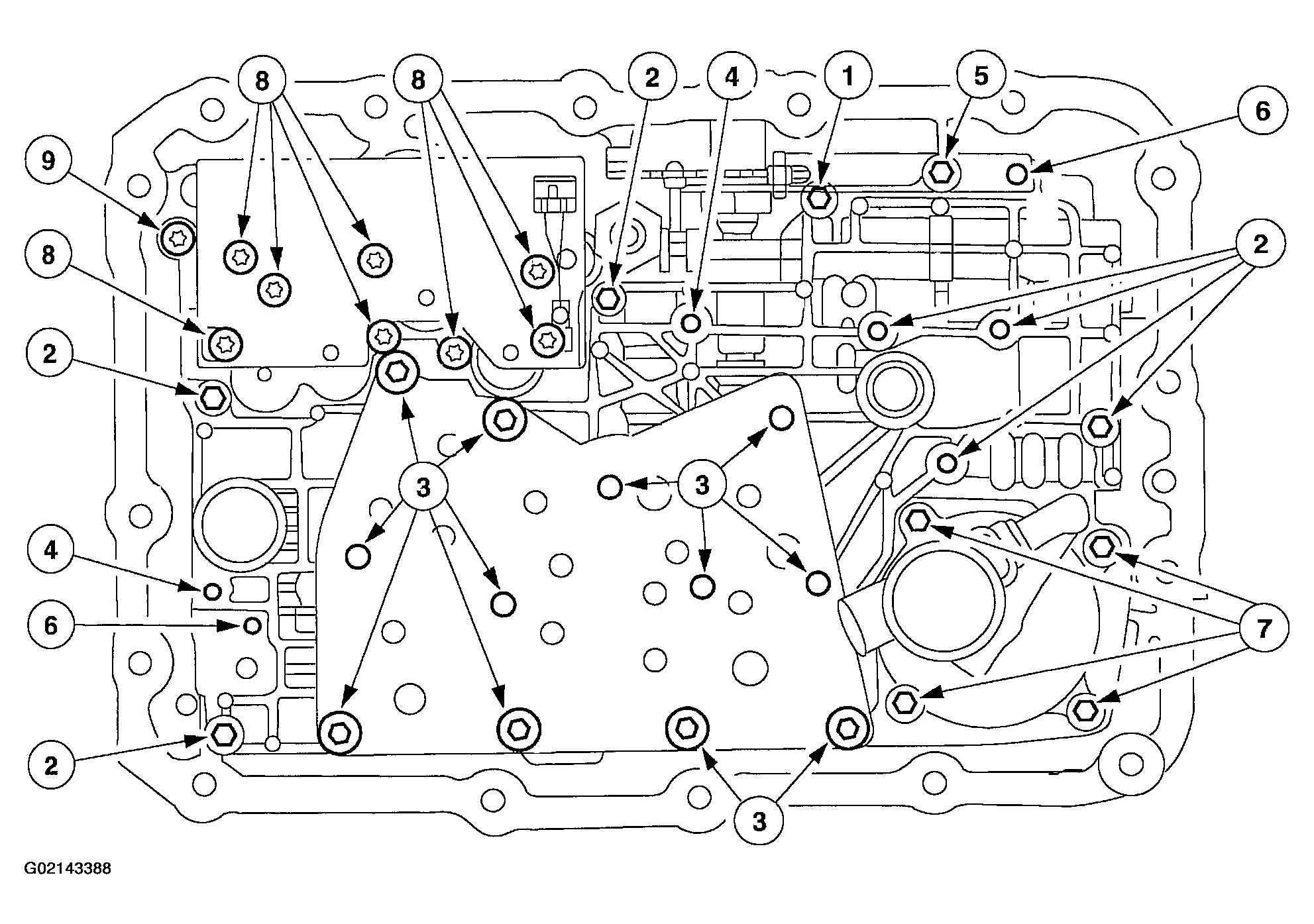

    Fig 3: Identifying Main Control Valve Body Bolt Locations
    G02143388
  3. Install the main control valve body and loosely install the screws.

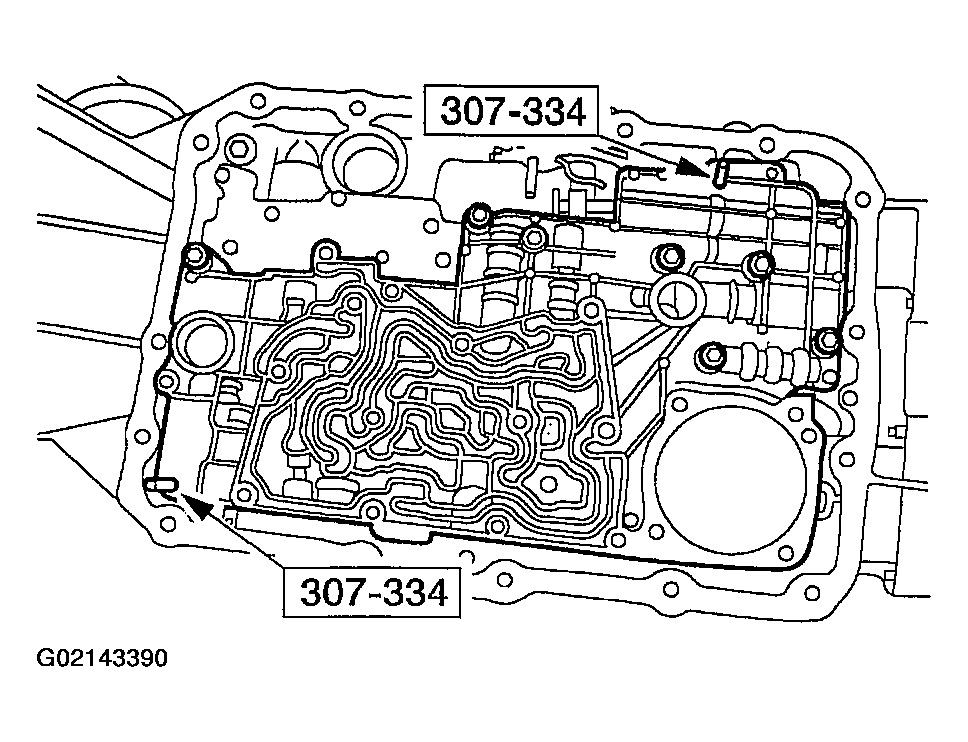

    Fig 4: Identifying Main Control Valve Body
    G02143390
  4. Refer to the following chart for bolt locations:

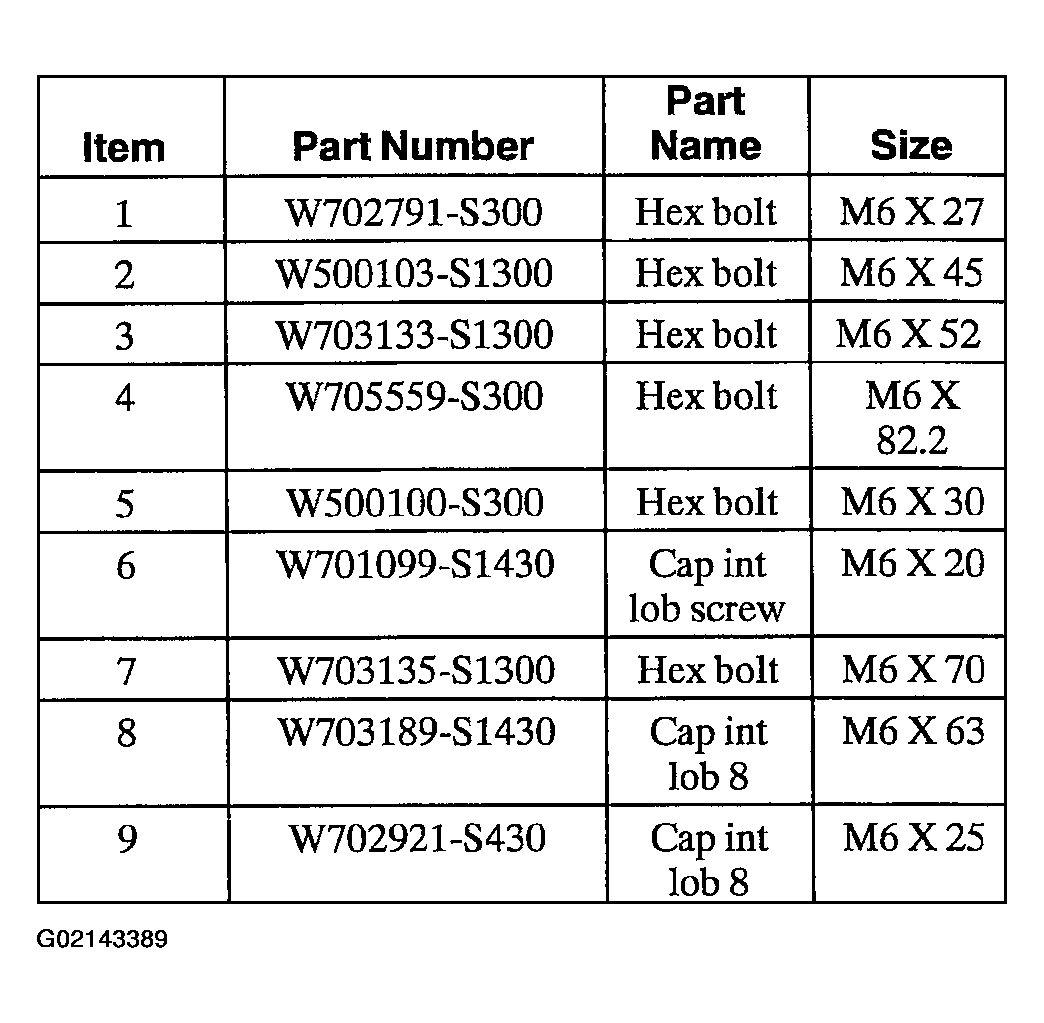

    Fig 5: Identifying Main Control Valve Body Bolts
    G02143389
  5. Remove the special tools and loosely install the screws.

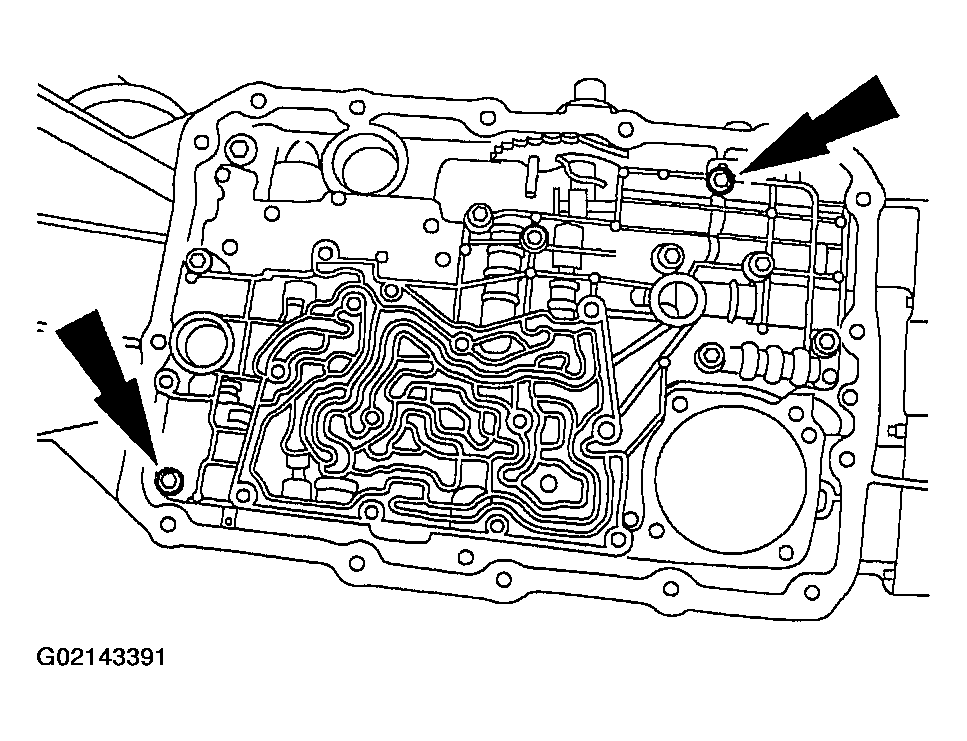

    Fig 6: Removing Valve Body Aligners
    G02143391
  6. Install the valve body cover plate and gasket and loosely install the screws.

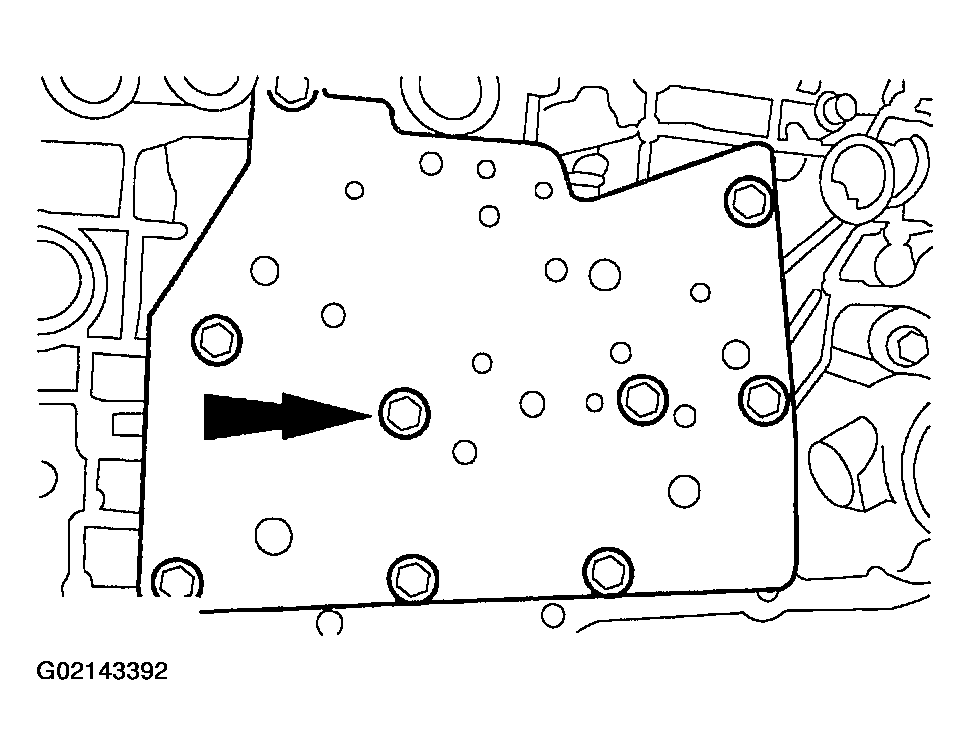

    Fig 7: Identifying Valve Body Cover Plate
    G02143392
  7. Install the reverse pressure switch and loosely install the screws.

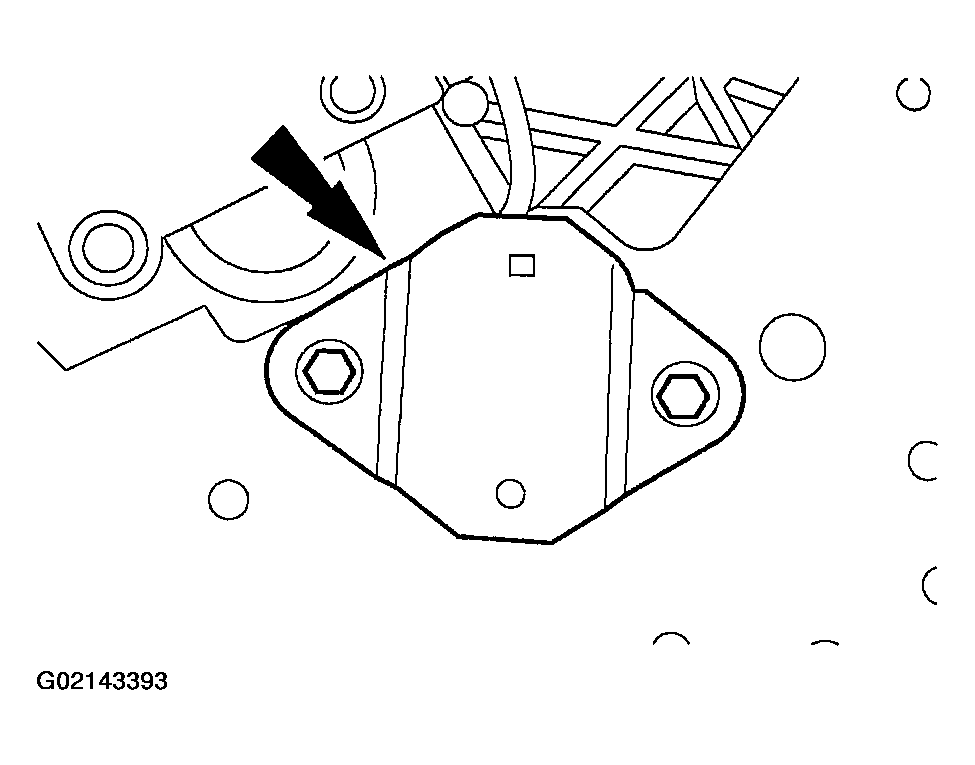

    Fig 8: Installing Reverse Pressure Switch
    G02143393
  8. Tighten the screws in the sequence shown.

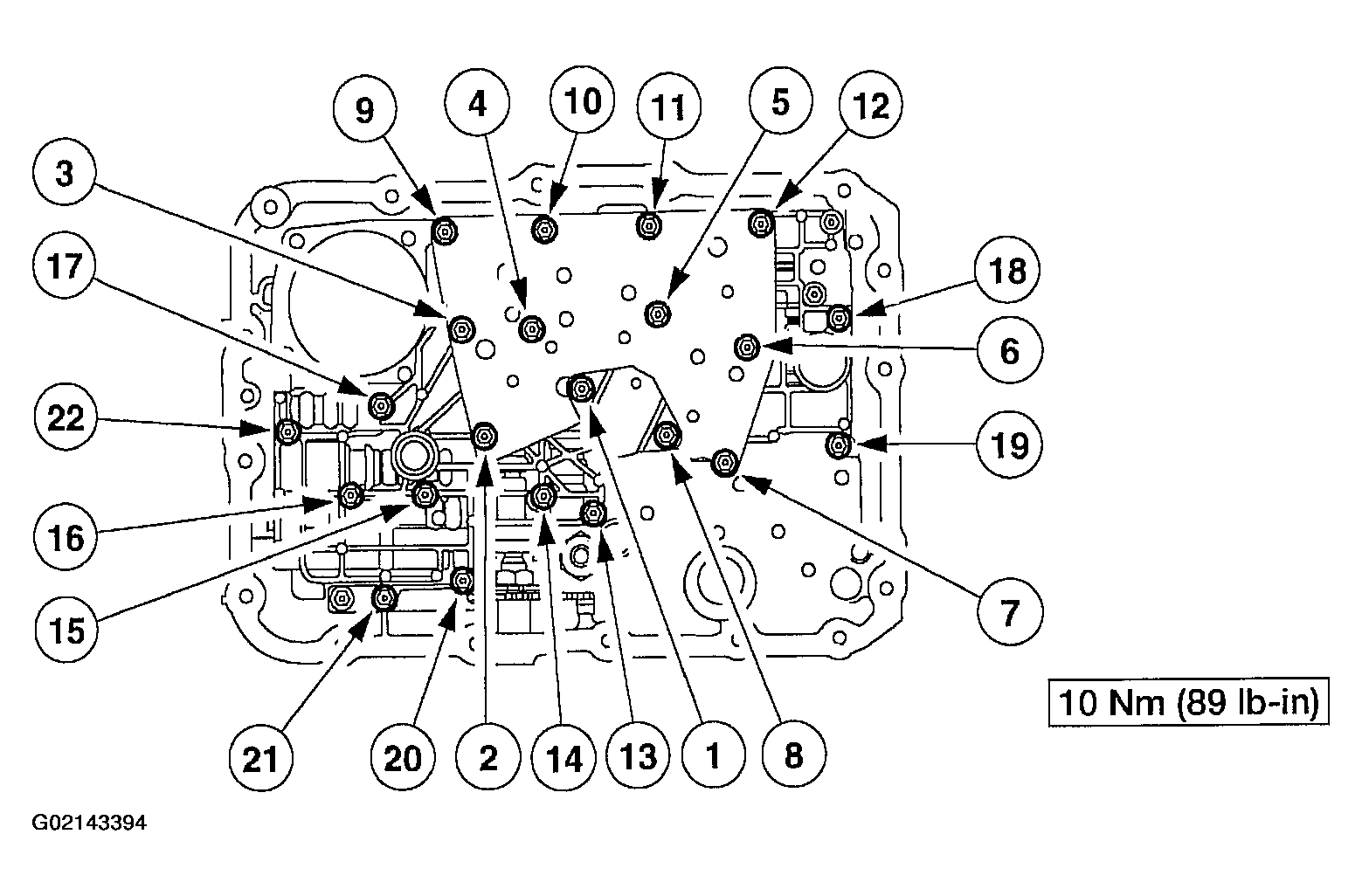

    Fig 9: Bolt Tightening Sequence
    G02143394
  9. Install the reverse servo, using a crisscross pattern to tighten the bolts.

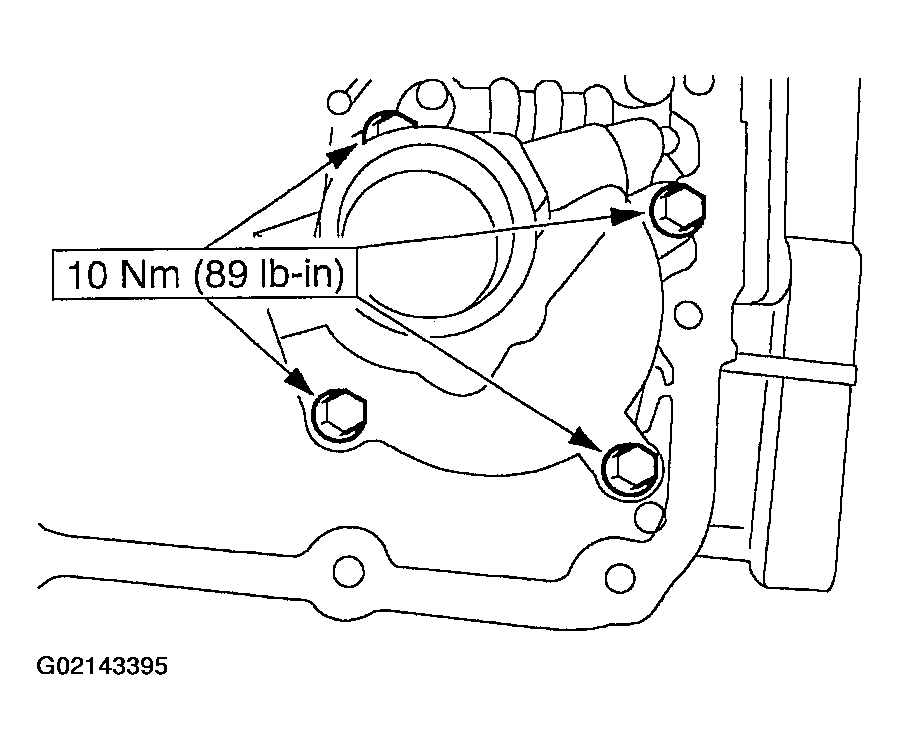

    Fig 10: Installing Reverse Servo
    G02143395
  10. Install the manual control valve detent spring.

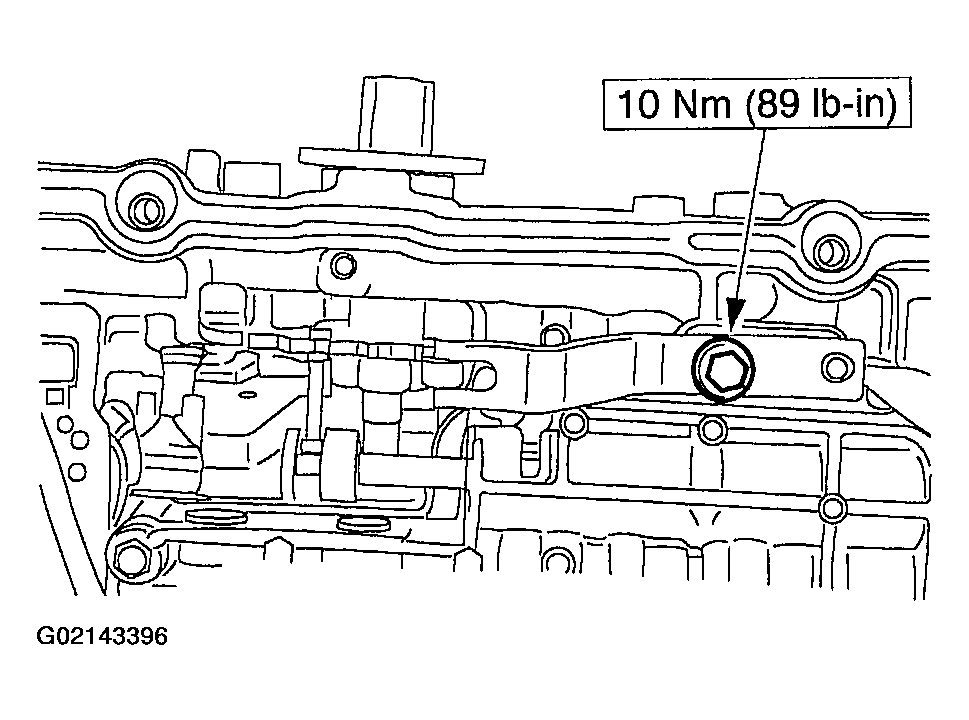

    Fig 11: Installing Manual Control Valve Detent Spring
    G02143396
  11. Install new O-ring seals on the solenoid body connector. Lubricate the O-ring seals with clean automatic transmission fluid.

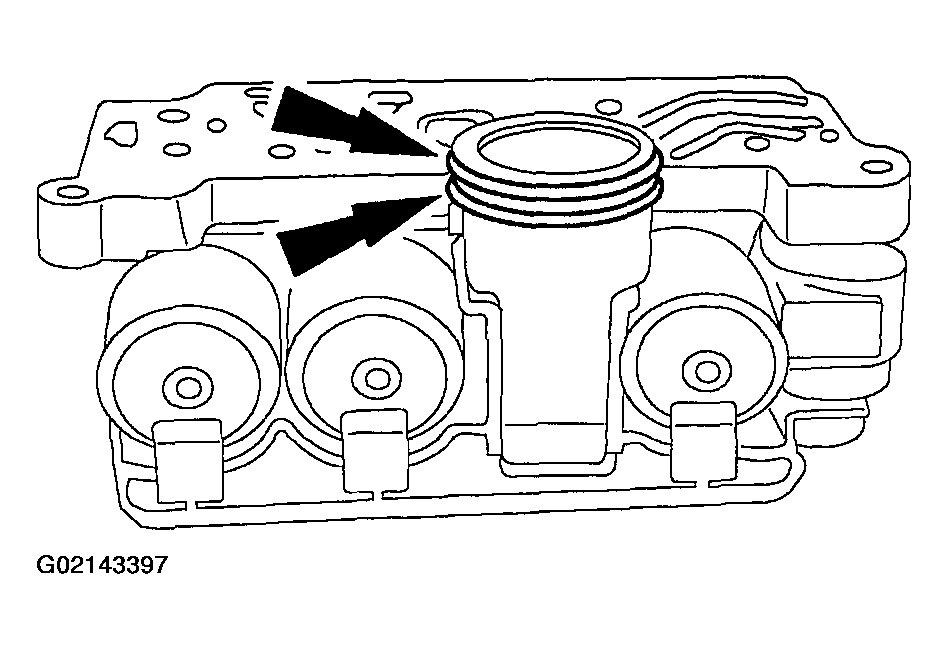

    Fig 12: Identifying Solenoid Body Connector O-Ring Seals
    G02143397
  12. CAUTION: Inspect the transmission case bore to make sure it is free of foreign material and not damaged. If it is damaged, transmission leak may occur.
    Fig 13: Identifying Solenoid Body Bolt Tightening Sequence
    G02143398
  13. Install the solenoid body. Tighten the bolts in sequence shown.
  14. Connect the reverse pressure switch connector.

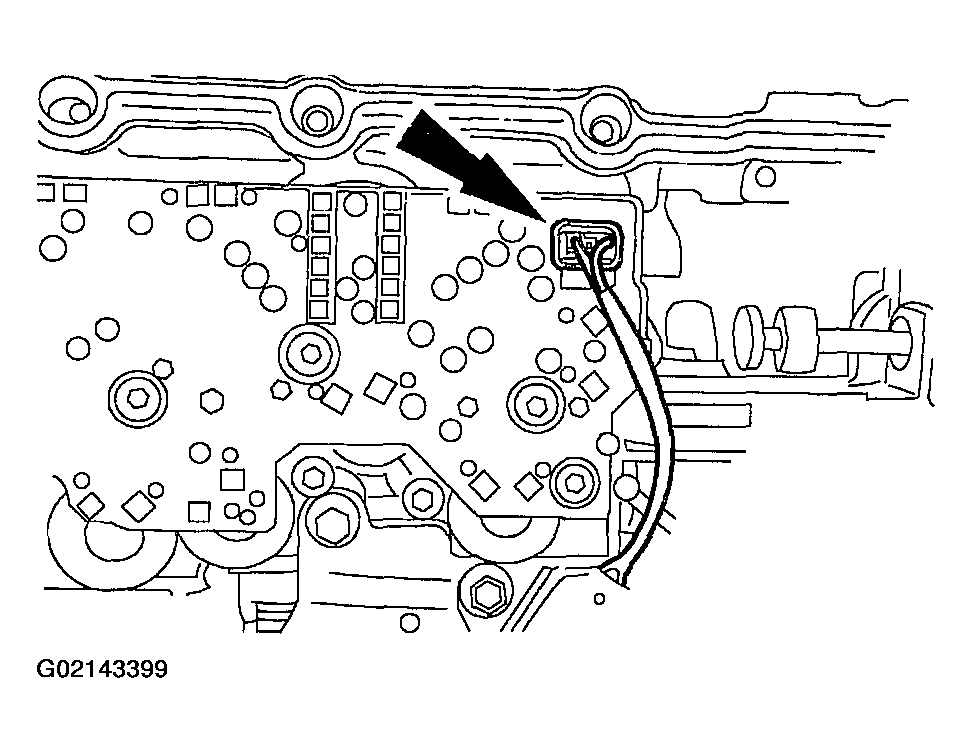

    Fig 14: Identifying Reverse Pressure Switch Connector
    G02143399
  15. CAUTION: Lubricate the fluid filter O-ring seals with clean automatic transmission fluid or seals can be damaged.
    NOTE: Make sure that the fluid filter O-ring seals are correctly seated on the filter.
    Fig 15: Installing Transmission Oil Filter
    G02143400
  16. Lubricate the seals and install the transmission fluid filter.
  17. NOTE: The transmission fluid pan gasket is reusable. Clean and inspect for damage. If not damaged, the gasket should be reused.

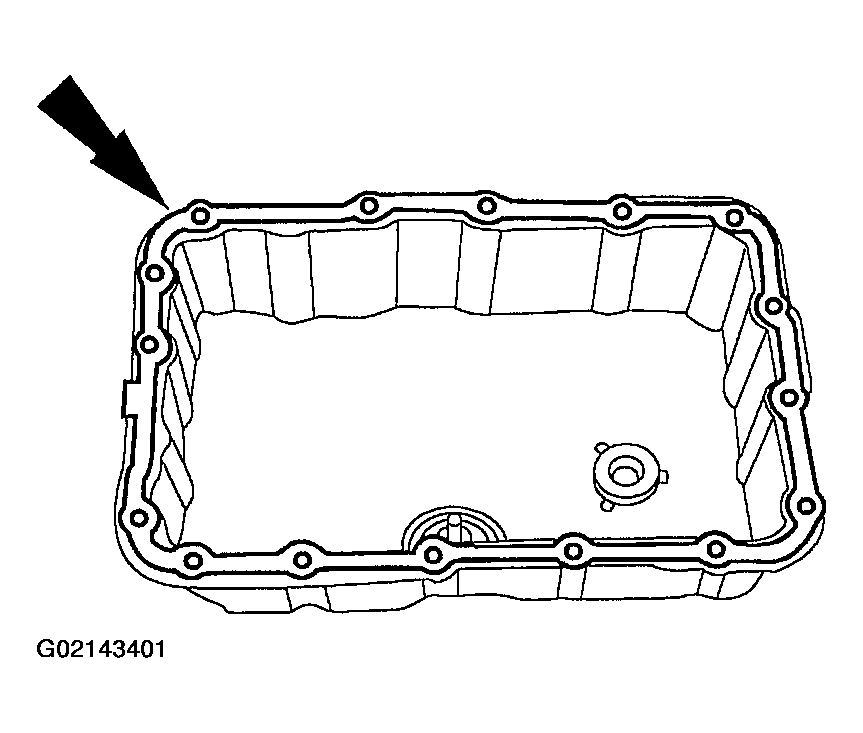

    Fig 16: Identifying Transmission Oil Pan Gasket
    G02143401
  18. Install the transmission fluid pan and gasket and loosely install the screws.
  19. Using a crisscross sequence, tighten the screws.

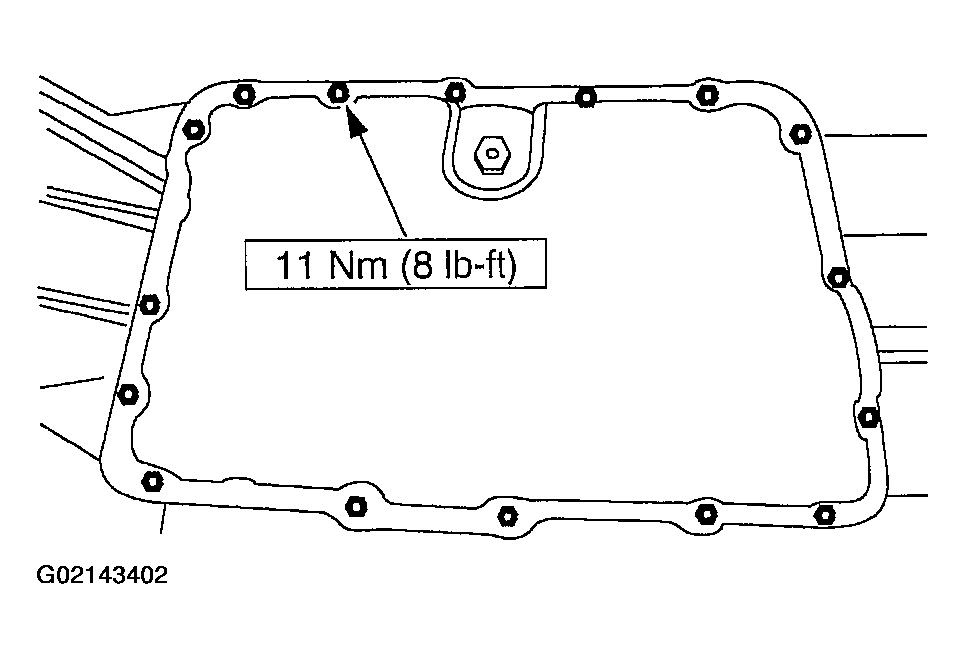

    Fig 17: Tightening Transmission Oil Pan Bolts
    G02143402
  20. NOTE: A new converter drain plug must be used to prevent leakage.

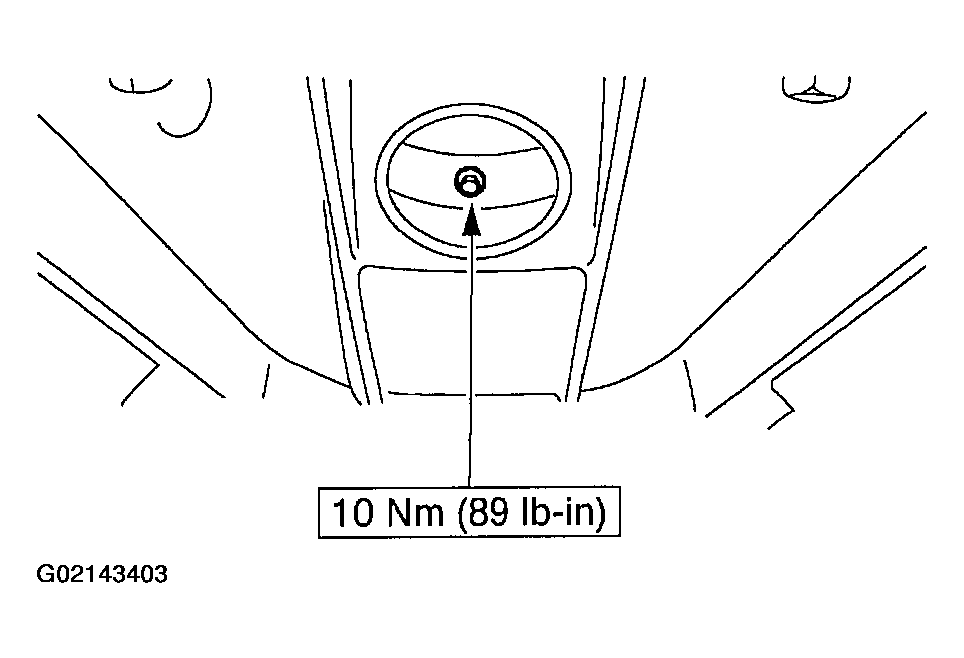

    Fig 18: Installing Torque Converter Drain Plug
    G02143403
  21. Install the drain plug.
  22. Install the converter housing access plug.

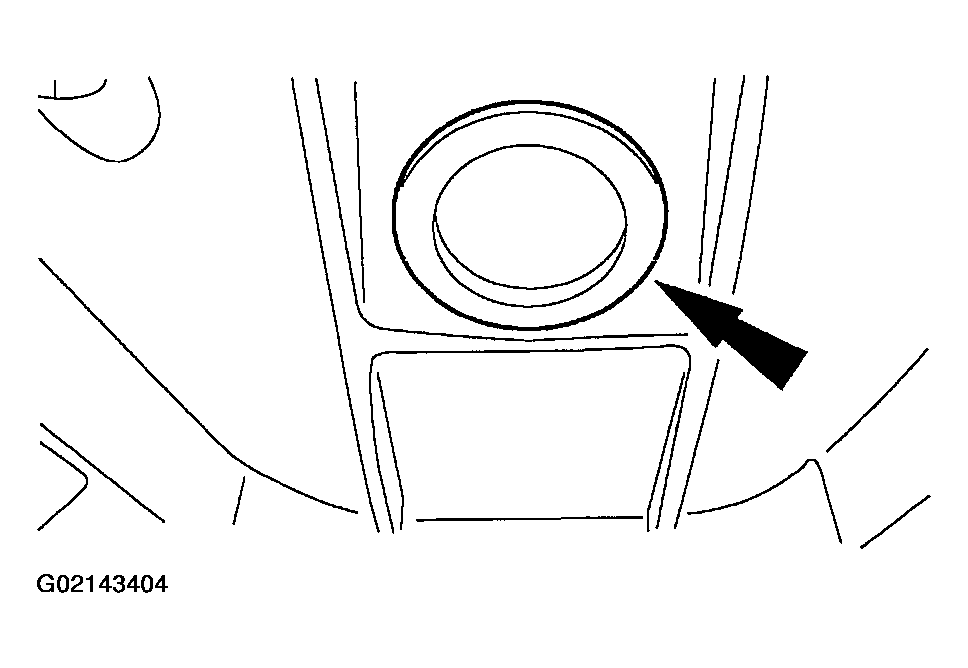

    Fig 19: Identifying Converter Housing Access Plug
    G02143404
  23. Reconnect the digital TR sensor connector.

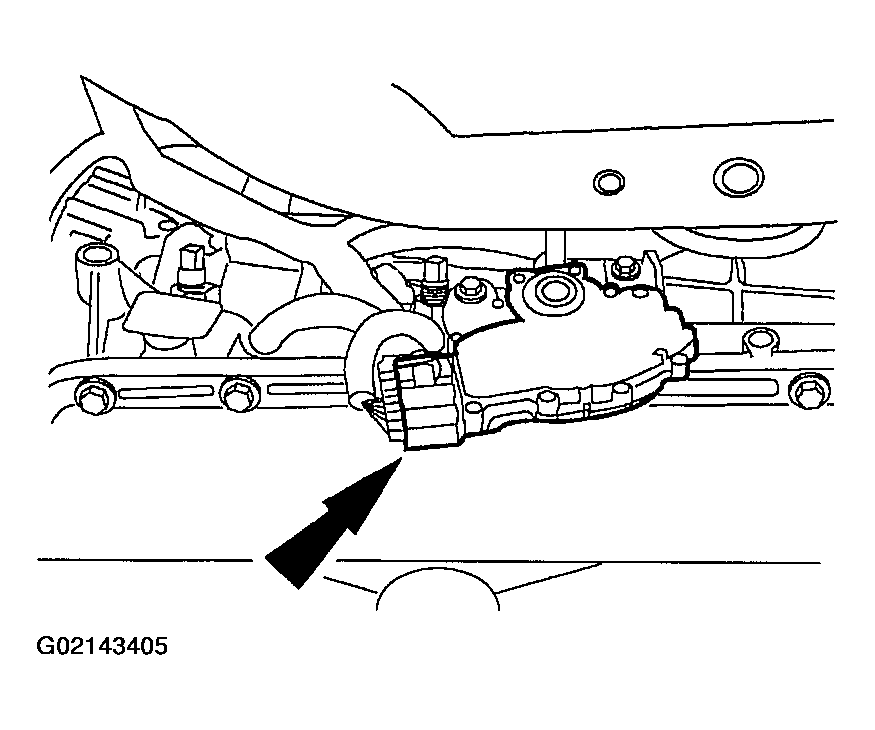

    Fig 20: Identifying Digital TR Sensor Connector
    G02143405
  24. CAUTION: Damage to the solenoid body assembly can result if the screw is tightened above specification.
    NOTE: Always install new O-ring seals on vehicle harness connector.
    NOTE: Clean the area around connector to prevent contamination of the solenoid body connector.
    NOTE: Use petroleum jelly to lubricate the O-ring seals to aid in the installation process.

    Install and lubricate new O-ring seals on the transmission connector and connect the connector.

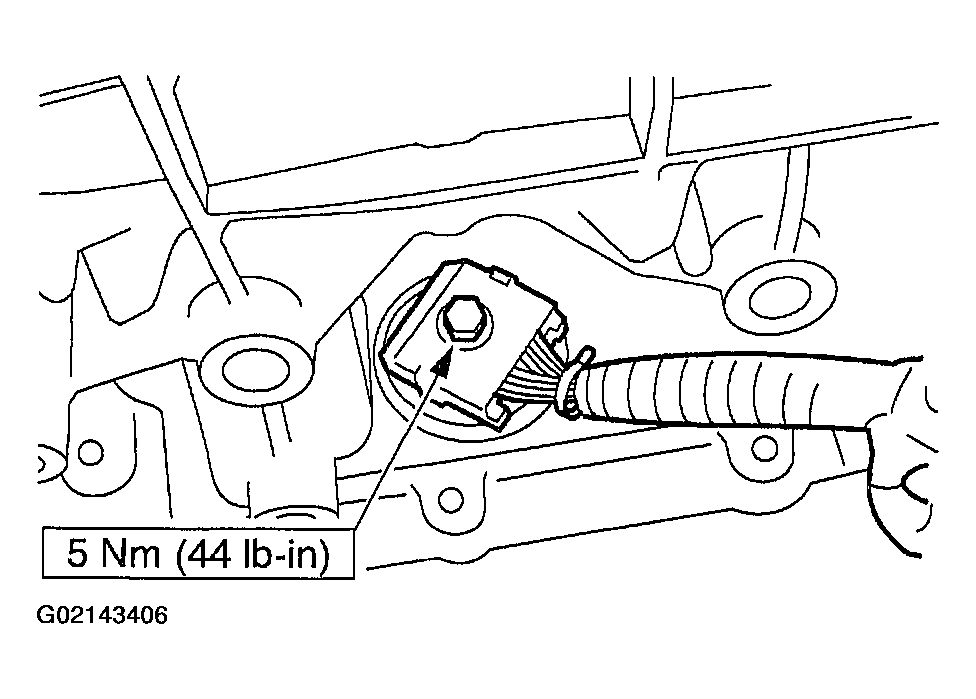

    Fig 21: Identifying Transmission Electrical Connector
    G02143406
  25. Install the shift cable bracket.

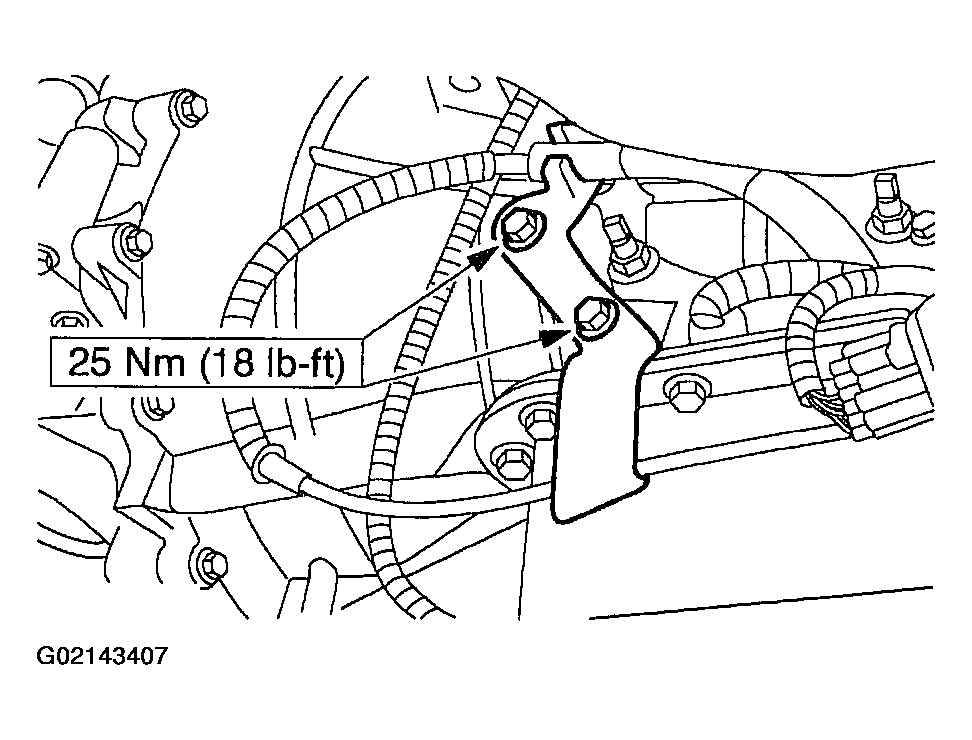

    Fig 22: Installing Transmission Shift Cable Bracket
    G02143407
  26. Lower the vehicle.
  27. NOTE: When the battery is disconnected or a new battery installed, certain transmission operating parameters can be lost. The powertrain control module (PCM) must relearn these parameters. During this learning process, you may experience slightly firm shifts, delayed, or early shifts. This operation is considered normal and will not affect the function of the transmission. Normal operation will return once these parameters are stored by the PCM.
  28. Connect the battery ground cable.
  29. Fill the transmission to the correct fluid level and check for correct transmission operation. For additional information, refer to FLUID LEVEL CHECK .
