Main Control - Valve Body: Removal

    NOTE: When the battery is disconnected or a new battery installed, certain transmission operating parameters can be lost. The powertrain control module (PCM) must relearn these parameters. During this learning process, you may experience slightly firm shifts, delayed, or early shifts. This operation is considered normal and will not affect the function of the transmission. Normal operation will return once these parameters are stored by the PCM.
  1. Disconnect the battery ground cable.
  2. Raise and support the vehicle.
  3. Drain the transmission fluid.
    Fig 1: Identifying Transmission Oil Pan Drain Plug
    G02143370
  4. Remove the converter housing plug.
    Fig 2: Identifying Converter Housing Plug
    G02143371
  5. Remove the drain plug.
    Fig 3: Identifying Torque Converter Drain Plug
    G02143372
  6. Remove the shifter cable bracket.

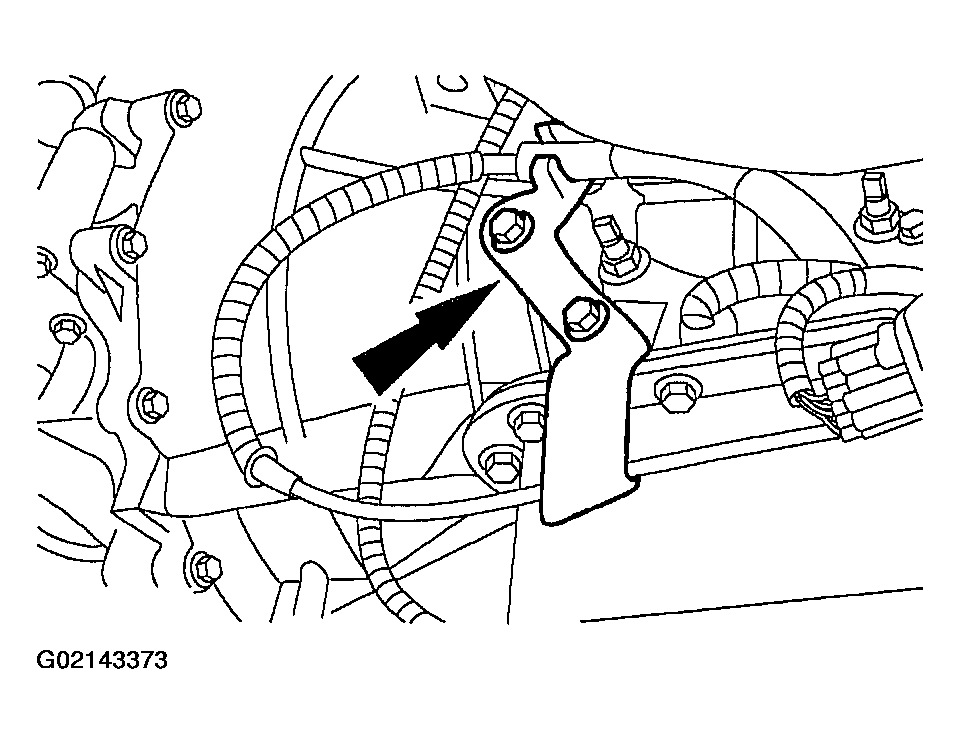

    Fig 4: Identifying Transmission Shifter Cable Bracket
    G02143373
  7. NOTE: Clean the area around connector to prevent contamination of the solenoid body connector.

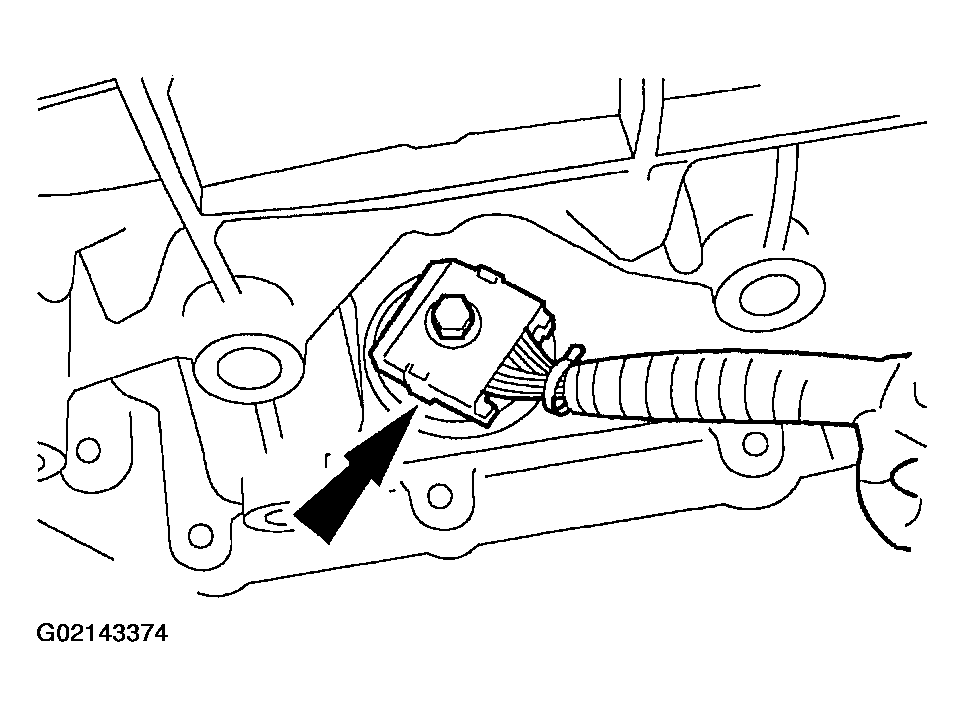

    Fig 5: Identifying Transmission Electrical Connector
    G02143374
  8. Disconnect the transmission connector.
  9. Disconnect the digital transmission range (TR) sensor connector.

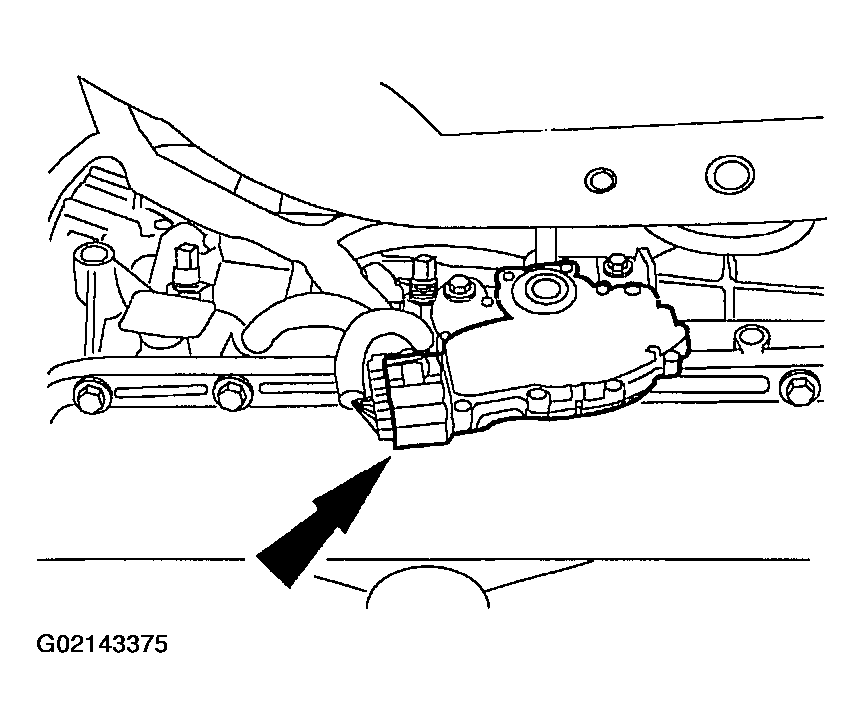

    Fig 6: Identifying Digital Transmission Range (TR) Sensor Connector
    G02143375
  10. NOTE: The transmission fluid pan gasket is reusable. Clean and inspect for damage. If not damaged, the gasket should be reused.
    Fig 7: Identifying Transmission Fluid Pan Gasket
    G02143376
  11. Remove the transmission fluid pan and gasket.
  12. Remove the transmission fluid filter.

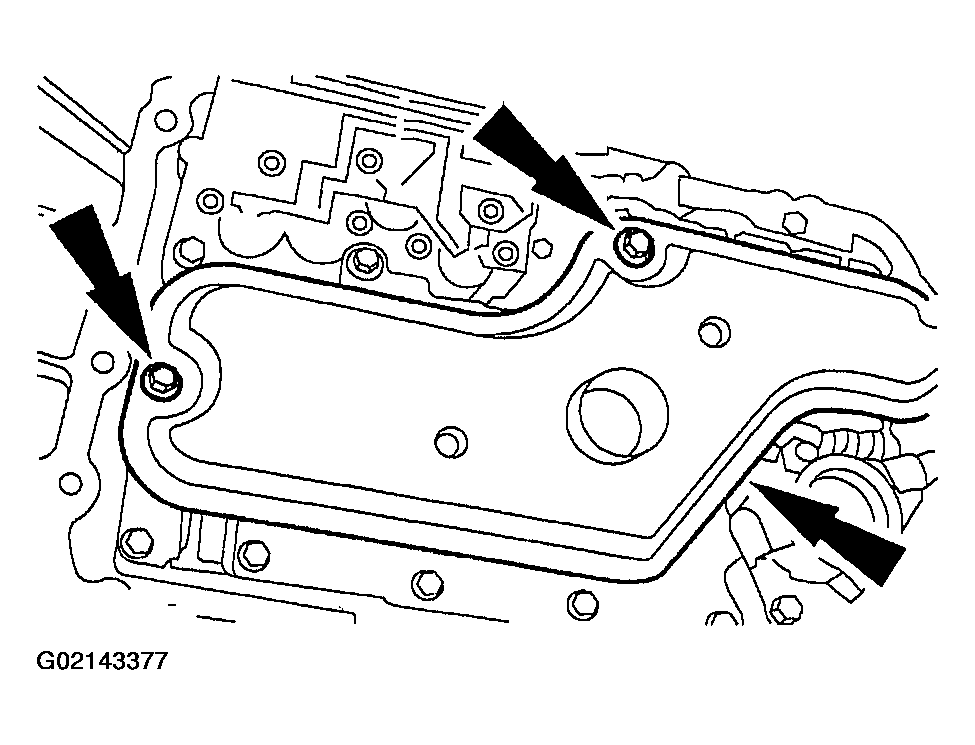

    Fig 8: Identifying Transmission Oil Filter & Bolts
    G02143377
  13. Disconnect the reverse pressure switch connector.

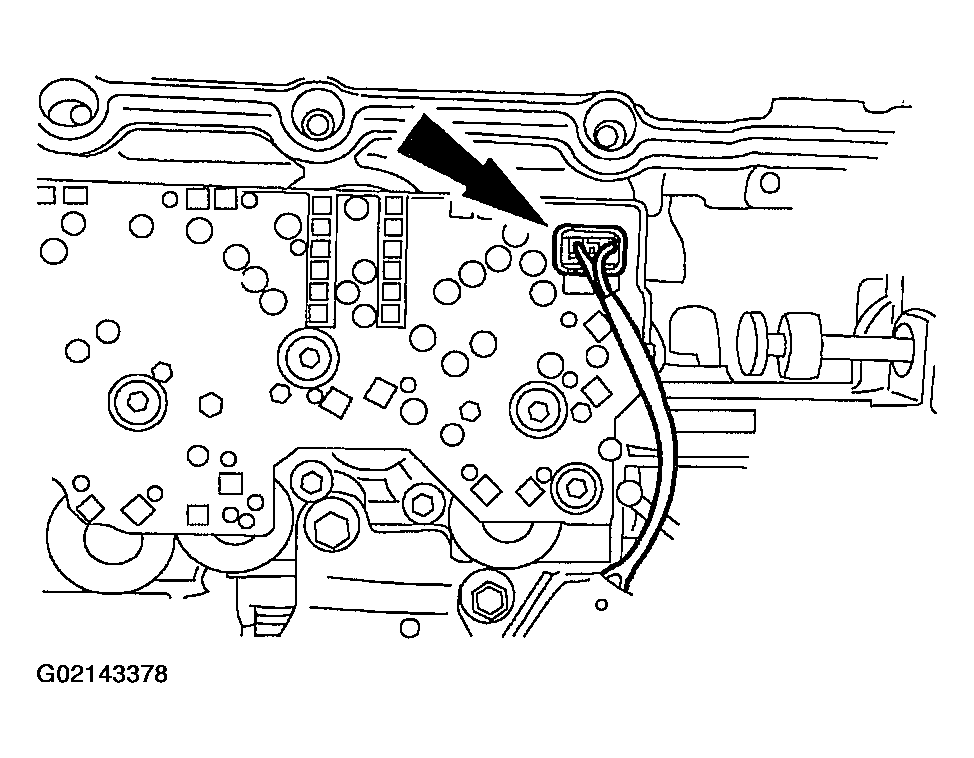

    Fig 9: Identifying Reverse Pressure Switch Connector
    G02143378
  14. Remove the reverse pressure switch and discard.
    Fig 10: Identifying Reverse Pressure Switch
    G02143379
  15. Remove the solenoid body.

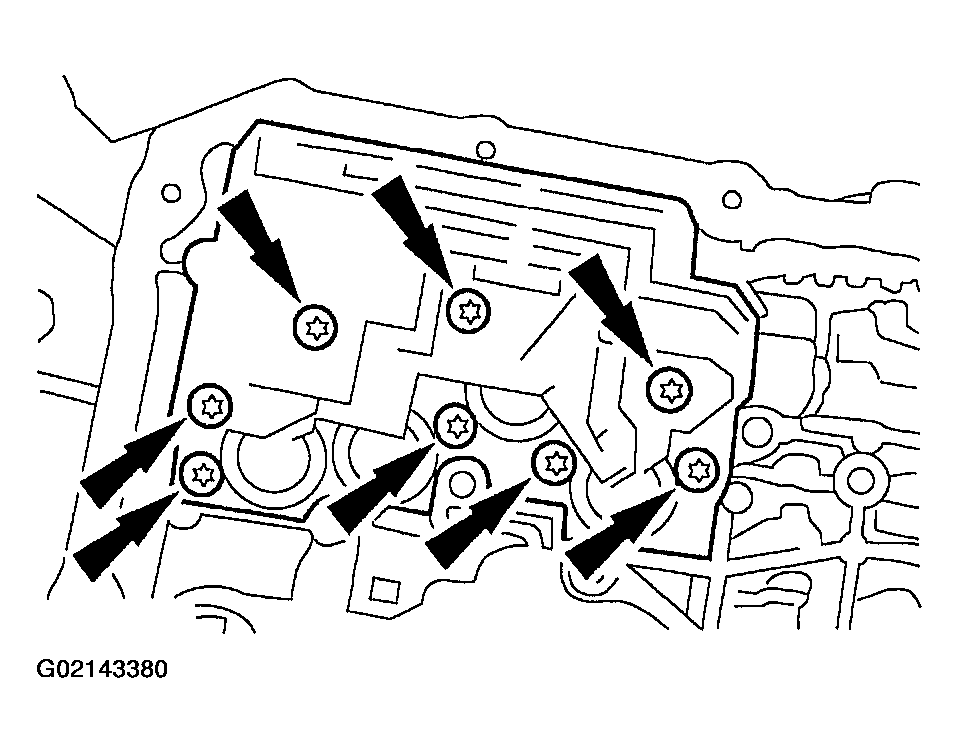

    Fig 11: Identifying Solenoid Body Bolts
    G02143380
  16. Remove the valve body cover plate and gasket.

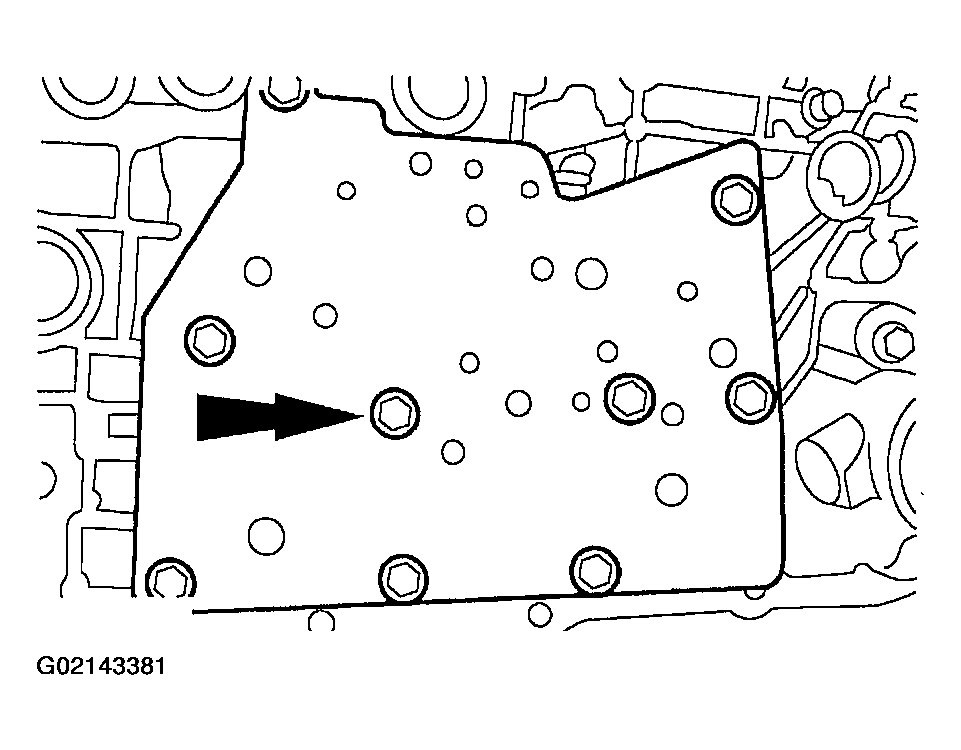

    Fig 12: Identifying Valve Body Cover Plate Bolts
    G02143381
  17. Remove the reverse servo.

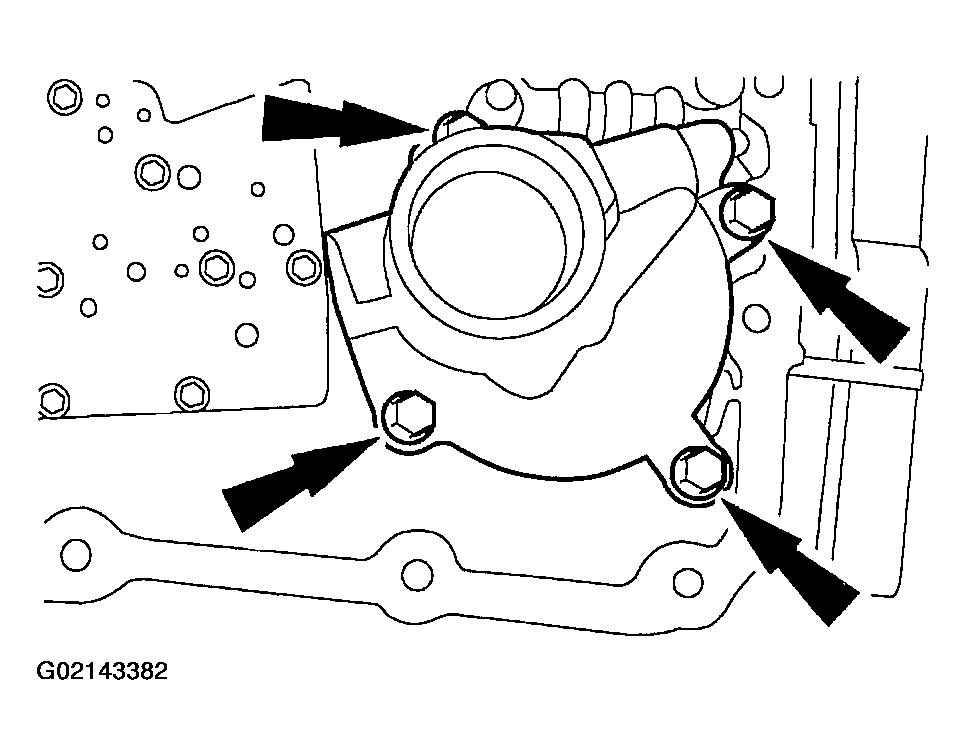

    Fig 13: Identifying Reverse Servo & Bolts
    G02143382
  18. Remove the manual control valve detent spring.

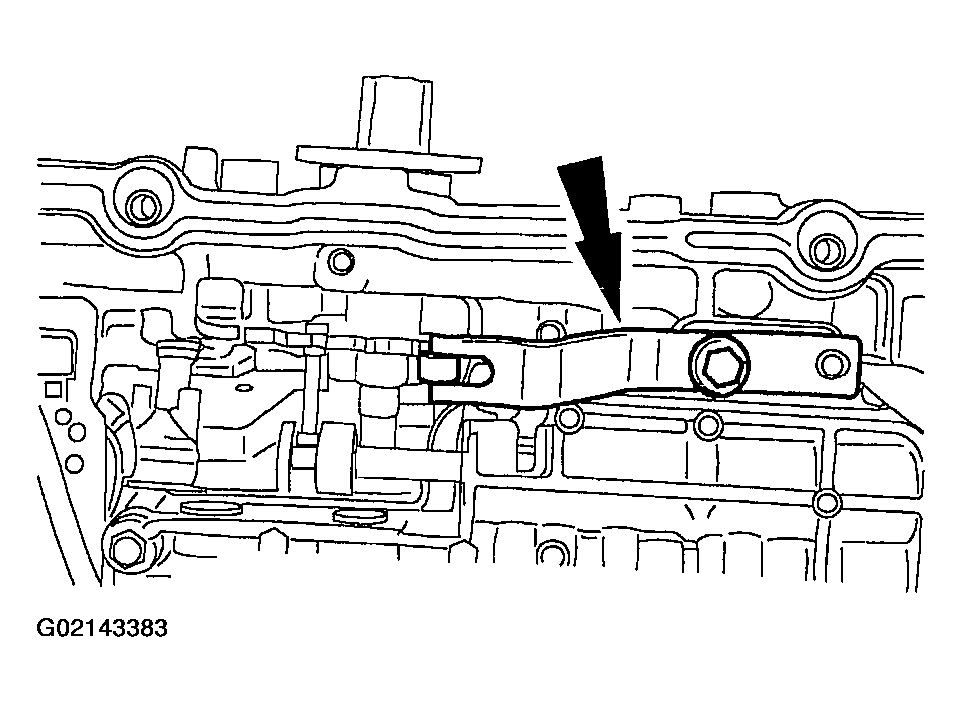

    Fig 14: Identifying Manual Control Valve Detent Spring
    G02143383
  19. Remove the main control valve body, separator plate and gasket.

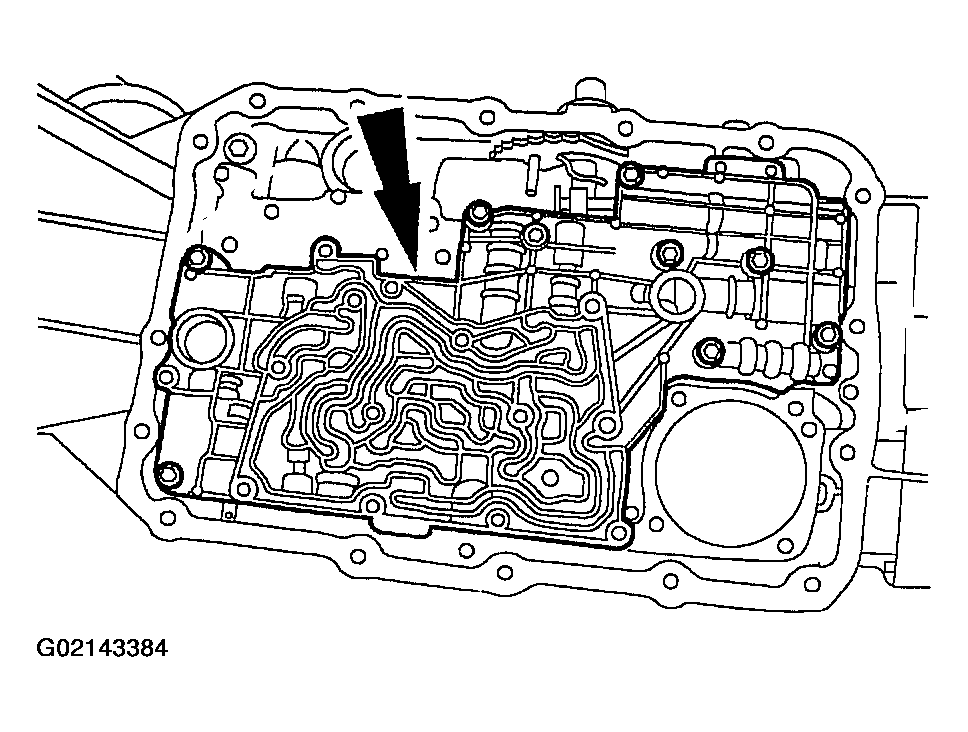

    Fig 15: Identifying Main Control Valve Body
    G02143384
  20. NOTE: The intermediate clutch spring and seal will fall out of the case.

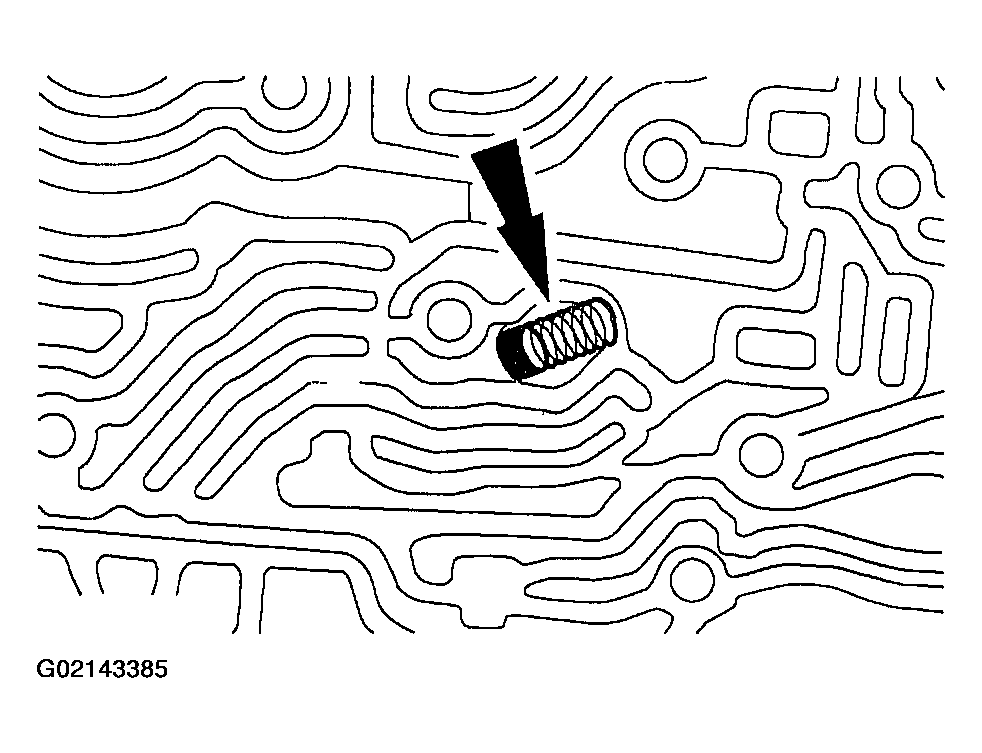

    Fig 16: Identifying Intermediate Clutch Spring & Seal
    G02143385
  21. Remove the intermediate clutch spring and seal.
