Reverse Servo Assembly: Installation

Install the reverse servo.
- Install the bolts in the sequence shown.

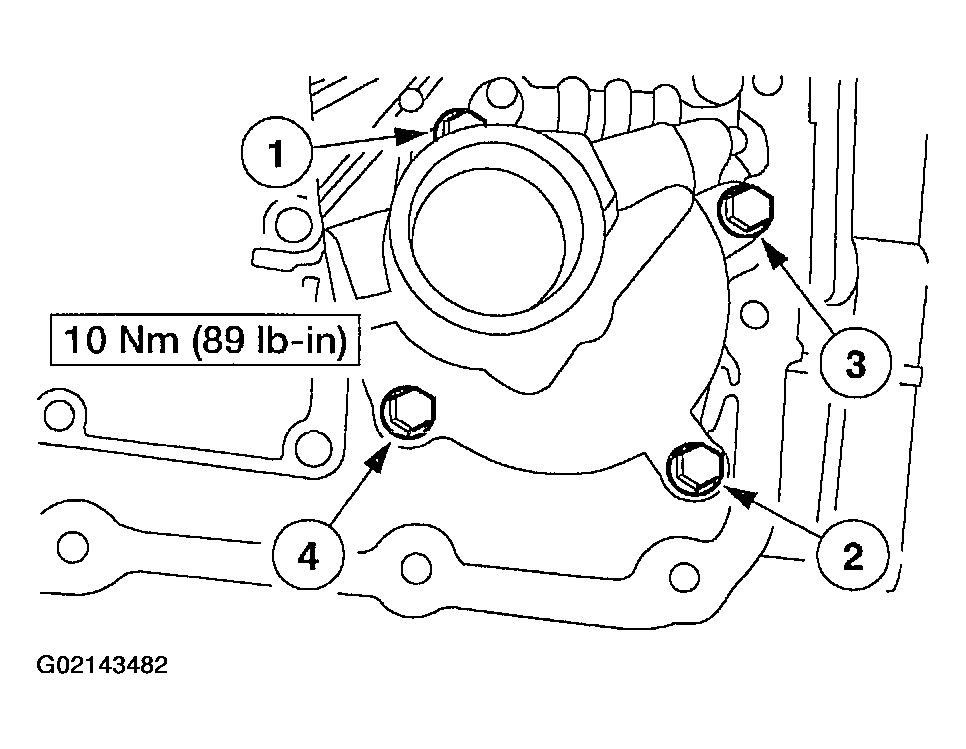

Fig 1: Tightening Reverse Servo Bolts

CAUTION: Lubricate the fluid filter O-ring seals with clean automatic transmission fluid or seals may be damaged.

NOTE: Make sure that the fluid filter O-ring seals are correctly seated on the filter.

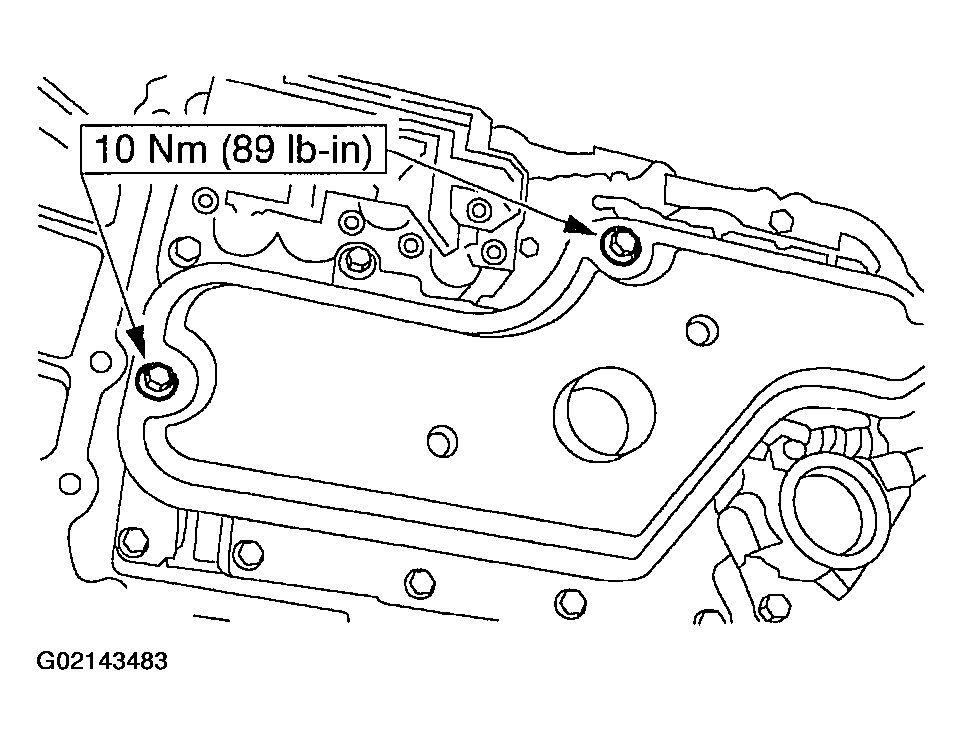

Fig 2: Tightening Transmission Oil Filter Bolts

NOTE: The transmission fluid pan gasket is reusable, clean and inspect for damage; if not damaged, the gasket should be reused.

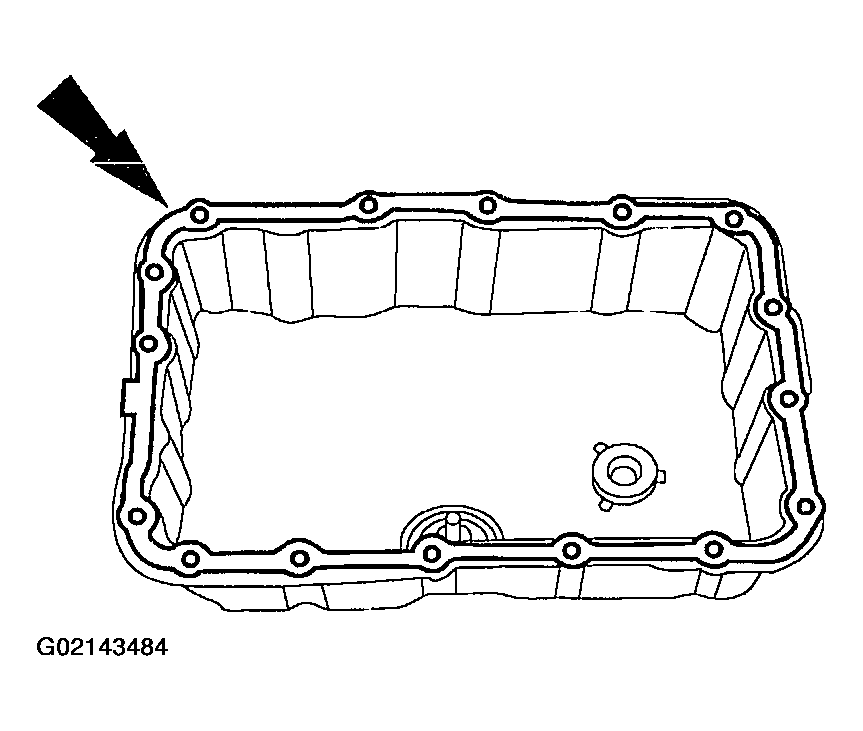

Fig 3: Identifying Transmission Oil Pan Gasket

Install the transmission fluid pan and gasket and loosely install the screws.
Using a crisscross sequence, tighten the screws.

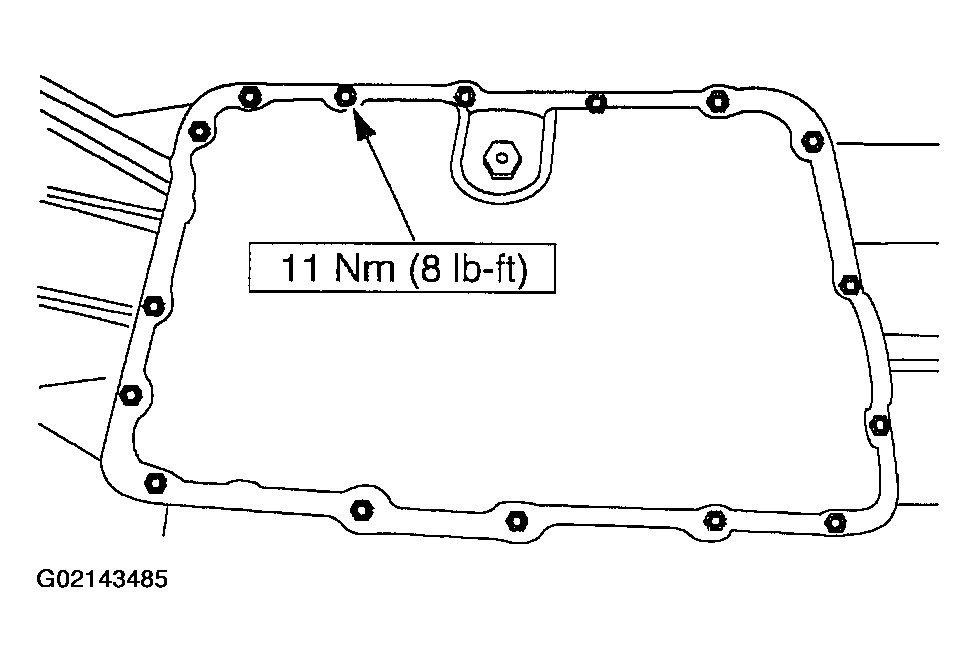

Fig 4: Tightening Transmission Oil Pan Bolts

NOTE: A new converter drain plug must be used to prevent leakage.

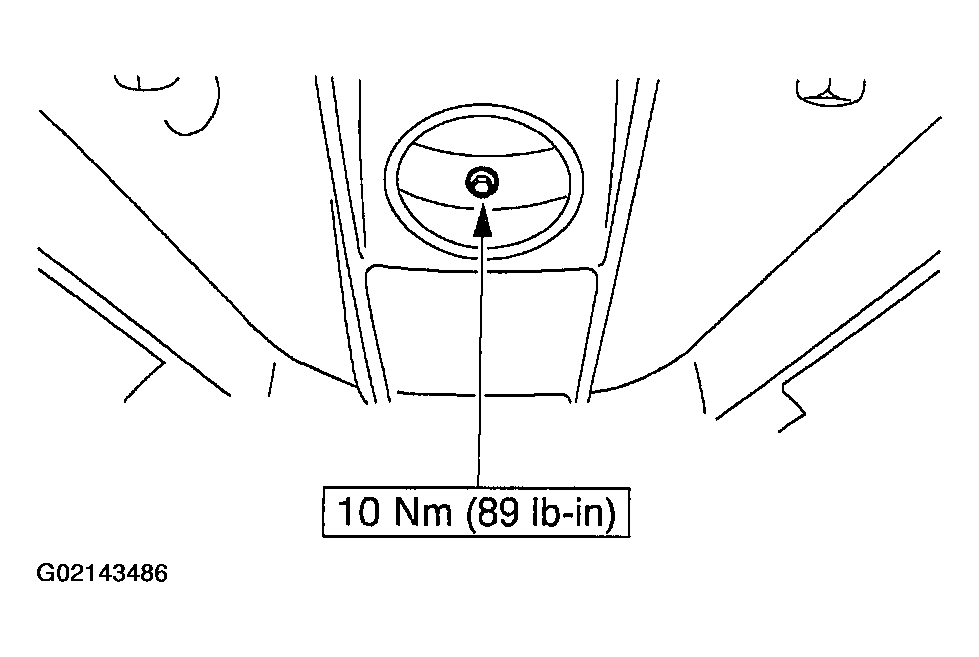

Fig 5: Identifying Torque Converter Drain Plug

Install the drain plug.
Install the converter housing access plug.

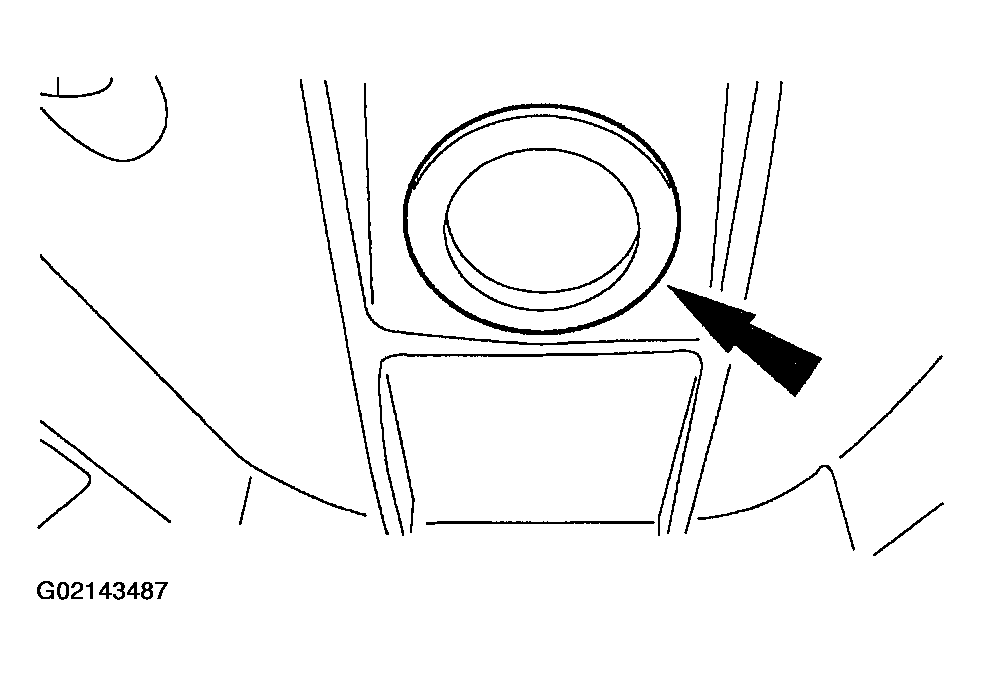

Fig 6: Identifying Converter Housing Access Plug
Install the shift cable bracket.

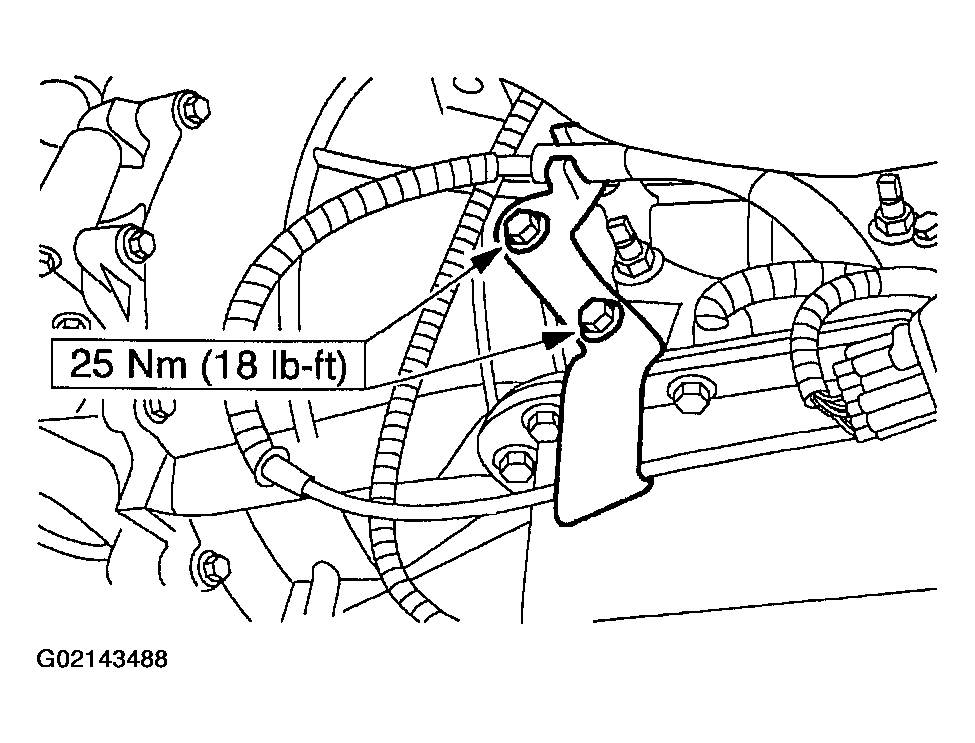

Fig 7: Tightening Transmission Shift Cable Bracket Bolts
Lower the vehicle.
Fill the transmission to the correct fluid level and check for correct transmission operation. For additional information, refer to FLUID LEVEL CHECK .
