Solenoid Operation Chart

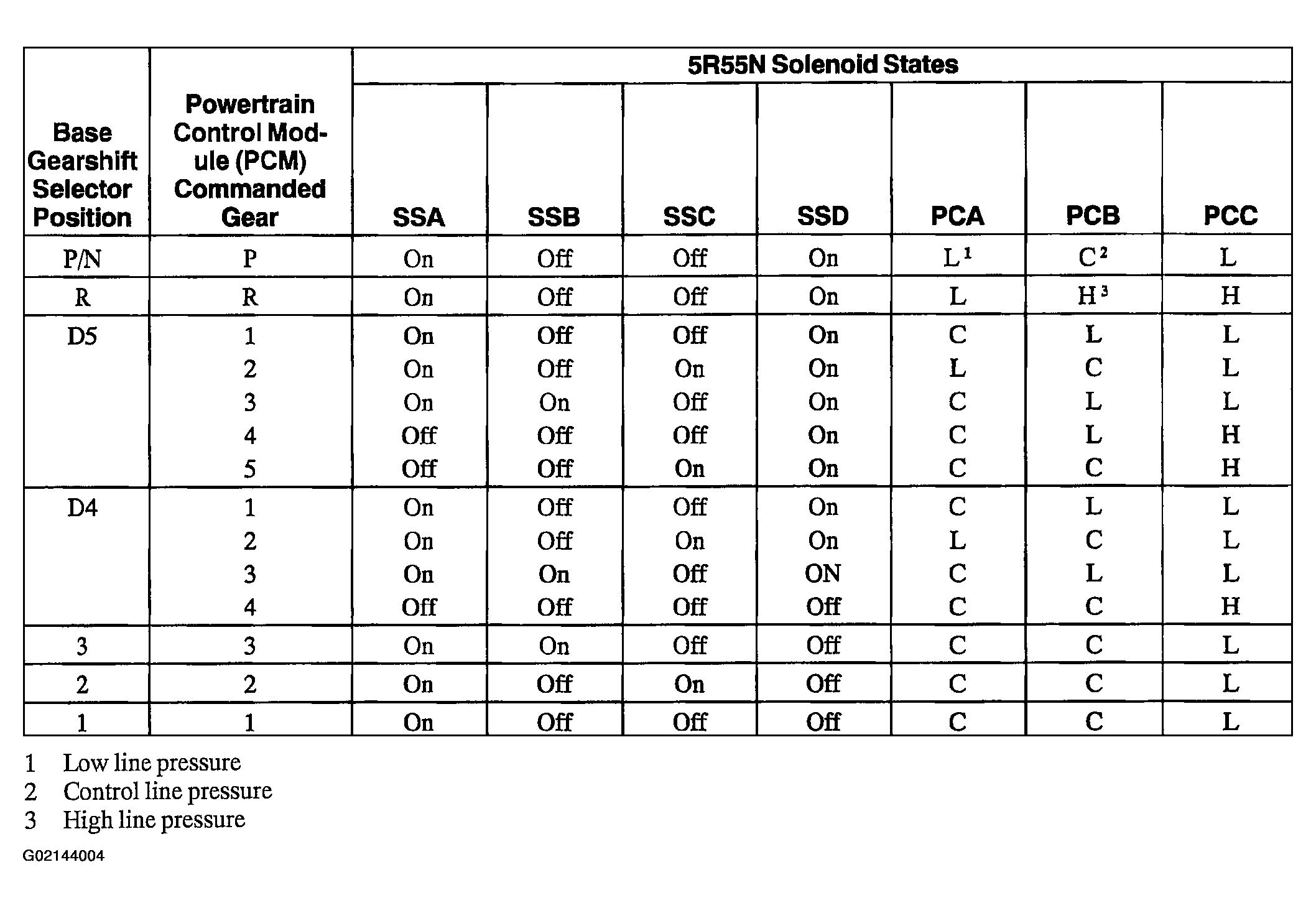

Fig 1: Solenoid Operation Chart (1 Of 2)

G02144004

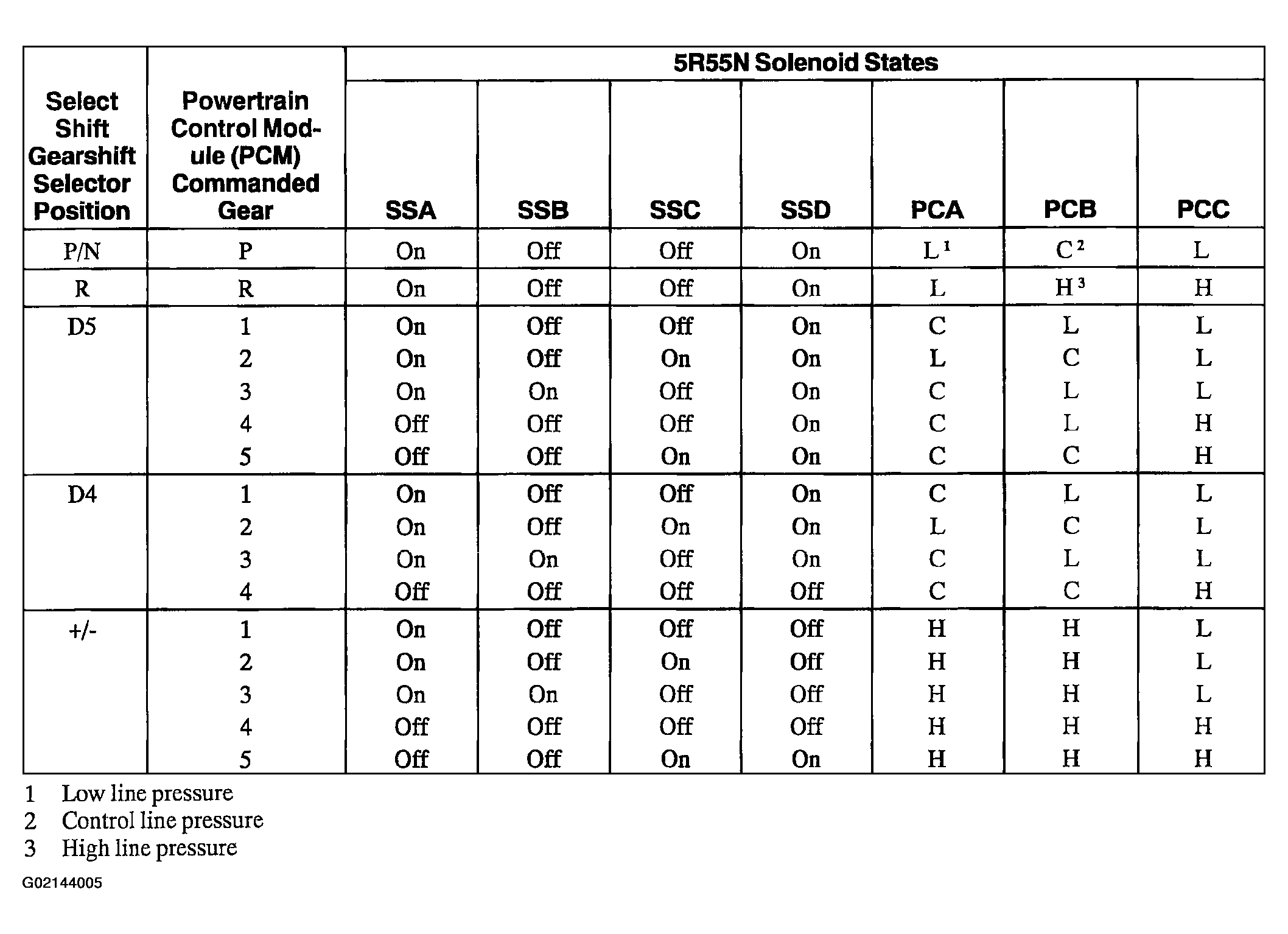

Fig 2: Solenoid Operation Chart (2 Of 2)

G02144005
