Pinpoint Test B: No Communication With The Module-Unable To Perform On-Demand Self-Test On Lighting Control Module

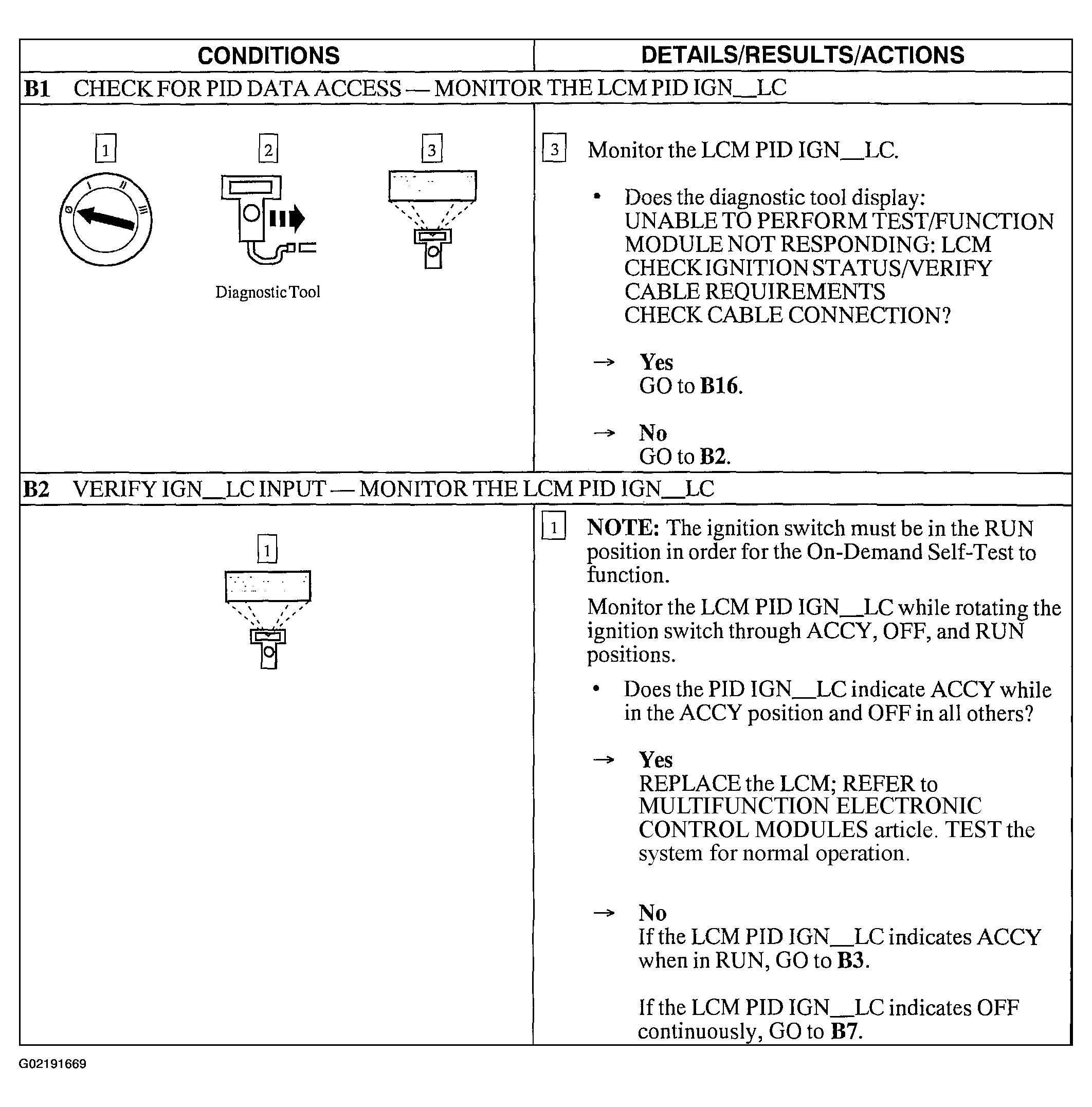

Fig 1: Pinpoint Test B: No Communication With The Module-Unable To Perform On-Demand Self-Test On Lighting Control Module (Steps B1 & B2)

Courtesy of FORD MOTOR CO.

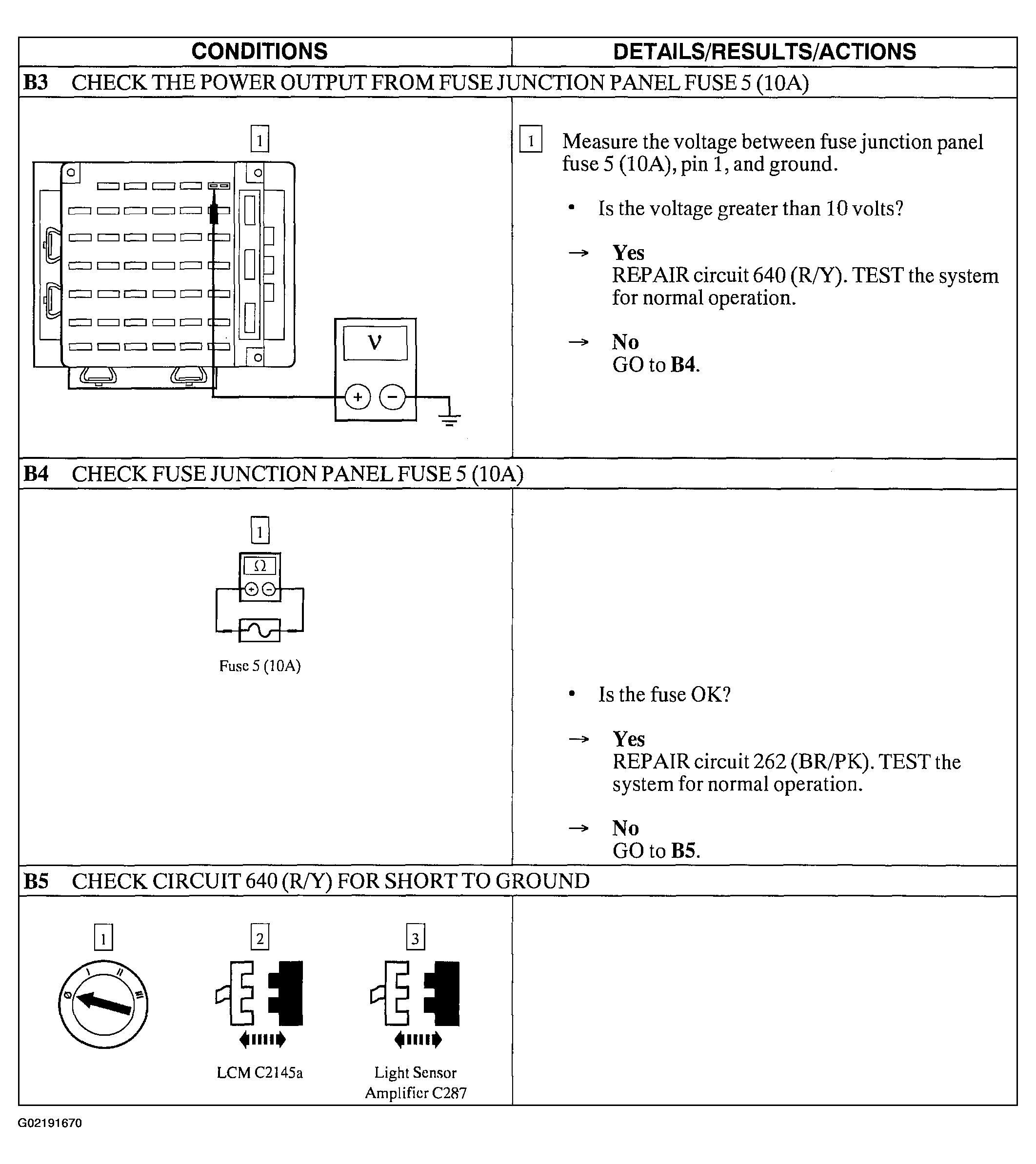

Fig 2: Pinpoint Test B: No Communication With The Module-Unable To Perform On-Demand Self-Test On Lighting Control Module (Steps B3-B5)

Courtesy of FORD MOTOR CO.

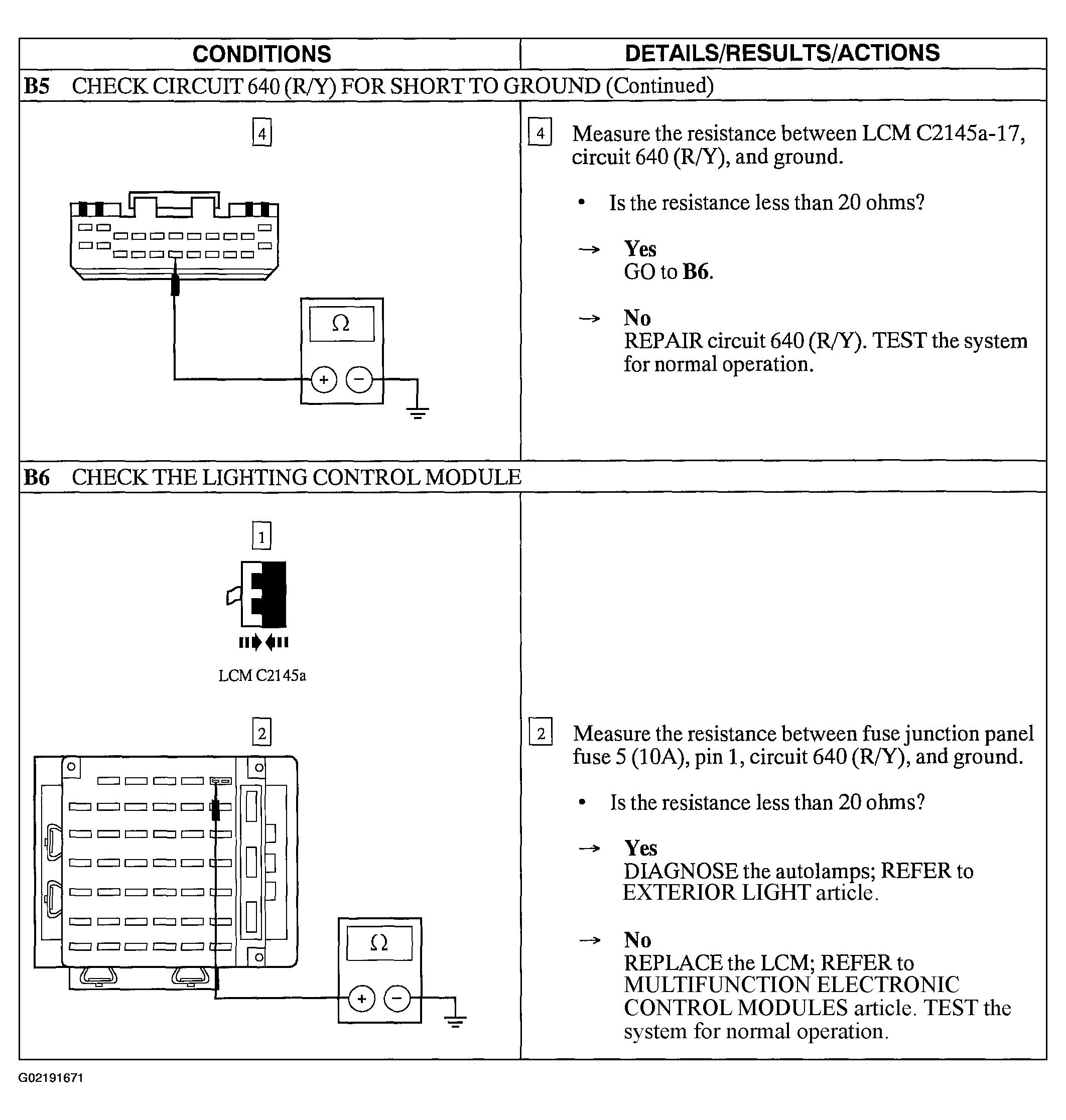

Fig 3: Pinpoint Test B: No Communication With The Module-Unable To Perform On-Demand Self-Test On Lighting Control Module (Steps B5 Cont. & B6)

Courtesy of FORD MOTOR CO.

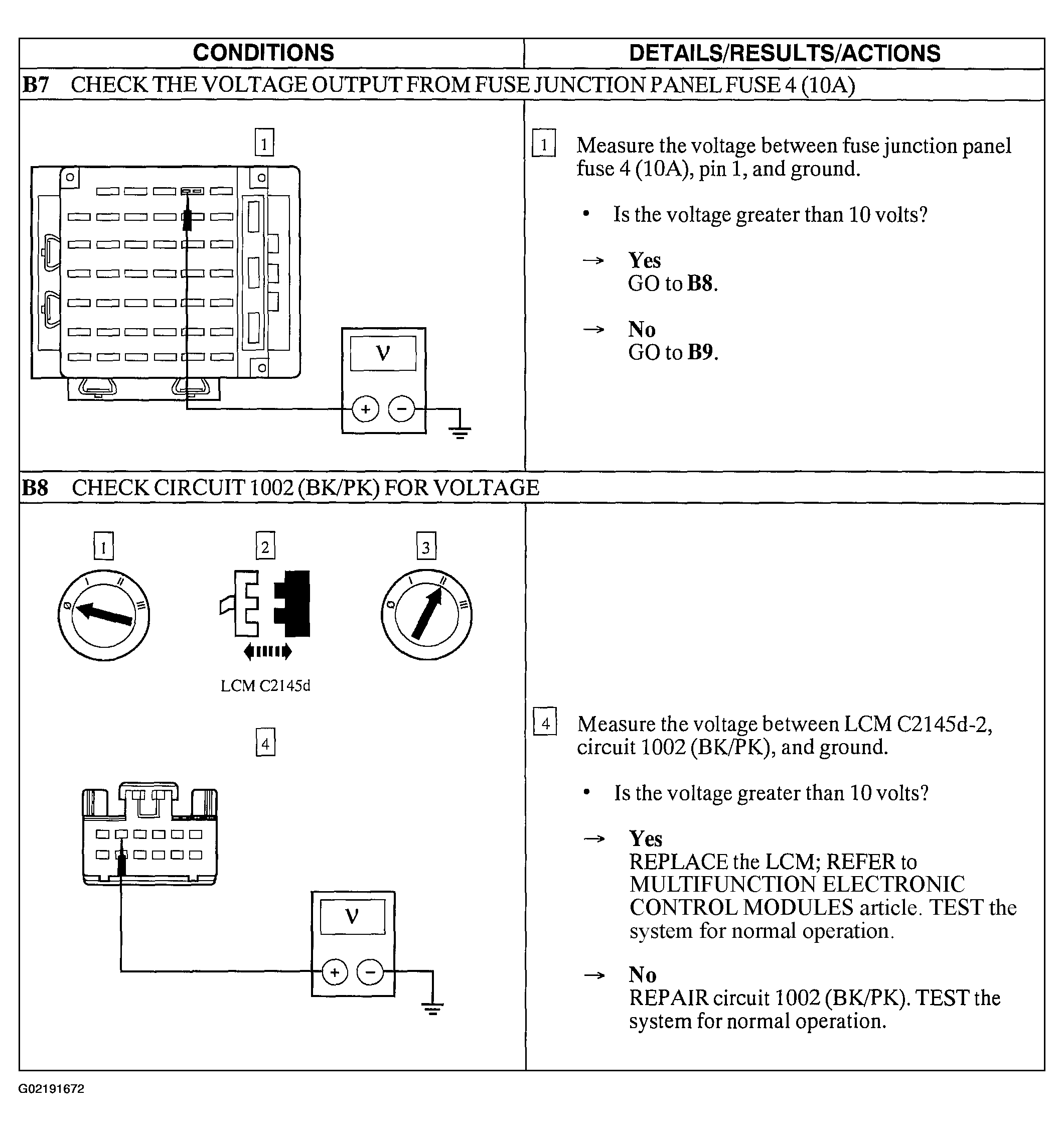

Fig 4: Pinpoint Test B: No Communication With The Module-Unable To Perform On-Demand Self-Test On Lighting Control Module (Steps B7 & B8)

Courtesy of FORD MOTOR CO.

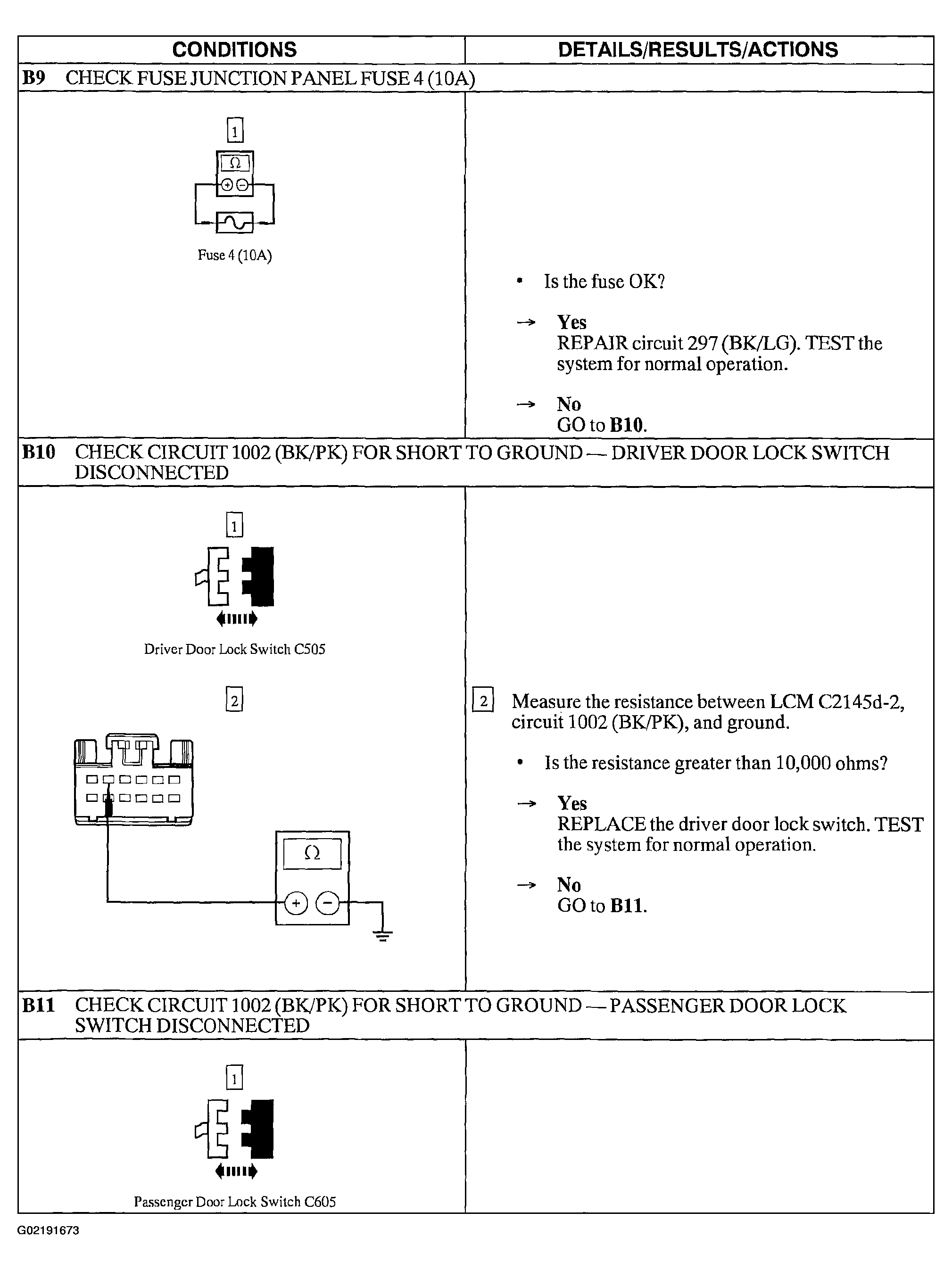

Fig 5: Pinpoint Test B: No Communication With The Module-Unable To Perform On-Demand Self-Test On Lighting Control Module (Steps B9-B11)

Courtesy of FORD MOTOR CO.

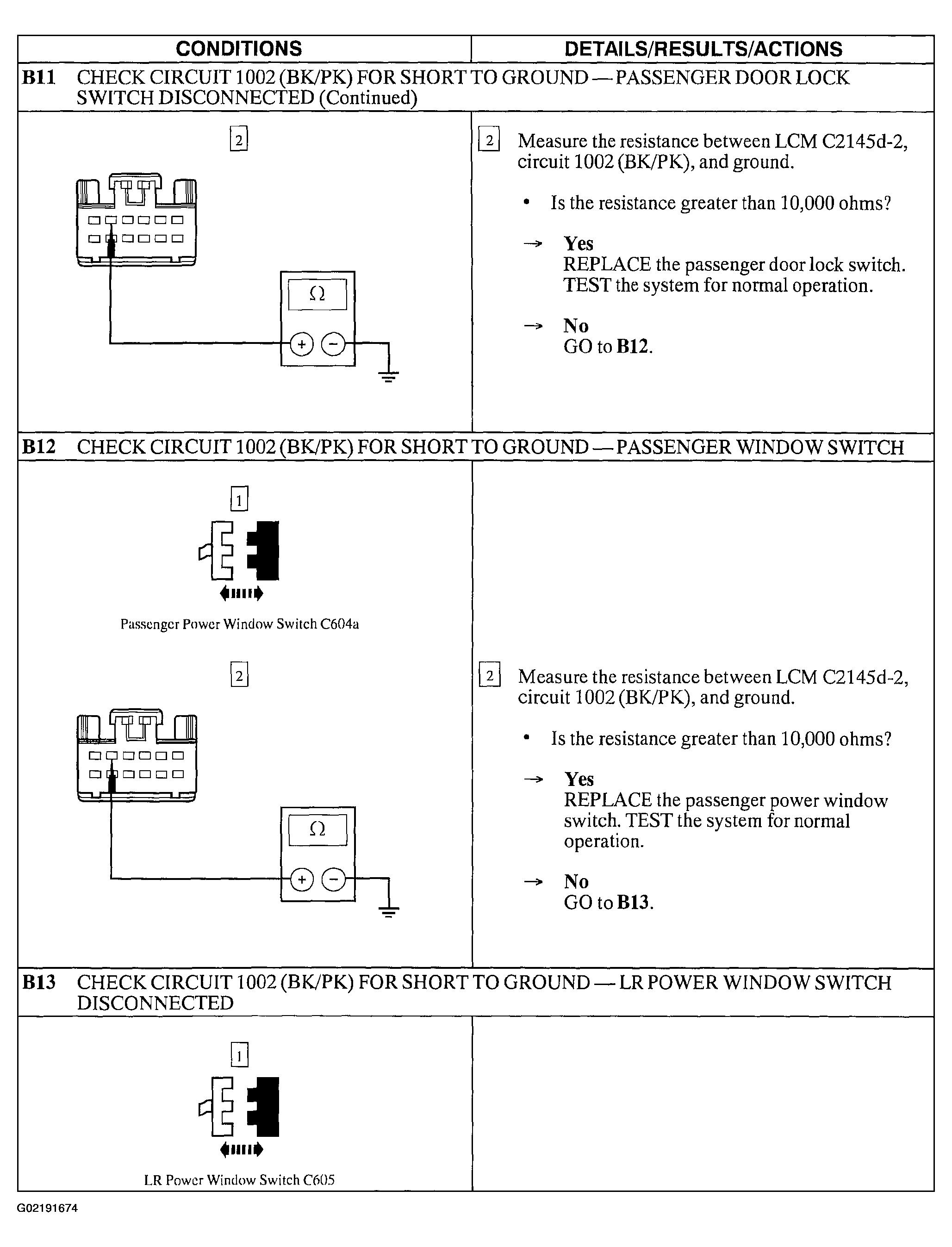

Fig 6: Pinpoint Test B: No Communication With The Module-Unable To Perform On-Demand Self-Test On Lighting Control Module (Steps B11 Cont.-B13)

Courtesy of FORD MOTOR CO.

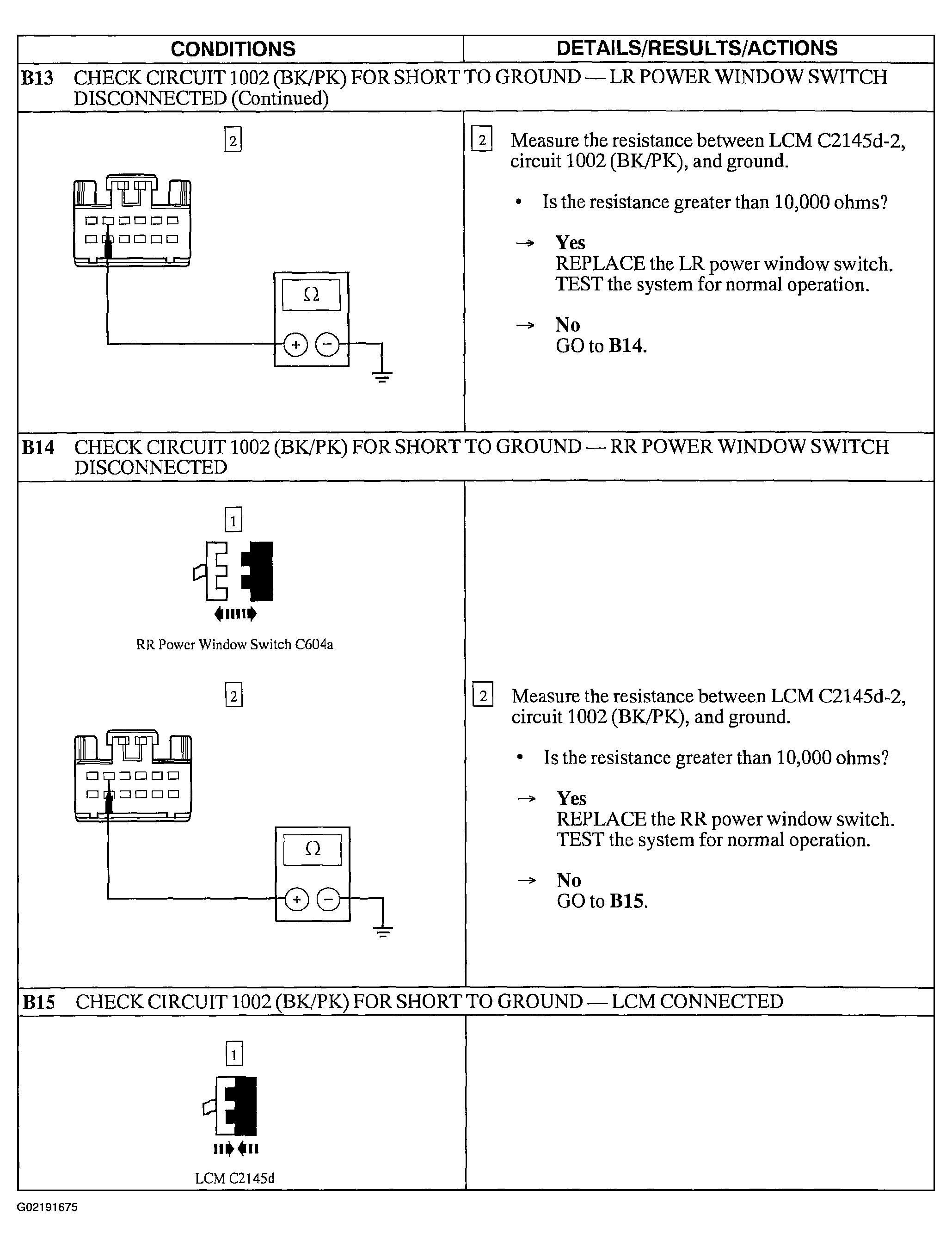

Fig 7: Pinpoint Test B: No Communication With The Module-Unable To Perform On-Demand Self-Test On Lighting Control Module (Steps B13 Cont.-B15)

Courtesy of FORD MOTOR CO.

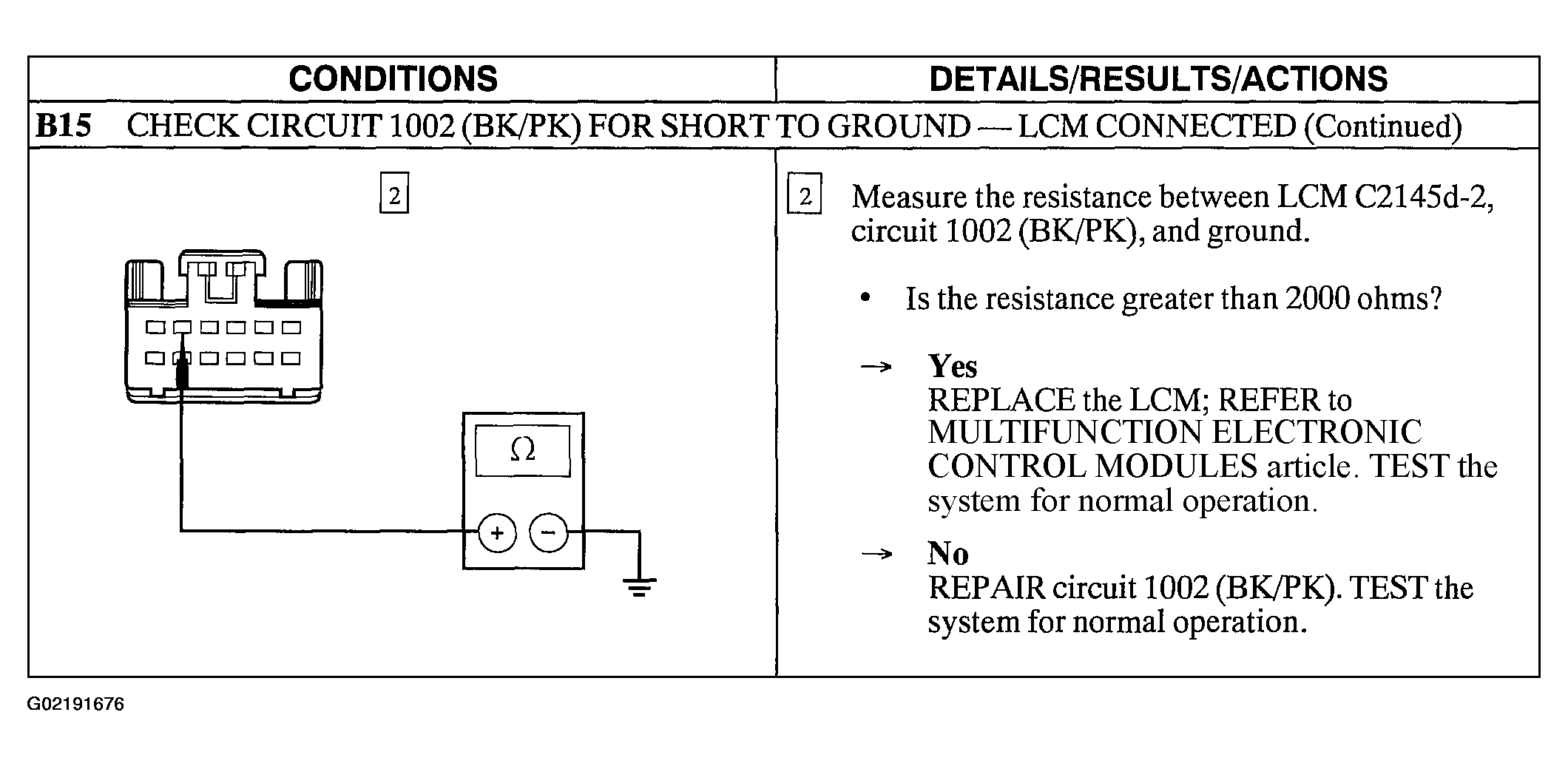

Fig 8: Pinpoint Test B: No Communication With The Module-Unable To Perform On-Demand Self-Test On Lighting Control Module (Step B15 Cont.)

Courtesy of FORD MOTOR CO.

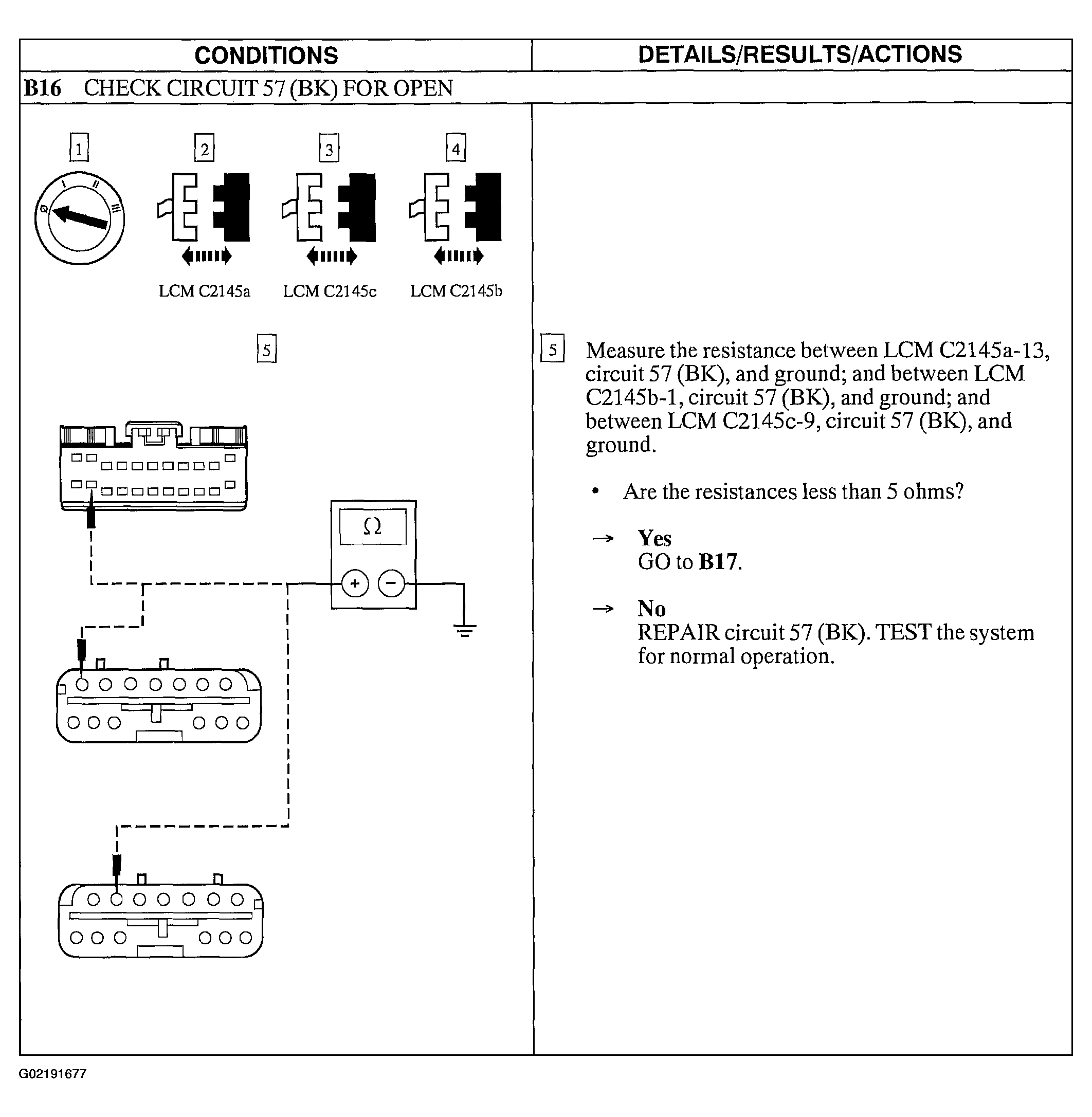

Fig 9: Pinpoint Test B: No Communication With The Module-Unable To Perform On-Demand Self-Test On Lighting Control Module (Step B16)

Courtesy of FORD MOTOR CO.

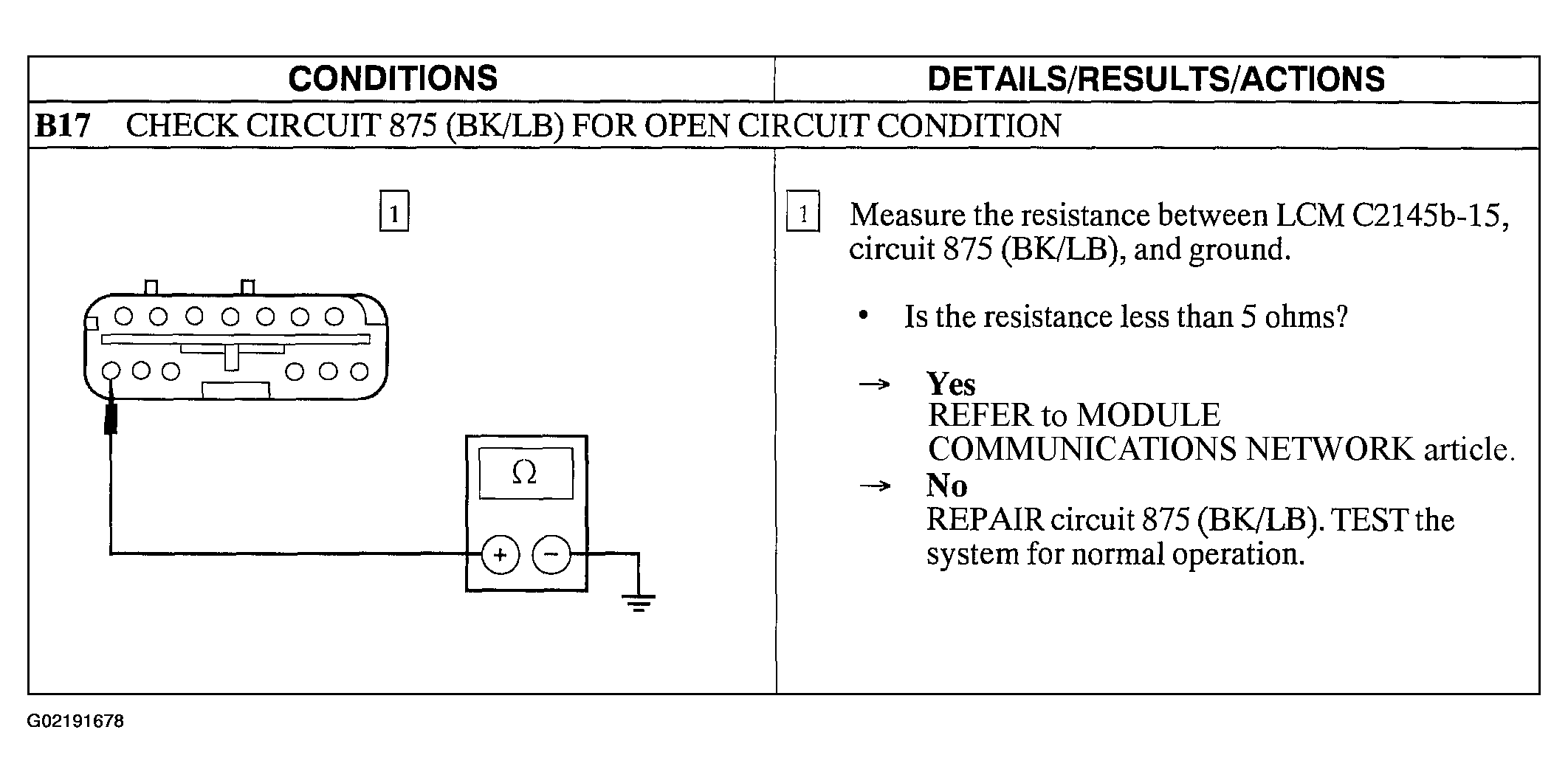

Fig 10: Pinpoint Test B: No Communication With The Module-Unable To Perform On-Demand Self-Test On Lighting Control Module (Step B17)

Courtesy of FORD MOTOR CO.
