Pinpoint Test A: No Communication With The Module-Unable To Perform On-Demand Self-Test On Lighting Control Module

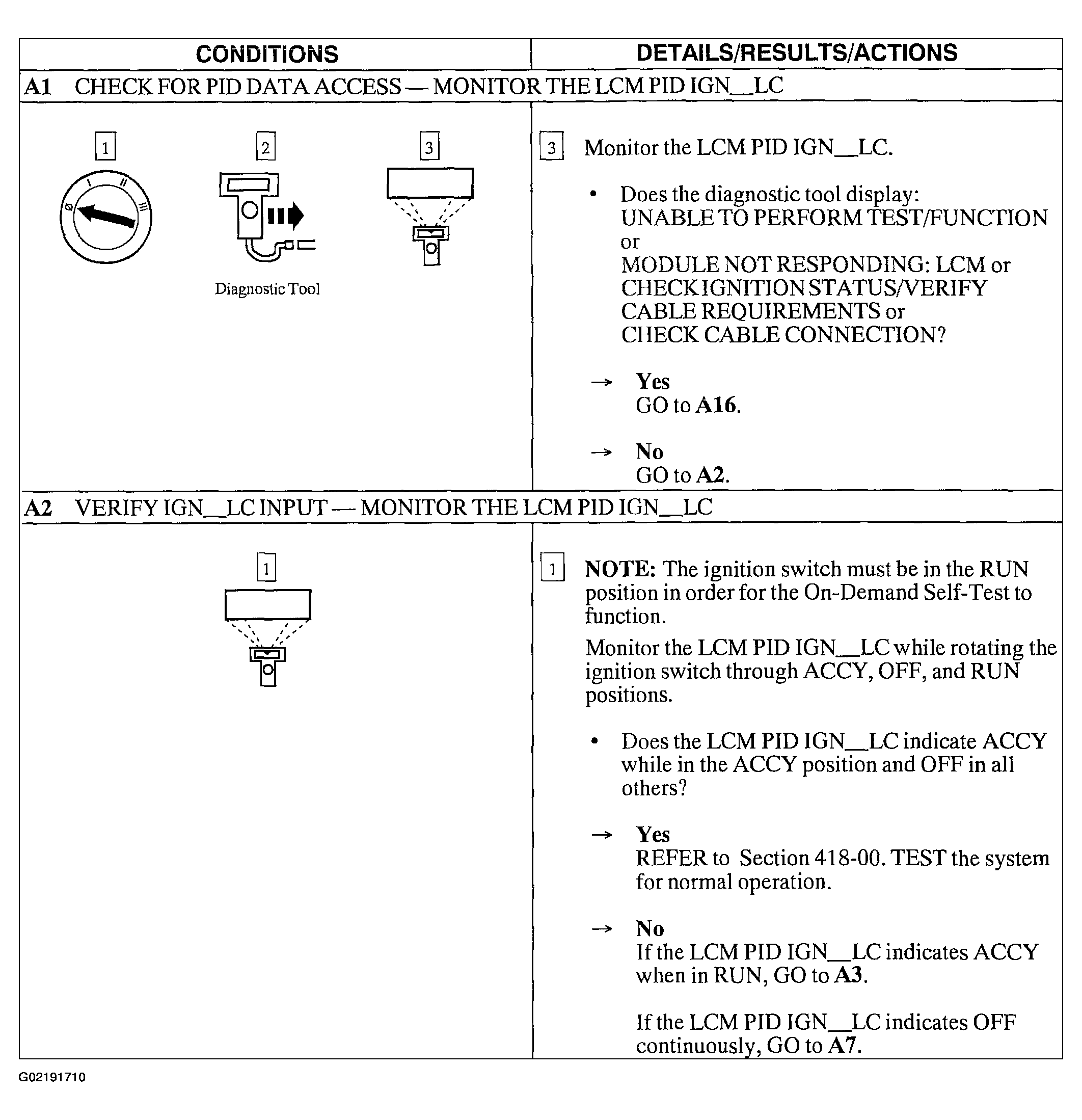

Fig 1: Pinpoint Test A: No Communication With The Module - Unable To Perform On-Demand Self-Test On Lighting Control Module (Steps A1 & A2)

Courtesy of FORD MOTOR CO.

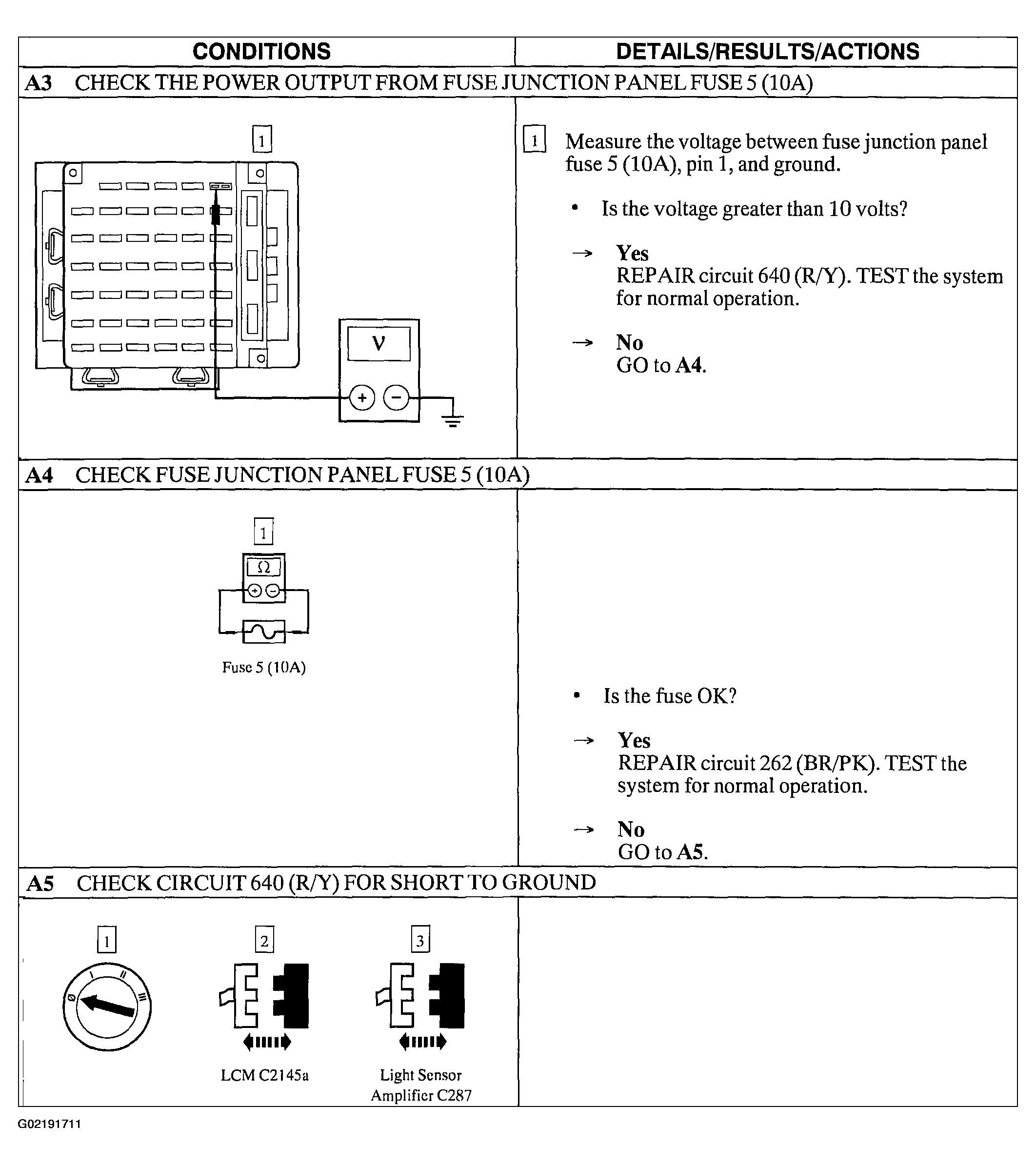

Fig 2: Pinpoint Test A: No Communication With The Module - Unable To Perform On-Demand Self-Test On Lighting Control Module (Steps A3-A5)

Courtesy of FORD MOTOR CO.

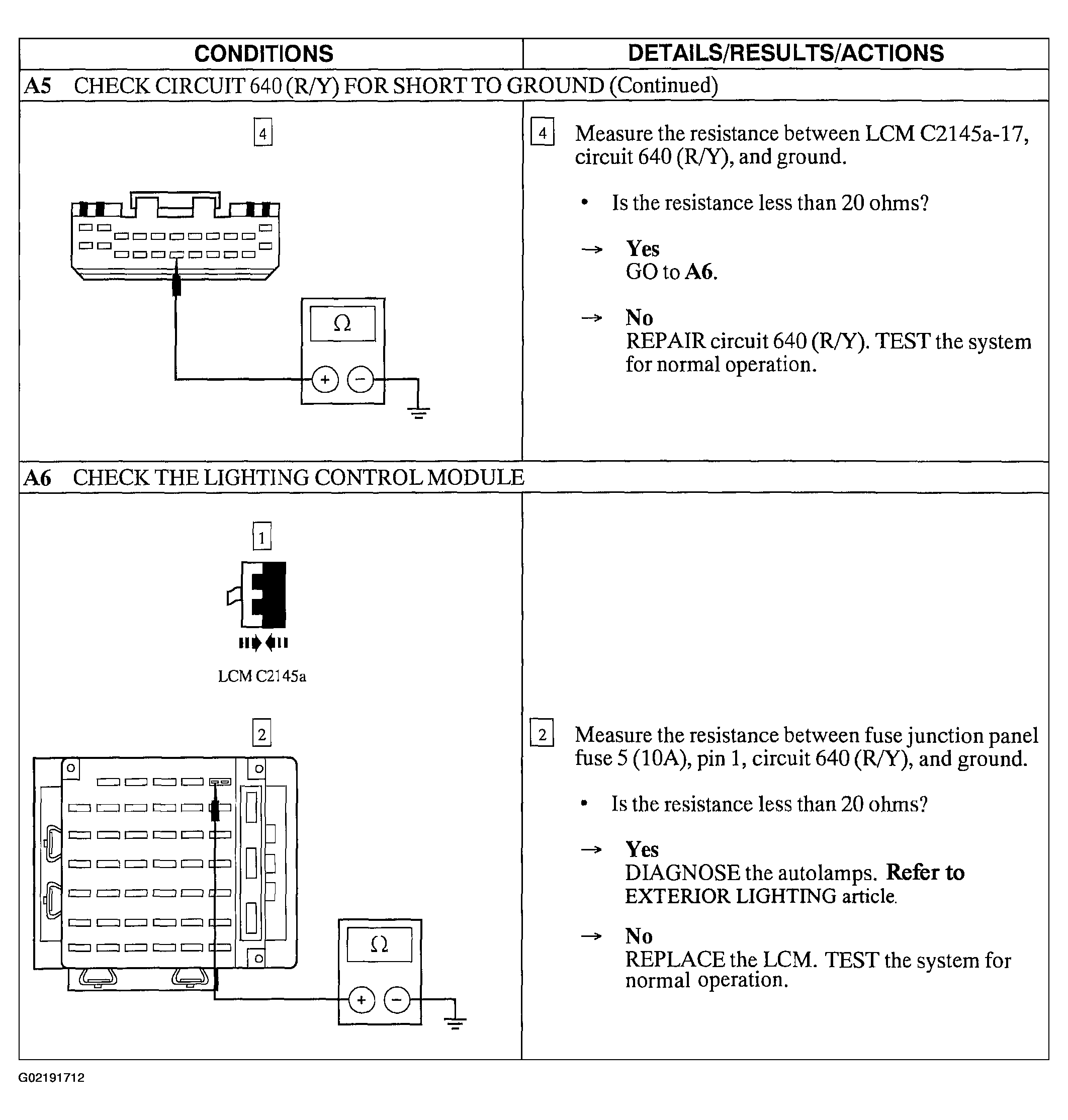

Fig 3: Pinpoint Test A: No Communication With The Module - Unable To Perform On-Demand Self-Test On Lighting Control Module (Steps A5 Cont. & A6)

Courtesy of FORD MOTOR CO.

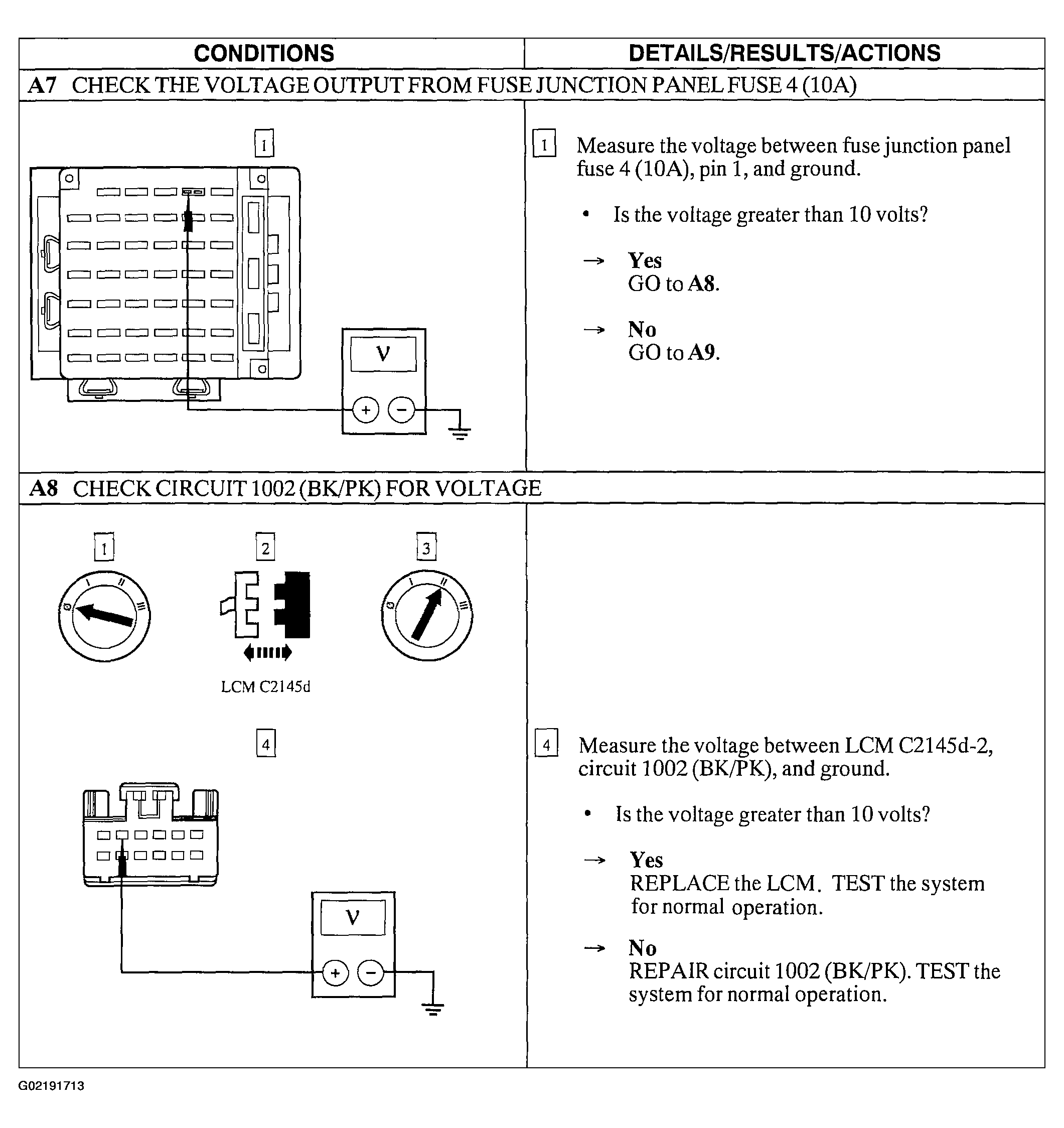

Fig 4: Pinpoint Test A: No Communication With The Module - Unable To Perform On-Demand Self-Test On Lighting Control Module (Steps A7 & A8)

Courtesy of FORD MOTOR CO.

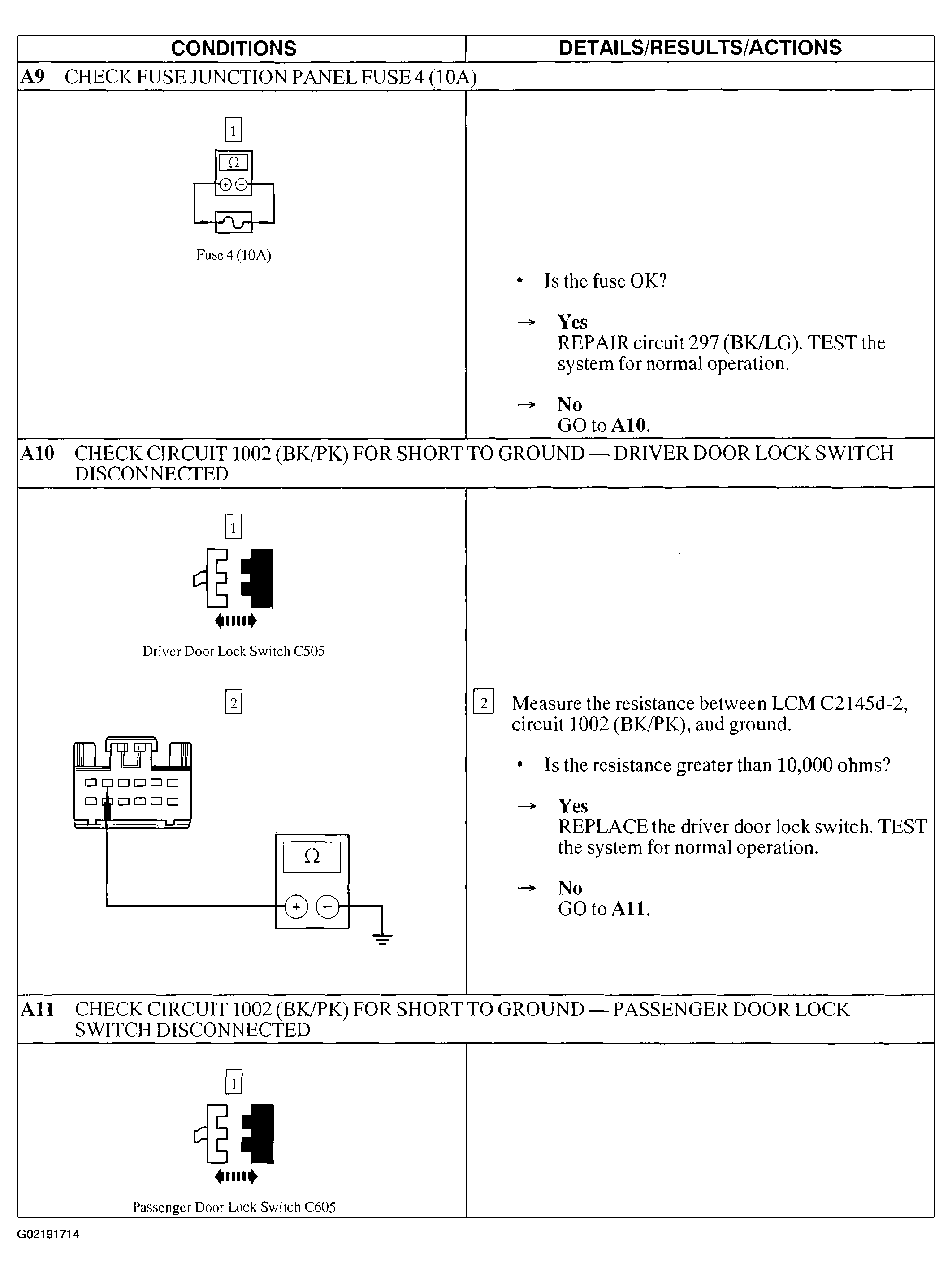

Fig 5: Pinpoint Test A: No Communication With The Module - Unable To Perform On-Demand Self-Test On Lighting Control Module (Steps A9-A11)

Courtesy of FORD MOTOR CO.

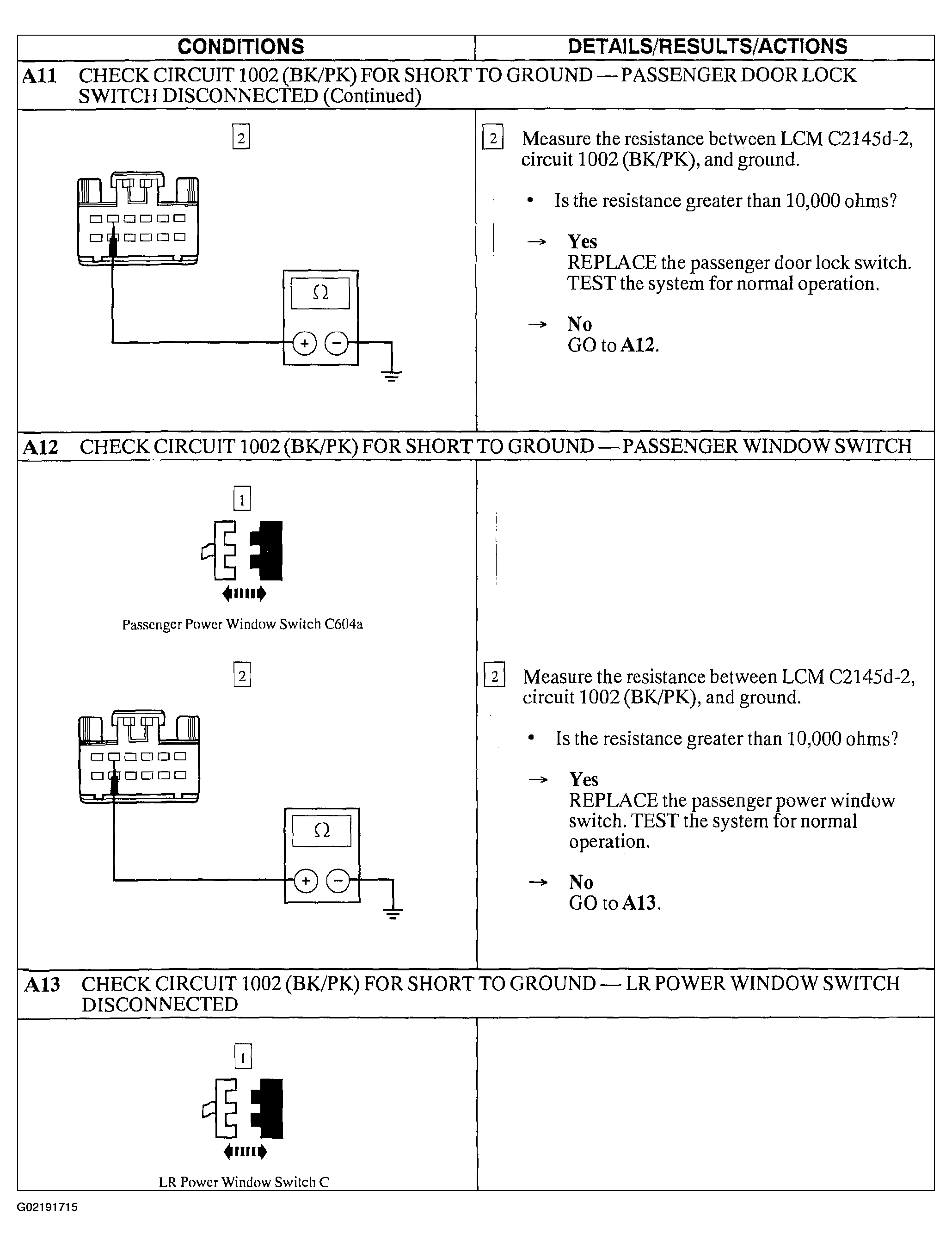

Fig 6: Pinpoint Test A: No Communication With The Module - Unable To Perform On-Demand Self-Test On Lighting Control Module (Steps A11 Cont.-A13)

Courtesy of FORD MOTOR CO.

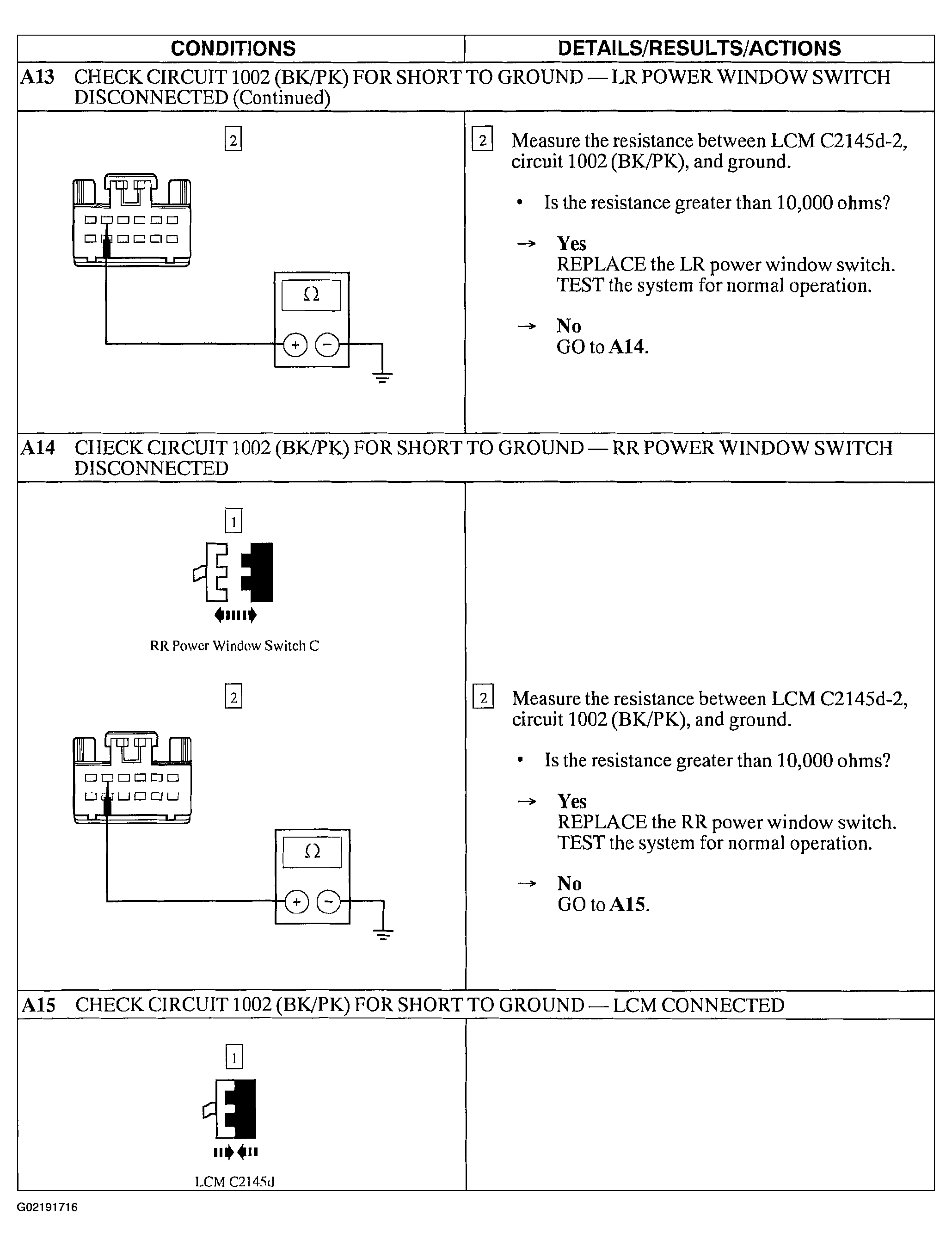

Fig 7: Pinpoint Test A: No Communication With The Module - Unable To Perform On-Demand Self-Test On Lighting Control Module (Steps A13 Cont.-A15)

Courtesy of FORD MOTOR CO.

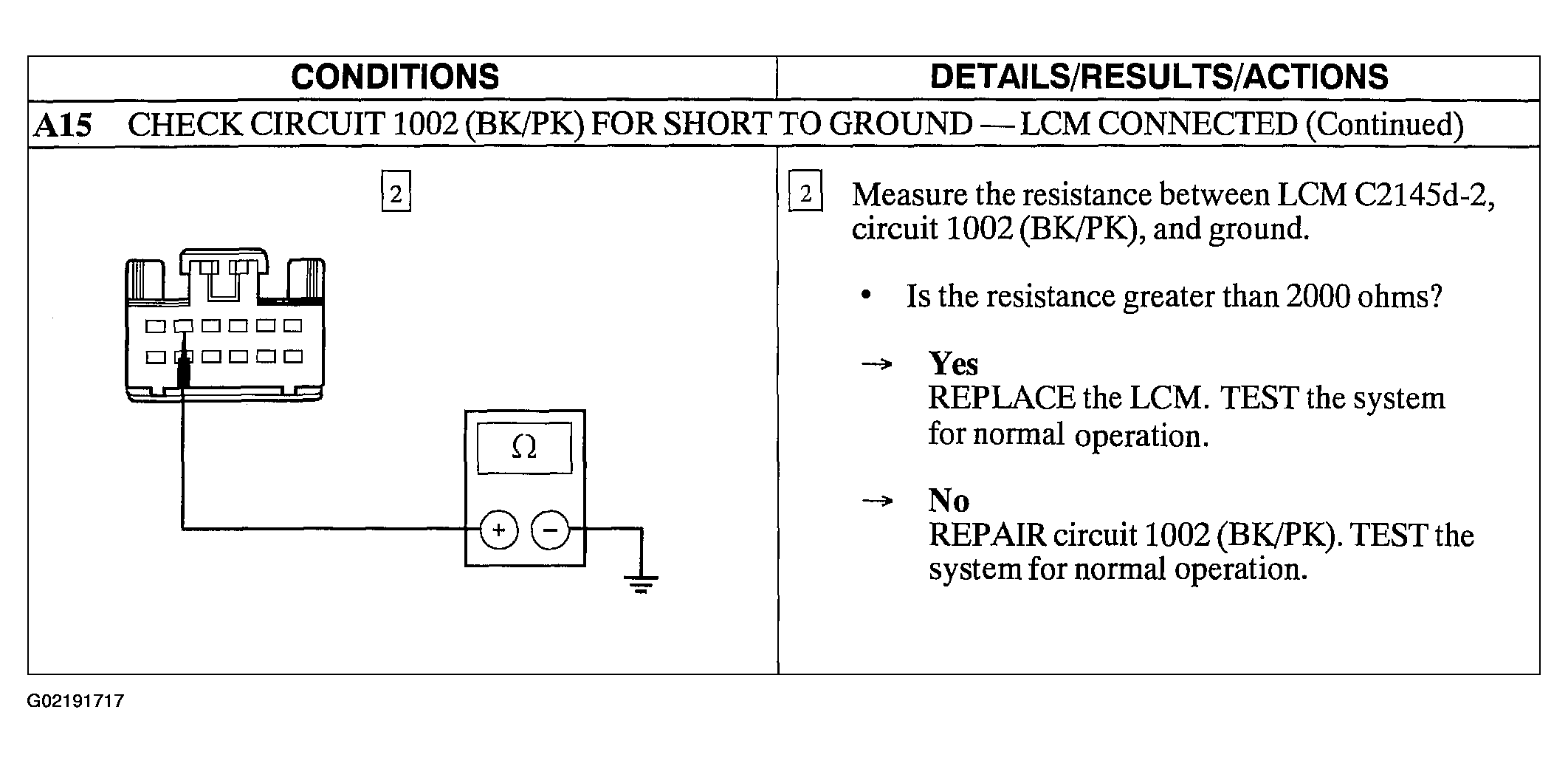

Fig 8: Pinpoint Test A: No Communication With The Module - Unable To Perform On-Demand Self-Test On Lighting Control Module (Step A15 Cont.)

Courtesy of FORD MOTOR CO.

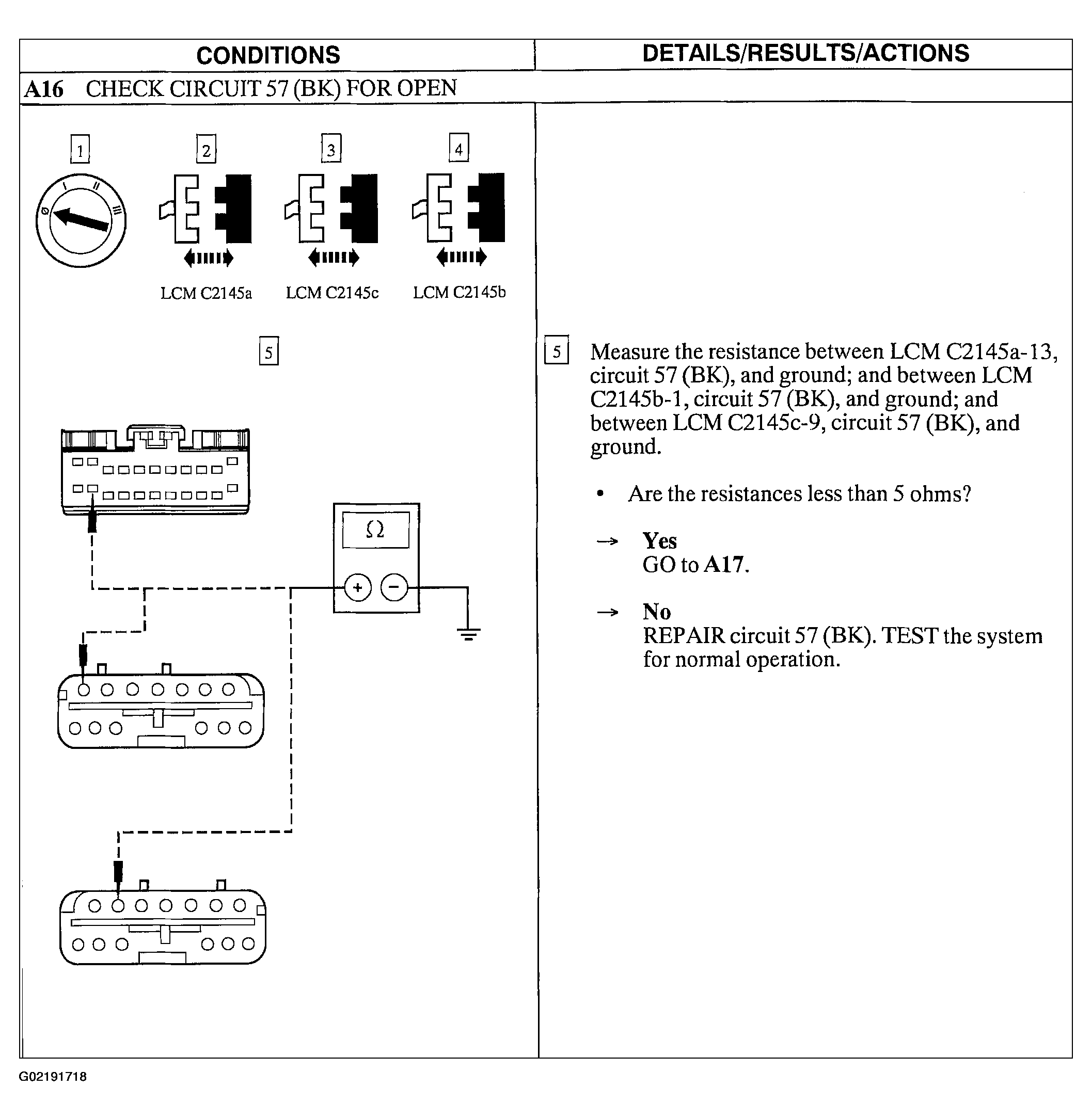

Fig 9: Pinpoint Test A: No Communication With The Module - Unable To Perform On-Demand Self-Test On Lighting Control Module (Step A16)

Courtesy of FORD MOTOR CO.

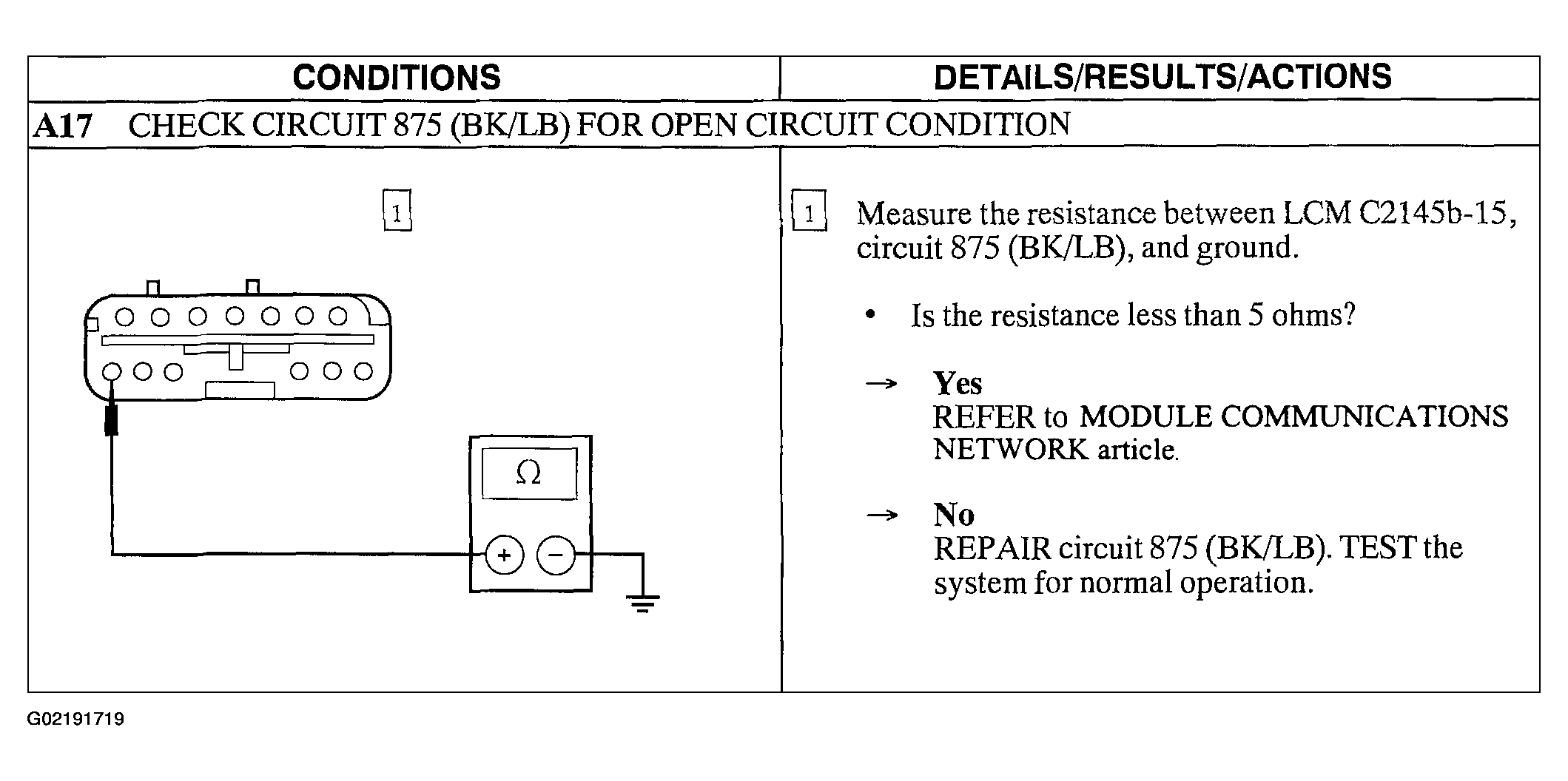

Fig 10: Pinpoint Test A: No Communication With The Module - Unable To Perform On-Demand Self-Test On Lighting Control Module (Step A17)

Courtesy of FORD MOTOR CO.
