Pinpoint Test A: The Module Does Not Respond To The Diagnostic Tool - Anti-Lock Brake Control Module

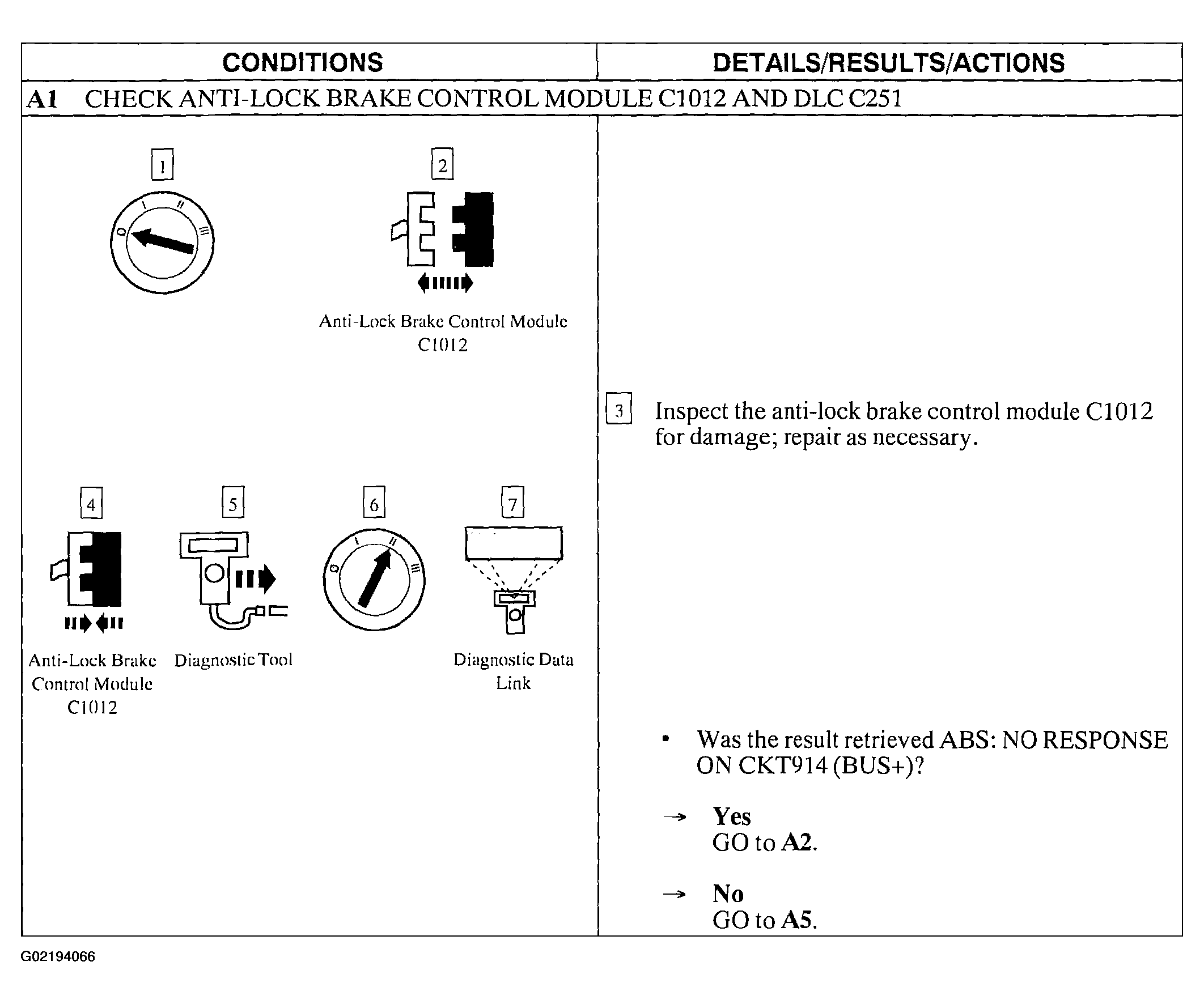

Fig 1: Pinpoint Test A: The Module Does Not Respond To The Diagnostic Tool - Anti-Lock Brake Control Module (Step A1)

Courtesy of FORD MOTOR CO.

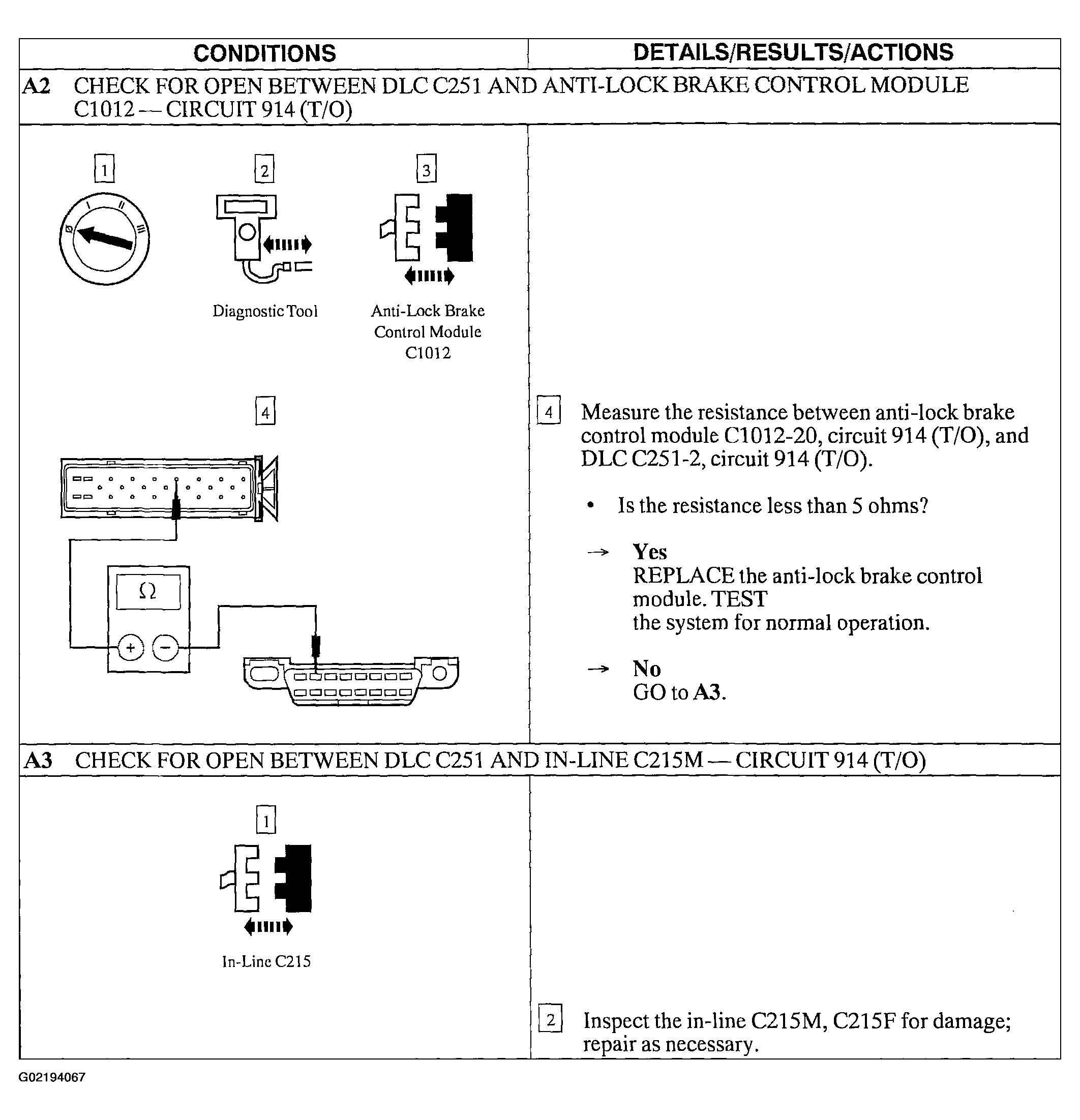

Fig 2: Pinpoint Test A: The Module Does Not Respond To The Diagnostic Tool - Anti-Lock Brake Control Module (Steps A2 & A3)

Courtesy of FORD MOTOR CO.

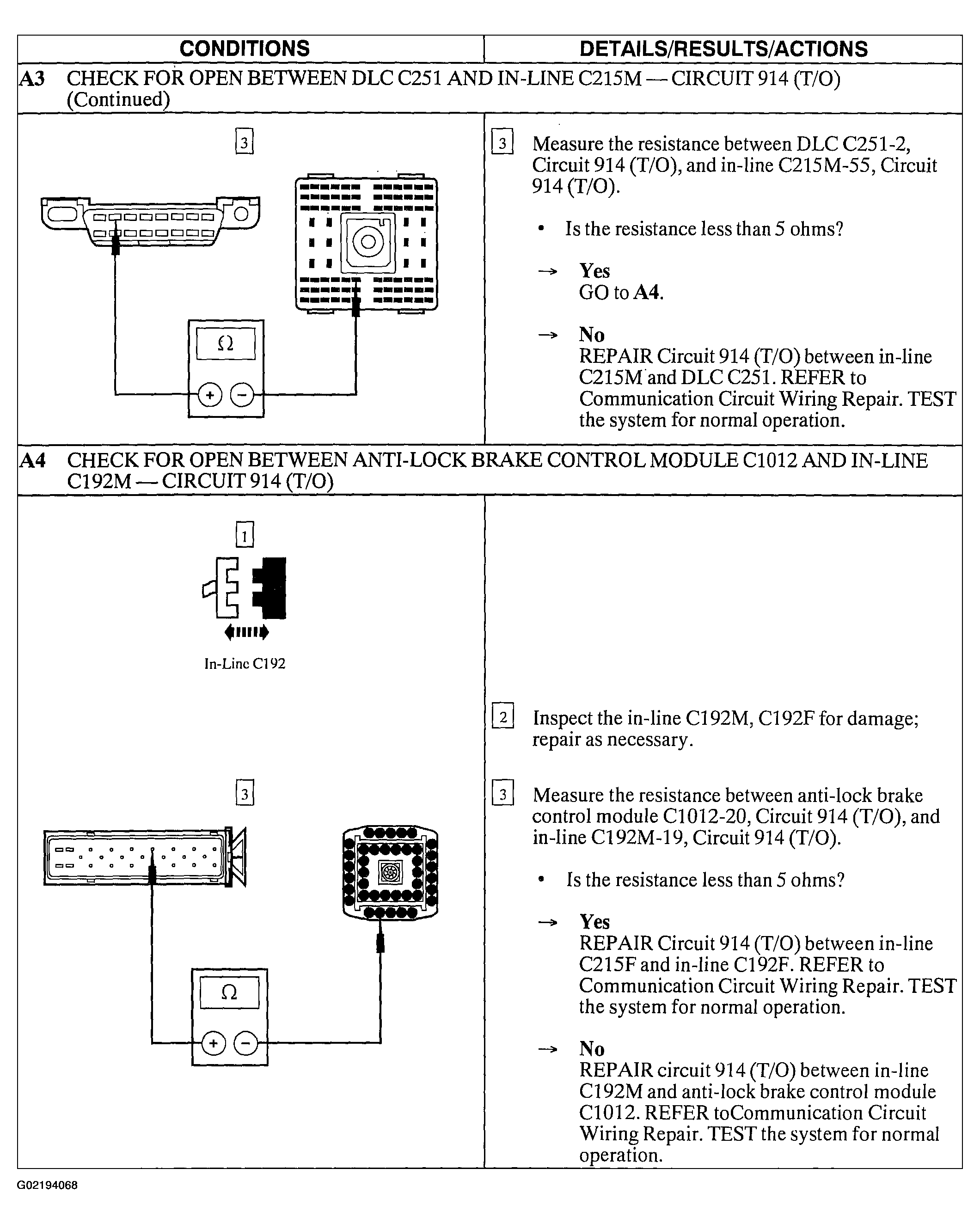

Fig 3: Pinpoint Test A: The Module Does Not Respond To The Diagnostic Tool - Anti-Lock Brake Control Module (Steps A3 Cont. & A4)

Courtesy of FORD MOTOR CO.

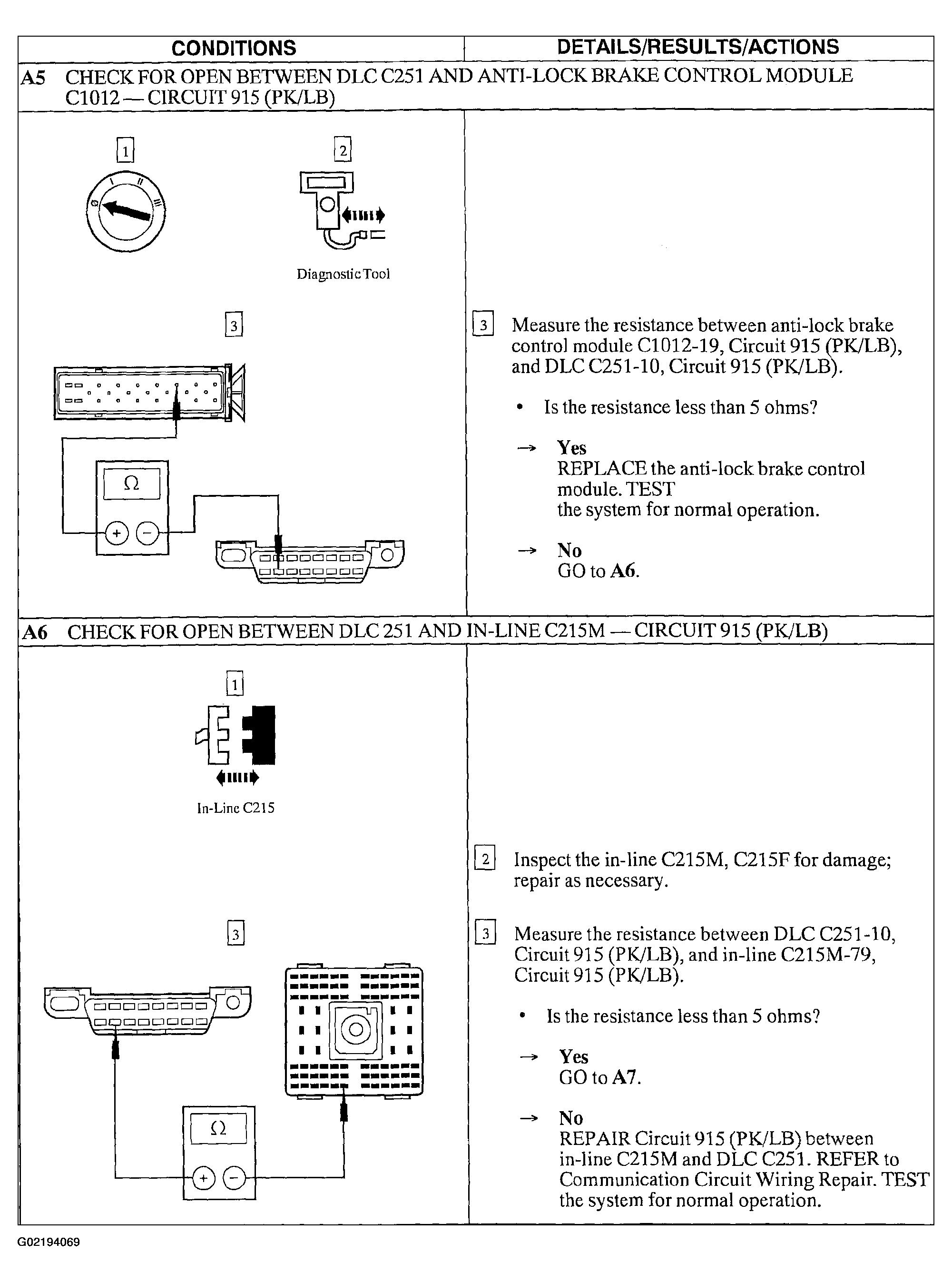

Fig 4: Pinpoint Test A: The Module Does Not Respond To The Diagnostic Tool - Anti-Lock Brake Control Module (Steps A5 & A6)

Courtesy of FORD MOTOR CO.

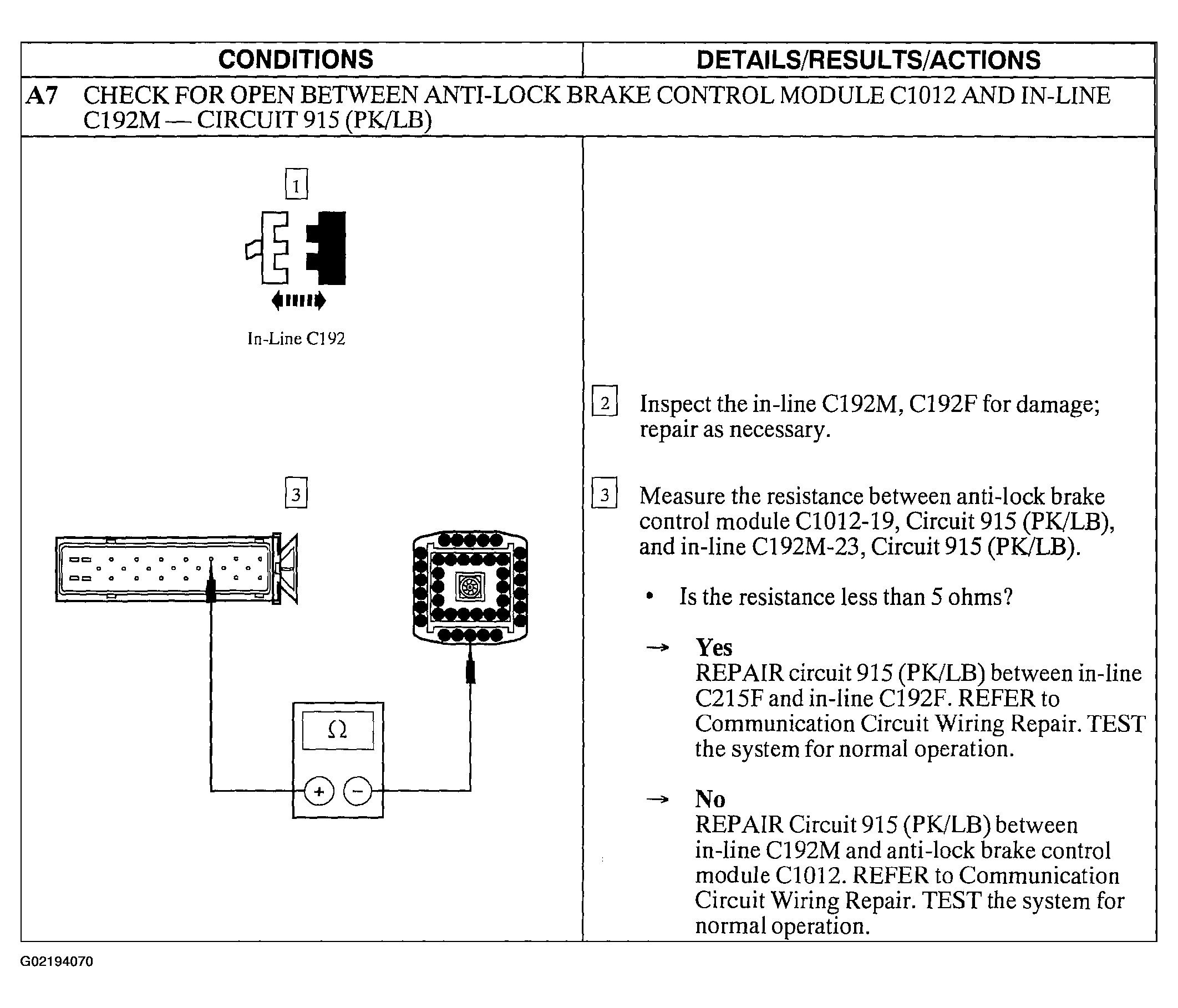

Fig 5: Pinpoint Test A: The Module Does Not Respond To The Diagnostic Tool - Anti-Lock Brake Control Module (Step A7)

Courtesy of FORD MOTOR CO.
