Pinpoint Test D: The Module Does Not Respond To The Diagnostic Tool - Driver Seat Module (DSM)

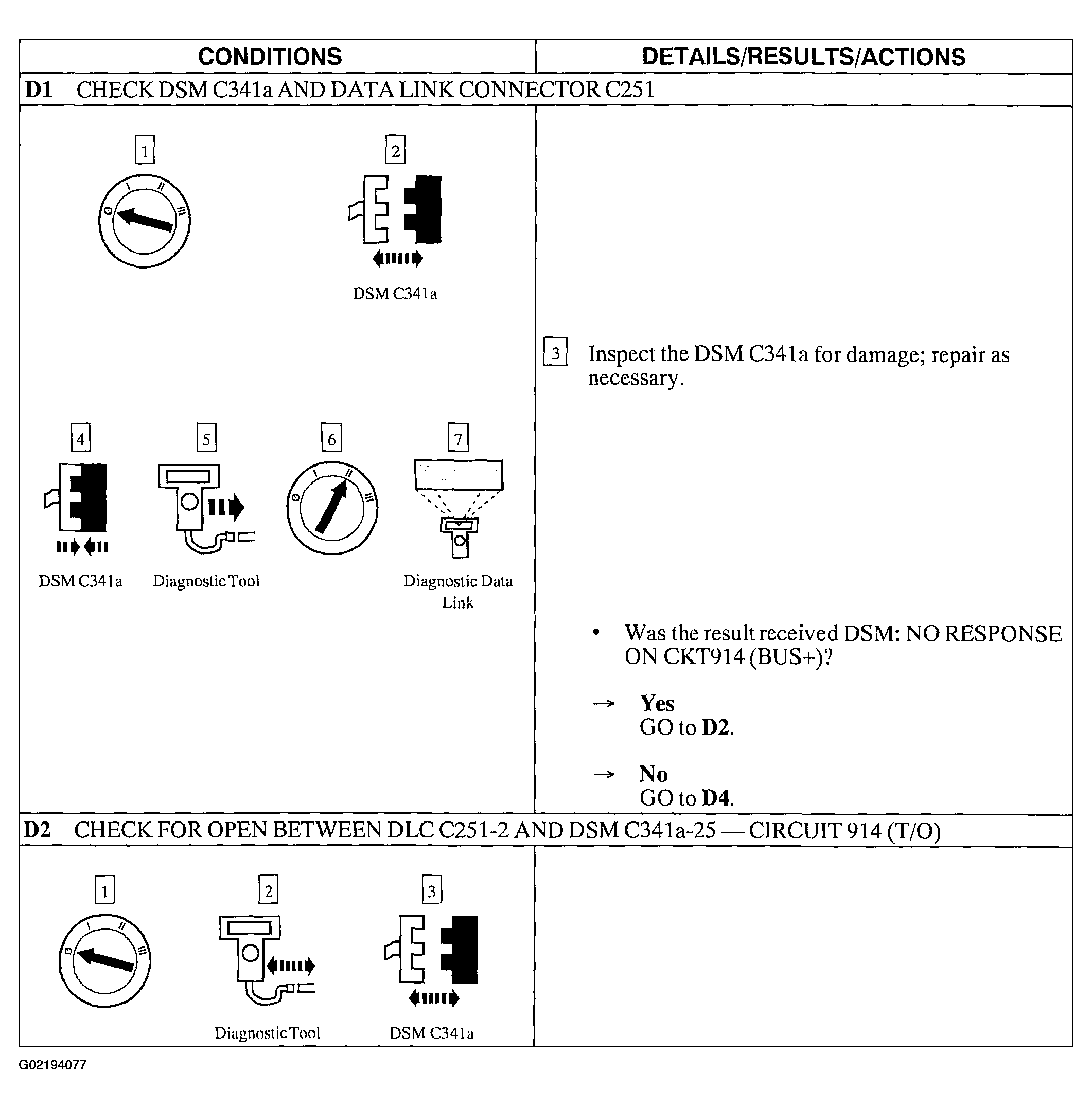

Fig 1: Pinpoint Test D: The Module Does Not Respond To The Diagnostic Tool - Driver Seat Module (DSM) (Steps D1 & D2)

Courtesy of FORD MOTOR CO.

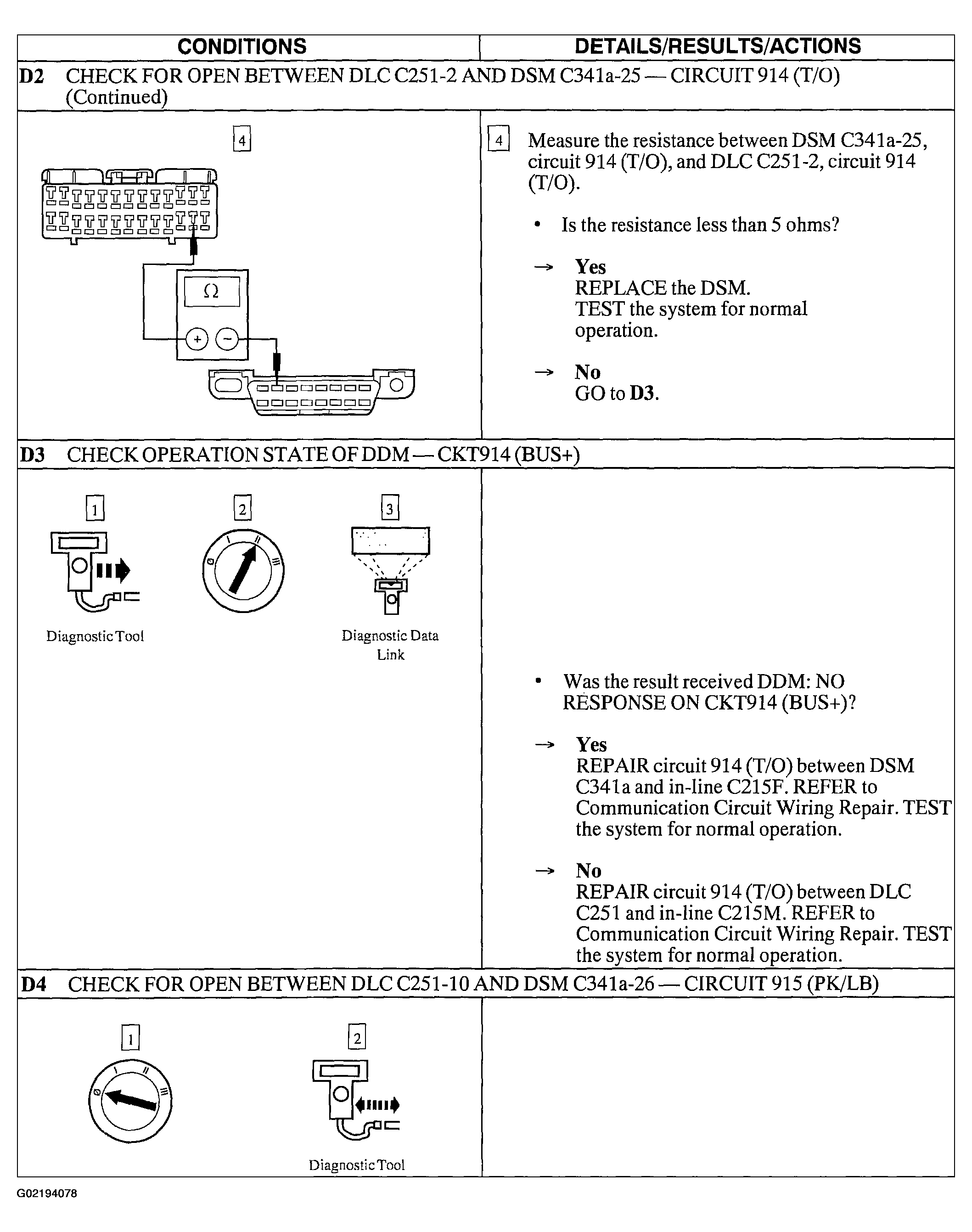

Fig 2: Pinpoint Test D: The Module Does Not Respond To The Diagnostic Tool - Driver Seat Module (DSM) (Steps D2 Cont.-D4)

Courtesy of FORD MOTOR CO.

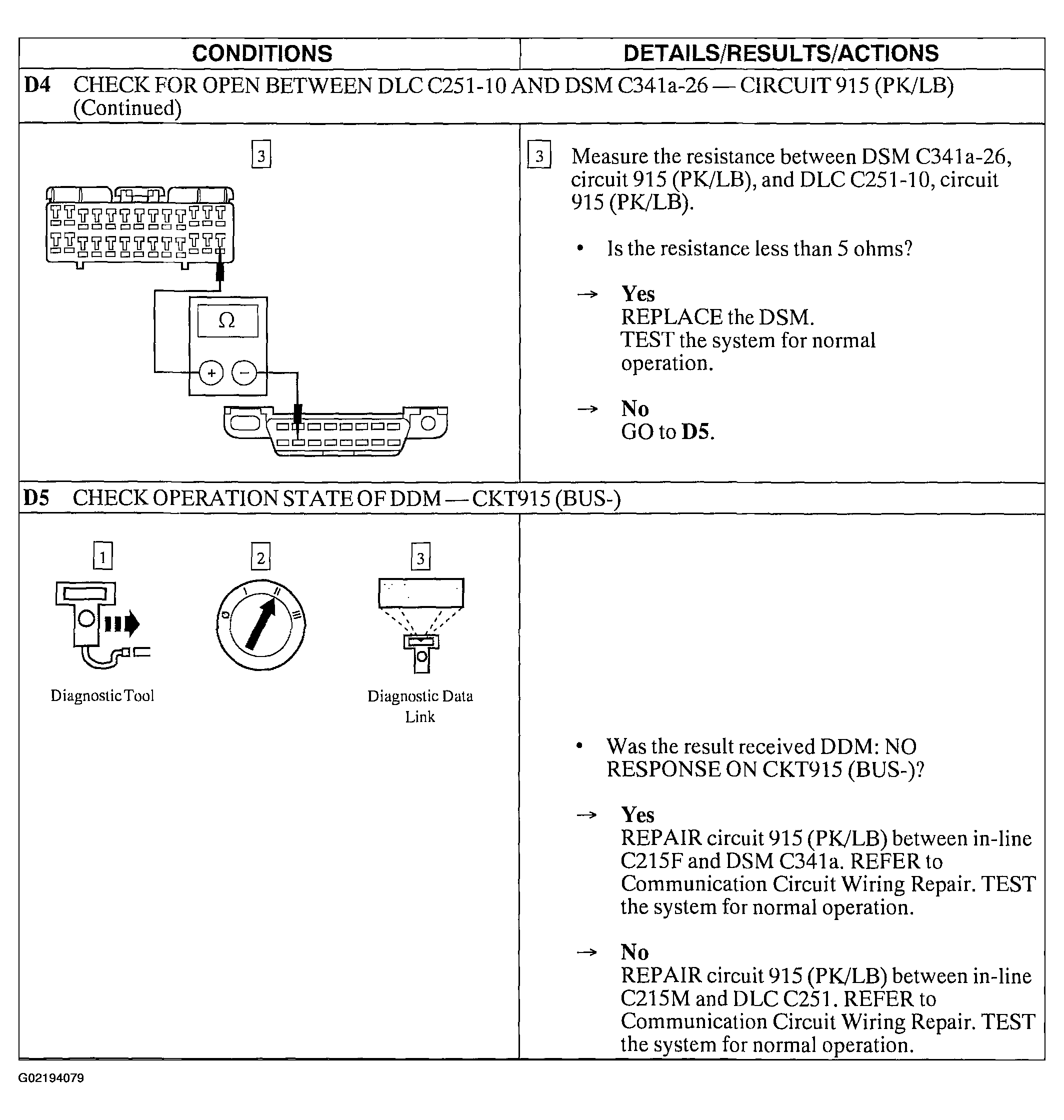

Fig 3: Pinpoint Test D: The Module Does Not Respond To The Diagnostic Tool - Driver Seat Module (DSM) (Steps D4 & D5)

Courtesy of FORD MOTOR CO.
