Pinpoint Test E: The Module Does Not Respond To The Diagnostic Tool - Electronic Automatic Temperature Control (EATC) Module

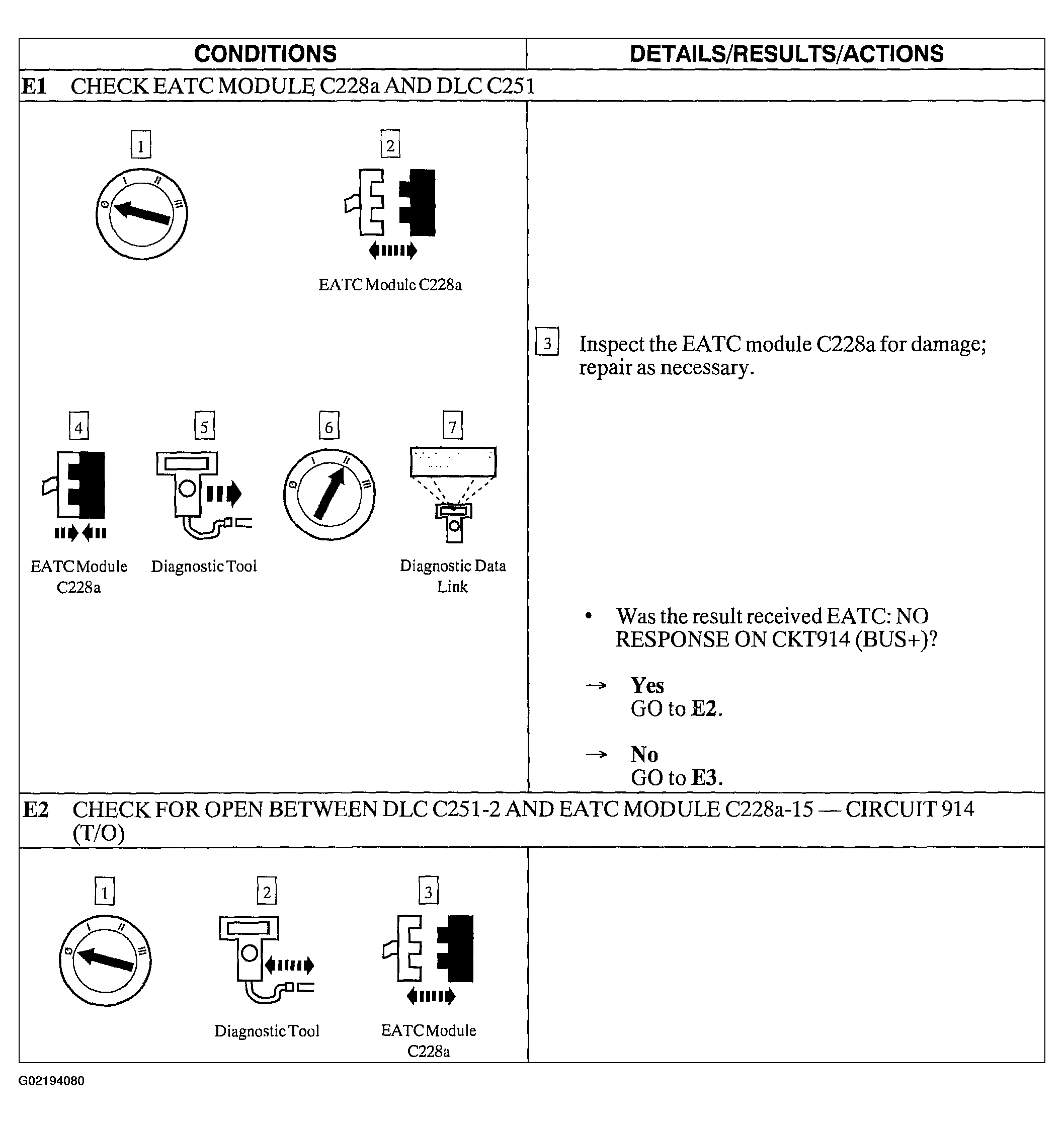

Fig 1: Pinpoint Test E: The Module Does Not Respond To The Diagnostic Tool - Electronic Automatic Temperature Control (EATC) Module (Steps E1 & E2)
Courtesy of FORD MOTOR CO.

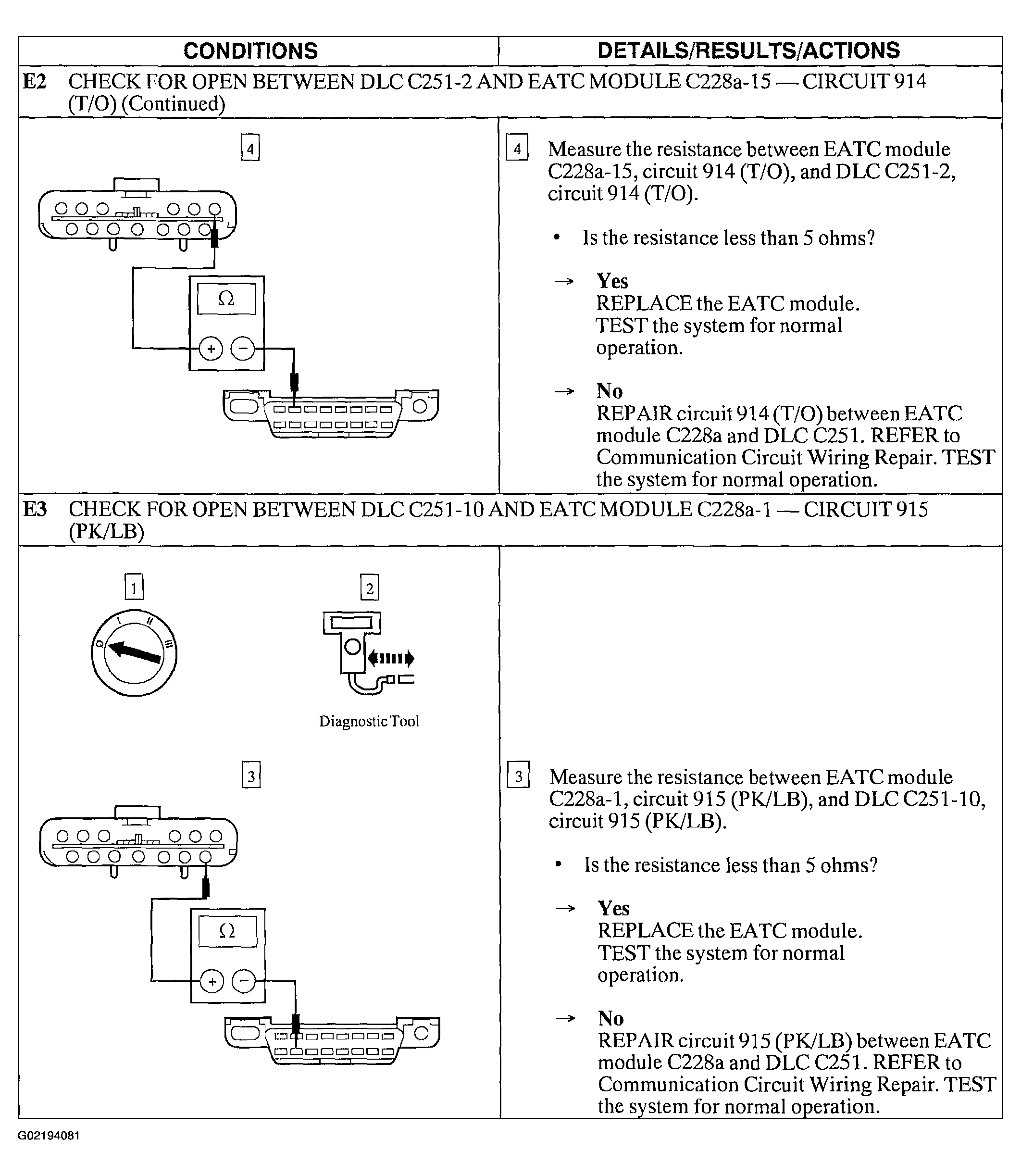

Fig 2: Pinpoint Test E: The Module Does Not Respond To The Diagnostic Tool - Electronic Automatic Temperature Control (EATC) Module (Steps E2 Cont. & E3)
